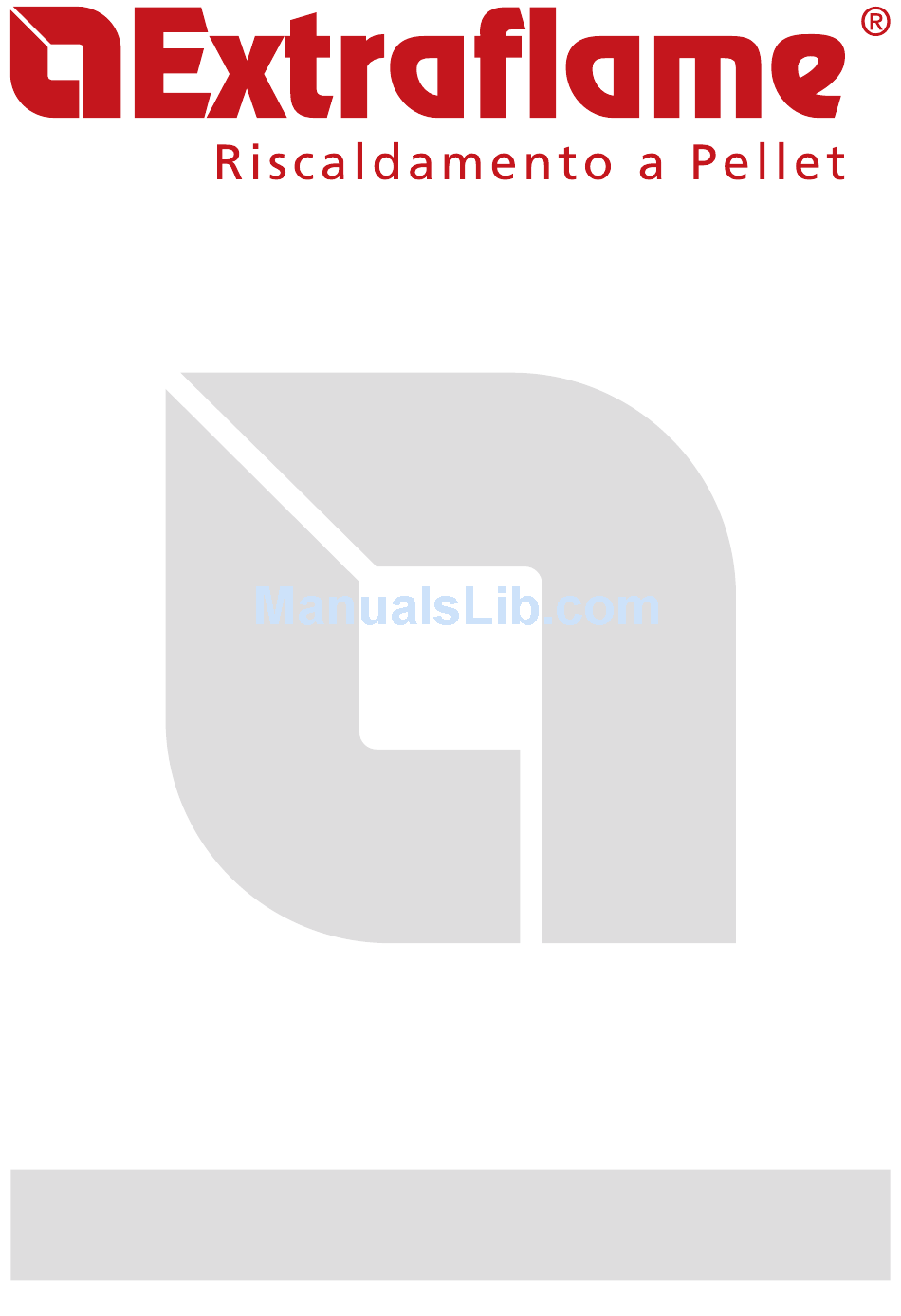

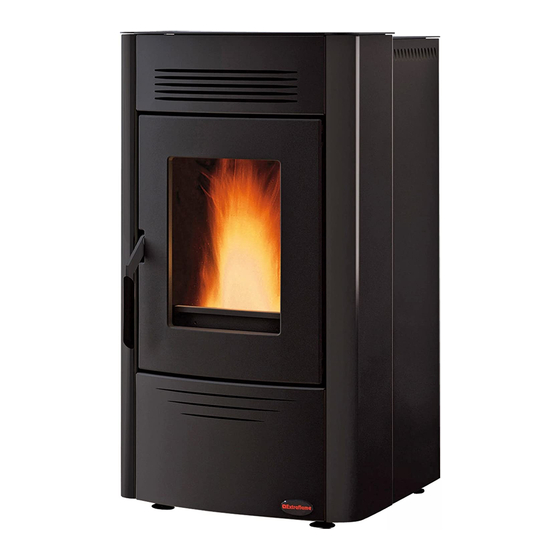

- Page 1 Stove and pellet inSertS uSer manual ViViana - ViViana Plus - dorina engliSh/ingleSe...
-
Page 3: Table Of Contents
We thank you for having chosen our company; our product is a great heating solution developed from the most advanced technology with top quality machining and modern design, aimed at making you enjoy the fantastic sensation that the heat of a flame gives, in complete safety. Extraflame S. p. A. enGLiSH .............................................. -
Page 4: English
Extraflame s.p.a. cannot be held responsible for the failure to comply with such precautions. After removing the packaging, ensure that the content is intact and complete. If not so, contact the dealer where the appliance was purchased. -
Page 5: Safety Devices
EngLisH | ingLEsE safEty dEvicEs gLossary safEty dEvicEs Key: * = presenT, - = noT presenT cLosEd HEartH aPPLiancE Heat generator which opening is only allowed through the circuit board: intervenes directly by sending the product loading of the fuel during use. into alarm conditions until complete cooling, in the case BioMass of: breakage of flue gas motor, pellet feed motor breakage,... -
Page 6: Installations Allowed
EngLisH | ingLEsE radiation arEa for expelling combustion products, the instructions below Area immediately near the hearth in which the heat caused by must be followed: combustion is diffused, where no combustion materials must Insulating be present. product rEfLuX arEa Area where leaking of the combustion products is verified, from the appliance towards the installation room. -
Page 7: Chimney Or Individual Flue
EngLisH | ingLEsE cHiMnEy or individuaL fLuE The chimney or individual flue must respond to the following requisites: Š seal the combustion products, be waterproof and adequately insulated in line with the use conditions; Š be realised with materials which resist the normal mechanical stress, heat, action of the combustion products and any condensate;... -
Page 8: Chimney Cap
EngLisH | ingLEsE < 3 m external pipe that is isolated 45° Inspection 45° Inspection Appliance connection to the flue and combustion products evacuation The flue must receive the discharge from only one heat generator. Direct discharge towards closed spaces is forbidden, even with clear sky. The direct discharge of the combustion products must be at roof and the smoke pipe must have the features provided in the "Chimney or individual flue"... -
Page 9: Connection To External Air Inlets
Š Ö-norm M 7135 Š DIn plus 51731 Š UnI Cen/Ts 14961 extraflame recommends the use of pellets with a 6 mm diameter for its products. open the tank lid and load the pellets using a scoop. tHE usE of EXPirEd PELLEts or any otHEr MatEriaL daMagEs tHE functions of your stovE and can... -
Page 10: Hot Air Ducting
PossiBLE to dEactivatE tHE ducting Motor. do not covEr or cLosE ducting! ducting of tHE viviana PLus ModEL cannot BE adjustEd. By dEfauLt its functioning is ParaLLEL to front vEntiLation. sEE tHE foLLoWing cHaPtEr for its ManagEMEnt. -
Page 11: The Display Description Of Controls And Symbols
enGlish | inGlese The Display DescripTion of conTrols anD symbols ON/OFF Display OF variOUs Display BUTTON TexT messages OF pOwer OperaTiON pOwer TemperaTUre seTTiNg aDJUsTmeNT Display icons key indicates the presence of an alarm. it indicates weekly programming functioning On: indicates the presence of an alarm indicator on = weekly programming active Off: indicates the absence of alarms indicator off = weekly programming not active... -
Page 12: Menu Structure
enGlish | inGlese menu sTrucTure key 1 to confirm parameter/ programming and exit. keys 2 and 3 to set data/parameters. keys 4 and 5 to go forward or backward in the menu. To access the menu, keep key 5 pressed for a few seconds. seT clock 2 - 3 hours... -
Page 13: Remote Control (Optional)
enGlish | inGlese remoTe conTrol (opTional) commissioninG seTTinGs The heating power, the desired room temperature (only Once the power cable at the back of the stove has been with the room probe option connected) and the appliance connected, move the switch, also located on the back, to (i). ignition/switch off, can be adjusted using the remote control. -
Page 14: Functioning And Logic
enGlish | inGlese funcTioninG anD loGic iGniTion start Once the points listed previously have been checked, press key 1 for three seconds to ignite the stove. 15 minutes are available for the ignition phase. after ignition and having reached the control temperature, the stove interrupts the ignition phase and passes to sTarTiNg. -
Page 15: User Menu
enGlish | inGlese user menu pelleT feeD aDjusTmenT The following menu allows the adjustment of pellet feed as a percentage. if the stove has functioning problems owing to the quantity of pellets, adjust pellet feeding directly from the control board. The problems correlated to the amount of fuel can be divided into 2 categories: NO FUel: Š... -
Page 16: Stand - By
enGlish | inGlese sTanD - by The stby function is used if immediate stove switch-off is required when temperature has been reached. The sTBy function can be set at ON or OFF using the procedure that will be described. in the factory the sTby function is always set at off (indicator off) sTBy FUNCTiON seT aT ON if the stby function is active (ON), when the stove reaches the room temperature set exceeding it by 2°C, it will switch off after a factory set delay time, displaying sTaND - By. -
Page 17: Programming Example
enGlish | inGlese proGramminG example let's suppose that the weekly programmer function is to be used and 2 time periods are to be used in the following way: 1st time period: from 08:00 to 12:00 every day of the week excluding saturday and sunday 2nd time period: from 15:00 to 22:00 only saturday and sunday. -
Page 18: Cleaning Under User's Responsibility
englisH | inglese Cleaning under user's responsibility Some images could be offset from the original model. MontHly daily Cleaning the heat exchanger:the heat exchangers burn pot: remove the burn pot from the relevant chamber must be cleaned every month as the soot compartment and free the holes using the appropriate fire deposited on the rear of the cast iron hearth wall blocks the irons supplied, remove the ash from the burn pot using... -
Page 19: Routine Maintenance
englisH | inglese routine MaintenanCe In order to guarantee proper functioning and safety of the device, the operations indicated below must be performed every season or more often when necessary. door, asH draWer and burn pot gasKets The gaskets guarantee the tightness of the stove and its consequent good functioning. These must be checked regularly: if they should be worn or damaged they must be replaced immediately. -
Page 20: Displays
englisH | inglese Displays Display Reason solution Stove off staRt The start phase is in progress pellet feeDing The feeding of the pellet during the ignition phase is in progress ignition The ignition phase is in progress staRt-up The start phase is in progress WoRk The normal work phase is in progress MoDulation... -
Page 21: Alarms
englisH | inglese alaRMs Display explanation solution On: indicates the presence of an alarm Off: indicates the absence of alarms Flashing: indicates the deactivation of the depression sensor. Indicates the presence of an alarm. The alarm can be reset by pressing key 3 for 3 seconds only if the fumes motor has stopped and if 15 minutes have passed from displaying the same alarm. -
Page 22: Warranty Conditions
The responsibility of EXTRAFLAME S.p.A. is limited to the supply of the appliance, which must be perfectly installed, following the indications contained in the appropriate manuals and books provided with the purchased product and in compliance with the laws in force. - Page 23 EXTRAFLAME S.p.A. is not liable for any damage that can, directly or indirectly, affect persons, objects and pets as a consequence of failure to comply with the prescriptions indicated in this manual/book.
- Page 28 www.lanordica-extraflame.com Extraflame reserves the right to vary the features and data shown in this booklet at any time and without prior notice, in order to improve its products. This manual cannot be considered as a contract for third parties.
