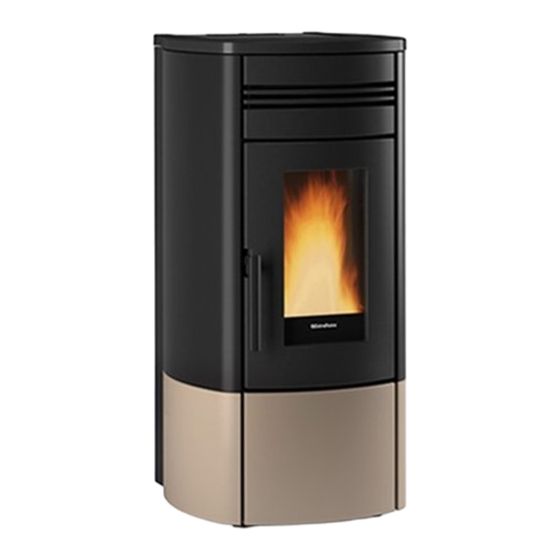

Extraflame NORIS User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PeLLet StOveS USeR MANUAL
UK
NORIS - NORIS PLUS
MADE
IN
ITALY
design & production
004281210 - Rev 000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NORIS and is the answer not in the manual?

Questions and answers

Related Manuals for Extraflame NORIS

Summary of Contents for Extraflame NORIS

  • Page 1 PeLLet StOveS USeR MANUAL NORIS - NORIS PLUS MADE ITALY design & production 004281210 - Rev 000...
  • Page 2 APPLY TECHNICAL DATA LABEL ENGLISH...

  • Page 3: Table Of Contents

    PREPARATIONS FOR MAINTENANCE ........................................7 HErMEtIcaLLy SEaLEd INStaLLatIoN ............................... 9 COMbuSTION AIR ..............................................9 FuMES EXHAuST SYSTEM............................................9 NorIS - NorIS PLuS dEtaILS ..................................10 Hot aIr ductING ......................................11 AddITIONAl THERMOSTAT TO CONTROl THE duCT MOTOR ...............................11 coMBuStIoN aIr ......................................11 oPEratIoN IN aIr ductING WItH tHErMoStat or ProBE (oPtIoNaL) ....................

  • Page 4: English

    We thank you for having chosen our company; our product is a great heating solution developed from the most advanced technology with top quality machining and modern design, aimed at making you enjoy the fantastic sensation that the heat of a flame gives, in complete safety. Warnings This instructions manual is an integral part of the product: make sure that it always accompanies the appliance, even if transferred to another owner...
  • Page 5 RECEIVED INSTRUCTIONS ON SAFE USE OF THE APPLIANCE AND THAT THEY UNDERSTAND THE INHERENT DANGERS. Š THE GENERATOR MUST NOT BE USED BY PERSONS (INCLUDING CHILDREN) WITH REDUCED PHYSICAL, SENSORY AND MENTAL CAPACITIES OR WHO ARE UNSKILLED PERSONS, UNLESS THEY ARE SUPERVISED AND TRAINED REGARDING USE OF THE APPLIANCE BY A PERSON RESPONSIBLE FOR THEIR SAFETY.

  • Page 6: Routine Maintenance

    (STRONG WIND, FREEzING) SAFETY SYSTEMS MAY INTERVENE THAT SWITCH THE GENERATOR OFF. IF THIS OCCURS, CONTACT THE TECHNICAL AFTER-SALES SERVICE AND ALWAYS DISABLE THE SAFETY SYSTEMS. Š IN THE EVENT THE FLUE CATCHES FIRE, USE SUITABLE SYSTEMS FOR SUFFOCATING THE FLAMES OR REQUEST HELP FROM THE FIRE BRIGADE.

  • Page 7: Installation

    InstallatIOn general The flue gas exhaust and hydraulic connections must be carried out by qualified personnel who must issue installation conformity documentation compliant with national standards. The installer must provide the owner or person acting for him, according to the legislation in force, with the declaration of conformity, supplied with: 1) the use and maintenance manual of the appliance and of the system components (such as for example, the smoke ducts, chimney, etc.);...
  • Page 8 In the presence of type B gas appliances with intermittent operation not intended for heating, they must have their own aeration and/or ventilation opening. The air inlets must meet the following requirements: Š they must be protected with grids, metal mesh, etc., but without reducing the net useful section; Š...

  • Page 9: Hermetically Sealed Installation

    Hermetically sealed installation The generator is a fully sealed product with respect to the environment in which it is installed. This means that it is ideal for passive houses because it does not take air in from within the house. combustion air To ensure the stove remains hermetically sealed, the connection pipe for the combustion air must be directly connected to the exterior, using special pipes and sealed connectors.

  • Page 10: Noris - Noris Plus Details

    NORIS - NORIS PLUS DEtAILS Room air outlet *Air ducting Z2 TA inlet Access to combustion chamber *Air ducting Z1 *Ducting thermostat inputs and ash drawer Access to ash drawer Combustion air inlet Room probe On/Off Pellet hopper Flue gas outlet...

  • Page 11: Hot Air Ducting

    HOt AIR DUCtING The stove has 2 independent outlets for air ducting. Air ducting 1 - 2 are enabled by factory default. The pipe used for ducting the hot air must have an internal diameter of 80 mm and it must also be insulated or at least be protected against heat dispersion.

  • Page 12: Operation In Air Ducting With Thermostat Or Probe (Optional)

    OPERAtION IN AIR DUCtING wItH tHERMOStAt OR PROBE (OPtIONAL) The stove is fitted with an independent motor for ducting. The connection of an external thermostat or temperature probe (NTC 10K) in the input, located in the rear part of the stove, makes it possible to control the air ducting motor independently of the stove. Suffice it to connect the thermostat/temperature probe and set the desired temperature.

  • Page 13: Fuse

    FUSE If the stove is not powered, have the condition of the fuse (A) checked by a qualified technician. NOtES FOR CORRECt OPERAtION Pellet hopper lid The following indications must be respected for correct pellet stove operation: Both during stove operation and when it is not used, all hatches (pellet hopper, door, ash drawer) must remain closed at all times.

  • Page 14: Pellets And Loading

    PELLETS AND LOADING Pellets are made by subjecting wood shavings i.e. the rejects of pure unpainted wood from sawmills, carpentry products and products from other activities connected to wood working and transformation, to very high pressures. This type of fuel is fully ecological as no glues are used for its compaction. In fact, pellet compactness is guaranteed over time by a natural substance found in wood: lignin.

  • Page 15: Remote Control

    Remote contRol The remote control can be used to adjust the main stove functions. Transmitter Select air mode Display Lock keyboard On/off stove (hold for 3 seconds) Degrees Celsius / Fahrenheit Set power Press the button once to enable or disable the chrono Set switch-off delay: The button allows to set the switch- off delay.

  • Page 16: Remote Control Icons

    Remote contRol Icons Air mode selected: Enable chrono Flashing COMFORT Light on = activated On AUTO Light off = deactivated Indicates the transmission of the radio signal Set switch-off delay On = during all radio communication Off = radio communication absent Battery low Keys locked Set power level.

  • Page 17: Control Board

    Control Board ViewiNg OF VariOUs TO aCCess ON/OFF TexT messages THe meNU BUTTON OPeraTiNg POwer TemPeraTUre ICon key indicates the presence of an alarm. indicates the status of the weekly programming Off: indicates that there are no alarms Off: deactivated. On: indicates the presence of an alarm On: activated.

  • Page 18: General Menu

    General menu go back - exit scroll parameters: next (3); previous (2) Change settings data: increase (4); decrease (5) Confirm - access menu MODES VENTILATION *AIR DUCTING 1 **TEMPERATURE *AIR DUCTING 2 **TEMPERATURE *AIR ZONE CONTROL EASY SETUP CHRONO ENABLING CHRONO MODE PRG1 SETTINGS...

  • Page 19: First Ignition Settings

    FIrst IGnItIon settInGs after connecting the power cord at the back of the generator, turn the switch (if any) to position (i). The switch is used to power the heat generator board. date-tIme This menu allows the date and time to be set. CONTrOLs PrOCeDUre Š...

  • Page 20: Operation And Logic

    no IGnItIon tHe aPPlIanCe may FaIl to lIGHt BeCause tHe auGer Is emPty and not always aBle to load tHe Burn Pot Fast enouGH wItH tHe Pellets needed For normal IGnItIon. IF tHe ProBlem oCCurs aFter only a Few montHs oF oPeratIon, CHeCk tHat tHe routIne CleanInG desCrIBed In tHe stoVe HandBook Has Been CarrIed out CorreCtly oPeratIon and loGIC IGnItIon...

  • Page 21: Mode

    Š Press key 6 to confirm and key 1 to scroll back through the menus until the initial page. aIr duCtInG 1-2 (norIs Plus) This feature uses the PRO AIR SETUP which allows for the ventilation to be adjusted according to 4 levels: OFF, QUieT, regULar, BOOsT.

  • Page 22: Air Zone Control (Noris Plus)

    Zone Control (norIs Plus) This menu allows you to enable the air ZONe CONTrOL mode range: (ON, OFF) if ON is selected, the stove will optimise the adjustments so that the heat is sent to the ducting when the main room temperature set is reached.

  • Page 23: Enabling

    enaBlInG allows the chrono and the different stove time slots to be enabled/disabled. CONTrOLs PrOCeDUre Š Press key 6. Š Press 3 until CHrONO appears and confirm by pressing key 6. Š Confirm eNaBLiNg by pressing 6. Š Use keys 4 -5 to enable (ON) or disable (OFF) Š...

  • Page 24: Example

    eXamPle CHrono tIme slot 02:00 08:00 16:30 23:00 MANUAL 02:00 08:00 16:30 23:00 Power start 02:00 Time slot 1 Power 5 stop 23:00 02:00 08:00 16:30 23:00 start 08:00 Time slot 2 Power 1 02:00 08:00 16:30 23:00 stop 16:30 22°...

  • Page 25: Settings

    settInGs • DATE-TIME • LANGUAGE SEE ChApTER: FIRST IGNITION SETTINGS • DEGREES dIsPlay This menu allows you to adjust the brightness of the display. The values range from OFF, 1 to 20. if set to OFF, the display backlighting is set to maximum brightness and turns off after a 60 second delay.

  • Page 26: Delta-T

    delta-t This function allows the hysteresis thresholds to be set for stove ignition (DeLTa-T ON) and switch-off (DeLTa-T OFF), used as a room temperature adjustment interval if not managed by an external thermostat. The possible values for DELTA-T go from: 0.5 - 5°C CONTrOLs PrOCeDUre Š...

  • Page 27: Easy Control

    easy Control The function allows for two values to be set: Š OFF (disabled - factory default) Š ON (enabled) activation (easY CONTrOL = ON) is recommended in the event that there is an excessive formation of combustion residues in the flue during operation at reduced power (see FLUe exHaUsT chapter).

  • Page 28: Cleaning And Maintenance

    TO FIND OUT WHERE YOUR NEAREST SERVICE CENTRE IS, CONTACT YOUR DEALER OR VISIT THE WEBSITE: WWW.LANORDICA-EXTRAFLAME.COM CLEANING AND MAINTENANCE ALWAYS FOLLOW THE INSTRUCTIONS IN COMPLETE SAFETY! Š Make sure that the power cord is unplugged because the generator may have been programmed to switch on.
  • Page 29 bURN POT AND COMbUSTION CHAMbER: By means of a mechanical system, the burn pot is cleaned automatically at preset intervals. It is however advisable to remove any residues by using a vacuum cleaner. Š Suck the ash deposited between the partition and the fire holder.

  • Page 30: Routine Maintenance Performed By Qualified Technicians

    pARTS/FREqUENCY EVERY 7 DAYS EVERY YEAR BURN pOT (USER) COMBUSTION CHAMBER (USER) ASH DRAWER (USER) HEAT EXCHANgER CLEANINg (TECHNICIAN) T-SHApED FITTINg / SMOkE DUCT (TECHNICIAN) One day means an average use of 8h at the rated power. How often the ash drawer is emptied depends on a number of factors: the type of pellets, the stove output, the use of the stove and the type of installation.
  • Page 31 HEAT EXCHANGER CLEANING ATTENTION! DO NOT DAMAGE THE PRObE! ENGLISH...
  • Page 32 NORIS NORIS PLUS THE IMAGES ARE FOR ILLUSTRATIVE PURPOSES Fumes motor (disassembly and cleaning and fumes pipe and "T"), new silicone in the provided points Gaskets, pellet hopper, inspections, ash drawer and door (replace and apply silicone where indicated) Combustion chamber and heat exchanger (full cleaning) including ignition plug pipe Hopper (complete emptying and cleaning) and check gasket.
  • Page 33 NORIS - NORIS PLUS THE IMAGES ARE FOR ILLUSTRATIVE PURPOSES Fumes motor (disassembly and cleaning and fumes pipe and "T"), new silicone in the provided points Gaskets, pellet hopper, inspections, ash drawer and door (replace and apply silicone where indicated) Combustion chamber and heat exchanger (full cleaning) including ignition plug pipe Hopper (complete emptying and cleaning) and check gasket.

  • Page 34: Displays

    Check pellet feed (see “Easy setup”), if the problem cannot be solved, HoT fuMes High fumes temperature contact a qualified technician. * on models with this function. TO FIND OUT WHERE YOUR NEAREST SERVICE CENTRE IS, CONTACT YOUR DEALER OR GO TO THE WEBSITE WWW.LANORDICA-EXTRAFLAME.COM ENGLISH...
  • Page 35 Clean/clear the T-shaped fitting, the flue pipe and the chimney flue. chimney flue are clogged. * on models with this function. TO FIND OUT WHERE YOUR NEAREST SERVICE CENTRE IS, CONTACT YOUR DEALER OR GO TO THE WEBSITE WWW.LANORDICA-EXTRAFLAME.COM ENGLISH...

  • Page 36: Disposal

    Disposal InformatIon for management of electrIc and electronIc applIance waste contaInIng batterIes or accumulators This symbol, which is used on the product, batteries, accumulators or on the packaging or documents, means that at the end of its useful life, this product, the batteries and the accumulators included must not be collected, recycled or disposed of together with domestic waste. Improper management of electric or electronic waste or batteries or accumulators can lead to the leakage of hazardous substances contained in the product.
  • Page 37 ENGLISH...
  • Page 38 ENGLISH...
  • Page 39 ENGLISH...
  • Page 40 ExtraflamE S.p.a. Via Dell’Artigianato, 12 36030 - MONTECCHIO PRECALCINO (VI) - ITALY   +39.0445.865911 -  +39.0445.865912 -  info@extraflame.it - www.lanordica-extraflame.com MADE ITALY design & production TO FIND THE SERVICE CENTRE NEAREST TO YOU CONTACT YOUR DEALER OR CONSULT THE SITE WWW.LANORDICA-EXTRAFLAME.COM...
