DMP Electronics XR5FC Installation Manual

Commercial fire panels
Hide thumbs Also See for XR5FC:
Table of Contents

Advertisement

Quick Links

Download this manual
Inst alla tIon GuIde
XR5FC and XR5sl
CommeRCIal FIRe Panels

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XR5FC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DMP Electronics XR5FC

Summary of Contents for DMP Electronics XR5FC

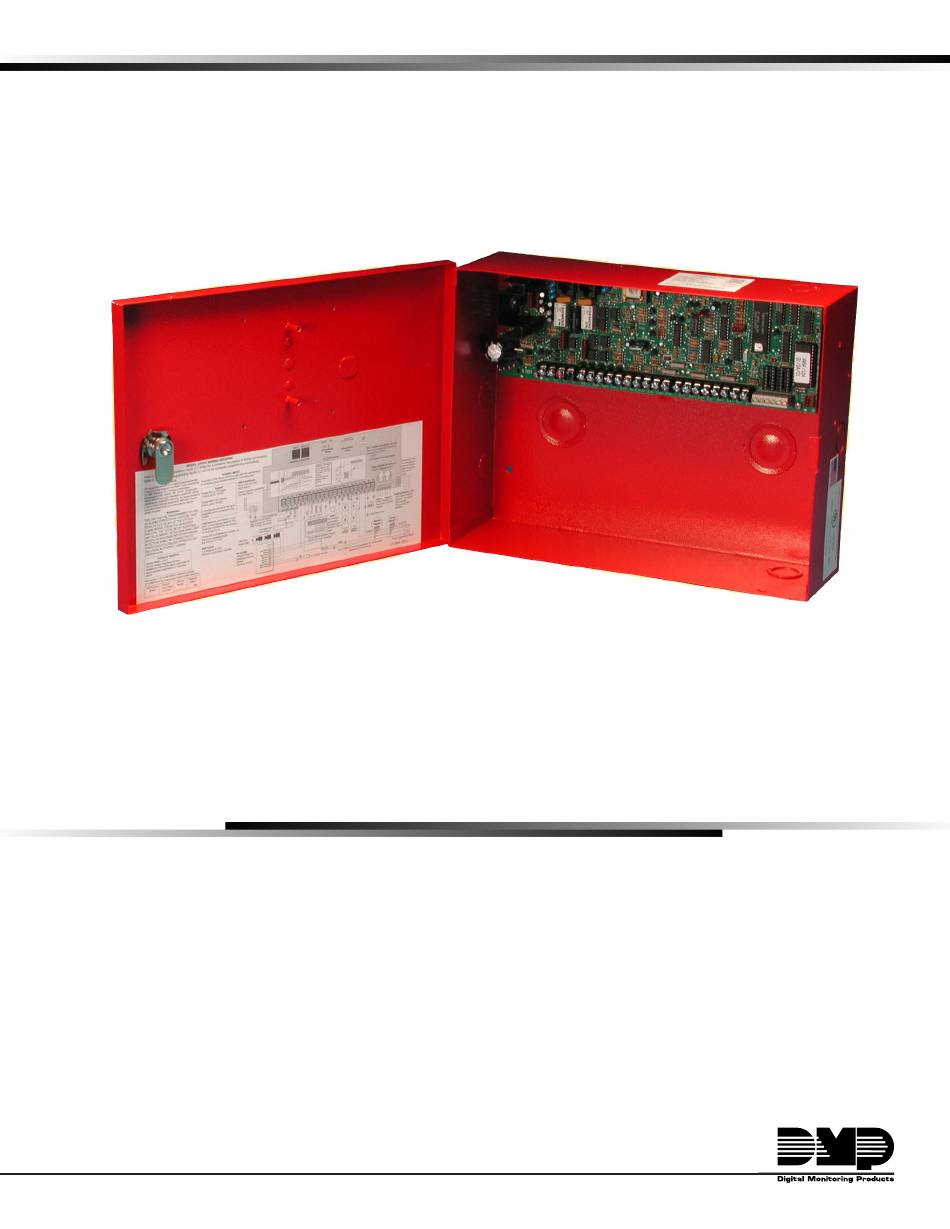

  • Page 1 Inst alla tIon GuIde XR5FC and XR5sl CommeRCIal FIRe Panels...
  • Page 2 MODEL XR5FC/XR5SL COMMAND PROCESSOR INSTALLATION GUIDE FCC NOTICE This equipment generates and uses radio frequency energy and, if not installed and used properly in strict accordance with the manufacturer’s instructions, may cause interference with radio and television reception. It has been type tested...

  • Page 3: Table Of Contents

    Replacement Period ..............8 Discharge/Recharge ............... 8 Battery Supervision ..............8 XR5FC and XR5SL Power Requirements ........9 XR5FC and XR5SL Standby Battery Calculations ......9 Bell Output Terminal 5 (XR5FC Only) ............10 4-Wire Smoke Detector Power Terminal 6 (XR5FC Only) ............10 Keypad Bus Description ................10...
  • Page 4 Introduction ................14 19.2 Wiring ..................14 19.3 Police Station Phone Number ..........14 19.4 System maintenance .............14 19.5 Audible alarm (XR5FC only) ............14 19.6 Listed Receivers ..............14 Control Units for Fire-Protective Signaling Systems ANSI/UL 864, NFPA 72 20.1 Power Supply ................14 20.2 Power Fail delay ..............14...

  • Page 5: Panel Specifications

    50mA at 30 VDC resistive. Push-Button Reset The XR5FC and XR5SL panels each provide a push button mounted on the printed circuit board that allows authorized users to reset latch detectors and silence active alarm bell outputs. See section 16.1.

  • Page 6: Introduction

    Introduction Description The DMP XR5FC and XR5SL Commercial Fire Panels are powerful 12 VDC fire alarm communicators with battery backup that can also be powered from the 12 or 24 VDC auxiliary output of a Fire Alarm Control Panel (FACP). Each panel provides one Class A (Style D) fire zone and four Class B (Style A) powered fire zones with reset capability for 2-wire smoke detectors, relays, or other latching devices.

  • Page 7: System Components

    LED keypads to the panel and also connect control and annunciating devices to the panel Form C and annunciator outputs. Refer to the Power Requirements section in this guide when calculating power requirements. XR5FC Wiring Diagram The XR5FC system below shows some of the accessory devices for use in various applications. Model 377 Trouble POWER LIMITED...

  • Page 8: Xr5Sl Wiring Diagram

    IntRoduCtIon XR5SL Wiring Diagram The XR5SL system below shows some of the accessory devices for use in various applications. Model 377 Trouble Annunciator USE MARKING MAIN BACKUP Silence/Reset Panel Module Push for 1 Second Commercial Protected Reset Premises Control Unit Silence/Reset Header Silence/Reset...

  • Page 9: Installation

    Mounting the Enclosure Mount the metal enclosure for the XR5FC and XR5SL panels in a secure, dry place to protect the panels from damage due to tampering or the elements. It is not necessary to remove the XR5FC or XR5SL PCB when installing the enclosure.

  • Page 10: Mounting Keypads

    Inst alla tIon Mounting Keypads DMP keypads have removable covers that allow you to easily mount the base to a wall or other flat surface. After installing the keypad mounting anchors and bringing the keypad wiring from the panel through the wall, mount the base and connect the keypad wire harness leads to the keypad wiring.

  • Page 11: Primary Power Supply

    FACP. Do not use battery backup with 12 or 24 VDC input: Do not connect any batteries to the XR5FC or XR5SL panels when using the 12 or 24 VDC output from a FACP. The XR5FC and XR5SL panels use the backup battery capability of the FACP for their standby requirements.

  • Page 12: Secondary Power Supply

    DO NOT USE GEL CELL BATTERIES WITH THE XR5FC AND XR5SL. Earth Ground (GND) Terminal 4 of the XR5FC and XR5SL panels must be connected to earth ground using 14 gauge or larger wire to provide proper transient suppression. DMP recommends connecting to a metal cold water pipe or ground rod only.

  • Page 13: Xr5Fc And Xr5Sl Power Requirements

    All devices must be taken into consideration when calculating the battery standby capacity. Below is a list of the power requirements of the XR5FC and XR5SL panels. Add the additional current draw of DMP keypads, smoke detectors, and any other auxiliary devices used in the system for the total current required.

  • Page 14: Bell Output

    Description Terminals 7, 8, 9, and 10 of the XR5FC and XR5SL panels provide a Class B, Style 3.5 keypad bus to connect an unlimited number of 692F LED keypads, two 630F keypads, and other auxiliary devices. In addition, to keypads, connect a 714 or 715 zone expansion module to the Keypad Bus.

  • Page 15: Class B (Style A) Fire Zones

    11.1 Description Terminals 15 to 22 are the Class B (Style A) fire zones on the XR5FC and XR5SL panels. These zones are suitable for connecting powered or non-powered fire devices. For programming purposes, these zones are designated 2 to 5. The maximum line impedance is 100 Ohms. The zone configurations on terminals 15 to...
  • Page 16 30 VDC (allows .35 power factor). Each output provides one Common, one Normally Open, and one Normally Closed terminal. Field wiring for the Form C relays connects to the 6-position terminal strip on the lower right corner of the XR5FC and XR5SL boards.
  • Page 17 Bell Circuit Monitor is in a restored condition. When the trouble contacts open, a bell circuit trouble is indicated. The XR5FC is shipped from the factory with a shorting clip on the 2-pin header to indicate a restored condition. The DMP Model 306 harness is used to connect the J14 Bell Circuit Monitor to the trouble contacts of the 865 or 866 Notification Circuit Module.
  • Page 18 The programming and installation specifications contained in this section must be completed when installing the XR5FC and XR5SL panels in accordance with any of the ANSI/UL or NFPA fire standards. Additional specifications may be required by a particular standard. See the XR5FC and XR5SL Programming Guide (LT-0312).
  • Page 19 For supervised circuits, ground fault is detected at 0 (zero) Ohms. California State Fire Marshal Specifications 21.1 Bell Output Definition The bell output of the Model XR5FC must be programmed to operate Temporal for fire alarms. Digital Monitoring Products XR5 Installation Guide...
  • Page 20 WIRInG dIaGRams Wiring Diagrams 22.1 866 with NAC Extender To panel zone To panel alarm output To panel terminal 7 To panel zone To panel terminal 10 Normal/Silence Switch Model 310 Model 310 1K EOL 1K EOL 1 AUX PWR 2 GND 3 Alarm In 4 Bell PWR In...
  • Page 21 WIRInG dIaGRams 22.2 866 Class B Style W using Single Notification Appliance 377 Module MAIN BACKUP SILENCE/RESET PUSH FOR ONE SECOND Panel Reset Silence/Reset Silence/Reset Header Button Telephone Connections J10 Trouble Annunciator Header XR5 Commercial Fire Command Processor Panel Bell Monitor BELL SMK RED YEL GRN BLK...
  • Page 22 WIRInG dIaGRams 22.3 866 Class B Style W using Multiple Notification Appliances 377 Module MAIN BACKUP SILENCE/RESET PUSH FOR ONE SECOND Panel Reset Silence/Reset Silence/Reset Header Button Telephone Connections J10 Trouble Annunciator Header XR5 Commercial Fire Command Processor Panel Bell Monitor BELL SMK RED YEL GRN BLK...
  • Page 23 WIRInG dIaGRams 22.4 866 Class B Style W Multiple Notification Appliance Circuits 377 Module MAIN BACKUP SILENCE/RESET PUSH FOR ONE SECOND Panel Reset Silence/Reset Silence/Reset Header Button Telephone Connections J10 Trouble Annunciator Header XR5 Commercial Fire Command Processor Panel Bell Monitor BELL SMK RED YEL GRN BLK...
  • Page 24 WIRInG dIaGRams 22.5 865 Class B Style W using Single Notification Appliance 377 Module MAIN BACKUP SILENCE/RESET PUSH FOR ONE SECOND Panel Reset Silence/Reset Silence/Reset Header Button Telephone Connections J10 Trouble Annunciator Header XR5 Commercial Fire Command Processor Panel Bell Monitor BELL SMK RED YEL GRN BLK...
  • Page 25 WIRInG dIaGRams 22.6 865 Class B Style W Multiple Notification Appliances 377 Module MAIN BACKUP SILENCE/RESET PUSH FOR ONE SECOND Panel Reset Silence/Reset Silence/Reset Header Button Telephone Connections J10 Trouble Annunciator Header XR5 Commercial Fire Command Processor Panel Bell Monitor BELL SMK RED YEL GRN BLK Z1A+...
  • Page 26 WIRInG dIaGRams 22.7 865 Class B Style W Multiple Notification Appliance Circuits 377 Module MAIN BACKUP SILENCE/RESET PUSH FOR ONE SECOND Panel Reset Silence/Reset Silence/Reset Header Button Telephone Connections J10 Trouble Annunciator Header XR5 Commercial Fire Command Processor Panel Bell Monitor BELL SMK RED YEL GRN BLK...
  • Page 27 WIRInG dIaGRams 22.8 865 Class A Style X using Single Notification Appliance 377 Module MAIN BACKUP SILENCE/RESET PUSH FOR ONE SECOND Panel Reset Silence/Reset Silence/Reset Header Button Telephone Connections J10 Trouble Annunciator Header XR5 Commercial Fire Command Processor Panel Bell Monitor BELL SMK RED YEL GRN BLK...
  • Page 28 WIRInG dIaGRams 22.9 Remote Station Reversing Relay Connection MAIN BACKUP Silence/Reset Panel Push for 1 Second Reset Silence/Reset Header Silence/Reset Button Telephone Connections Bell Monitor J10 Trouble Annunciator Header XR5 Commercial Fire Relay Sockets for Optional Form C Outputs on J11 Command Processor™...
  • Page 29 WIRInG dIaGRams 22.10 Supervised Remote Relay Silence/Reset MAIN BACKUP Panel Push for 1 Second Reset Silence/Reset Header Silence/Reset Button Telephone Connections Bell Monitor J10 Trouble Annunciator Header XR5 Commercial Fire Relay Sockets for Optional Form C Outputs on J11 Command Processor™ Panel BELL Z1A+ Z1A-...
  • Page 30 WIRInG dIaGRams 22.11 XR5SL Connection to FACP MAIN BACKUP Silence/Reset Panel Push for 1 Second Reset Silence/Reset AC Mode Wiring Header Silence/Reset When the XR5SL is used in the Button Telephone Connections AC Mode, the DMP Model 320 Bell Transformer must be connected Monitor to the same branch circuit as the J10 Trouble Annunciator Header...
  • Page 31 RevIsIons Revisions to This Document This section explains the changes that were made to this document during this revision. This section lists the date the change was made, the section number and section heading, and a quick summary of the change. Date Section Number and Heading Quick Explanation of Changes...
  • Page 32 Listings and Approvals FCC Part 15 FCC Part 68 Registration ID CCKUSA-18660-AL-R California State Fire Marshal (CSFM) Underwriters Laboratories (UL) Listed Commercial Protected Premises Control Unit Fire Protective Signaling 800-641-4282 IN TRU SIO N • F IRE • ACC ESS • NET WOR KS www.dmp.com 2500 North Partnership Boulevard Made in the USA...

This manual is also suitable for:

Xr5s
