INSTALLATION AND OPERATION MANUAL
CNGE4US
10/100/1000 MBPS 4 PORT ETHERNET
UNMANAGED SWITCH

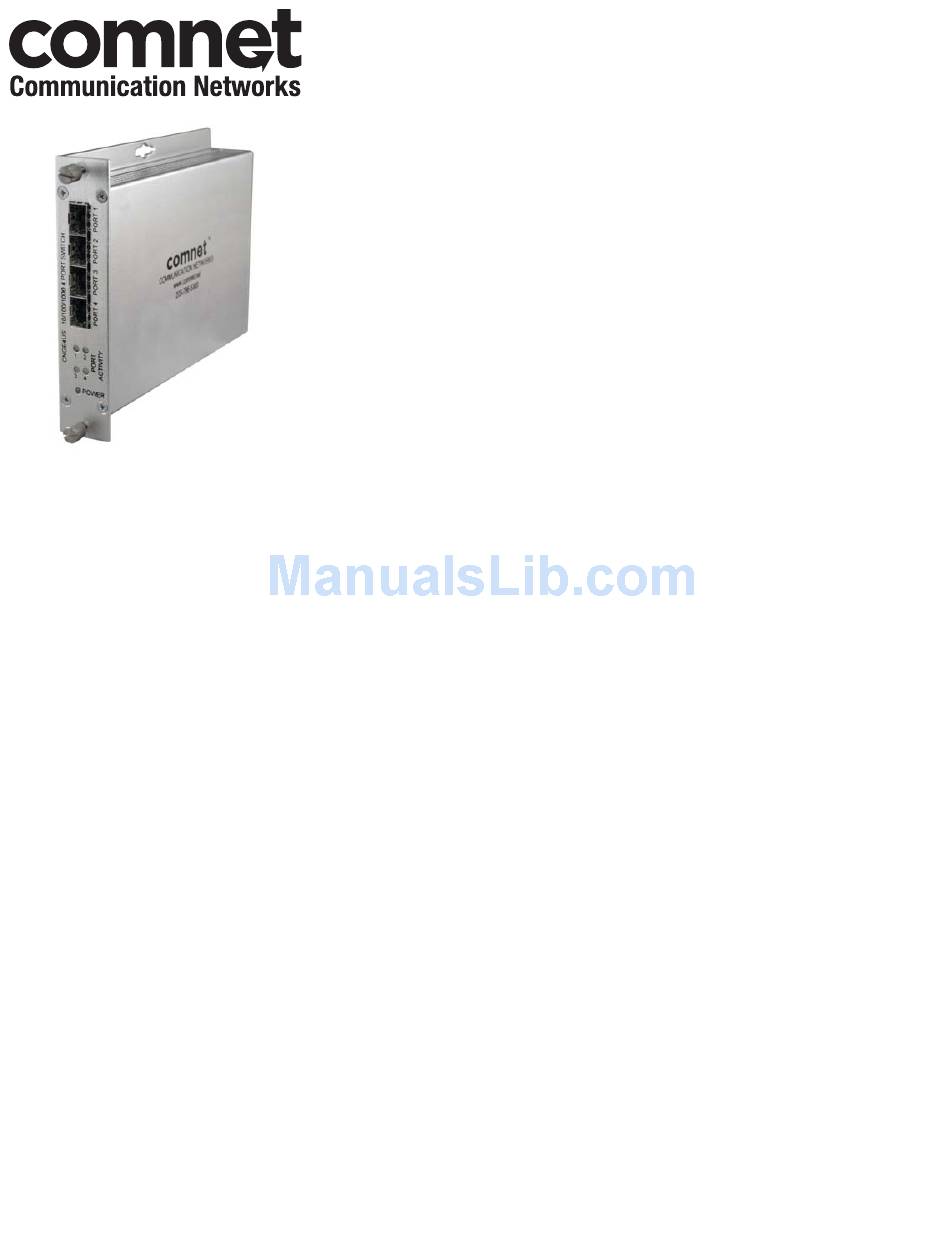

The ComNet™ CNGE4US Ethernet 4 port unmanaged switches are designed to
transmit and receive 10/100/1000 Mbps data using small form factor pluggable
modules. Both are environmentally hardened to operate in demanding
environments. LED indicators are provided for confirming equipment operating
status. Plug-and-play design ensures ease of installation requiring no optical
adjustments. Packaged in the exclusive ComNet ComFit housing, these units
may be either wall or rack-mounted, or may be DIN-rail mounted by the
addition of ComNet model DINBKT1 adaptor plate.
See Figure A for mounting instructions.
INS_CNGE4US_REV–
07/22/09
PAGE 1
