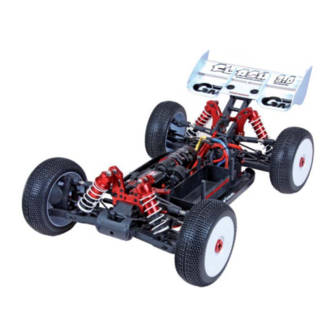

  • Page 1 www.gm-racing.de BR USHLESS 1/8 4WD RACE BUGGY 1/8 4WD RACE BUGGY Bedienungsanleitung Deutsch 01-09 Instruction Manual English 10-18 Manuel d’utilisation Francais 19-27 Ersatzteile - Spare Parts - Pièces de rechange 28-32 Montage - Assembly - Montage 33-51 Garantie - Warranty - Garantie GM-Racing 90170.RTR Flash 3.0 Race Brushless 4WD Buggy...

  • Page 2: Saftey Precautions

    GM-Racing and Graupner constantly work on the advancement of all RC cars, engines and remote control systems; changes of the scope of delivery in form, technology and equipment we must reserve ourselves therefore. Please have understanding for the fact that from data and illustrations of this operating instructions no requirements can be deri- ved.

  • Page 3: Tools Required

    2x 7.4 V LiPo-batteries e.g. No. 98997, 98998, 99000 or 99003 • or 3-cell LiPo 11.1V e.g. No. 98990, 98991 or 9740.3 and a suitable charger like the Graupner Ultramat series TOOLS REQUIRED In addition to the tool that accompanied the vehicle, the following tools are useful and - in some cases - necessary: •...
  • Page 4 Run your Flash 3.0 Brushless never with low transmitter or receiver batteries. • Never forget switch off the radio after running your Flash 3.0 Brushless, otherwise the batteries do not last long. • Turn on the transmitter f rst, then the vehicle.
  • Page 5 ADJUSTING THE ELECTRONIC SPEED CONTROLLER The ESC of the Flash 3.0 Brushless is already adjusted. Nevertheless you should read the following chapter , in order to f nd out more over the adjustment possibilities of the ESC. Check before adjusting that the servo-reverse switch at the transmitter is on „N“, also the throttle end point adjustment (EP A) is 100% on forward and reverse (if adjustable).

  • Page 6: Specifications

    In problem cases, or for questions and repairs, please contact the Service department in your country (see warranty card on page 54) or: GRAUPNER-Service, Henriettenstrasse 94-96, D-73230 Kirchheim/Teck, Tel. +49/1805/472876 SPARE PARTS: at your local hobby shop or online at Graupner spare-parts Shop http://www .graupner-ersatzteilshop. de/ under order.-nr.: 90170.RTR SPECIFICATIONS 480 mm...

  • Page 7: Troubleshooting

    TROUBLESHOOTING Problem Possible errors To do Motor does not run Broken motor wiring Resolder wiring Battery empty Change or charge battery Remote control does not function Check Remote control, adjust throttle correctly, throttle trim wrong adjusted trim Motor not working Change motor ESC not adjusted properly Check ESC settings...

  • Page 8: Weight Distribution

    DAMPING The four oil-f lled shocks of this GM-Racing car have largest in f uence on its handling. Whenever you re-assemble these shock absorbers again: Do it carefully! Assemble the absorbers always in pairs (in front and in the back). If one of the front shocks should be somewhat softer or harder than the other one, the vehicle will steer along curves in one direction different than in the other one.
  • Page 9 It is important that the R/C car always rolls! If you try to drive completely smooth and consistent your lap-times will improve naturally. GM-Racing/GRAUPNER GmbH & CO. Kg D-73230 KIRCHHEIM/TECK GERMANY Subject to change! /We reserve the right to introduce modif cations...

  • Page 10: Eg Declaration Of Conformity

    This product has been tested for electro-magnetic interference in accordance with the following norms: EN 61000-6-1 EN 61000-6-3 This declaration was produced by Graupner GmbH & Co. KG Henriettenstr. 94-96 73230 Kirchheim/Teck and is valid for the manufacturer / importer of the product 73230 Kirchheim/Teck, den 18.01.2010...

  • Page 11: Spare Parts

    Ersatzteile (1) Spare Parts Pièces de rechange 90170.2 90170.3 90170.4 90170.5 Stoßdämpfer vorne (2) komplett Stoßdämpfer hinten (2) komplett Stoßdämpferfedern vorne weiß (med.) Stoßdämpferfedern hinten weiß (med.) Front shocks (2) Front shocks (2) Shock Springs Front white (med) (2) Shock Springs Rear white (med) (2) Amortisseur avant (2) Amortisseur arrière (2) Ressort Amortisseur avant blanc (med)
  • Page 12 Ersatzteile (2) Spare Parts Pièces de rechange 90170.27 90170.26 Re-Li Gewindestangen komplett (7) Aufhängungskugeln komplett (12) All rods (7) All ball heads (12) Tige filetée complète (7) Rotules complète (12) 90170.28 90170.29 90170.30 90170.31 Lenkverbinder mit Lager Servosaver mit Umlenkhebel komplett Pfosten für Umlenkhebel (2) Radträger hinten (2) Steering Connecting plate w/ Bushings...
  • Page 13 Goupille bras extérieur (4) Support de bras avant (2) Plaque supériere avant 90170.73 90170.52 90170.53 90170.51 Karosserie Flash 3.0 Brushless lackiert Dämpferbrücke vorne Querlenkerhalter unten hinten (2) Dämpferbrücke hinten Body Flash 3.0 Brushless painted Front Shock Tower Rear Lower Suspension Arm Mounts (2) Rear Shock Tower Carosserie Flash 3.0 Brushless verni...
  • Page 14 Ersatzteile (4) Spare Parts Pièces de rechange 90170.70 90502.83 90170.68 90170.69 Karosserieclipse (10) Halterung elektr. Fahrtenregler Elektr. Fahrtenregler Flash 3.0 Servo-/Empfängerhalterung Body clips (10) Servo-Receiver Mount ESC Mount ESC Flash 3.0 Clip de fixation de carosserie (10) Support servo - récepteur Support Variateur électr.
  • Page 15 Tuningteile Tuning Parts Pièces de tuning 90170.100 90170.101 90170.102 90170.103 Radträger hinten Alu CNC gefräst (2) Lenkverbinder mit Lager CNC gefräst Chassis CNC gefräst Querlenkerhalter unten hinten Alu CNC (2) Alum. Rear Wheel Hub CNC (2) Steering Connecting plate CNC Chassis CNC Rear Lower Suspension Arm Mounts Alum.
  • Page 16 Montage Assembly Assemblage Bitte beachten Sie die folgenden Symbole in der Anleitung, sie geben wichtige Hinweise zum Zusammenbau: Please consider the following symbols in the manual, they give important notes to the assembly: Veuillez considérer les symboles suivants dans le manuel d‘utilisation, elle donnez des indications importantes à l‘assemblage: Silikonöl Fett...
  • Page 17 Montage Differenzial Differential Assembly Assemblage différentiel M3x12 90170.10 90170.14 90170.14 90170.14 90170.33 90170.58 90170.58 90170.58 95183.D 95183.D 90170.14 90170.14 90170.14 M4x4 90170.33 65.04K 90170.74 M3x12 90170.14 90170.58 95183.D 90170.14 90170.32 90170.14 90170.58 90170.14 95183.D 90170.14 90170.16 90170.58 90170.14 M4x4 90170.32 65.04K 90170.74 GM-Racing 90170.RTR Flash 3.0 Race Brushless 4WD Buggy...
  • Page 18 Montage Hinterachse Rear End Assembly Assemblage suspension arrière 90170.52 90170.11 3x12mm 95183.D 5x4mm 90170.13 3x12mm 95183.D 90170.13 90170.37 3x12mm 90170.9 90170.9 90170.79 90170.74 90170.49 90170.45 90170.74 90170.74 90170.20 90170.74 90170.45 M3x3 90170.49 3x8mm 90170.36 90170.20 3x16mm 90170.20 90170.13 90170.20 M3x3 90170.47 GM-Racing 90170.RTR Flash 3.0 Race Brushless 4WD Buggy...
  • Page 19 Montage Vordere Radaufhängung Front Suspension Assembly Assemblage suspension avant 90170.17 90170.17 90170.17 90170.74 90170.12 90170.12 90170.40 90170.79 90170.74 90170.40 M4x12 90170.40 95183.D M3x12 90170.35 M5x4 95183.D 90170.34 90170.27 M4x16 90170.35 M3x6 90170.59 90501.55 90170.74 90170.74 90170.59 90170.59 90170.48 M3x26 90170.26 90170.27 M3x12 90170.22...
  • Page 20 Montage Vorderachse Front Assembly Assemblage avant 90170.74 90170.79 90170.53 90170.39 90170.11 M3x12 90170.37 90170.9 90170.13 M3x12 95183.D M5x4 M3x12 M3x12 95183.D 90170.13 90170.9 90170.9 GM-Racing 90170.RTR Flash 3.0 Race Brushless 4WD Buggy...

  • Page 21: Rear Assembly

    Montage Hinterachse Rear Assembly Assemblage arrrière 90170.47 M3x8 90170.21 M3x3 M3x12 M3x8 90170.13 90170.51 90170.21 M3x3 90170.21 90170.46 90170.51 90170.74 M3x12 90170.74 M3x12 90170.42 90170.74 90501.55 M3x12 90170.74 90170.79 90170.18 90170.48 M3x22 90170.31 90170.27 95183.D 90170.26 95183.D M5x4 90170.27 90170.60 90170.35 90170.25 GM-Racing 90170.RTR Flash 3.0 Race Brushless 4WD Buggy...
  • Page 22 Montage Heckfl ügel Rear Wing Assembly Assemblage Aileron arrière M3x12 90170.74 90501.55 90170.57 90170.43 90170.42 90170.42 M3x12 M3x12 90170.42 90170.42 M3x16 M3x12 90170.74 GM-Racing 90170.RTR Flash 3.0 Race Brushless 4WD Buggy...
  • Page 23 Montage Vorder-/Hinterachse Front-Rear End Assembly Assemblage avant - arrière 90170.74 90170.38 M3x12 M4x12 M4x12 M3x12 M3x12 M4x12 90170.74 90170.38 M4x12 M3x12 M4x12 M3x12 M3x12 M4x12 GM-Racing 90170.RTR Flash 3.0 Race Brushless 4WD Buggy...
  • Page 24 Montage Chassisseitenteile / Lenkung Side Plate and Steering arms Assembly Assemblage pièce latérale de chassis et bras de liaison 90170.74 90170.44 90170.74 90170.74 90170.44 M3x12 90170.28 90170.29 90170.28 90170.28 90170.30 90170.30 90501.55 90170.74 GM-Racing 90170.RTR Flash 3.0 Race Brushless 4WD Buggy...
  • Page 25 Montage Lenkung Steering Assembly Assemblage direction M4x8 90170.74 M4x8 M3x16 90170.27 90170.26 90170.24 M3x16 90501.55 90170.74 GM-Racing 90170.RTR Flash 3.0 Race Brushless 4WD Buggy...
  • Page 26 Montage Chassisstreben Chassis Brace Assembly Assemblage châssis support M4x8 90170.39 M4x8 90170.50 M3x10 M3x10 90170.56 M3x8 90170.71 90170.74 M3x16 90501.55 90170.74 90170.54 90170.48 M3x16 90501.55 90170.74 GM-Racing 90170.RTR Flash 3.0 Race Brushless 4WD Buggy...
  • Page 27 Montage Mitteldifferenzial Mid-differential Assembly Assemblage différentiel de centre 90170.15 90170.61 90170.63 90170.63 95183.D 90170.61 M3x10 90170.61 95183.D 90170.61 M3x10 M3x8 90170.74 90170.61 90170.19 90170.19 M4x8 90170.74 GM-Racing 90170.RTR Flash 3.0 Race Brushless 4WD Buggy...
  • Page 28 Montage Motor und Empfängerbox Motor and Receiver Box Assembly Assemblage moteur et box de récepteur 90170.62 90170.62 M4x8 90170.61 M4x8 65.04K M4x8 M4x8 90170.74 65.04K 90170.68 94010.1 90170.68 90170.68 M3x10 90170.74 GM-Racing 90170.RTR Flash 3.0 Race Brushless 4WD Buggy...
  • Page 29 Montage Lenkservo Steering servo Assembly Assemblage servo de direction M3x10 M3x10 Rundkopf 90170.74 M3x18 M3x8 90170.74 90501.55 GM-Racing 90170.RTR Flash 3.0 Race Brushless 4WD Buggy...
  • Page 30 Montage Akkuhalter und Fahrtenregler Akkubox and ESC Assembly Assemblage support accu et variateur électr. 90170.66 90170.67 90502.83 90170.65 90170.64 M3x8 90170.74 M4x8 90170.70 90170.74 90170.69 M4x8 GM-Racing 90170.RTR Flash 3.0 Race Brushless 4WD Buggy...
  • Page 31 Montage Stoßdämpfer Shock Assembly Assemblage amortisseur 90170.6 (90170.7) 90501.55 90170.2 90170.82 (90170.3) 90170.2 (90170.3) 90170.6 59.5 x 3.5 (90170.7) 90170.6 90170.82 72 x 3.5 90170.7 Vorne / Front / Avant (mm) Hinten / Rear / Arriére (mm) 90170.4 90170.82 (90170.5) 90170.2 (90170.3) 90170.72...
  • Page 32 Montage Stoßdämpfer (2) Shock Assembly Assemblage amortisseur M3x26 90170.81 90170.74 90170.81 M3x24 90170.8 90170.82 M3x26 90170.8 90170.81 90170.82 M3x24 GM-Racing 90170.RTR Flash 3.0 Race Brushless 4WD Buggy...
  • Page 33 Montage Räder und Karosserie Wheel and Body Assembly Assemblage pneu et carrosserie 90170.73 98022 90170.77 90170.35 90170.75 90170.77 90170.55 GM-Racing 90170.RTR Flash 3.0 Race Brushless 4WD Buggy...
  • Page 34 GM-Racing 90170.RTR Flash 3.0 Race Brushless 4WD Buggy...
  • Page 35 GM-Racing 90170.RTR Flash 3.0 Race Brushless 4WD Buggy...
  • Page 36 ZUGELASSENE FREQUENZEN - PERMITTED FREQUENCIES - FRÉQUENCES AUTORISÉES GM-Racing 90170.RTR Flash 3.0 Race Brushless 4WD Buggy...
  • Page 37 GRAUPNER GRAUPNER GRAUPNER GRAUPNER GRAUPNER GM-Racing 90170.RTR Flash 3.0 Race Brushless 4WD Buggy...
