Order No. 9547

BUILDING INSTRUCTIONS

AMIGO IV
RC model glider of around 2000 mm wingspan
This model requires a two-function HoTT radio control system
GRAUPNER/SJ GmbH D-73230 KIRCHHEIM/TECK GERMANY
Modifications reserved. No liability for printing errors.
3/2013
- 1 -

Advertisement

loading
Need help?

Need help?

Do you have a question about the 9547 and is the answer not in the manual?

Questions and answers

Related Manuals for GRAUPNER 9547

Summary of Contents for GRAUPNER 9547

  • Page 1: Building Instructions

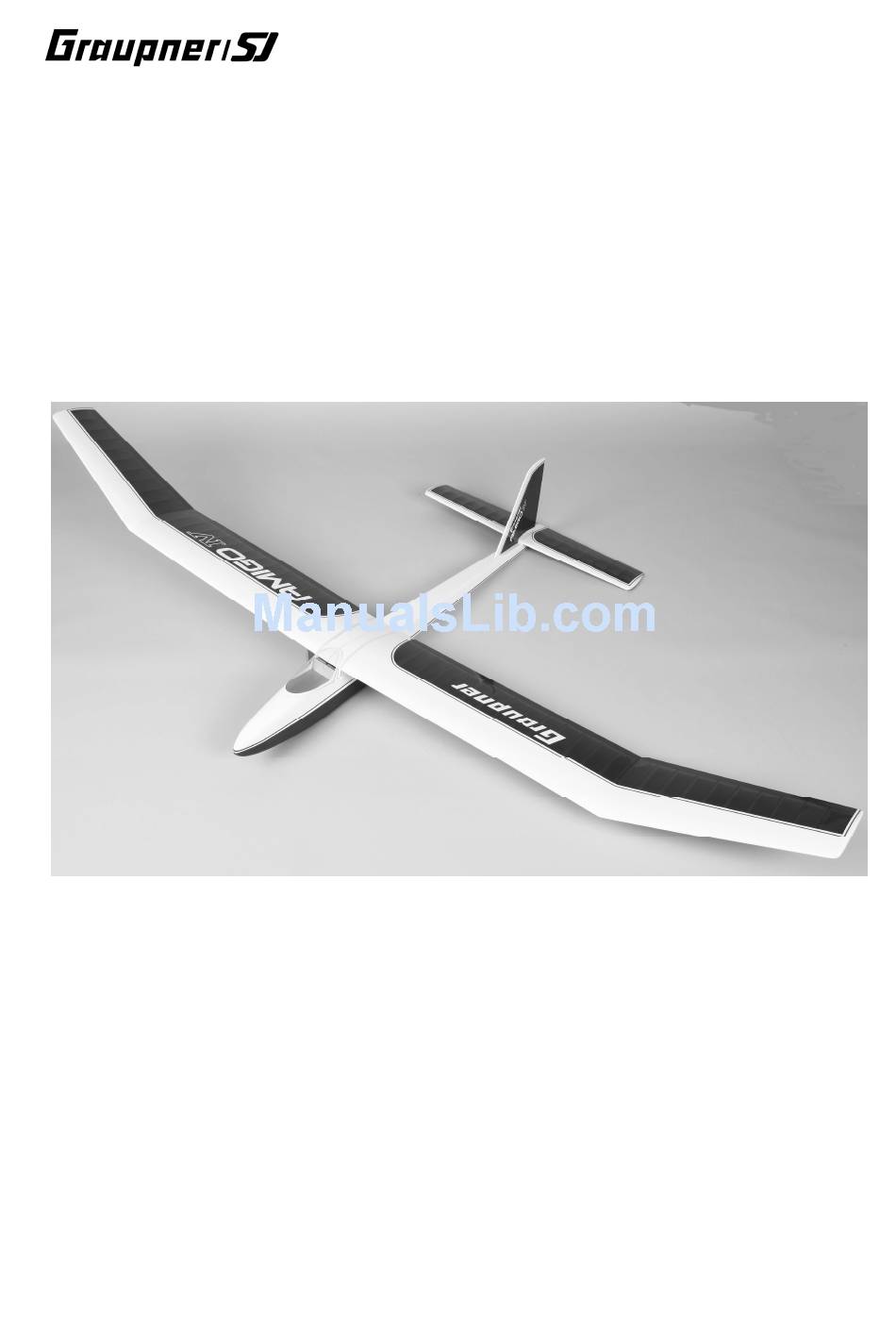

    Order No. 9547 BUILDING INSTRUCTIONS AMIGO IV RC model glider of around 2000 mm wingspan This model requires a two-function HoTT radio control system GRAUPNER/SJ GmbH D-73230 KIRCHHEIM/TECK GERMANY Modifications reserved. No liability for printing errors. 3/2013 - 1 -...
  • Page 2 Introduction The AMIGO IV is a classic Graupner/SJ model aircraft which offers an exceptional performance in the air. The outstanding features of the glider are its low airspeed and excellent thermal flying qualities. In developing the new version we were determined to emulate the original design as accurately as possible;...
  • Page 3 Glue the formers (4) and (6) and the servo plate (5) to one fuselage side, and set them exactly upright using a set-square. Pin them in place until the glue has set hard. GRAUPNER/SJ GmbH D-73230 KIRCHHEIM/TECK GERMANY Modifications reserved. No liability for printing errors.
  • Page 4 You can check this by placing the fuselage over the plan (fuselage plan view). Fix the parts together with modelling pins or tape until the glue has set hard. GRAUPNER/SJ GmbH D-73230 KIRCHHEIM/TECK GERMANY Modifications reserved. No liability for printing errors. 3/2013...
  • Page 5 ALLESKLEBER Kraft or cyano. The sketch shows the bottom fuselage panels (12) to (14) glued in place; sand the underside using a sanding block beforehand, as described earlier. GRAUPNER/SJ GmbH D-73230 KIRCHHEIM/TECK GERMANY Modifications reserved. No liability for printing errors. 3/2013...
  • Page 6 Check from the nose of the fuselage that the fin is exactly vertical, then glue it in place permanently. GRAUPNER/SJ GmbH D-73230 KIRCHHEIM/TECK GERMANY Modifications reserved. No liability for printing errors.
  • Page 7 Lay plan sheet 1 on the building board, and cover the tailplane area with clear plastic film to avoid the components sticking to the plan later. Assemble parts (26) to (42) as GRAUPNER/SJ GmbH D-73230 KIRCHHEIM/TECK GERMANY Modifications reserved. No liability for printing errors.
  • Page 8 Before building the left wing panel rub a little thin plant oil into the plan to render it translucent; see the note on the plan. The left-hand wing panels can then be assem- bled on the back of the plan using the familiar procedure. GRAUPNER/SJ GmbH D-73230 KIRCHHEIM/TECK GERMANY Modifications reserved. No liability for printing errors. 3/2013...
  • Page 9 Attach the wing to the fuselage using the four rubber bands (99). GRAUPNER/SJ GmbH D-73230 KIRCHHEIM/TECK GERMANY Modifications reserved. No liability for printing errors.
  • Page 10 Fine-tuning is carried out using the trim sliders below and adjacent to the transmitter sticks. Always land the model directly into wind. All of us at Graupner/SJ Modellbau hope you enjoy many fine flights with your new AMIGO IV GRAUPNER/SJ GmbH D-73230 KIRCHHEIM/TECK GERMANY Modifications reserved.

  • Page 11: Parts List

    Oversize, 10 x 5 x 392 Wing trailing edge Balsa Oversize, 20 x 5 x 395 Balsa Laser-cut, 2 Balsa Laser-cut, 2 Balsa Laser-cut, 2 Balsa Laser-cut, 2 GRAUPNER/SJ GmbH D-73230 KIRCHHEIM/TECK GERMANY Modifications reserved. No liability for printing errors. 3/2013 - 11 -...
  • Page 12 40 Ø x 4 x 2 AMIGO IV name placard Self-adhesive film 380 x 140 x 0.1 The picture shows the finished airframe in its uncovered state. GRAUPNER/SJ GmbH D-73230 KIRCHHEIM/TECK GERMANY Modifications reserved. No liability for printing errors. 3/2013 - 12 -...

  • Page 13: Safety Notes

    Don’t operate your model aeroplane in the vicinity of overhead power cables, industrial sites, residential areas, public roads, school playgrounds or sports fields etc. GRAUPNER/SJ GmbH D-73230 KIRCHHEIM/TECK GERMANY Modifications reserved. No liability for printing errors. 3/2013...
  • Page 14 If material defects or manufacturing faults should arise in a product distributed by us in the Federal Republic of Germany and purchased by a consumer (§ 13 BGB), we, Graupner/SJ GmbH, D-73230 Kirchheim/Teck, Germany, acknowledge the obligation to correct those defects within the limitations described below.
