GRAUPNER U-16 EMDEN Operating Instructions Manual

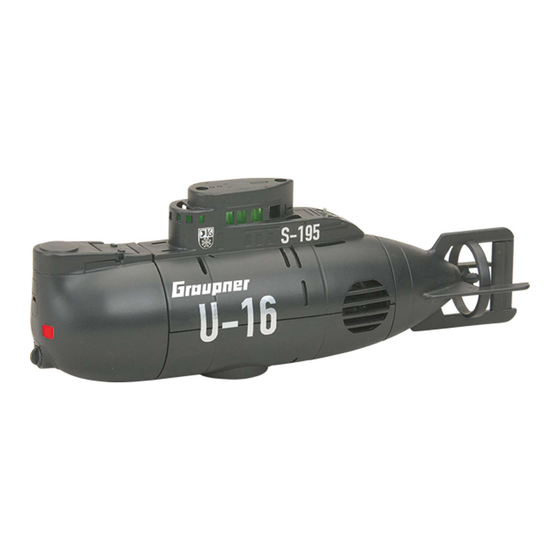

Operating instructions for the model U-16 Emden, Order No. 92303

Description of the original

The German Navy's U-16 submarine served as the design for this model. The model's length was shortened
and a stern thruster was installed to optimize the model's maneuverability.

Model description

The submarine's real static dive function is accomplished with a hoist motor that controls a ballast tank. The
boat begins to submerge due to its increased weight. Surfacing takes place by the opposite effect. This makes it
possible for the model to be suspended in water. Curved travel is accomplished by way of a small traverse
thruster at the model's stern. This makes it possible for the model to turn in-place.
The drive battery can be quickly and easily recharged because the switch socket is also the charger socket.
The submarine's small size makes it possible to operate it without difficulty in a bathtub or a rather large
aquarium tank.

Technical data

Length, about
Breath, about
Height, about
Total weight with RC, about
Maximum diving depth, about

Important safety notices

This is a model that – together with appropriate accessories – can become a functional RC model.
GRAUPNER/SJ cannot monitor adherence to the assembly and operating instructions for the model nor can
GRAUPNER/SJ supervise the installation, operation or maintenance of the model and its components.
Therefore GRAUPNER/SJ accepts no liability whatsoever for losses, damage or costs that arise from improper
operation, improper behavior or which are associated with same in any manner. Unless mandated by prevailing
law, the obligation of the GRAUPNER/SJ company to provide damage compensation arising from the use of the
model, regardless of the grounds, is excluded (this exclusion includes personal injury, death, damage to
buildings or structures as well as sales and business losses, consequential damage for business interruption or
other direct and indirect consequential damages).
Total liability under all circumstances and in each case is limited to the amount actually paid for this model.
GRAUPNER/SJ GmbH D-73230 KIRCHHEIM/TECK GERMANY
No liability for printing errors. Technical changes reserved!
132 mm
33 mm
50 mm
85 g
0.5 m
03/2012
1
