SECTION 8
8-1 ID-1
[CHASSIS PARTS]
REF.NO. ODER NO.
EP1160 6910000970 DL-20P 2.6-3-1.2H
EP1162 6910000970 DL-20P 2.6-3-1.2H
IC1160 1150002190 RA18H1213G1-21
J1 6510004910 NR-DS-E 01
MF1 2710000590 MF40D-12H-001
MP1 8010018711 2506 Chassis-1
MP2 8810008660 Screw PH BT M3x8 NI-ZU
MP3 8810008660 Screw PH BT M3x8 NI-ZU
MP4 8810008660 Screw PH BT M3x8 NI-ZU
MP5 8110006640 2047 Cover
MP6 8810008450 Screw M4x8 ZK
MP9 8110005751 1729 Fan Cover-1
MP10 8810009110 Screw M2.6x16 ZK
MP13 8930035230 1546 TR-A Clip
MP14 8510012210 2047 Main Shield Y445
MP15 8930043710 1562 EMER Button (A)
MP17 8810007130 Screw H M3x6
MP19 8930048350 2146 Lens
MP21 8930039612 Thermally Sheet (C)-2 TC100HS (10X10)
MP22 8930049650 Thermally Sheet (H)
MP23 8930053472 Thermally Sheet (R)-2 TC200HS (10X10)
MP24 8930055051 Thermally Sheet (V)-1 TC400HS (10X15)
MP26 8510014251 2506 M-Plate-1
MP27 8930037120 1647 M-Holder
MP28 8930056781 2506 YGR Plate-1 Y938A
MP29 8510014241 2506 ANT Plate-1
MP36 8310053110 2506 NAME PLATE
W1 8900010890 OPC-1115
W2 8900010890 OPC-1115
W3 8900011950 OPC-1224
[MAIN UNIT]
REF.NO. ODER NO.
MP30 8930014140 Earth Spring (D)
MP39 8930054521 Shield Sponge (E)-1
MP64 8930056580 Spacer (AD)
MP65 8810007130 Screw H M3x6
MP70 8930001170 Earth Spring (A) FX294
W1330 8900011960 OPC-1216
[LOGIC-1 UNIT]
REF.NO. ORDER. NO.
MP6 8930001170 Earth Spring (A)
Screw abbreviations
MECHANICAL PARTS AND DISASSEMBLY
DESCRIPTION QTY.
1
1
1
1
1
1
2
2
7
1
1
1
4
1
2
1
4
3
1
2
3
1
1
1
1
1
1
1
1
1
DESCRIPTION QTY.
1
1
4
4
1
1
DESCRIPTION QTY.
1
BT: Self-tapping
NI-ZU: Nickel-zinc
ZK : Black

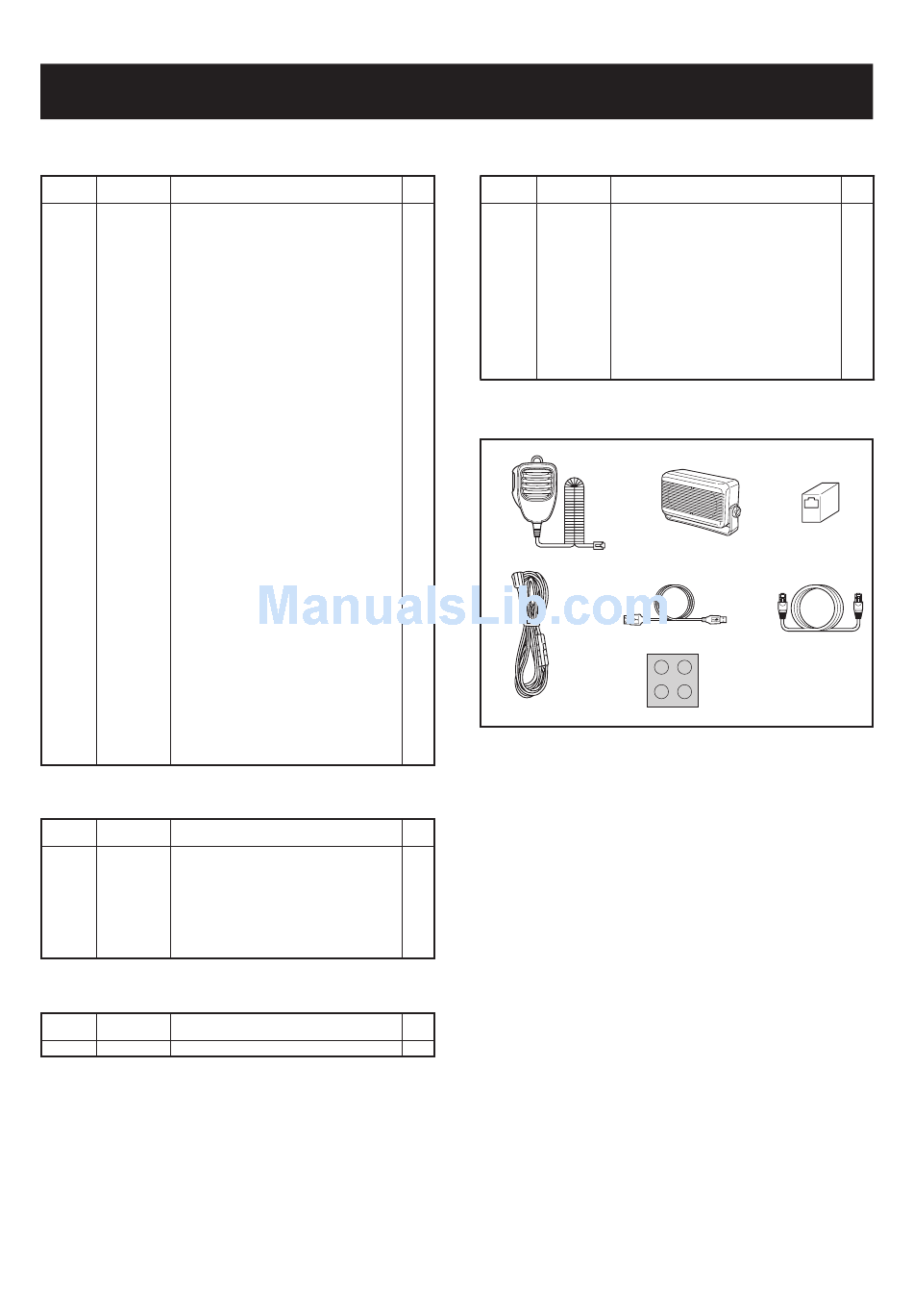

[ACCESSORIES]
REF. ORDER. NO.
MC1 Optional product Microphone HM-118N
SP1 Optional product Speaker SP-22
P1 5610000270 Connector ALA651B
W1 Optional product Cable OPC-345
W2 8900010930 Cable OPC-1127
W3 8900010550 Cable OPC-1069
MP1 8930055180 Self-adhesive rubber feet
MC1
W1
MP1
8 - 1
DESCRIPTION
SP1 P1
W2 W3
QTY.
1
1
1
1
1
1
1
