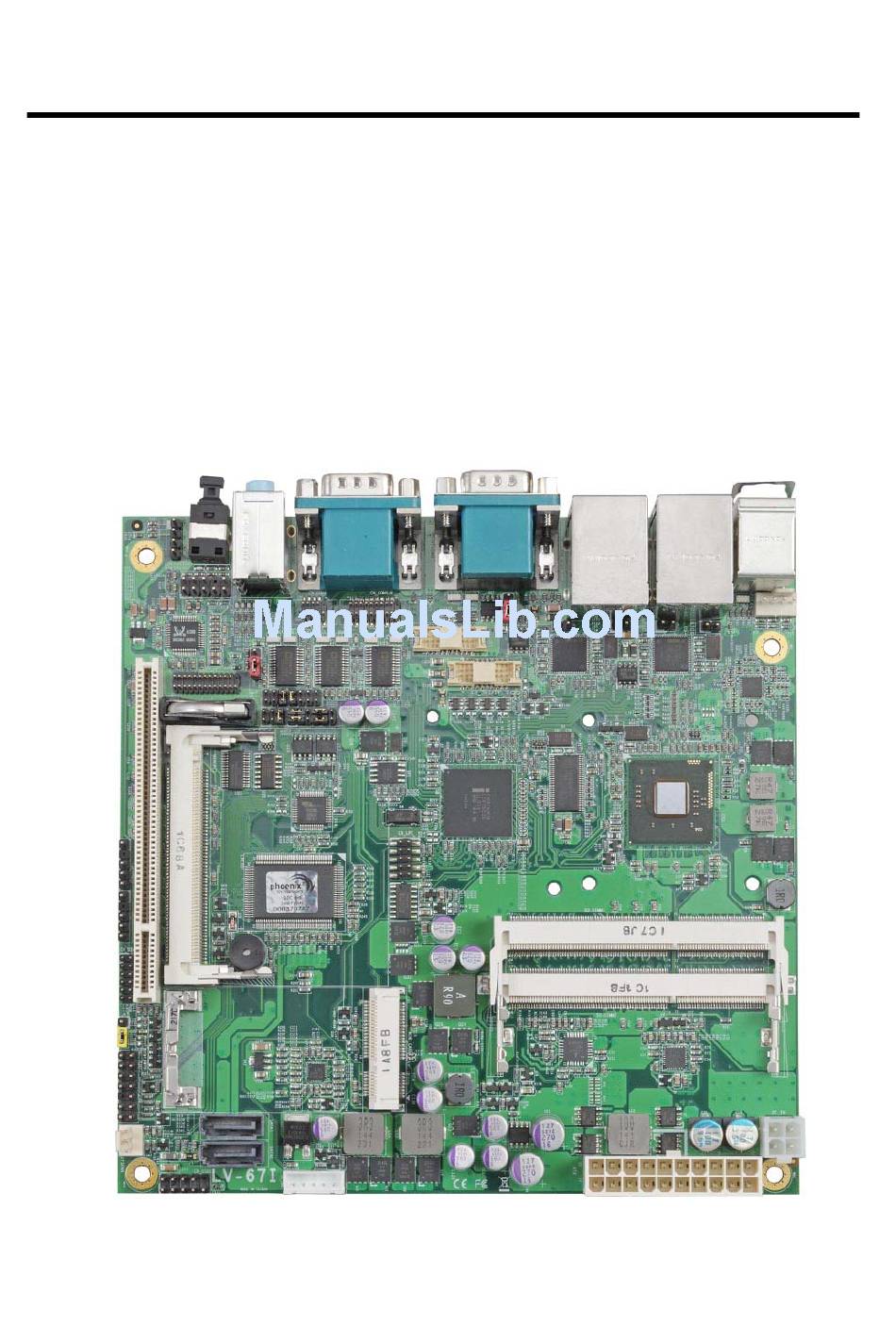

- Page 1 LV-67I Mini-ITX motherboard User’s Manual Edition: 1.6 2014/03/18...
- Page 2 LV-67I User’s Manual Copyright Copyright 2009. All rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
-
Page 3: Packing List
LV-67I User’s Manual Packing List Please check package component before you use our products. Hardware: LV-67I Mini-ITX motherboard x 1 Cable Kit: DC Power Cable x 1 SATA Cable x 1 (OALDC-2)/ (1040072) (OALSATA-L)/ (1040142) ATX Power Output Cable x 1 COM port &... - Page 4 LV-67I User’s Manual Index Chapter1 <Introduction> ............7 1.1 <Product Overview> .....................7 1.2 <Product Specification> ..................8 1.3 <Block Diagram> ....................10 1.4 <Mechanical Drawing > ..................11 Chapter 2 <Hardware Setup> ..........12 2.1 <Connector Location>..................12 2.2 <Jumper Reference> ..................13 2.3 <Connector Reference>..................14 ..............14...
- Page 5 LV-67I User’s Manual Chapter 3 <System Configuration> ........37 3.1 <Audio Configuration> ..................37 3.2 <Display Properties Setting>................39 Chapter 4 <BIOS Setup> ............42 Appendix A <I/O Port Pin Assignment> ........44 A.1 <Serial ATA Port>....................44 A.2 <IrDA Port>......................44 A.3 <GPIO Port>.......................44 A.4 <USB Interface> ....................45 A.6 <Parallel Port>....................46...
- Page 6 LV-67E User’s Manual (This Page is Left for Blank...
-
Page 7: Chapter1
Chapter1 <Introduction> 1.1 <Product Overview> LV-67I is the Mini-ITX miniboard with Intel® Atom™ CedarTrail Processor with optional D2550 or N2800 platform, Intel® NM10, integrated Intel® GMA 3650 graphics, DDR3 SO-DIMM memory, Realtek ALC888 HD Codec audio and two Intel® 82583V Giga LAN. -
Page 8: Product Specification
LV-67I User’s Manual 1.2 <Product Specification> General Specification Form Factor Mini-ITX motherboard Intel® Atom™ CedarTrail Processor with optional D2550/ N2800 Package type: Micro-FCBGA559 2 x 204-pin DDR3 SO-DIMM 800/1066MHz up to 4GB,(SO-DIMM2 Memory Primary) Support Non-ECC, unbufferred, memory only Chipset Intel®... - Page 9 LV-67I User’s Manual Expansive Interface PCI slot (32-bit, 33MHz) Power supply: +3.3V, +5V, 3VSB +12V, -12V One Mini-PCI socket TYPE III A (32-bit, 33MHz) Mini PCI Power supply: +3.3V, +5V, 3VSB One PCIE mini card socket PCIE mini card Power supply: +1.5V, 3VSB...
-
Page 10: Block Diagram
LV-67I User’s Manual 1.3 <Block Diagram> 2 x DDR3 SO-DIMM 4GB max. Intel® Atom CRT / DVI D2550/N2800 18/24bit Single Channel LVDS 2 x serial ATAII 1 x PCIE mini card socket Mini-PCI Slot NM10 6 x USB2.0 port PCI Slot... -
Page 11: Mechanical Drawing
LV-67I User’s Manual 1.4 <Mechanical Drawing >... -
Page 12: Chapter 2
LV-67I User’s Manual Chapter 2 <Hardware Setup> 2.1 <Connector Location> SATA1/2 Mini-Card CN_INV CN_USB1/2 CN_12V SYSFAN JFRNT DDRIII CN DIO CN_IR Mini-PCI CN_SMBUS CN_LPC CN_DVI CN_LPT CN_LVDS CPUFAN CN_AUDIO CDIN CN_COM4 CN_COM5/6 USB_RJ45_1/2 Audio SPDIF COM1 + CRT COM3+COM2... -
Page 13: Jumper Reference
LV-67I User’s Manual 2.2 <Jumper Reference> Jumper Function JRTC CMOS Operating/Clear Setting JVLCD Panel Voltage Setting JP39 COM3 signal mode switch (For Pin-9) JP49 COM4 signal mode switch (For Pin-9) Power mode select JCSEL1 CN_COM2 RS-232 RS422 RS485 Setting JCSEL2... -
Page 14: Connector Reference
LV-67I User’s Manual 2.3 <Connector Reference> 2.3.1 <Internal Connectors> Connector Function Remark DDRIII1/2 204 -pin DDR3 SO-DIMM SDRAM slot SATAII1/2 7-pin Serial ATA II connector 24-pin power supply connector CN_12V 4-pin +12V additional power supply connector CN_AUDIO 5 x 2-pin audio connector... -
Page 15: Memory Setup
LV-67I User’s Manual 2.4 <Memory Setup> Non-ECC, unbuffered memory is supported only. LV67I provides two 204-pin DDR3 SO-DIMM to support DDR3 800/1066 memory modules support up to 4GB of capacity. Notice: SO-DIMM2 Primary Suggestion: DDR3 SO-DIMM Modules: –Raw Card C = Single-sided x 8 –Raw Card F = Double-sided x 8... -
Page 16: Cmos & Atx Setup
LV-67I User’s Manual 2.5 <CMOS & ATX Setup> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values. -
Page 17: Serial Ata Interface
LV-67I User’s Manual 2.6 <Serial ATA Interface> Based on Intel® NM10, the board provides Three Serial ATAII interfaces with up to 300MB/s of transfer rate. S_ATA1/2 Serial ATA Interface... -
Page 18: Network Interface
LV-67I User’s Manual 2.7 <Network Interface> The board integrates with two Intel® 82583V Gigabit Ethernet controllers, as the PCI Express bus. The Intel® 82583V supports triple speed of 10/100/1000Base-T, with IEEE802.3 compliance and Wake-On-LAN supported. LAN2 LAN1... -
Page 19: Onboard Display Interface
Notice: When you install any PCI Graphic card, the onboard graphics would be disabled automatically. 2.8.1 <Analog Display> Please connect your CRT or LCD monitor with DB15 male connector to the onboard DB15 female connector on rear I/O port. LV-67I supports 1920 x 1080(WUXGA) resolution displays. -
Page 20: Digital Display Interface
LV-67I User’s Manual 2.8.2 <Digital Display Interface> The board provides one 20-pin LVDS connector for 18-bit or 24-bit single channel panels. LV-67IN supports 1366 x 768 (WUXGA) of resolution, and LV-67ID5 supports 1400 x 900 (WUXGA) of resolution, with one LCD backlight inverter connector and one jumper for panel voltage setting. - Page 21 LV-67I User’s Manual Connector: CN_INV Type: 5-pin Inverter power connector LV-67I VER.A LV-67I VER.B Description Description +12V +12V CTLBKL CTLBKL ENABKL ENABKL Jumper: JVLCD Type: 3-pin Power select jumper Description +3.3V Default: 2-3 Connector: CN_LVDS Type: onboard 20-pin connector for LVDS connector Connector model: E&T 3950-B40C-00R or similar (HIROSE DF13-40DP-1.25V compatible)
- Page 22 LCD Installation Guide: Preparing the LV-67I, LCD panel and the backlight inverter. Please check the datasheet of the panel to see the voltage of the panel, and set the jumper JVLCD to +5V or +3.3V.
- Page 23 LV-67I User’s Manual After setup the devices well, you need to select the LCD panel type in the BIOS. The panel type mapping is list below: LV-67I BIOS panel type selection form On board Single channel LVDS 18bit (LV-67IN) 24bit (LV-67ID5)
-
Page 24: Audio Interface
LV-67I User’s Manual 2.9 <Audio Interface> The board integrates onboard audio interface with REALTEK ALC888 codec, with Intel next generation of audio standard as High Definition Audio, it offers more vivid sound and other advantages than former HD audio compliance. - Page 25 LV-67I User’s Manual Connector: CN_AUDIO Type: 10-pin (2 x 5) header (pitch = 2.54mm) Description Description MIC2_L Ground MIC2_R AVCC FP_OUT_R MIC2_JD SENSE FP_OUT_L LINE2_JD Connector: CDIN Type: 4-pin header (pitch = 2.54mm) Description CD – Left Ground Ground CD – Right...
-
Page 26: Gpio And Smbus Interface
LV-67I User’s Manual 2.10 <GPIO and SMBUS Interface> The board provides a programmable 8-bit digital I/O interface, and a SMBUS (System management bus) interface for control panel application. Connector: CN_DIO Type: onboard 2 x 6-pin header, pitch=2.0mm Description Description Ground... -
Page 27: Usb Interface
LV-67I User’s Manual 2.11 <USB Interface> LV-67I integrates eight USB2.0 ports. The specifications of USB2.0 are listed below: Interface USB2.0 Intel®NM10 Controller Transfer Rate Up to 480Mb/s Voltage The Intel® NM10 contains one Enhanced Host Controller Interface (EHCI) and four Universal Host Controller Interfaces (UHCI), it can determine whether your connected device is for USB1.1 or USB2.0, and change the transfer rate automatically. - Page 28 LV-67I User’s Manual Connector: CN_USB1/2 Type: 10-pin (5 x 2) header for USB5/6 Ports Description Description Data0- Data1- Data0+ Data1+ Ground Ground Ground CN_USB1/2...
-
Page 29: Power Supply And Fan Interface
LV-67I User’s Manual 2.12 <Power Supply and Fan Interface> 2.12.1 <Power Input> The board requires onboard 4-pin DC-input connector voltage range is from 9V to 24V, or onboard 20-pin ATX2.0, for the input current, please take a reference of the power consumption report on appendix. -
Page 30: Power Output
LV-67I User’s Manual 2.12.2 <Power Output> The board provides one 20-pin ATX connector for +5V/+12V output for powering your HDD, CDROM or other devices. Attention: When DC-IN had power supplied, the ATX become output ! Avoid DC-IN and ATX power supply input at the same time ! Connector: ATX (When DC-IN be used) Type: 20-pin ATX connector for +3.3V/+5V/+12V... -
Page 31: Fan Connector
LV-67I User’s Manual 2.12.3 <Fan connector> The board provides one 4-pin fan connectors supporting smart fan for CPU cooler and one 3-pin cooler fan connectors for system. SYSFAN CPUFAN Connector: CPUFAN Type: 4-pin fan wafer connector Description Description Ground +12V... -
Page 32: Serial Port
LV-67I User’s Manual 2.13 <Serial Port> The board supports Three RS232 serial port and one jumper selectable RS232/422/485 serial ports. The jumper JCSEL1 & JCSEL2 can let you configure the communicating modes for COM2. COM1 COM3 COM2 Connector: COM2 Type: 9-pin D-sub male connector on bracket for COM2... - Page 33 LV-67I User’s Manual Setting RS-232 & RS-422 & RS-485 for COM2 JCSEL1 JP39/JP49 JCSEL2 CN_COM5/6 CN_COM4...
- Page 34 LV-67I User’s Manual Function JCSEL2 JCSEL1 IrDA RS-422 RS-485 RS-232 Default setting: JCSEL1: (1-3, 2-4, 7-9, 8-10) JCSEL2: (1-2) Jumper: JP39/JP49 (COM3/4) Type: onboard 6-pin header Power Mode JP39/JP49 Pin 9 with 5V Power Pin 9 with 12V Power Standard COM port...
-
Page 35: Switch And Indicator
LV-67I User’s Manual 2.14 <Switch and Indicator> The JFRNT provides front control panel of the board, such as power button, reset and beeper, etc. Please check well before you connecting the cables on the chassis. Connector: JFRNT Type: onboard 14-pin (2 x 7) 2.54-pitch header... - Page 36 LV-67I User’s Manual (This Page is Left for Blank)
-
Page 37: Audio Configuration
LV-67I User’s Manual Chapter 3 <System Configuration> 3.1 <Audio Configuration> The board integrates Intel® NM10 with REALTEK® ALC888 codec. It can support 2-channel sound under system configuration. Please follow the steps below to setup your sound system. Install REALTEK HD Audio driver. - Page 38 LV-67I User’s Manual Select the sound mode to meet your speaker system.
-
Page 39: Display Properties Setting
LV-67I User’s Manual 3.2 <Display Properties Setting> Based on Intel® Atom D2550 / N2800 with GMA3650 (Graphic Media Accelerator), the board supports two DACs for display device as different resolution and color bit. Please install the Intel Graphic Driver before you starting setup display devices. - Page 40 LV-67I User’s Manual 2. Click Advanced button for more specificity setup. Click Graphics Properties... for advanced setup...
- Page 41 LV-67I User’s Manual 3. This setup options can let you define each device settings. Click Monitor to setup the CRT monitor for Resolution and Refresh Rate Click Intel® Dual Display Clone to setup the dual display mode as same screen...
-
Page 42: Chapter 4
LV-67I User’s Manual Chapter 4 <BIOS Setup> The motherboard uses the Phoenix BIOS for the system configuration. The Phoenix BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel® x86 and compatible CPU architecture based processors and computers. - Page 43 LV-67I User’s Manual (This Page is Left for Blank)
-
Page 44: Appendix A
LV-67I User’s Manual Appendix A <I/O Port Pin Assignment> A.1 <Serial ATA Port> Connector: S_ATA1/2 Type: 7-pin wafer connector GND RSATA_TXP1 RSATA_TXN1 GND RSATA_RXN1 RSATA_RXP1 GND A.2 <IrDA Port> Connector: CN_IR Type: 5-pin header for SIR Ports Description IRRX Ground IRTX A.3 <GPIO Port>... -
Page 45: A.4
LV-67I User’s Manual A.4 <USB Interface> Connector: CN_USB1/2 Type: 10-pin (5 x 2) header for dual USB Ports Description Description Data0- Data1- Data0+ Data1+ Ground Ground Ground A.5 <Serial Port> 5 4 3 2 1 9 8 7 6 Connector: COM1/2/3... -
Page 46: A.6
LV-67I User’s Manual A.6 <Parallel Port> Connector: CN_LPT Type: 26-Pin box header Connector on bracket Assignment Assignment -PSTB AFD- PRO0 ERR- PRO1 INT- PRO2 SLIN- PRO3 Ground PRO4 Ground PRO5 I/O Ground PRO6 Ground PRO7 Ground ACK- Ground BUSY Ground... -
Page 47: A.8
LV-67I User’s Manual A.8 <LAN Port> Connector: RJ45_1/2 Type: RJ45 connector with LED on rear panel Description TRD0+ TRD0- TRD1+ TRD2+ TRD2- TRD1- TRD3+ TRD3- A.9 <SMBus> Connector: CN_SMBUS Type: 4-pin SMBus connector Description Description SMBDATA SMBCLK Ground CN_SMBUS... -
Page 48: A.10
LV-67I User’s Manual A.10 <LAN LED Port> Connector: JSPD1/2 Type: 5-pin header for LAN Speed LED connector When Lan speed 10/100Mbps Description LED- LED+ When Lan speed 1Gbps Description LED+ LED- Connector: JACT1/2 Type: 5-pin header for LAN Activity LED connector... -
Page 49: Appedix B
LV-67I User’s Manual Appedix B <System Resources> B.1 < I/O Port Address Map >... - Page 50 LV-67I User’s Manual...
-
Page 51: B.2 < Memory Address Map
LV-67I User’s Manual B.2 < Memory Address Map >... -
Page 52: B.3 < System Irq Resources
LV-67I User’s Manual B.3 < System IRQ Resources >... - Page 53 LV-67I User’s Manual...
- Page 54 LV-67I User’s Manual...
- Page 55 LV-67I User’s Manual...
-
Page 56: B.4 < System Dma Resources
LV-67I User’s Manual B.4 < System DMA Resources >... -
Page 57: Appedix C
LV-67I User’s Manual Appedix C <Flash BIOS> C.1 <BIOS Auto Flash Tool> The board is based on Phoenix BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: http://www.phoenix.com/en/home/... -
Page 58: Appendix D
LV-67I User’s Manual Appendix D <Programming GPIO’s> The GPIO’ can be programmed with the MSDOS debug program using simple IN/OUT commands. The following lines show an example how to do this. GPIO0…..GPIO7 bit0……bit7 -o 2E 87 ;enter configuration -o 2E 87... -
Page 59: Appendix E
LV-67I User’s Manual Appendix E <Watch Dog timer Setting > The watchdog timer makes the system auto-reset while it stops to work for a period. The integrated watchdog timer can be setup as system reset mode by program. Timeout Value Range... -
Page 60: Contact Information
19F., No.94, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei City 22102, Taiwan Address +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw i nfo@commell.com.tw (General Information) E-Mail t ech@commell.com.tw (Technical Support) Facebook https://www.facebook.com/pages/Taiwan-Commate-Computer-Inc/547993955271899 Twitter https://twitter.com/Taiwan_Commate Commell is a brand name of Taiwan commate computer Inc.
