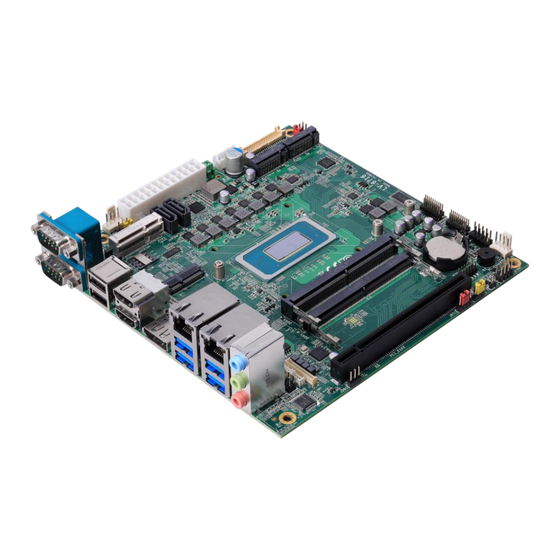

Mini-itx mobile motherboard
Hide thumbs

Advertisement

Quick Links

Download this manual
LV-6716
Mini-ITX Mobile Motherboard
User's Manual
Edition 1.0
2024/11/25

Advertisement

loading
Need help?

Need help?

Do you have a question about the LV-6716 and is the answer not in the manual?

Questions and answers

Related Manuals for Commell LV-6716

Summary of Contents for Commell LV-6716

  • Page 1 LV-6716 Mini-ITX Mobile Motherboard User’s Manual Edition 1.0 2024/11/25...
  • Page 2 LV-6716 User’s Manual Copyright Copyright 2024, all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
  • Page 3 LV-6716 User’s Manual Packing List: Please check the package content before you starting using the board. 1 x I/O Shield 1 x LV-6716 Mini-ITX Motherboard (OPLATE-CUHDLAT) / (1270077) (Include Cooler Fan) 1 x Adapter LAN Cable 1 x DC Input Power Cable...
  • Page 4 LV-6716 User’s Manual Index Chapter 1 <Introduction>............... 4 1.1 <Product Overview> ............4 1.2 <Product Specification> ............5 1.3 <Block Diagram> ..............6 Chapter 2 <Hardware setup> ............7 2.1 <Connector Location and Reference> ..........7 2.1.1 <Internal connectors list> .......... 8 2.1.2 <External connectors list>...
  • Page 5 LV-6716 User’s Manual Chapter 1 <Introduction> 1.1 <Product Overview> LV-6716 is a Mini-ITX Motherboard which supports Ultra Processor (MTL-H Platform), integrated DDR5 memory, Realtek High Definition Audio, Intel Gigabit LAN, USB3.2 Gen2, SATA3 with AHCI function for a system. New feature for Meteor Lake...
  • Page 6 LV-6716 User’s Manual 1.2 <Product Specification> System Intel® Core™ Ultra Processor (MTL-H Platform) Processor FCBGA2049 package 2 x DDR5 SO-DIMM 5600 MHz up to 96GB, Memory Support Non-ECC, unbuffered memory Generates a system reset with internal timer for 1min/s ~ 255min/s...
  • Page 7 LV-6716 User’s Manual 1.3 <Block Diagram> PTN3460 DDR5 SODIMM 5600 DDR5 SODIMM 5600 LVDS 2 x M.2 KEY M 2280 1 x PCIe X16 Slot DP ++ Gen5 8x HDMIA HDMIB I226-LM 1 x M.2 2230 I226-V 1 x PCIe / mSATA...
  • Page 8 LV-6716 User’s Manual Chapter 2 <Hardware setup> 2.1 <Connector Location and Reference> CN_COM3/4 CN_COM5/6 CN_USB SYSFAN NVMe_1 CN_LVDS CN_DIO NVMe_2 CN_INV DC_INT PCI_E16X SATA1 SATA2 CN_SMBUS M2 KeyE CN_LAN3 CPUFAN JLANLED2 JLANLED1 CN_ AUDIO COM2 I226-V I226-LM COM1 USB2.0 HDMI_A USB3.2 Gen2...
  • Page 9 LV-6716 User’s Manual 2.1.1 <Internal connectors list> Connector Function DDR5_A/B 262-pin DDR5 SO-DIMM slot SATA1/2 7-pin SATA3 connector CN_AUDIO 5 x 2-pin audio pin header CN_LVDS/EDP1 20 x 2-pin LVDS connector CN_INV 5-pin LCD inverter connector CN_SMBUS 3-pin SMBus connector...
  • Page 10 LV-6716 User’s Manual 2.2 <Memory Setup> In the process, the board must be powered off. 1. Put the memory tilt into the slot. Note the Memory notch key aligned slot key. 2. Then press down till lock into the mounting notch.
  • Page 11 LV-6716 User’s Manual 2.3 <Jumper Location and Reference> JVLCD JRTC JMSATA 2.3.1 <Jumper list> Jumper Function Power mode select JRTC CMOS Normal/Clear Setting JVLCD Panel Voltage Setting JMSATA MiniCard mSATA Setting COM2 Voltage Setting (For Pin 9) COM1 Voltage Setting (For Pin 9)
  • Page 12 LV-6716 User’s Manual 2.3.2 <Clear CMOS and Power on type selection> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values.
  • Page 13 LV-6716 User’s Manual 2.4.2 <Ethernet interface> The board provides I226-LM & I226-V 2.5Gigabit Ethernet which supports WOL on rear I/O. CN_LAN3 JLANLED1 (I226-LM) JLANLED2 (I226-V) CN_LAN3: 13-pin i226-V connector Description RTD00+ JLANLED 1 & 2: 4-pin RJ45 LED connector RTD00-...
  • Page 14 LV-6716 User’s Manual 2.4.3 <Display interface> Based on the Ultra CPU (MTL-H Platform) with built-in Intel® Arc™ Graphics, the DisplayPort ++ resolution up to 3840x2160 @ 60Hz or 4096x2304 @ 60Hz, the HDMI up to 4096x2304 @ 24Hz and LVDS up to 1920x1200 @ 60Hz supports single bus or dual bus LVDS signaling with color depths of 18 bits or 24 bits.
  • Page 15 LV-6716 User’s Manual CN_LVDS: LVDS 40-pin connector ( Model: HIROSE DF13-40DP-1.25V compatible Signal Signal Set by JVLCD Set by JVLCD Detect (Active low) A_LVDS_0- B_LVDS_0- A_LVDS_0+ B_LVDS_0+ A_LVDS_1- B_LVDS_1- A_LVDS_1+ B_LVDS_1+ A_LVDS_2- B_LVDS_2- A_LVDS_2+ B_LVDS_2+ A_LVDS_CLK- B_LVDS_3- A_LVDS_CLK+ B_LVDS_3+ A_LVDS_3-...
  • Page 16 LV-6716 User’s Manual CN_EDP2-1: EDP connector Signal Signal eDP0+ eDP0– +3.3 V eDP1+ +3.3 V eDP1– DPSEL Backlight Control eDP_AUX+ Enable Backlight eDP_AUX– *Cable of CN_EDP2_1 Pin13 (DPSEL) need to be connected to GND. CN_EDP2-2: EDP connector Signal Signal eDP2+ eDP2–...
  • Page 17 LV-6716 User’s Manual 2.4.4 <Serial Port interface> COM2 COM1 COM1: RS232/422/485 DB9 connector Signal Signal DCD/ 422TX-/ 485- RXD/ 422TX+/ 485+ DSR/ 422RX+ CTS/ 422RX- Set by JP2 COM2: RS232/422/485 DB9 connector Signal Signal DCD/ 422TX-/ 485- RXD/ 422TX+/ 485+...
  • Page 18 LV-6716 User’s Manual COM1 & COM2 RS-232/422/485 can set by BIOS. You can find the setting from Advanced-> Motherboard Advanced menu-> Super IO configuration-> Serial Port configuration->Interface If you want to use RS485, please follow below step before connection. .
  • Page 19 LV-6716 User’s Manual 2.4.5 <USB interface> USB2 USB3.2 Gen2 CN_USB CN_USB: USB2.0 10-pin header (Pitch 2.54 mm) Signal Signal 5VSB 5VSB DATA0- DATA1- DATA0+ DATA1+ -18-...
  • Page 20 LV-6716 User’s Manual 2.4.6 <Audio interface> Rear Audio Jack Line in CN_AUDIO Line out Mic in CN_AUDIO: Front panel audio 10-pin header (Pitch 2.54mm) Signal Signal MIC_L MIC_R FP_OUT_R MIC_DETECT SENSE FP_OUT_L FP_OUT_DETECT -19-...
  • Page 21 LV-6716 User’s Manual 2.4.7 <Expansion slot> NVMe_1 NVMe_2 PCIE_16X M2 Key E JMSATA JMSATA: Setting MINI_CARD to support PCIe/mSATA MINI_CARD support mSATA by JMSATA, and connect SIM card M.2 Key E with 1 x PCI Express x1 support WI-FI and Bluetooth Module NVMe_1&2: M.2 (Key M) with 4 x PCIe Gen4 support NVMe SSD...
  • Page 22 LV-6716 User’s Manual 2.4.8 <Front panel switch and indicator> JFRNT JFRNT: Front panel switch and indicator 8-pin header (Pitch 2.54mm) Signal Signal Power_ON- Power_ON+ HDD_LED- HDD_LED+ Power_LED- Power_LED+ Reset+ Reset- -21-...
  • Page 23 LV-6716 User’s Manual 2.4.9 <GPIO and Other interface> SYSFAN CN_DIO CN_SMBUS CPUFAN When using GPIO function, please note: As Output: Open-drain, most applications need use an external pull up resistor. (If not may cause damage) As Input: TTL-level. -22-...
  • Page 24 LV-6716 User’s Manual GPIO DC characteristics (open drain mode) Parameter UNIT Conditions Input Low Voltage Input High Voltage Output Low Voltage =12mA μ Input High Leakage =3.3V μA Input Low Leakage Please refer to Appendix D to program the configuration register CN_DIO: GPIO 12-pin header (Pitch 2.00mm)
  • Page 25 LV-6716 User’s Manual 2.5 <Power supply> 2.5.1 <Power input> DC_INT DC_INT: 2-pin 9~35V connector Signal Signal 9~35V ATX: main power 24-pin connector (DC_IN(T) and ATX can’t use at the same time) Signal Signal 3.3V 3.3V 3.3V -PSON Power_OK 5VSB 3.3V...
  • Page 26 LV-6716 User’s Manual 2.5.2 <Power Output> It is supply to the HDD, CD-ROM or other device. If using DC_IN as input, that ATX will be the output. ATX: main power 24-pin connector (As output) Signal Signal 3.3V 3.3V 3.3V 3.3V...
  • Page 27 LV-6716 User’s Manual Appendix A <LCD Panel Type select> According your panel, it needs to select the correct resolution in the BIOS. If there is no fit your panel type, please feedback for us to make OEM model. Find the setting from Advanced->Motherboard Advanced menu->LVDS Configuration...
  • Page 28 LV-6716 User’s Manual Appendix B <Programmable Watch Dog Timer> The watchdog timer makes the system auto-reset while it stops to work for a period. The integrated watchdog timer can be setup as system reset mode by program. You can select Timer setting in the BIOS, after setting the time options, the system will reset according to the period of your selection.
  • Page 29 LV-6716 User’s Manual Program sample Watchdog timer setup as system reset with 5 second of timeout -o 4E 87 ;enter configuration -o 4E 87 -o 4E 07 -o 4F 08 ;select Logical Device -o 4E 30 -o 4F 01 ; activate WDTO# function -o 4E F0 ;set “00”...
  • Page 30 LV-6716 User’s Manual Appendix C <Hardware Monitor> Find the setting from Advanced-> Motherboard Advanced menu-> Super IO configuration-> Hardware Monitor -29-...
  • Page 31 LV-6716 User’s Manual Appendix D <Programmable GPIO> The GPIO can be programmed with the MS-DOS debug program using simple IN/OUT commands. GPIO -o 4E 87 ;enter configuration -o 4E 87 -o 4E 07 -o 4F 07 ;select Logical Device -o 4E 30 -o 4F 08 ;activate GPIO function (The board use GPIO3)
  • Page 32 LV-6716 User’s Manual Appendix E <RAID Setting> When use RAID function, it need to enter the BIOS set RAID mode first. Advanced  Intel Advanced menu SA Configuration  VMD Configuration 1. Find VMD controller, and set to enable 2. Set “Map this Root port under VMD” to enable.
  • Page 33 Taiwan Commate computer Inc. 19F., NO.94, Sec. 1, Xintai 5 Rd., Xizhi Dist., New Taipei Address City 22102, Taiwan. +886-2-26963909 Website www.commell.com.tw info@commell.com.tw (General information) E-mail tech@commell.com.tw (Technical Support) Commell is a brand name of Taiwan Commate computer Inc. -32-...
