- Page 1 LV-67Z Mini-ITX Mobile Motherboard User’s Manual Edition 1.2 2020/01/08...
- Page 2 Trademark All trademarks are the property of their respective holders. Any questions please visit our website at http://www.commell.com.tw...
- Page 3 LV-67Z User’s Manual Packing List: Please check the package content before you starting using the board. 1 x I/O Shield 1 x LV-67Z Mini-ITX Motherboard (OPLATE-CUHDLAT) / (1270077) (include Cooler Fan) 1 x DC Power Cable 1 x Power Cable (OALDC-A) / (1040433) (OALATX-P3S2 / 1040058) 2 x SATA Cable...
-
Page 4: Table Of Contents
LV-67Z User’s Manual Index Chapter 1 <Introduction>..............4 1.1 <Product Overview>............4 1.2 <Product Specification> ............5 1.3 <Block Diagram>..............6 Chapter 2 <Hardware setup> ............7 2.1 <Connector Location and Reference> ........ 7 2.1.1 <Internal connectors list> ..........8 2.1.2 <External connectors list>.........8 2.2 <Memory Setup>..............9 2.3 <Jumper Location and Reference>... -
Page 5: Chapter 1

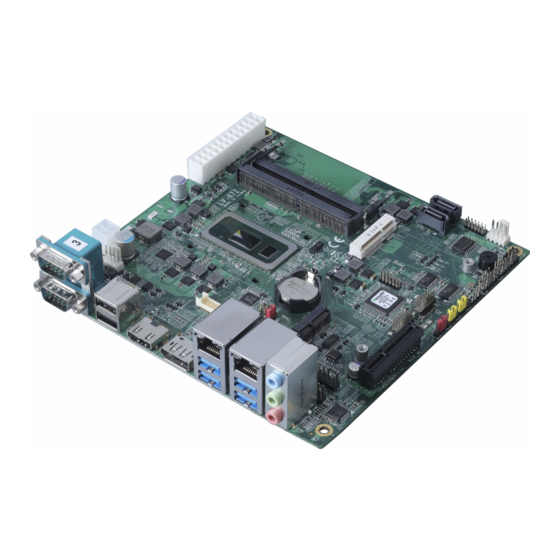

LV-67Z User’s Manual Chapter 1 <Introduction> 1.1 <Product Overview> LV-67Z is Mini-ITX Motherboard which supports 8th Generation Intel® Core™ U-Series processors, integrated HD Graphics, DDR4 memory, Realtek High Definition Audio, Intel Gigabit LAN, USB3.1 Gen2, SATA3 with AHCI function for a system. New feature for Whiskey Lake Whiskey Lake-U processors are based on the 14nm++ process node, and offer long-life availability. -
Page 6: Product Specification
LV-67Z User’s Manual 1.2 <Product Specification> System Intel® Whiskey Lake Processor Processor FCBGA1528 package 2 x DDR4 SO-DIMM 2400 MHz up to 32GB, Memory Support Non-ECC, unbuffered memory Watchdog Timer Generates a system reset with internal timer for 1min/s ~ 255min/s Real Time Clock Chipset integrated RTC with onboard lithium battery Expansion... -
Page 7: Block Diagram
LV-67Z User’s Manual 1.3 <Block Diagram> PTN3460 DDR4 SODIMM 2400 DDR4 SODIMM 2400 LVDS PCIe x4 Slot Whiskey Lake Processor HDMI 1 x SATA 1 x PCIe / mSATA I219 1 x SATA 1 x SPI I210 4 x USB3.1 Gen2 1 x M.2 KEY E 2230 4 x USB2.0 1 x ALC262... -
Page 8: Chapter 2
LV-67Z User’s Manual Chapter 2 <Hardware setup> 2.1 <Connector Location and Reference> DDR4_B DDR4_A SATA3-2 SATA3-1 CN_DIO SYSFAN JFRNT CN_USB MINI_CARD CN_SMBUS CN_LPC CN_COM5/6 CN_COM3/4 PCIE_4X M.2 KEY E DC_IN CN_LVDS CN_PS2 CPUFAN CN_AUDIO CN_INV AUDIO COM2 I210-AT I219-LM COM1 USB2.0 HDMI USB3.1 Gen2... -
Page 9: Internal Connectors List
LV-67Z User’s Manual 2.1.1 <Internal connectors list> Connector Function DDR4_A/B 260-pin DDR4 SO-DIMM slot SATA3-1/2 7-pin Serial ATA3 connector CN_AUDIO 5 x 2-pin audio pin header CN_LPC 6 x 2-pin LPC pin header CN_LVDS 20 x 2-pin LVDS connector CN_INV 5-pin LCD inverter connector CN_SMBUS 5-pin SMBus connector... -
Page 10: Memory Setup
LV-67Z User’s Manual 2.2 <Memory Setup> In the process, the board must be powered off. 1. Put the memory tilt into the slot. Note the Memory notch key aligned slot key. 2. Then press down till lock into the mounting notch. Press down Mounting notch 3. -
Page 11: Jumper Location And Reference
LV-67Z User’s Manual 2.3 <Jumper Location and Reference> JMSATA JRTC JVLCD 2.3.1 <Jumper list> DC_IN Jumper Function CPUFAN Power mode select CN_INV JRTC CMOS Normal/Clear Setting JVLCD Panel Voltage Setting JMSATA MiniCard mSATA Setting COM1 Voltage Setting (For Pin 9) COM2 Voltage Setting (For Pin 9) -10-... -
Page 12: Clear Cmos And Power On Type Selection
LV-67Z User’s Manual 2.3.2 <Clear CMOS and Power on type selection> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values. -
Page 13: Ethernet Interface
LV-67Z User’s Manual 2.4.2 <Ethernet interface> The board provides I210-AT and I219-LM Gigabit Ethernet which supports WOL on rear I/O. It supports Intel® AMT 12.0 feature on I219-LM. (Note that the CPU must support vPro technology.) I219-LM I210-AT 2.4.3 <Display interface> Based on the 8th Gen CPU with built-in HD Graphics, the DisplayPort resolution up to 3840x2160 @ 60Hz or 4096x2304 @ 60Hz, the HDMI up to 4096x2304 @ 24Hz and LVDS up to 1920x1200 @ 60Hz supports single bus or dual bus LVDS... - Page 14 LV-67Z User’s Manual CN_INV CN_LVDS JVLCD CN_LVDS: LVDS 40-pin connector ( Model: HIROSE DF13-40DP-1.25V compatible Signal Signal Set by JVLCD Set by JVLCD Detect (Active low) A_LVDS_0- B_LVDS_0- A_LVDS_0+ B_LVDS_0+ A_LVDS_1- B_LVDS_1- A_LVDS_1+ B_LVDS_1+ A_LVDS_2- B_LVDS_2- A_LVDS_2+ B_LVDS_2+ A_LVDS_CLK- B_LVDS_3- A_LVDS_CLK+ B_LVDS_3+ A_LVDS_3-...
-
Page 15: Serial Port Interface
LV-67Z User’s Manual CN_INV: LVDS 5-pin Backlight power connector Signal Backlight Control Enable Backlight JVLCD: LVDS panel power select jumper Jumper settings Function 3.3V (Default) 2.4.4 <Serial Port interface> COM2 COM1 -14-... - Page 16 LV-67Z User’s Manual COM1: RS232/422/485 DB9 connector Signal Signal DCD/ 422TX-/ 485- RXD/ 422TX+/ 485+ DSR/ 422RX+ CTS/ 422RX- Set by JP1 COM2: RS232/422/485 DB9 connector Signal Signal DCD/ 422TX-/ 485- RXD/ 422TX+/ 485+ DSR/ 422RX+ CTS/ 422RX- Set by JP2 COM1 &...
- Page 17 LV-67Z User’s Manual CN_COM5/6 CN_COM3/4 COM3/4: COM 20-pin header (Pitch 2.54 x 1.27mm) Signal Signal DCD1 RXD1 TXD1 DTR1 DSR1 RTS1 CTS1 DCD2 RXD2 TXD2 DTR2 DSR2 RTS2 CTS2 COM5/6: COM 20-pin header (Pitch 2.54 x 1.27mm) Signal Signal DCD1 RXD1 TXD1 DTR1...
-
Page 18: Usb Interface
LV-67Z User’s Manual 2.4.5 <USB interface> USB2.0 USB3.1 Gen2 CN_USB CN_USB: USB2.0 10-pin header (Pitch 2.54 mm) Signal Signal 5VSB 5VSB DATA0- DATA1- DATA0+ DATA1+ -17-... -
Page 19: Audio Interface
LV-67Z User’s Manual 2.4.6 <Audio interface> Rear Audio Jack Line in Line out CN_AUDIO Mic in CN_AUDIO: Front panel audio 10-pin header (Pitch 2.54mm) Signal Signal MIC_L MIC_R FP_OUT_R MIC_DETECT SENSE FP_OUT_L FP_OUT_DETECT -18-... -
Page 20: Expansion Slot
LV-67Z User’s Manual 2.4.7 <Expansion slot> MINI_CARD JMSATA PCIE_4X M.2 KEY E MINI_CARD have some special design to compatible our mini-PCIe card. (ex: MPX-574D2, MPX-210D2 etc) MINI_CARD support mSATA by JMSATA JMSATA: Setting MINI_CARD to support PCIe/mSATA Jumper settings Function Support mSATA Normal operation (Default) mSATA and SATA3-2 can’t not use at the same time... -
Page 21: Front Panel Switch And Indicator
LV-67Z User’s Manual 2.4.8 <Front panel switch and indicator> JFRNT JFRNT: Front panel switch and indicator 14-pin header (Pitch 2.54mm) Signal Signal HDD_LED+ Power_LED+ HDD_LED- Reset+ Power_LED- Reset- Speaker+ Power_ON+ Power_ON- Speaker- -20-... -
Page 22: Gpio And Other Interface
LV-67Z User’s Manual 2.4.9 <GPIO and Other interface> SYSFAN CN_DIO CN_SMBUS CN_LPC CPUFAN CN_PS2 -21-... - Page 23 LV-67Z User’s Manual When using GPIO function Press Delete to enter BIOS Setup menu On Front Page screen, click Setup Utility On Advanced screen, click Super IO Configuraion, then click GPIO 4 Configuration Internal Resistance: Select output type, Push pull or Open drain Input/Output mode: Select GPIO pin mode, Input or Output GPIO Output Potential: GPIO output value.
- Page 24 LV-67Z User’s Manual CN_LPC: LPC 12-pin header (Pitch 2.00mm) Signal Signal -LFRAME LAD3 LAD2 LAD1 LAD0 3.3V SERIRQ 3.3VSB CN_PS2: PS/2 10-pin header (Pitch 2.54mm) Signal Signal KB_DATA M_DATA KB_CLK M_CLK CN_SMBUS: SMBus 5-pin connector (Pitch 2.54mm) Signal SMBDAT SMBCLK CPUFAN: CPU cooler fan 4-pin connector Signal Sensor...
-
Page 25: Power Supply
LV-67Z User’s Manual 2.5 <Power supply> 2.5.1 <Power input> DC_IN DC_IN: 4-pin 9~35V connector Signal Signal 9~35V 9~35V ATX: main power 24-pin connector (DC_IN and ATX can’t use at the same time) Signal Signal 3.3V 3.3V 3.3V -PSON Power_OK 5VSB 3.3V -24-... -
Page 26: Power Output
LV-67Z User’s Manual 2.5.2 <Power Output> It is supply to the HDD, CD-ROM or other device. If using DC_IN as input, that ATX will be the output. ATX: main power 24-pin connector (As output) Signal Signal 3.3V 3.3V 3.3V 3.3V -25-... -
Page 27: Appendix A
LV-67Z User’s Manual Appendix A <Flash BIOS> A.1 <Flash tool> The board is based on Insyde BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: FPT Tool The tool’s file name is “FPT.exe”, it’s the utility that can write the data into the BIOS flash chip and update the BIOS. -
Page 28: Appendix B
LV-67Z User’s Manual Appendix B <LCD Panel Type select> According your panel, it needs to select the correct resolution in the BIOS. If there is no fit your panel type, please feedback for us to make OEM model. Find the setting from Front Page->... - Page 29 LV-67Z User’s Manual LVDS configurationLCD Control There are 16 resolutions in LCD Panel Type. (For Dual boot and Legacy boot) -28-...
-
Page 30: Appendix C
LV-67Z User’s Manual Appendix C <Programmable Watch Dog Timer> The watchdog timer makes the system auto-reset while it stops to work for a period. The integrated watchdog timer can be setup as system reset mode by program. You can select Timer setting in the BIOS, after setting the time options, the system will reset according to the period of your selection. - Page 31 LV-67Z User’s Manual Program sample Watchdog timer setup as system reset with 5 second of timeout -o 4E 87 ;enter configuration -o 4E 87 -o 4E 07 -o 4F 08 ;select Logical Device -o 4E 30 -o 4F 01 ; activate WDTO# function -o 4E F0 -o 4F 00 ;set “00”...
-
Page 32: Appendix D
LV-67Z User’s Manual Appendix D <Hardware Monitor> Find the setting from AdvancedSuper IO ConfigurationHardware Monitor -31-... -
Page 33: Appendix E
LV-67Z User’s Manual Appendix E <Programmable GPIO> The GPIO can be programmed with the MS-DOS debug program using simple IN/OUT commands. GPIO -o 4E 87 ;enter configuration -o 4E 87 -o 4E 07 -o 4F 07 ;select Logical Device -o 4E 30 -o 4F 10 ;activate GPIO function (The board use GPIO4) -o 4E F0... -
Page 34: Appendix F
LV-67Z User’s Manual Appendix F <RAID Setting> When use RAID function, it need to enter the BIOS set RAID mode first. Advanced PCH-IO Configuration SATA and RST Configuration SATA Mode Selection At boot time, press <CTRL + I> to enter the RAID configuration menu. -33-... -
Page 35: Contact Information
Taiwan Commate computer Inc. 19F., NO.94, Sec. 1, Xintai 5 Rd., Xizhi Dist., New Taipei Address City 22102, Taiwan. +886-2-26963909 +886-2-26963911 Website www.commell.com.tw info@commell.com.tw (General infomation) E-mail tech@commell.com.tw (Technical Support) Commell is a brand name of Taiwan Commate computer Inc. -34-...
