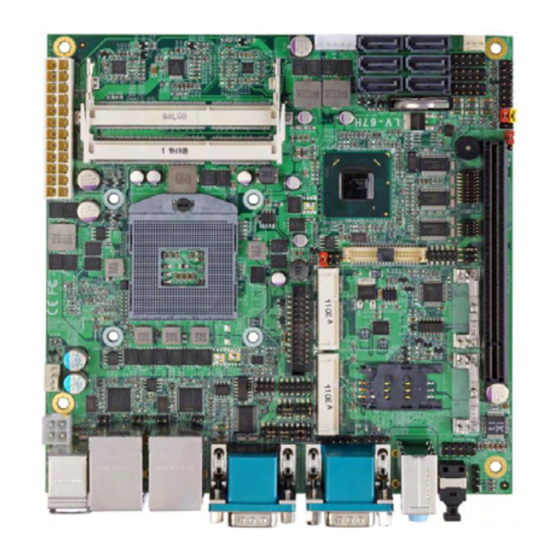

Commell LV-67H-G User Manual

Mini-itx
Hide thumbs

Advertisement

Quick Links

Download this manual
LV-67H-G
Mini-ITX Motherboard
User's Manual
Edition 1.0
2011/6/28

Advertisement

loading
Need help?

Need help?

Do you have a question about the LV-67H-G and is the answer not in the manual?

Questions and answers

Related Manuals for Commell LV-67H-G

Summary of Contents for Commell LV-67H-G

  • Page 1 LV-67H-G Mini-ITX Motherboard User’s Manual Edition 1.0 2011/6/28...
  • Page 2 LV-67H-G User’s Manual Copyright Copyright 2011, all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.

  • Page 3: Packing List

    LV-67H-G User’s Manual Packing List: Please check the package content before you starting using the board. Hardware: LV-67H-G Mini-ITX Motherborad x 1 Cable Kit: SATA Cable x 2 DC Power Cable x 1 (OALSATA-L) (OALDC-2) DVI module with bracket x 1...

  • Page 4: Optional Cable

    LV-67H-G User’s Manual Optional Cable: Dual COM PORT cable x 1 USB Cable x 1 (OALES-BKU2NB) (OALUSBA-3)
  • Page 5 LV-67H-G User’s Manual Index Chapter 1 <Introduction>...................7 1.1 <Product Overview> ..................7 1.2 <Product Specification> ................8 1.3 <Mechanical Drawing> .................9 1.4 <Block Diagram> ..................10 Chapter 2 <Hardware Setup> .................. 11 2.1 <Connector Location> ................11 2.2 <Jumper Location & Reference> ..............12 2.3 <Connector Reference>...
  • Page 6 LV-67H-G User’s Manual 2.14.2 <Power Output>................36 2.14.3 <Fan connector>................37 2.15 <Switch and Indicator>................38 Chapter 3 <System Setup> ..................39 3.1 <Audio Configuration>................39 3.2 <Display Properties Setting> ..............40 Chapter 4 <BIOS Setup> ..................42 Appendix A <I/O Port Pin Assignment> ..............44 A.1 <Serial ATA Port>...
  • Page 7 LV-67H-G User’s Manual (This page is left for blank)
  • Page 8 LV-67H-G User’s Manual Chapter 1 <Introduction> 1.1 <Product Overview> LV-67H-G the 2 Generation Intel of the Mini-ITX motherboard, supports 2 Generation Intel® Core™ i7, Core™ i5, Core™ i3 and Celeron® Mobile Processor and features Intel QM67 chipset, integrated HD Graphics, DDR3 memory, REALTEK High Definition Audio, Serial ATA and Intel Gigabit LAN.
  • Page 9 LV-67H-G User’s Manual 1.2 <Product Specification> General Specification Form Factor Mini-ITX motherboard Generation Intel® Core™ i7, Core™ i5, Core™ i3 and Celeron® Mobile Processor Package type: rPGA988B Memory 2 x DDRIII SO-DIMM 1066/1333/1600 MHz up to 16GB Chipset Intel QM67...
  • Page 10 LV-67H-G User’s Manual 1.3 <Mechanical Drawing> Unit: inch...
  • Page 11 LV-67H-G User’s Manual 1.4 <Block Diagram> Generation Intel® Core™ i7, Core™ i5, Core™ i3 1 x PCI Express x16 and Celeron® Mobile Processor 2 x 204-pin DDR3 SO-DIMM 1066/1333/1600 MHz up to 16GB 1 x CRT 1 x LVDS 2 x PCI Express mini card...
  • Page 12 LV-67H-G User’s Manual Chapter 2 <Hardware Setup> 2.1 <Connector Location> SATA1 SATA4 SATA2 SATA5 CN_INV SATA3 SATA6 SO-DIMM1 SO-DIMM2 SYSFAN CN_USB3/4/5 JFRNT COM5/6 COM4 CN_LVDS CN_LPC PCIE x16 MINI_CARD1 CN_DVI CPUFAN MINI_CARD2 SIMM DC_IN CN_AUDIO CD_IN JSPD1 JSPD2 CN_IR CN_GPIO...
  • Page 13 LV-67H-G User’s Manual 2.2 <Jumper Location & Reference> Jumper Function JRTC CMOS Operating/Clear Setting JVLCD Panel Voltage Setting Power mode select Com1 Voltage Setting (For Pin 9) Com2 Voltage Setting (For Pin 9) Com3 Voltage Setting (For Pin 9) Com4 Voltage Setting (For Pin 9)
  • Page 14 LV-67H-G User’s Manual 2.3 <Connector Reference> 2.3.1 <Internal Connectors> Connector Function Remark Socket rPGA988B for PGA988 CPU SO-DIMM 1/2 204 -pin DDR3 SO-DIMM socket SATA 1/2 7-pin Serial ATAIII connector SATA 3/4/5/6 7-pin Serial ATAII connector DC_IN DC 9~24V input connector...
  • Page 15 LV-67H-G User’s Manual 2.4 <CPU and Memory Setup> 2.4.1 <CPU Setup> The board comes with the socket rPGA988 for Intel SandyBridge Processor, Please follow the instruction to install the CPU properly. Unlock way Socket CPU Check point 1. Use the flat-type screw drive 2.
  • Page 16 LV-67H-G User’s Manual 2.4.2 <Memory Setup> The board provides 2 x 204-pin DDR3 SO-DIMM to support 1066/1333/1600MHz DDR3 memory module up to 16GB. SO-DIMM2 SO-DIMM1...
  • Page 17 LV-67H-G User’s Manual 2.5 <CMOS & ATX Setup> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values.
  • Page 18 LV-67H-G User’s Manual 2.6 <Serial ATA Interface> Based on Intel PCH, the board providestwo Serial ATAIII(SATA Port1/2) interfaces with up to 600MB/s of transfer rate and four Serial ATAII(SATA Port3/4/5/6) interfaces with up to 300MB/s of transfer rate. SATA Port 1 / 4...
  • Page 19 LV-67H-G User’s Manual 2.8 <Onboard Display Interface> Based on Intel CPU with built-in HD Graphic, the board provides one Sandy Bridge DB15 connector on real external I/O port, one 40-pin LVDS interface with 5-pin LCD backlight inverter connector and provides 26-pin DVI interface.
  • Page 20 LV-67H-G User’s Manual 2.8.2 <Digital Display> The board provides one 40-pin LVDS connector for 24-bit single/dual channel panels, supports up to 2048 x 1536 (UXGA) resolution, with one LCD backlight inverter connector and one jumper for panel voltage setting. CN_INV...
  • Page 21 LV-67H-G User’s Manual Connector: CN_INV Connector: JVLCD Type: 5-pin LVDS Power Header Type: 6-pin Power select Header Description Description +12V LCDVCC (3.3V) Reserved (Note) LCDVCC (5V) LCDVCC (12V) Default: 1-2 ENABKL Note: Reserved for MB internal test Please treat it as NC.
  • Page 22 LCD Installation Guide: Preparing the LV-67H-G, LCD panel and the backlight inverter. Please check the datasheet of the panel to see the voltage of the panel, and set the jumper JVLCD to +12V or +5V or +3.3V.
  • Page 23 LV-67H-G User’s Manual After setup the devices well, you need to select the LCD panel type in the BIOS. The panel type mapping is list below: BIOS panel type selection form (BIOS Version:1.0) Single / Dual channel Single / Dual channel...
  • Page 24 LV-67H-G User’s Manual 2.8.3 <DVI Interface> Connector: CN_DVI Connector type: 26-pin header connector (pitch = 2.00mm) Pin Number Assignment Pin Number Assignment TX1+ TX1- Ground Ground TXC+ TXC- Ground PVDD TX2+ TX2- Ground Ground TX0+ TX0- HPDET DDCDATA DDCCLK...
  • Page 25 LV-67H-G User’s Manual 2.9 <Integrated Audio Interface> The board integrates onboard audio interface with REALTEK ALC888 codec, with Intel next generation of audio standard as High Definition Audio, it offers more vivid sound and other advantages than former HD audio compliance.
  • Page 26 LV-67H-G User’s Manual Connector: CN_AUDIO Type: 10-pin (2 x 5) header (pitch = 2.54mm) Description Description MIC_L Ground MIC_R Speaker_R MIC Detect SENSE Speaker_L Speaker Detect Connector: CDIN Type: 4-pin header (pitch = 2.54mm) Description CD – Left Ground Ground...
  • Page 27 LV-67H-G User’s Manual 2.10 <USB Interface> LV-67H-G integrates eight USB2.0 ports. The specifications of USB2.0 are listed below: Interface USB2.0 Intel® ICH8-M Controller Transfer Rate Up to 480Mb/s Voltage USB1/2/3/4 CN_USB4/5/6 Connector: CN_USB4/5/6 Type: 10-pin (2 x 5) header (pitch = 2.54mm)
  • Page 28 LV-67H-G User’s Manual JVUSB Connector: JVUSB Type: 6-pin Power select jumper Description 1-3 & 2-4 5V_SB 3-5 & 4-6 Default: 1-3 & 2-4 Effective patterns of connection: 1-3 & 2-4 or 3-5 & 4-6 Warning: others cause damages...
  • Page 29 LV-67H-G User’s Manual 2.11 <Serial Port> The board supports Three RS232 serial port and one jumper selectable RS232/422/485 serial ports. The jumper JCSEL1 & JCSEL2 can let you configure the communicating modes for COM2. COM1 COM3 COM2 Connector: COM1/3 Type: 9-pin D-sub male connector on bracket for COM1/3...
  • Page 30 LV-67H-G User’s Manual Setting RS-232 & RS-422 & RS-485 for COM2 CN_COM5/6 CN_COM4 JCSEL1 JCSEL2...
  • Page 31 LV-67H-G User’s Manual Function JCSEL2 JCSEL1 IrDA RS-422 RS-485 RS-232 Default setting: JCSEL1: (1-3, 2-4, 7-9, 8-10) JCSEL2: (1-2) Jumper: JP1/JP2/JP3/JP4 (COM1/2/3/4) Type: onboard 6-pin header Power Mode JP39/JP49 Pin 9 with 5V Power Pin 9 with 12V Power Default setting: 5-6...
  • Page 32 LV-67H-G User’s Manual 2.12 <PCIE Mini Card and SIM Interface> The board provides two PCIE mini card sockets and a SIM socket. MINI_CARD1 support MPX-SDVOD /MPX-SDVOX. Default: support MPX-SDVOD MINI_CARD2 support 3G PCIE Mini card with SIM. MINI_CARD1 MINI_CARD2 Connector: SIMM...
  • Page 33 LV-67H-G User’s Manual 2.12.1 <SIM Setup> Step1. SIM card holder is marked by circle. Slide the cap toward OPEN direction. Step 2. Make sure that the cap is now at the OPEN position. Step 3. Flip the cap up for inserting a SIM card into.
  • Page 34 LV-67H-G User’s Manual Step 4. Insert a SIM card as shown in the photo. Be sure that the corner cut is on top and the golden pads are up. Step 5. Now, flip down the cap as shown in the photo.
  • Page 35 LV-67H-G User’s Manual 2.13 <GPIO and SMBUS Interface> The board provides a programmable 8-bit digital I/O interface; you can use this general purpose I/O port for system control like POS or KIOSK. Connector: CN_DIO Type: 12-pin (6 x 2) header (pitch = 2.0mm)
  • Page 36 LV-67H-G User’s Manual 2.14 <Power Supply and Fan Interface > 2.14.1 <Power Input> The board requires onboard 4-pin DC-input connector voltage range is from 9V to 24V, or onboard 20-pin ATX2.0, for the input current, please take a reference of the power consumption report on appendix.
  • Page 37 LV-67H-G User’s Manual 2.14.2 <Power Output> The board provides one 20-pin ATX connector for +5V/+12V output for powering your HDD, CDROM or other devices. Attention: When DC-IN had power supplied, the ATX become output ! Avoid DC-IN and ATX power supply input at the same time !
  • Page 38 LV-67H-G User’s Manual 2.14.3 <Fan connector> The board provides one 4-pin fan connectors supporting smart fan for CPU cooler and one 3-pin cooler fan connectors for system. SYSFAN CPUFAN Connector: CPUFAN Type: 4-pin fan wafer connector Description Description Ground +12V...
  • Page 39 LV-67H-G User’s Manual 2.15 <Switch and Indicator> The JFRNT provides front control panel of the board, such as power button, reset and beeper, etc. Please check well before you connecting the cables on the chassis. Connector: JFRNT Type: onboard 14-pin (2 x 7) 2.54-pitch header...
  • Page 40 LV-67H-G User’s Manual Chapter 3 <System Setup> 3.1 <Audio Configuration> The board integrates Intel® QM57 with REALTEK® ALC888 codec. It can support 2-channel or 7.1 channel sound under system configuration. Please follow the steps below to setup your sound system.
  • Page 41 LV-67H-G User’s Manual 3.2 <Display Properties Setting> Based on Intel QM57 with HD Graphic, the board supports two DACs for display device as different resolution and color bit. Please install the Intel Graphic Driver before you starting setup display devices.
  • Page 42 LV-67H-G User’s Manual 3. This setup options can let you define each device settings. Click Monitor to setup the CRT monitor for Resolution and Refresh Rate Click Intel® Dual Display Clone to setup the dual display mode as same screen...
  • Page 43 LV-67H-G User’s Manual Chapter 4 <BIOS Setup> The motherboard uses the Phoenix BIOS for the system configuration. The Phoenix BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU architecture based processors and computers.
  • Page 44 LV-67H-G User’s Manual (This page is left for blank)
  • Page 45 LV-67H-G User’s Manual Appendix A <I/O Port Pin Assignment> A.1 <Serial ATA Port> Connector: SATA1/2/3/4/5/6 Type: 7-pin wafer connector GND RSATA_TXP1 RSATA_TXN1 GND RSATA_RXN1 RSATA_RXP1 GND A.2 <IrDA Port> Connector: CN_IR JCSEL1 must jump to “SIR” Type: 5-pin header for SIR Ports...
  • Page 46 LV-67H-G User’s Manual A.5 <LAN LED Port> Connector: JSPD1/2 Type: 5-pin header for LAN Speed LED connector When Lan speed 10/100Mbps Description LED- LED+ When Lan speed 1Gbps Description LED+ LED- Connector: JATC1/2 Type: 5-pin header for LAN Activity LED connector...
  • Page 47 LV-67H-G User’s Manual Appendix B <Flash BIOS> B.1 <Flash Tool> The board is based on Phoenix BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: http://www.phoenix.com/en/home/ http://www.commell.com.tw/Support/Support_SBC.htm File name of the tool is “Phlash16.exe”, it’s the utility that can write the data into the...
  • Page 48 LV-67H-G User’s Manual Appendix C <System Resources> C.1 <I/O Port Address Map>...
  • Page 49 LV-67H-G User’s Manual...
  • Page 50 LV-67H-G User’s Manual C.2 <Memory Address Map>...
  • Page 51 LV-67H-G User’s Manual C.3 <System DMA & IRQ Resources> DMA: IRQ:...
  • Page 52 LV-67H-G User’s Manual Appendix D <Programming GPIO’s> The GPIO’can be programmed with the MSDOS debug program using simple IN/OUT commands.The following lines show an example how to do this. GPIO0…..GPIO7 bit0……bit7 -o 2 E 87 ;enter configuration -o 2E 87...
  • Page 53 LV-67H-G User’s Manual Appendix E <Programming Watchdog Timer > The watchdog timer makes the system auto-reset while it stops to work for a period. The integrated watchdog timer can be setup as system reset mode by program. Timeout Value Range...
  • Page 54 LV-67H-G User’s Manual Any advice or comments about our products and service, or anything we can help you with please don’t hesitate to contact with us. We will do our best to support you for your products, projects and business.
