Summary of Contents for Elation WW TONE

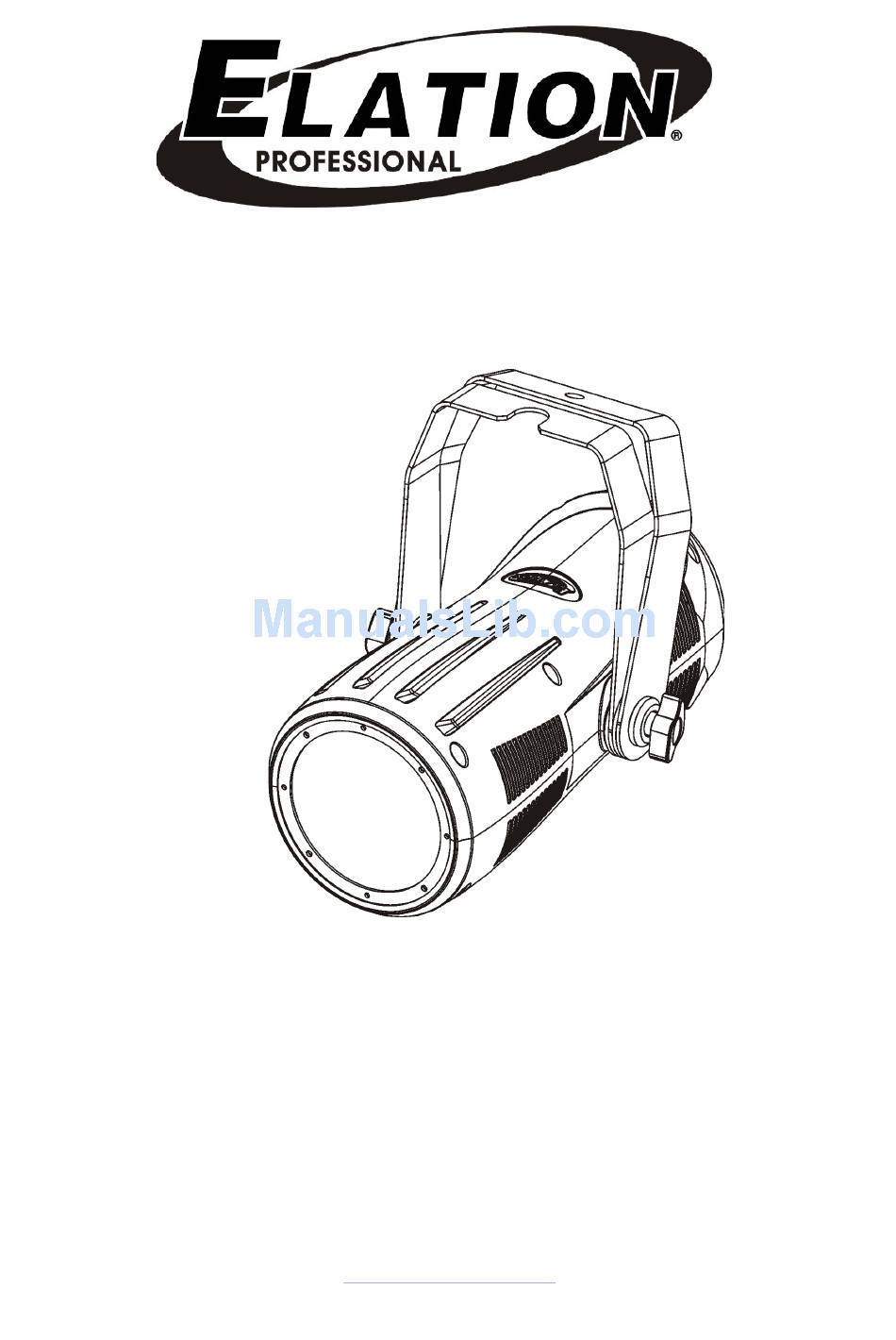

  • Page 1 WW TONE Elation Professional 6122 S Eastern Ave Los Angeles, Ca 90040 www.elationlighting.com...
  • Page 2 Thank you for your patronage. We are confident that our excellent products and service can satisfy you. For your own safety, please read this user manual carefully before installing the device. In order to install , operate, and maintain the lighting safety and correctly. We suggest that the installation and operation should be done by the verified technician and follow the instruction strictly.
  • Page 3: Floor-Stand

    Overview 1) Display 2) Mode/Esc-button 3) Up-button 4) Down-button 5) Enter-button 6) Safety eyelet 7) Power output 8) Power inpot/Fuse 9) 3-Pin DMX in 10) 3-Pin DMX out 11) Fixation screw 12) Floor-stand SAFETY INSTRUCTIONS This device has left the factory in perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual.
  • Page 4: General Guidelines

    Make sure the power cord is never crimped or damaged by sharp edges. If this would be the case, replacement of the cable must be done by an authorized dealer. Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the power cord by the plug.
  • Page 5: Installation Instructions

    Please use the original packaging if the device is to be transported. For safety reasons, please be aware that all modifications on the device are forbidden. If this device will be operated in any way different to the one described in this manual, the product may suffer damages and the guarantee becomes void.
  • Page 6: Installation Via The Omega Holders

    Installation via the Omega holders a) Fixed the clamp on the bracket by tighten up the M12 screw on the bracket to the Ф13 hole in the middle of the bracket. b) Insert the quick-lock fasteners of the first Omega holder into the respective holes on the bottom of the device.
  • Page 7 Address 1 Address 3 Address5 DMX-512 connection with DMX terminator For installations where the DMX cable has to run a long distance or is in an electrically noisy environment, such as in a discotheque, it is recommended to use a DMX terminator. This helps in preventing corruption of the digital control signal by electrical noise.
  • Page 8: Control Board

    Note: The modes of DMX 512 data are shown via the display: DMX OK NO DMX 1. After switching on, the device will automatically detect whether DMX 512 data is received or not. If the data is received, the display will show "A.001" with the actually set address. If there is no data received at the DMX-input, the display will flash "A001"...
  • Page 9 A001~AXXX VALU (AXXX) DMX address setting <ADDR> SLAV ON/OFF Set as Slave RDMX ON/OFF Change address via DMX <RUN> AUTO ALON/MAST Run Auto program MODE VALU D-XX D-00(DXXX) Display DMX value FLIP ON/OFF Flip display D ON ON/OFF Delay shutting off LED display <DISP>...
  • Page 10 Main Menu Functions - “MODE” - Function Mode: <ADDR> - DMX address setting – This function is used to set or adjust the fixture’s starting DMX address. Every device controlled by DMX has to have a unique starting address. The addressing feature is what allows DMX to function properly. The DMX address of a fixture is what allows it to communicate with a controller properly.
  • Page 11 menu. You can set the number of steps under “Edit program”. You can edit the individual scenes under “Edit scenes”. With this function, you can run the individual scenes either automatically, i.e. with the adjusted Step-Time. <DISP> - Menu Display Settings This function allows the internal programs to run in either stand-alone or master/salve DMX chain.
  • Page 12 <FAIL> DMX Fault Protection This function dictates how the fixture will operate in the event DMX signal is suddenly lost while operating in DMX mode. The three fail safe modes are; 1) “OFF” which will blackout all light output. 2) “HOLD,” which will hold the last DMX command, or 3 “AUTO,”...
  • Page 13 3. Press [UP] or [DOWN] button to select “WHIT”, “STRB”” 4. Press [ENTER] to confirm or Press [MODE/ESC] to return to the main menu. “TIME” – Operating Hours These functions will detail different time functions associated with the fixture. <LIFE> (0000~9999 Hours) This function tracks the running time of the fixture from the point it was last cleared.
  • Page 14 Edit Scenes – This function allows the user to edit or define the actual scenes that are stored in the user defined built-in programs that are accessed in the previous step. CEDT - Edit program using a external controller. Editing procedure 1: Using the control board only. 1.
  • Page 15 maximum. 14. Press MODE/ESC to exit and save your edited scene into the fixtures internal memory. The number of steps can be defined under “EDIT” and the scenes can be called up under “Run.” To run the scenes see page 30. Editing procedure 2: Using an external controller.
  • Page 16: Instructions On Use

    INSTRUCTIONS ON USE: DMX channel´s functions and their values : Channel Value Function White LED 0-255 White ( 0-Black , 255-100% White ) Shutter, strobe: 0-31 Led trun off 32-63 Led turn on 64-95 Strobe effect slow to fast 96-127 Led turn on 128-159 Pulse-effect in sequences...
  • Page 17: Cleaning And Maintenance

    CLEANING AND MAINTENANCE The following points have to be considered during the inspection: 1) All screws for installing the devices or parts of the device have to be tightly connected and must not be corroded. 2) There must not be any deformations on the housing, color lenses, fixations and installation spots (ceiling, suspension, trussing).
