ELED Fresnel
The ELED Fresnel by Elation Professional is a high power LED white light fresnel featuring 1 x 50W LED lamp,
500W halogen equivalent, optimized providing up to 50,000 hours estimated LED life, 75W power consumption,
fan cooled and multi-voltage electronic power supply. This unit is rated IP 20, ideal for indoor applications
and control data input is via 3 and 5 pin DMX data first in and out connections. The ELED Fresnel features 10°
to 50° manual zoom, internal DMX control for dimmer / strobe and is operable via 1 or 2 channel DMX modes.
The maximum output intensity of channel 1 can be preset by adjusting onboard menus 5 and 6. Gel frame and
barn door kit are included and rigging for this unit includes single yoke bracket, safety and data cable are
optional.
FEATURES
• High power LED white light fresnel
• Internal DMX Control for Dimmer / Strobe
• 50W 6,000k White LED Module
• 500W Halogen Equivalent
• 10° to 50° manual zoom
• Rated IP 20
• Case Color: Black
• Cooling: Fan Cooled
• Multi-voltage lectronic power supply
• LCD display
• DMX controllable via 1 or 2 channel DMX modes
• Gel Frame and barn door kit Included
• On Board Control
• Stand Alone
• Flicker Free

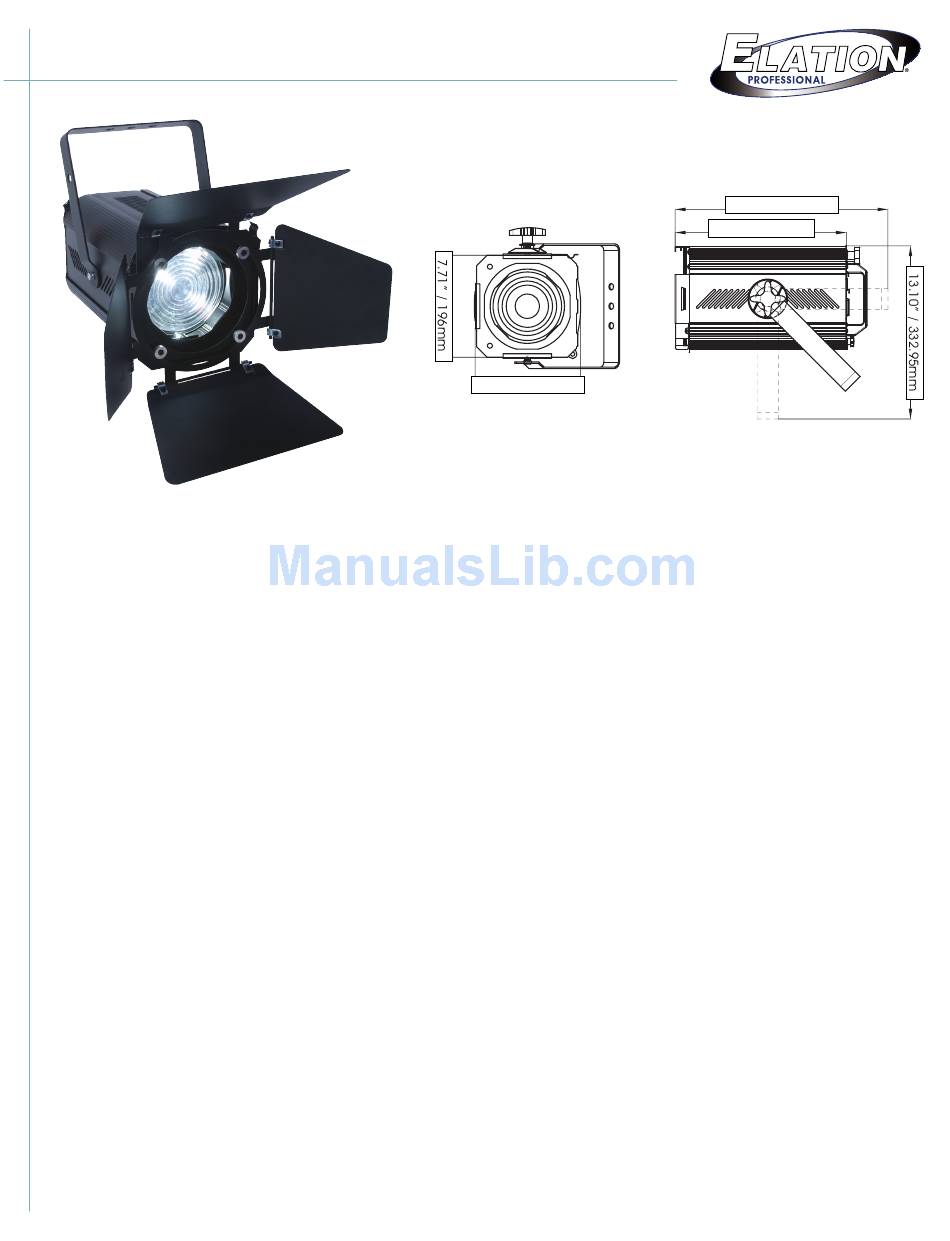

ELED Fresnel Dimensions
©Elation Professional • Elation Professional 6122 S. Eastern Ave. Los Angeles, Ca 90040
www.ElationLighting.com • Toll Free ( 866 ) 245-6726
8.0" / 202.99mm
TECHNICAL SPECIFICATIONS
• DMX Channels: 1, or 2 channels, 2 DMX control modes
• Control: USITT DMX-512, 3 pin and
data input & output
• Dimmer: 0 - 100% dimming
• Strobe: Strobe effect (1-18 flashes per second)
• IP Rating: IP 20
• Power Supply: Electronic, multi-voltage
90 - 240v, 50/60Hz
• Power Consumption: 75W
• Cable / Plug Type: IEC 120v US
• Approvals:
CE Approved - ETL Pending
• Lamp: 1 x 50W
• Lamp Life: 50W, 6,000K, 50,000 hrs. life
• Lux: 360 Lux @ 3M
• Dimensions: ( L x W x H ) 14.5" x 9.84" x 14.5" /
368.3 x 250 x 368.3mm
• Weight: 11.6 lbs / 5.3 kg
• Rigging: Single Yoke Bracket / safety and
data cable optional
16.10" / 409mm
12.95" / 329mm
5 pin XLR
