Technical Specifications:

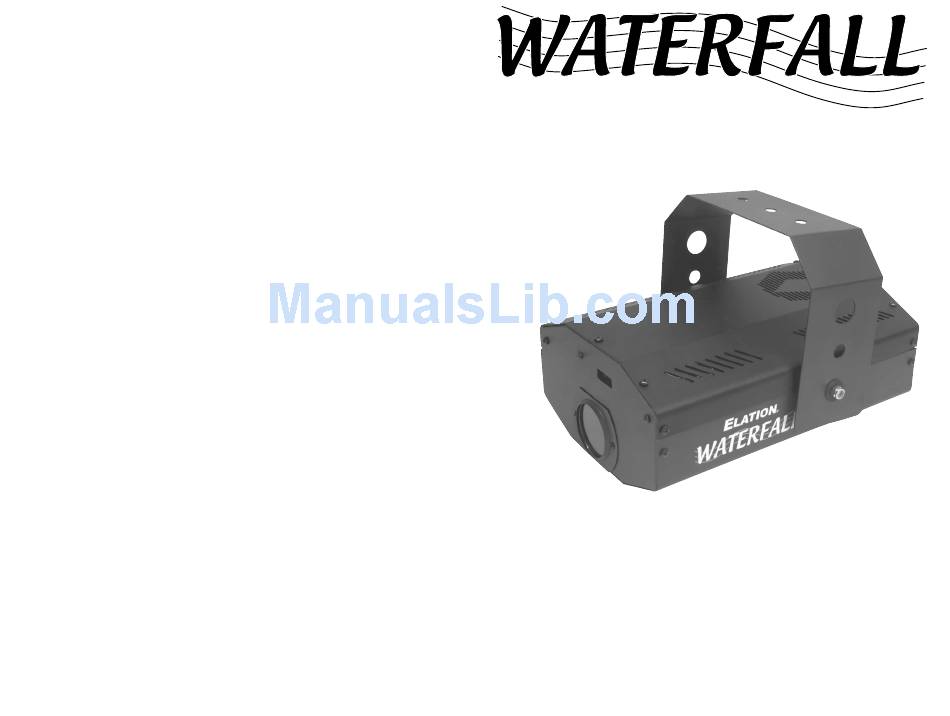

Model: Waterfall™
Lamp:
Voltage:
Dimensions:
Colors
Weight:
Fuse:
4295 Charter Street Los Angeles, CA 90058 USA
Tel: 323-582-2650 / Fax: 323-582-3108
Web: www.elationlighting.com / E-mail: info@elationlighting.com
SC150 120v/150w HTI
110~120v
10"H x 12"W x 15"L
6 plus White
24 Lbs
5 Amp
Elation Lighting
©
Elation World Headquarters:
User Instructions
Elation Lighting
www.elationlighting.com
4295 Charter Street
Los Angeles Ca. 90058
Advertisement
Related Manuals for Elation Indoor Furnishings
Summary of Contents for Elation Indoor Furnishings
-
Page 1: Technical Specifications
Technical Specifications: Model: Waterfall™ Lamp: SC150 120v/150w HTI Voltage: 110~120v Dimensions: 10”H x 12”W x 15”L Colors 6 plus White Weight: 24 Lbs Fuse: 5 Amp 4295 Charter Street Los Angeles, CA 90058 USA Tel: 323-582-2650 / Fax: 323-582-3108 Web: www.elationlighting.com / E-mail: info@elationlighting.com Elation Lighting ©... - Page 2 Waterfall™ Unpacking Every Waterfall™ has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your fixture for any damage and be sure all equipment necessary to operate the system has arrived intact.
- Page 3 Waterfall™ Dip Switch Settings MASTER - HEAD 1 7 8 9 HEAD 2 7 8 9 Waterfall™ DMX Traits The Waterfall™ uses one DMX channel. The chart to the right details the DMX traits. The color scroll option will increase in speed as the DMX value progresses from 144 to 255.
- Page 4 Waterfall™ Set Up Special Note: Line Termination. POWER When longer runs of cable are used, you may need to use a terminator on the last unit to avoid erratic behavior. A terminator is a 90-120 ohm 1/4 watt resistor which is con- nected between pins 2 and 3 of a male XLR connector (DATA + and DATA -).
