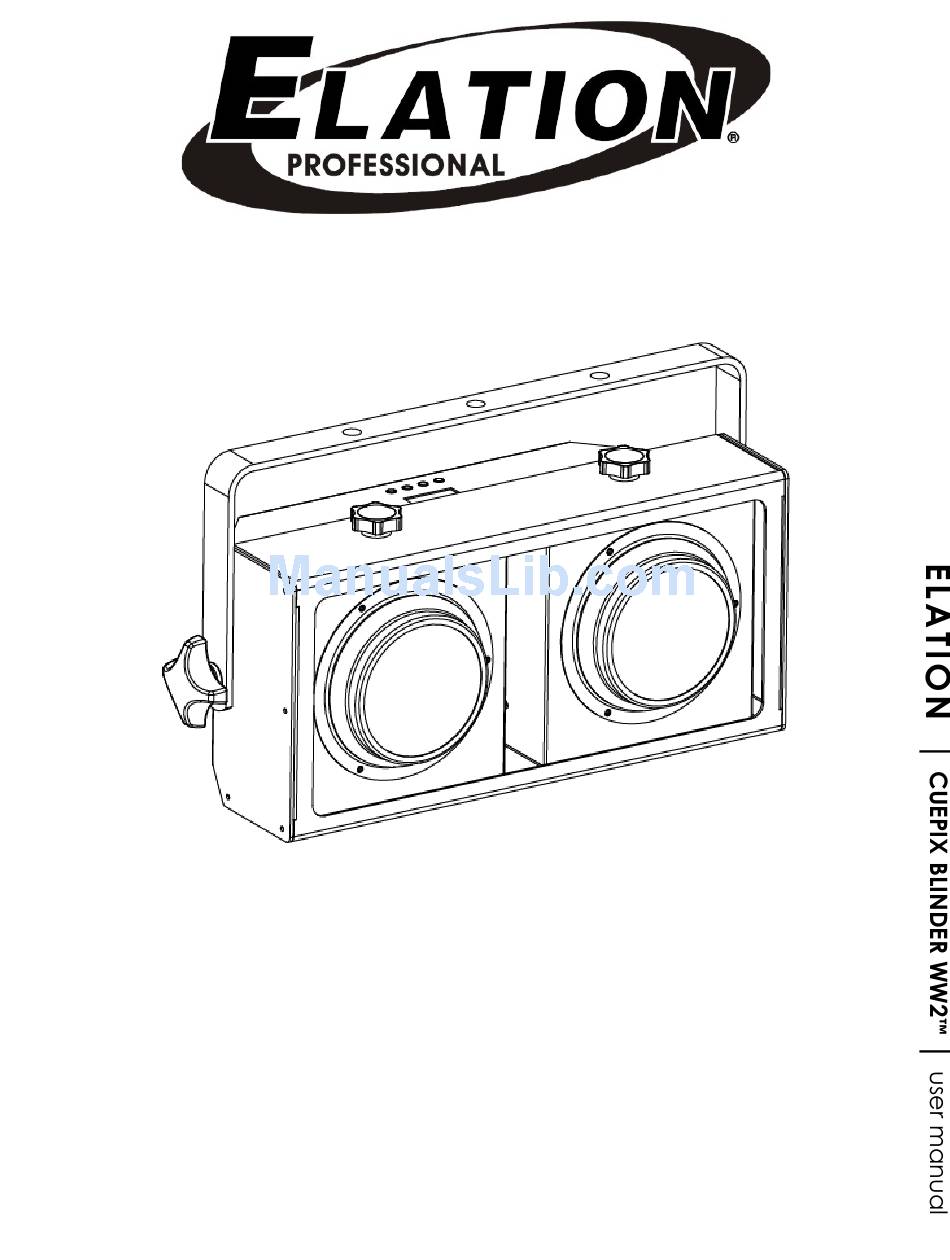

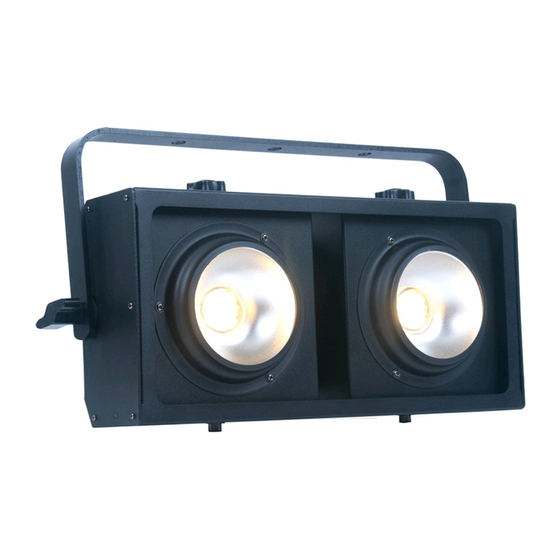

- Page 1 CUEPIX BLINDER WW2™ user manual ...
- Page 2 Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040 323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com Elation Professional B.V.
-
Page 3: Table Of Contents
C O N T E N T S General Information Warranty Safety Instructions General Guidelines Fixture Overview Fixture Installation Understanding DMX Fixture Menu DMX Channel Functions And Values Cleaning and Maintenance Technical Specifications Optional Accessories CUEPIX BLINDER WW2™ User Manual Ver. 1... -
Page 4: General Information
Congratulations, you have just purchased one of the most innovative and ™ reliable lighting fixtures on the market today! The CUEPIX BLINDER WW2 been designed to perform reliably for years when the guidelines in this booklet are followed. Please read and understand the instructions in this manual carefully and thoroughly before attempting to operate this unit. - Page 5 You may also visit us on the web at www.elationlighting.com any comments or suggestions. For service related issue please contact Elation Professional®. ELATION SERVICE USA - Monday - Friday 8:00am to 5:00pm PST...
-
Page 6: Warranty
No accessories should be shipped with the product. If any accessories are shipped with the product, Elation Professional® shall have no liability what so ever for loss of or damage to any such accessories, nor for the safe return thereof. -
Page 7: Safety Instructions
Do not operate this fixture if the power cord has become frayed, crimped and/or damaged. If • the power cord is damaged, replace it immediately with a new one of similar power rating. CUEPIX BLINDER WW2™ User Manual Ver. 1... -
Page 8: General Guidelines
• Use the original packaging and materials to transport the fixture in for service. DO NOT TOUCH the housing bare-hand during its operation. Turn OFF the power • and allow approximately 15 minutes for the fixture to cool down before replacing or serving. CUEPIX BLINDER WW2™ User Manual Ver. 1... -
Page 9: Fixture Overview
3. Fuse 4. powerCON IN 5. powerCON OUT 6. 3pin DMX OUT 7. 5pin DMX OUT 8. LCD Menu Control Display 9. ENTER Button 10.DOWN Button 11.UP Button 12.MODE/ESC Button 13.Safety Cable Rigging Point CUEPIX BLINDER WW2™ User Manual Ver. 1... -
Page 10: Fixture Installation
The CUEPIX BLINDER WW2 provides an integrated yoke/rigging bracket. When mounting this fixture to truss be sure to secure an appropriately rated clamps to the yoke/rigging bracket using a M10 screw fitted through the center hole. CUEPIX BLINDER WW2™ User Manual Ver. 1... - Page 11 S A F E T Y C A B L E Always use a Safety Cable whenever installing this fixture in a suspended environment to ensure the fixture will not drop if the clamp fails. CUEPIX BLINDER WW2™ User Manual Ver. 1...
- Page 12 . e l a t i o n l i g h t i n g . c o m SECURING ™ Regardless of the rigging option you choose for your CUEPIX BLINDER WW2 always be sure to secure your fixture with a safety cable. The fixture provides a built-in rigging point for a safety cable on the base of the unit as illustrated below.
-
Page 13: Understanding Dmx
1 to that fixture no matter where it is located in the DMX chain. The CUEPIX BLINDER WW2™ can be controlled via DMX-512 protocol and the DMX address is set via the control menu. - Page 14 Connect the provided XLR cable to the female XLR output of your controller and the other side to the male XLR input of the CUEPIX BLINDER WW2™ The diagram below illustrates a typical DMX-512 connection when the fixture is in the 4 Channel Mode.
- Page 15 5pin XLR fixtures may be implemented in a 3pin XLR DMX line. When inserting standard 5pin XLR connectors in to a 3pin line a cable adaptor must be used, these adaptors are readily available at most electric stores. The following chart details a proper cable conversion. CUEPIX BLINDER WW2™ User Manual Ver. 1...
- Page 16 In the case of the CUEPIX BLINDER WW2™, when in the 4 Channel Mode you should set the starting DMX address of the first unit to 1, the second unit to 5 (1 + 4), the third unit to 9 (5 + 4), and so on.
-
Page 17: Fixture Menu
F I X T U R E M E N U ON-BOARD SYSTEM MENU The CUEPIX BLINDER WW2™ comes with an easy to navigate system menu. The next section will detail the functions of each command in the system menu. - Page 18 FLIP SETTING Select the desired starting COB module and chase direction from one of the following modes below via UP/DOWN buttons and then press ENTER to confirm. Flip = OFF Flip = ON CUEPIX BLINDER WW2™ User Manual Ver. 1...
- Page 19 . e l a t i o n l i g h t i n g . c o m DIMMING CURVES The DimCurve menu allows you to select one of the following preset dimming curves: Standard, Stage, TV, Architectural, Theatre, or Default. (See diagram below for more details) Dimmer CUEPIX BLINDER WW2™ User Manual Ver. 1...
-
Page 20: Dmx Channel Functions And Values
0-255 Intensity 0 to 100% FLASH / STROBE 0-255 Flash / Strobe Effect SLOW to FAST DIMMING CURVE MODES 0-41 STANDARD 42-84 STAGE 85-127 128-170 ARCHITECTURAL 171-213 THEATRE 214-255 Default to Unit Setting CUEPIX BLINDER WW2™ User Manual Ver. 1... -
Page 21: Cleaning And Maintenance
Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local Elation dealer. -
Page 22: Technical Specifications
-14°F to 113°F (-10°C to 45°C) APPROVALS / RATINGS CE | IP20 Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. CUEPIX BLINDER WW2™ User Manual Ver. 1... -
Page 23: Photometric Data
. e l a t i o n l i g h t i n g . c o m PHOTOMETRIC DATA DIMENSIONAL DRAWINGS Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. CUEPIX BLINDER WW2™ User Manual Ver. 1... -
Page 24: Optional Accessories
3' (1m) powerCON PRO Link Cable PLC6 6' (1.8m) powerCON PRO Link Cable AC3PDMX5PRO 5 ft. (1.5m) 3pin PRO DMX Cable AC5PDMX5PRO 5 ft. (1.5m) 5pin PRO DMX Cable Additional Cable Lengths Available CUEPIX BLINDER WW2™ User Manual Ver. 1...
