OPTI TRI 30
User Instructions
Rev. 5/09
Elation Professional
©
6122 S. Eastern Ave.
Los Angeles CA. 90040
www.elationlighting.com
Opti Tri 30
Unpacking:
Thank you for purchasing the Opti Tri 30 by Elation Pro-
fessional
. Every Opti Tri 30 has been thoroughly tested and has been
®
shipped in perfect operating condition. Carefully check the shipping
carton for damage that may have occurred during shipping. If the
carton appears to be damaged, carefully inspect your fixture for any
damage and be sure all accessories necessary to operate the unit has
arrived intact. In the case damage has been found or parts are missing,
please contact our customer support number for further instructions.
Do not return this unit to your dealer without first contacting customer
support.
Introduction:

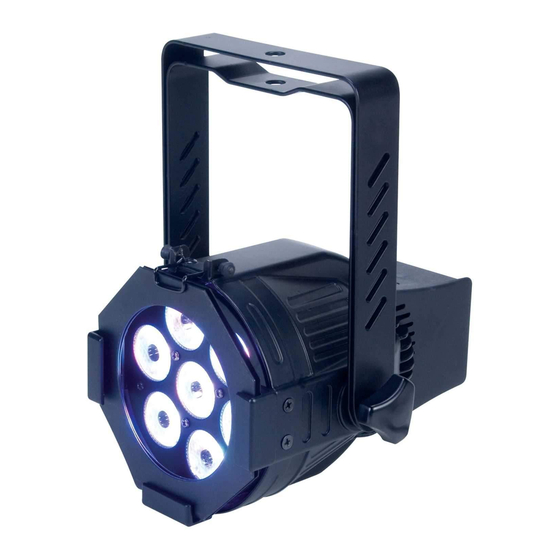

The Opti Tri 30 is part of Elation Professionals
ing pursuit for creating high quality affordable intelligent fixtures. The
Opti Tri 30 is a powerful DMX intelligent LED wash. This wash is light
weight and compact which makes it a great piece for mobile DJ's and
clubs. This unit can be used as a stand alone unit or in a master/slave
configuration. The unit has five operating modes that include sound
active mode, RGB mode, Macro mode, Auto mode, and DMX con-
trolled.
Customer Support:
provide set up help and to answer any question should you encounter
problems during your set up or initial operation. You may also visit us
on the web at www.elationlighting.com for any comments or sugges-
tions. Service Hours are Monday through Friday 9:00 a.m. to 5:00 p.m.
Pacific Standard Time.
Voice:
Fax:
E-mail:
Warning!
To prevent or reduce the risk of electrical shock or fire, do
not expose this unit to rain or moisture.
Caution!
There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures war-
ranty. In the unlikely event your unit may require service please contact
Elation customer support.
®
PLEASE recycle the shipping carton when ever possible.
Elation Professional - www.elationlighting.com - Opti Tri 30 Instruction Manual Page 2
Elation
provides a customer support line, to
©
®
(323) 582-3322
(323) 582-3108
support@elationlighting.com
Introduction
continu-
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Opti Tri 30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elation Opti Tri 30

Summary of Contents for Elation Opti Tri 30

  • Page 1 ® ing pursuit for creating high quality affordable intelligent fixtures. The Opti Tri 30 is a powerful DMX intelligent LED wash. This wash is light weight and compact which makes it a great piece for mobile DJ’s and clubs. This unit can be used as a stand alone unit or in a master/slave configuration.

  • Page 2: General Instructions

    • During long periods of non-use, disconnect the unit’s main power. The Opti Tri 30 carries a two year limited warranty. Please fill out the • Always mount this unit in safe and stable matter. enclosed warranty card to validate your purchase. All returned service •...

  • Page 3: Power Supply

    Do not use the ground lug on the XLR connector. Do not con- Tri 30. The Elation Opti Tri 30 is available in a 120v and 220v version. nect the cable’s shield conductor to the ground lug or allow the shield Because line voltage may vary from venue to venue, you should be conductor to come in contact with the XLR’s outer casing.

  • Page 4: Led Display On/Off

    Now the display will disappear after 10s. Press any button to turn Sound Active Mode: the display on again. Be advised though that the display will turn off In this mode the Opti Tri 30 will react to sound, and chase through the automatically after 10 seconds. different colors.
  • Page 5 Operating through a DMX controller gives the user the freedom to create COLOR MACROS their own programs tailored to their own individual needs. The Opti Tri 30 has 6 DMX modes: 1 Channel mode, 2 Channel mode, 3 Channel mode,...
  • Page 6 0% - 100% BLUE 1 - 255 0% - 100% MASTER DIMMER 1 - 255 0% - 100% Elation Professional - www.elationlighting.com - Opti Tri 30 Instruction Manual Page 11 Elation Professional - www.elationlighting.com - Opti Tri 30 Instruction Manual Page 12...

  • Page 7: Troubleshooting

    Channel 1, 2, and 3 will not work, when Channel 4 is being used. When using Channel 6, Channel 5 will control the speed of the color changing. Elation Professional - www.elationlighting.com - Opti Tri 30 Instruction Manual Page 13 Elation Professional - www.elationlighting.com - Opti Tri 30 Instruction Manual Page 14...

  • Page 8: Warranty

    6122 S. Eastern Ave. Los Angeles, CA 90040 USA ® Products and supersedes all prior warranties and written descriptions of warranty Tel: 323-582-3322 Fax: 323-582-3311 terms and conditions heretofore published. Web: www.elationlighting.com E-mail: info@elationlighting.com Elation Professional - www.elationlighting.com - Opti Tri 30 Instruction Manual Page 15...
