INSTALLATION

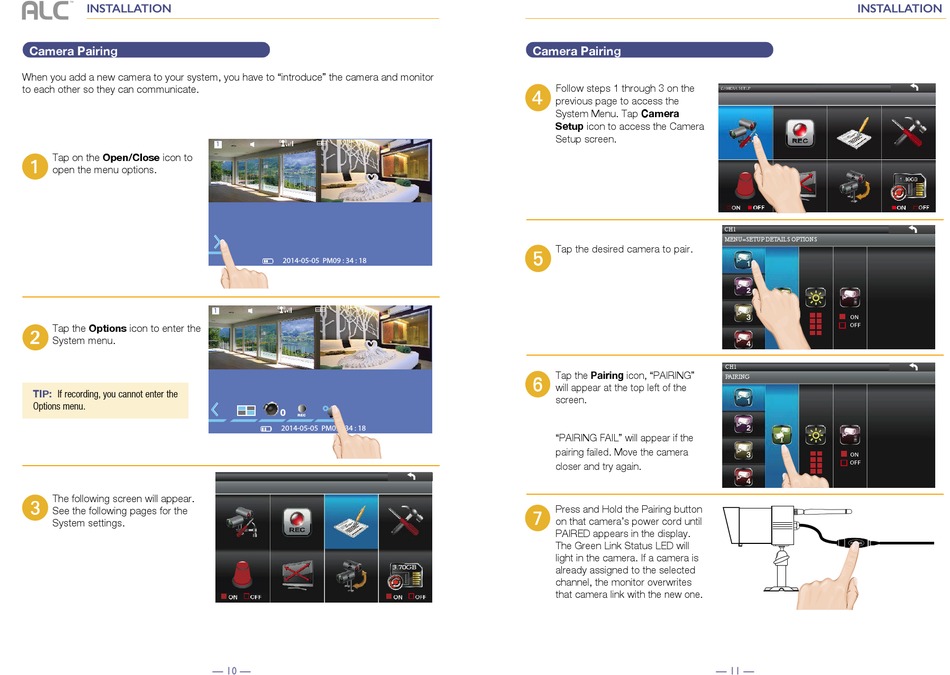

Camera Pairing

When you add a new camera to your system, you have to "introduce" the camera and monitor
to each other so they can communicate.
Tap on the Open/Close icon to
u
open the menu options.
Tap the Options icon to enter the
v
System menu.
TIP:
If recording, you cannot enter the
Options menu.
The following screen will appear.
w
See the following pages for the
System settings.
1
2014-05-05 PM09 : 34 : 18
1
0
REC
2014-05-05 PM09 : 34 : 18
3.70GB
— 10 —
Camera Pairing
Follow steps 1 through 3 on the
x
previous page to access the
System Menu. Tap Camera
Setup icon to access the Camera
Setup screen.
Tap the desired camera to pair.
y
Tap the Pairing icon, "PAIRING"
U
will appear at the top left of the
screen.
"PAIRING FAIL" will appear if the
pairing failed. Move the camera
closer and try again.
Press and Hold the Pairing button
V
on that camera's power cord until
PAIRED appears in the display.
The Green Link Status LED will
light in the camera. If a camera is
already assigned to the selected
channel, the monitor overwrites
that camera link with the new one.
INSTALLATION
CH1
MENU=SETUP DETAILS OPTIONS
CH1
PAIRING
— 11 —
