13

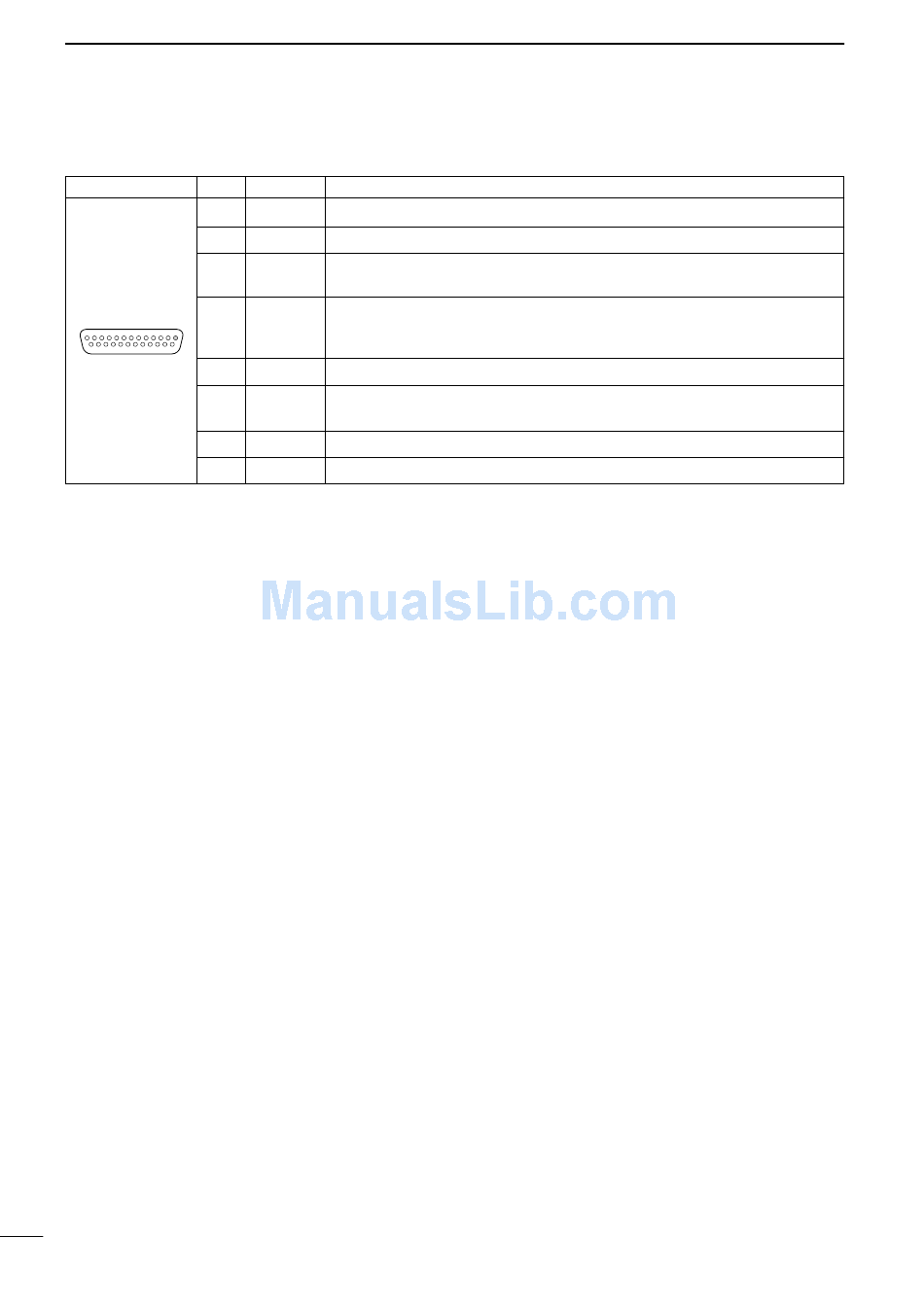

CONNECTION AND INSTALLATION
I Connector information (continued)
PRINTER
13..........................1
25......................14
12–14
Front panel view
16, 17
18–25
66
Pin
Pin name
1
STROBE
Outputs a strobe pulse after data output.
2–9
DATA1–8
Outputs 8-bit parallel data.
Input port for the connected printer.
10
ACKNLG
"Low" pulse signal is applied from the printer during the printer accepts data input.
Input port for the connected printer.
11
BUSY
"High" level signal is applied from the printer during the printer cannot accept data
input, such as when off line.
NC
No connection.
Input port for the connected printer.
15
ERROR
The printer output becomes "Low" when an printer error, such as no paper, occurs.
NC
No connection.
GND
Ground terminals.
