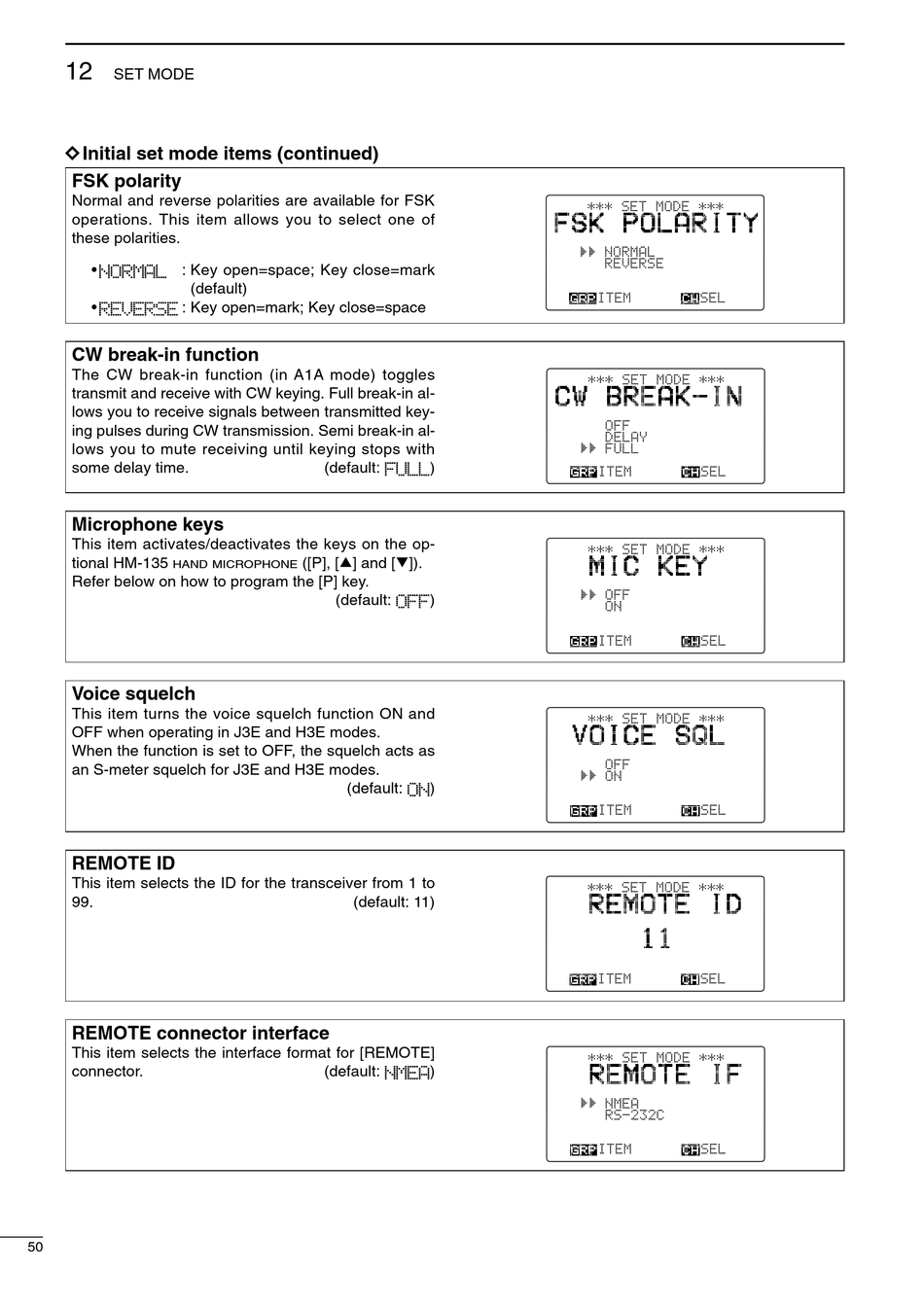

12
SET MODE
D D Initial set mode items (continued)
FSK polarity
Normal and reverse polarities are available for FSK
operations. This item allows you to select one of
these polarities.
• NORMAL : Key open=space; Key close=mark
(default)
• REVERSE : Key open=mark; Key close=space
CW break-in function
The CW break-in function (in A1A mode) toggles
transmit and receive with CW keying. Full break-in al-
lows you to receive signals between transmitted key-
ing pulses during CW transmission. Semi break-in al-
lows you to mute receiving until keying stops with
some delay time.
Microphone keys
This item activates/deactivates the keys on the op-
tional HM-135
HAND MICROPHONE
Refer below on how to program the [P] key.
Voice squelch
This item turns the voice squelch function ON and
OFF when operating in J3E and H3E modes.
When the function is set to OFF, the squelch acts as
an S-meter squelch for J3E and H3E modes.
REMOTE ID
This item selects the ID for the transceiver from 1 to
99.
REMOTE connector interface
This item selects the interface format for [REMOTE]
connector.
50
(default: FULL)
([P], [∫] and [√]).
(default: OFF)
(default: ON)
(default: 11)
(default: NMEA)
* * * S E T M O D E * * *
ÇÇ
N O R M A L
R E V E R S E
I T E M
S E L
* * * S E T M O D E * * *
O F F
D E L A Y
ÇÇ
F U L L
I T E M
S E L
* * * S E T M O D E * * *
ÇÇ
O F F
O N
I T E M
S E L
* * * S E T M O D E * * *
O F F
ÇÇ
O N
I T E M
S E L
* * * S E T M O D E * * *
I T E M
S E L
* * * S E T M O D E * * *
ÇÇ
N M E A
R S - 2 3 2 C
I T E M
S E L
