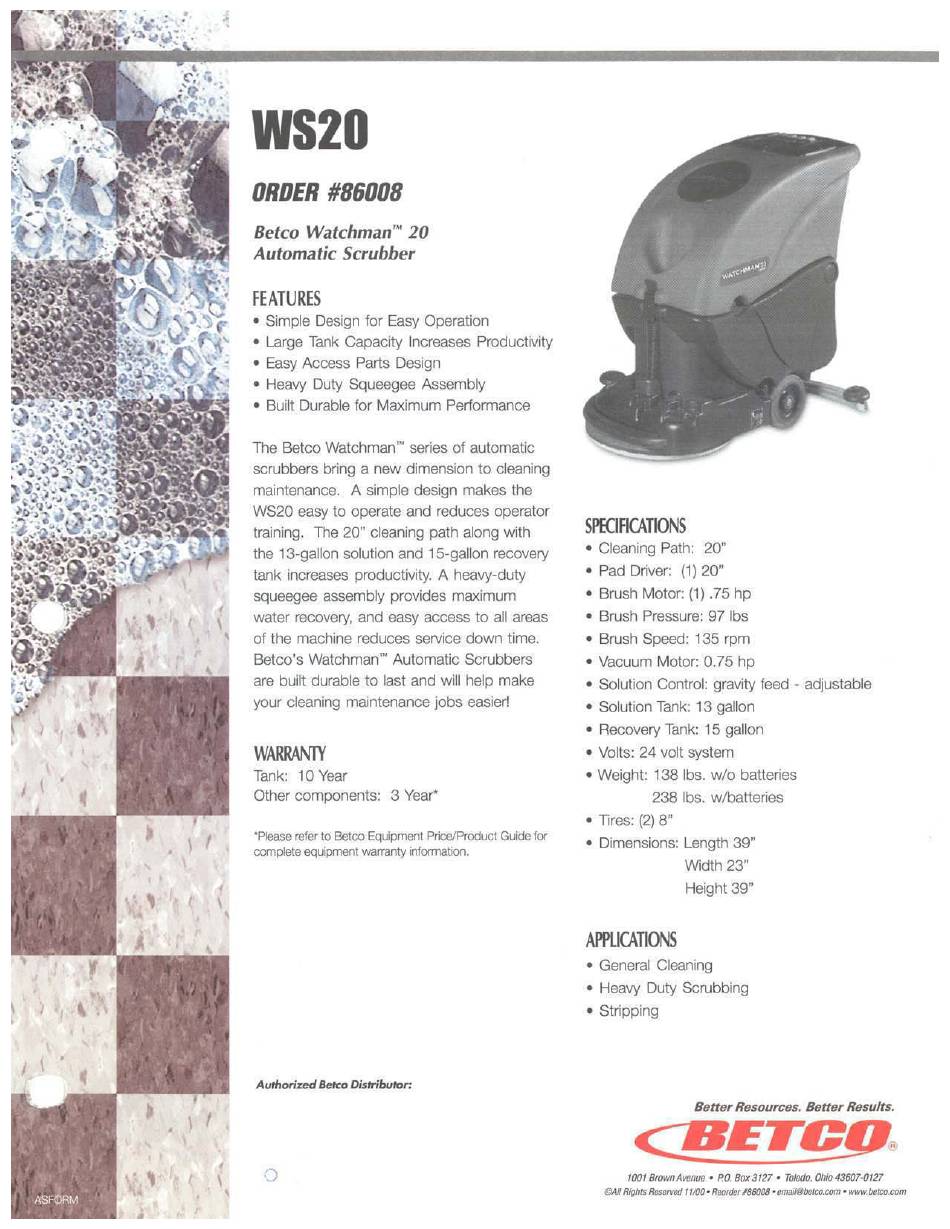

BETCO Watchman 20 User Manual

Automatic scrubber
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Watchman 20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BETCO Watchman 20

Summary of Contents for BETCO Watchman 20

  • Page 34 SQUEEGEE ASSEMBLY NEW STYLE ITEM DESCRIPTION FROM E89520 Small wheel FS28/32 03/2004 E89521 Spacer FS28/32 03/2004 E86427 Washer for AS20 03/2004 05/2006 E87921 Washer 05/2006 E86738 Nut M6 w/ Nylon Ring 03/2004 E89218 Squeegee support 03/2004 E86879 Washer 03/2004 E86853 Self-locking nut M8 03/2004 E89171...
  • Page 35 SQUEEGEE ASSEMBLY NEW STYLE ITEM DESCRIPTION FROM E86867 Squeegee Knob WS20/24 FS28 03/2004 E89283 Squeegee holder with hook 03/2004 E86504 Front Curved Squeegee Blade WS20/24 03/2004 E86499 Hex Bolt M6x55 SS E87834 Bushing WS20 03/2004 E86451 AS20 Wheel 03/2004 E86560 spacer 03/2004 E86873...
  • Page 36 SQUEEGEE ASM OLD STYLE ITEM DESCRIPTION E87800 Complete Squeegee for WS20/24 E86853 Self-locking nut M8 E89218 Squeegee support E86427 Washer for AS20 E86737 Screw E86526 Handle E86850 Knob E86560 spacer E86451 AS20 Wheel E86529 Blade Holder E86504 Front Curved Squeegee Blade WS20/24 E86867 Squeegee Knob WS20/24 FS28 E86530...
  • Page 37 CONTROL PANEL ASSEMBLY NEW STYLE ITEM DESCRIPTION FROM LAFN05201 CABLE CLAMPING BLOCCACAVO 09/2004 VTVT28553 SCREW TCB-TC 3.5X16 09/2004 E89293 Wiring WS20 MEVR01331 FAIR-LEAD 09/2004 MPVR03845 LEVER REGOLAZ. 09/2004 LAFN05103 ARTICULATION SUPERIORE 09/2004 VTVT07859 SCREW TCB-TC 3.5X13 UNI6954 09/2004 E86448 AS20 Washer 09/2004 MPVR03844 PANEL COMANDI...
  • Page 38 CONTROL PANEL ASSEMBLY NEW STYLE ITEM DESCRIPTION FROM E86988 Included With E86988 09/2004 E86577 washer WS20/24 09/2004 E86496 Circuit Board 09/2004 E87923 Handle 09/2004 E86750 Washer D5 UNI 6591 NOXA2 Plane 09/2004 VTRS15908 WASHER D. 5 INX GRW UNI 1751 09/2004 VTDD07727 NUT M 5 INOX...
  • Page 39 CONTROL PANEL OLD STYLE ITEM DESCRIPTION E87827 Control Panel Complete WS20 SL09908 CABLE CLAMPING STAPLE SL04187 SCREW E89293 Wiring WS20 SL23695 FAIRLEAD E86519 Lever E89474 Solution Rod ADJ E88229 Washer E86798 Lower control panel WS20 E89468 Fuse Carrier E87826 Solution Control Rod WS20 E89475 Snap Ring E86825...
  • Page 40 RECOVERY TANK ASM ITEM DESCRIPTION E87877 Screw WS20/24 FS28/32 E86518 Cover E86503 Gasket E87922 Hose VTVT00881 SCREW M4x6 E89152 Connector WS20/24 E87857 Gasket WS20/24 E87858 Suction Opening WS20/24 E89237 Squeegee Hose ASM E86759 Plaque E89089 Gasket E87772 Connector for WS20 E86480 Double Wire Clamp VTDD00147...
  • Page 41 BATTERIES & WIRING ITEM Description FROM MECB00728 WIRING FUSIBILE 10/2002 E88004 Screw, Machine M4 x 12 Watchman 20/24 10/2002 E87883 60 AMP Fuse for WS20/24 10/2002 E86373 master fuse carrier WS20/24 10/2002 E86370 wiring harness WS24 10/2002 E87846 Battery Cable Harness w/50A Red Connector...
  • Page 42 SQUEEGEE SUPPORT NEW STYLE ITEM DESCRIPTION FROM E88004 Screw, Machine M4 x 12 10/2002 E89118 Washer 10/2002 E86958 Squeegee cable 10/2002 E89217 Squeegee handle bolt 10/2002 E88091 Washer Watchman 24 10/2002 LAFN31096 WHEEL SPACER 10/2002 E86784 Screw WS20 10/2002 E86783 Collar WS20 10/2002 VTDD00157...
  • Page 43 Squeegee Support Old Style ITEM DESCRIPTION E86853 Self-locking nut M8 E86958 Squeegee cable E89094 Lever, Metal Squeegee Lift SL12039 BEARING SL04244 SCREW E86683 AS24 Wheel Bushing E86784 Screw WS20 E86783 Collar WS20 E87868 Self Locking Nut WS20/24 FS28/32 E89197 Support E86707 Cham Washer D10 E89403...
  • Page 44 SOLUTION DRAIN GROUP ITEM DESCRIPTION FROM E87798 Gasket WS20/24 10/2002 E87832 O Ring for Gasket FS28 10/2002 E87799 Filter WS20/24 10/2002 LAFN03955 COLUMN 10/2002 VTVT00751 SCREW 10/2002 VTVT00787 SCREW M 6-16 10/2002 LAFN05121 HOOK 10/2002 MLML00205 SPRING 10/2002 E86336 M4 - 10 Phil Pan Head Screw 05/2004 E86875 Self-Locking Nut...

  • Page 45: Solution Delivery

    Screw 10/2002 VTVT37014 SCREW M6X 90 10/2002 LAFN05743 SUPPORT 10/2002 E86427 Washer for AS20 10/2002 E86875 Self-Locking Nut 10/2002 E88122 Screw Watchman 20 10/2002 E89010 Bushing 10/2002 VTRS00278 WASHER D.8X32 E86448 AS20 Washer 10/2002 E89103 Regulator 10/2002 E86319 shaft WS20...
  • Page 46 SOLUTION DELIVERY ITEM DESCRIPTION FROM E86751 Clamp 10-16 03/2004 FSVR00097 CLAMP PLASTICA 03/2004 E89215 Hose E86397 connector WS20 03/2004...
  • Page 47 VACUUM GROUP OLD STYLE ITEM DESCRIPTION E86772 E86448 AS20 Washer E86591 Gasket WS20/24-FS28/32 E89213 Insert FS28/32 E86593 Float WS20/24-FS28/32 E86365 filter gasket WS20 E86502 Filter E86595 Support WS20/24-FS28/32 E89451 Screw E86594 Screw WS20/24-FS28/32 SL05017 E86719 AS20 Washer SL04276 Screw SL06022 Washer for AS20 SL17554 SL17554...
  • Page 48 VACUUM GROUP NEW STYLE ITEM DESCRIPTION FROM E86772 04/2004 E86448 AS20 Washer 04/2004 E86591 Gasket WS20/24-FS28/32 04/2004 E86592 Rod WS20/24-FS28/32 04/2004 E86873 04/2004 E89213 Insert FS28/32 04/2004 E86593 Float WS20/24-FS28/32 04/2004 E86502 Filter 04/2004 E86595 Support WS20/24-FS28/32 04/2004 E86365 filter gasket WS20 04/2004 VTVT00835 SCREW...
  • Page 49 Brush Drive ITEM Description E86638 Union Elbow E89182 Screw E89183 Washer E86879 Washer E89113 Cover WS20 E89111 Gasket E86636 Nipple E86468 AS20 Nut E86725 Flange, WS20 E86737 Screw E86716 Cham Washer E86427 Washer for AS20 E86409 Bearing, 6005 2RS E86533 Bearing spacer E86532 Conveyor...
  • Page 50 MOTOR ITEM DESCRIPTION E86374 flange WS20/24 E86608 Brush Motor E86310 Spacer E86536 E86427 Washer for AS20 E86716 Cham Washer E86475 AS20 Screw TE M .6-20 E87871 Pulley WS20/WS24 Brush Motor 1 E86737 Screw E86703 Nut M8 E86486 Screw TE M8-45 E89290 Brush motor support E86565...
  • Page 51 BRUSH DRIVE WITH RELAY ITEM DESCRIPTION ITEM DESCRIPTION E86374 flange WS20/24 E87848 Brush Drive Flat Belt WS20 E86608 Brush Motor E87833 Screw WS20 E86375 spacer WS20/24 E86537 Ring E86536 E89485 Spacer E86758 Washer E83310 Bearing, 6203 2RS E86716 Cham Washer E86873 E86475 AS20 Screw TE M .6-20...
  • Page 52 CHASSIS A ITEM DESCRIPTION E89164 Lever WS20 VTRS00232 WASHER D.12 UNI 6592 ZINC. E86408 Rotating Wheel E89291 Head WS20 MPVR02892 BUSHING LAFN05188 SUPPORT BRACKET E89199 Key 5-5-15 MPVR02825 THICKNESS MPVR02826 THICKNESS E89262 Axle bushing WS20 LAFN04095 SHAFT ASSE RUOTE ALLUNGATO E86509 Wheel, Rubber 7 3/4"...
  • Page 53 Chassis B REF. CODE DESCRIPTION E87863 Screw WS20/24 E87862 Spacer WS20/24 E86451 AS20 Wheel E86879 Washer E86876 E87898 support WS20/24 E86853 Nyloc Hex Nut, M8 Zinc E87917 Screw E86700 Cham Washer D6 SL09892 Small Square E86453 AS20 Bushing E89260 Axle bushing WS20 E86565 washer E89199...

  • Page 54: Front Shroud

    FRONT SHROUD ITEM DESCRIPTION E86876 Nut E86879 Washer E87898 support WS20/24 E86875 Self-Locking Nut E89467 Bumper E86366 screw WS20 E86336 M4 - 10 Phil Pan Head Screw...
  • Page 55 CONNECTOR E89124 2 stage vac motor E89281 Female connector kit MEVR01291 E89223 Resistor CONNECTOR MEC 00310 MICROSWITCH E89282 Male connector kit E86988 Main Switch E86308 Connector E86423 Bipolar Switch E89282 Male connector kit BETCO WATCHMAN 20 Page 22 of 23...
  • Page 56 MEC 00294 E86496 Circuit Board DIODE 1N4007 MEC 00294 E86420 Relay DIODE 1N4007 MEVR01116 E89471 Vac Motor Relay SUPPORT MEVR01227 E86608 Brush Motor CLAMP FORBOX E27 MEEV00016 E89124 2 stage vac motor SOLENOID VALVE BETCO WATCHMAN 20 Page 23 of 23...
  • Page 57 Service Distributor. If the original part is returned within the warranty policy period from date of delivery for inspection by Betco and is found to be defective the owner will be credited for the cost of replacement parts plus shipping and handling.

This manual is also suitable for:

Ws20
