BETCO GENIE CE HD APS Operator And Parts Manual

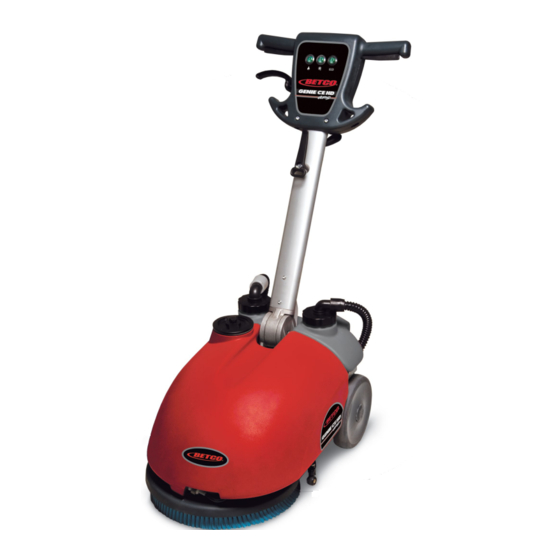

14” cord electric heavy duty all purpose automatic scrubber
Hide thumbs
Table of Contents

Advertisement

Quick Links

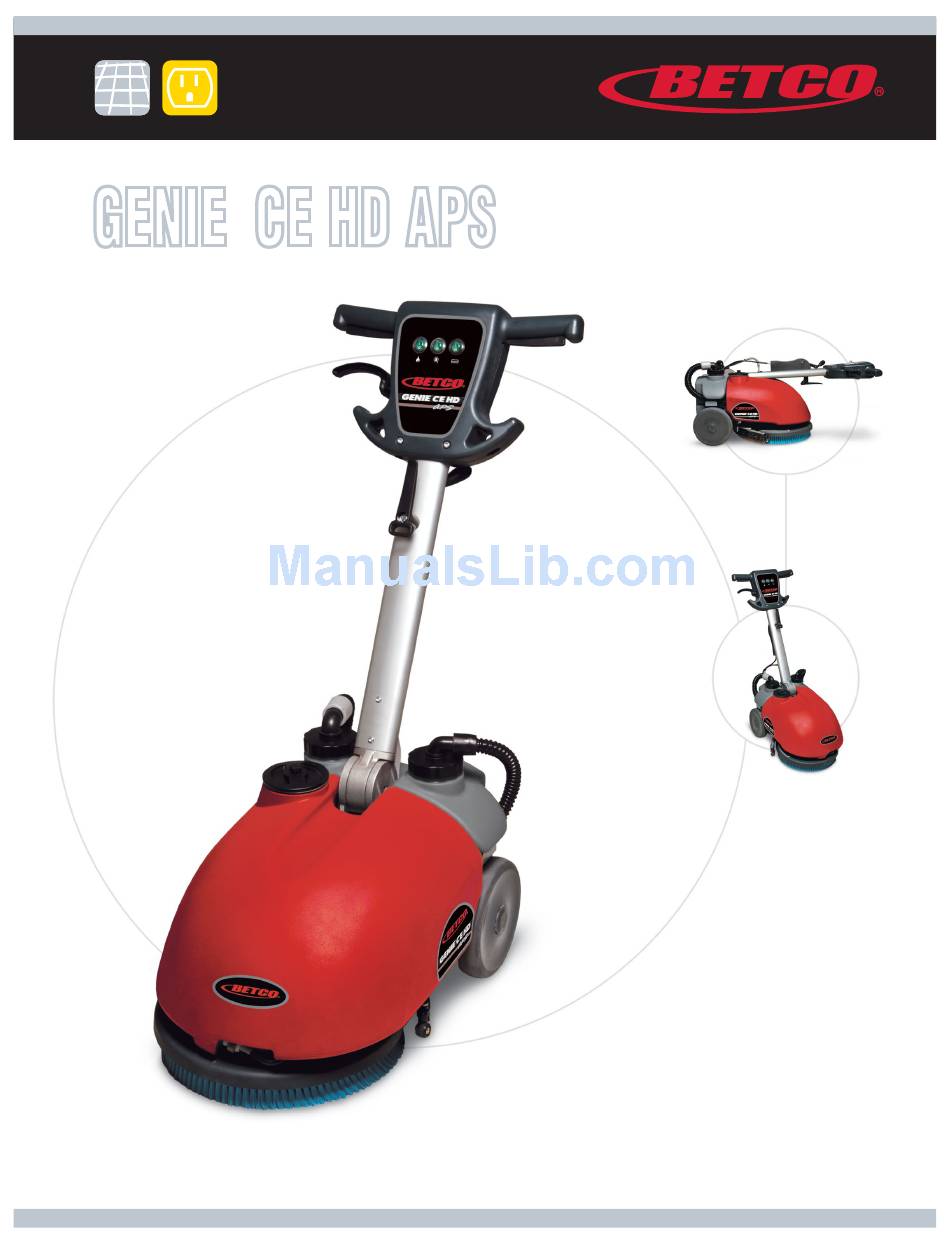

E88778-00
GENIE
CE HD APS
14" Cord Electric
™
Heavy Duty All Purpose
Automatic Scrubber
Operator and Parts
Manual
1001 Brown Avenue • Toledo, Ohio 43607-0127
Customer Service: 888-GO-BETCO • Fax: 800-445-5056 • Technical Service: 877-856-5954 • www.betco.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GENIE CE HD APS and is the answer not in the manual?

Questions and answers

Related Manuals for BETCO GENIE CE HD APS

Summary of Contents for BETCO GENIE CE HD APS

  • Page 1 E88778-00 GENIE CE HD APS 14” Cord Electric ™ Heavy Duty All Purpose Automatic Scrubber Operator and Parts Manual 1001 Brown Avenue • Toledo, Ohio 43607-0127 Customer Service: 888-GO-BETCO • Fax: 800-445-5056 • Technical Service: 877-856-5954 • www.betco.com...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS RECEIVING THE MACHINE........3 - 4 GENERAL SAFETY REGULATIONS ......... 5 MACHINE PREPARATION ..........6 - 8 OPERATION ..............9 TURNING OFF THE MACHINE ........10 DAILY MAINTENANCE ...........11 - 12 TROUBLESHOOTING ........... 14 BRUSH AND SELECTION USE........15 PARTS DIAGRAMS AND LISTINGS .......16 - 30 TROUBLESHOOTING - HANDLE ........

  • Page 3: Receiving The Machine

    RECEIVING THE MACHINE Immediately check, when receiving the machine, that all the materials indicated on delivery documents have been received and also that the machine has not been damaged in transit. If it has been damaged, this damage must be immediately reported to the shipper and also to our customer’s service department.
  • Page 4 TECHNICAL DESCRIPTION Measurement Unit Genie CE HD ™ Rated power HP (W) 0.83 (570) Working width in (mm) 13.8 (350) Rear squeegee width in (mm) 17.3 (440) Work capacity ft2/h ( m2/h) 11,300 (1050) Water consumption g/m2 Brush & Pad (diameter) in (mm) 13.8 (350) Brush RPM...

  • Page 5: General Safety Regulations

    • Before using the machine make sure that all doors and covers are positioned as shown in this operating and maintenance manual. • When your BETCO machine is ready to be retired, the machine must be disposed of properly. It contains oils and electronic components. The machine itself was built using totally recyclable materials.

  • Page 6: Machine Preparation

    MACHINE PREPARATION 1. HANDLING THE PACKED MACHINE No more than two boxes can be stacked. Total weight is 150 lb (70 kg). Overall dimensions are: A : 19.7 in (500 mm) B : 19.7 in (500 mm) C : 45.3 in (1150 mm) 2.
  • Page 7 MACHINE PREPARATION 4. SUPPLY POWER FOR THE MACHINE The machine is supplied with a 50 foot (15.2 m) power cord. To power the machine, you must: A. Plug the power cord into a grounded wall outlet. WARNING: Before plugging in the power cord, place all control switches in the off (“0”) position! 5.

  • Page 8: Machine Preparation

    MACHINE PREPARATION 7. RECOVERY TANK A. Make sure that the recovery tank is properly mounted and that the hoses are properly installed onto the fittings that exit the recovery tank caps. B. Check that the caps are properly sealed. 8. SOLUTION TANK A.

  • Page 9: Operation

    OPERATION 1. MACHINE OPERATION Before operating the machine: A. Ensure all switches are in the off (“0”) position. B. Plug the power cord into a grounded wall outlet. C. Lower the squeegee control lever. D. Turn on main switch (1) and verify that the green indicator light comes on. E.

  • Page 10: Turning Off The Machine

    TURNING OFF THE MACHINE To properly turn off the machine after use or before maintenance: 1. Turn off the solenoid valve switch. (3) 2. Raise the squeegee with the squeegee lift lever. 3. Turn off the vacuum switch. (2) 4. Turn off the main switch. (1) 5.

  • Page 11: Daily Maintenance

    DAILY MAINTENANCE WARNING: Always wear gloves to protect yourself from contact with hazardous chemicals. 1. CLEANING THE RECOVERY TANK A. Disconnect the vacuum hoses. B. Remove the tank from the machine. C. Remove the caps to open the tank. D. Clean the filter with clear water. E.
  • Page 12 DAILY MAINTENANCE 3. REPLACING THE SQUEEGEE BLADES Examine the condition of the squeegee blades. Replace as necessary. To replace the blades: A. Lift the squeegee. B. Remove the two knobs. C. Detach the squeegee from the squeegee yoke. D. Remove the hose from the squeegee hose adaptor. E.

  • Page 13: Scheduled Maintenance

    SCHEDULED MAINTENANCE 1. CLEANING THE SQUEEGEE HOSE Check the squeegee hose for blockage if the suction is insufficient and at peri- odic intervals. To clean the hose: A. Remove the hose end from the squeegee hose adapter. B. Remove the other end of the hose from the recovery tank. C.

  • Page 14: Troubleshooting

    The machine is equipped with a thermal breaker unit that has a manual reset. The brushes motor is re-enabled by resetting the thermal breaker unit located within the handle. If the machine stops repeatedly contact the BETCO technical assistance center at 877-856-5954. 2. INSUFFICIENT WATER ON THE FLOOR A.

  • Page 15: Brush Selection And Use

    BRUSH SELECTION AND USE POLYPROPYLENE BRUSHES (PPL) These are used on all types of floors and offer good wear resistance. PAD DRIVERS Pad driver and an floor pad is recommended when cleaning smooth floors. There are two types of pad drivers: 1.

  • Page 16: Parts Diagrams And Listings

    BRUSH DECK PARTS DIAGRAM...
  • Page 17 BRUSH DECK PARTS LISTING Item# Part # Description Qty. Item# Part # Description Qty. E81530 Spring, 17, 5x2, 5x69 mm E87290 Shim M37x47x0.3 E82845 Spacer E81719 E81967 Jam Nut, 1/4" NPT Brass" E82844 Clutch Plate E20503 Spacer E81998 Pan Hd Phil Machine Screw M4x10 SS E20019 Spacer E20256...
  • Page 18 SQUEEGEE SYSTEM PARTS DIAGRAM...
  • Page 19 SQUEEGEE SYSTEM PARTS LISTING Item# Part # Description Qty. Item# Part # Description Qty. E81753 Knob M5 E85792 Squeegee Shoe E20701 Squeegee Hose Guard E86264 Carriage Bolt M5x25 SS E83914 Hex Bolt M6x20 SS E81941 Carriage Bolt M5x30 SS E82707 Set Screw Hex Soc Flat End M6x40 SS E81815 Squeegee Vacuum Adapter...
  • Page 20 SQUEEGEE YOKE PARTS DIAGRAM...
  • Page 21 SQUEEGEE YOKE PARTS LISTING Item# Part # Description Qty. Item# Part # Description Qty. E83512 Spacer E83278 Flat Washer M6.5x24x2 Zinc E87971 Squeegee Yoke Support Arm E83710 Cotter Pin D2x20 Zinc E83810 Knob E86153 Squeegee Yoke E82839 Squeegee Yoke Pivot E86152 Spacer, PVC 15x6.5x7.5 E86263...
  • Page 22 MAIN FRAME PARTS DIAGRAM...
  • Page 23 MAIN FRAME PARTS LISTING Item# Part # Description Qty. Item# Part # Description Qty. E83535 Hex Nut, M5x5 Zinc E20053 Bracket E20279 Dampener E83550 NyLoc Hex Nut, M6 Zinc E20604 Main Frame Weldment E86853 Nyloc Hex Nut, M8 Zinc E20549 Bracket Clamp E20251 Flange Nut M8...
  • Page 24 SOLUTION AND RECOVERY TANKS PARTS DIAGRAM...
  • Page 25 SOLUTION AND RECOVERY TANKS PARTS LISTING Item# Part # Description Qty. Item# Part # Description Qty. E82712 Quick Disconnect, Female 1/4 E82853 Filter Flange E81548 Solution Tank Cap E81971 Wheel Cap E20107 Screw, Pan Hd Phil Self Tap M4.2x16 SS E20545 Gasket, Vispa E83798...
  • Page 26 CONTROL HANDLE PARTS DIAGRAM...
  • Page 27 CONTROL HANDLE PARTS LISTING Item# Part # Description Qty. Item# Part # Description Qty. E86149 Bushing E22015 Cord Strain Relief E85770 High Hex Nut M6x13 Zinc E20360 Hex Bolt M6x45 Zinc E20364 Button Hd Soc Machine Screw M6x20 Zinc E81793 Spring Pin M6x12 Zinc E20273 Connector Tube...
  • Page 28 ELECTRIC SYSTEM PARTS DIAGRAM...
  • Page 29 ELECTRIC SYSTEM PARTS LISTING Item# Part # Description Qty. Item# Part # Description Qty. E81786 Hose Clip E20343 Screw, Pan Hd Phil Self Tap M3.9x13 SS E88042 Flat Hd Soc Machine Screw M6x16 Zinc E85788 Electrical Housing E83550 NyLoc Hex Nut, M6 Zinc E85771 Electrical Cover E82761...
  • Page 30 ELECTRICAL DIAGRAM...

  • Page 32: Troubleshooting - Handle

    TROUBLE SHOOTING - HANDLE Remove the plug from the outlet before any inspection. The voltage and the frequency on the machine label must correspond with the voltage and frequency of the electric power supply. The outlet has to be grounded. 1.

  • Page 33: Troubleshooting - Vacuum System

    TROUBLE SHOOTING - VACUUM SYSTEM 1. CHECK THE CLEANLINESS AND FUNCTIONALITY OF THE FIL- TER AND FLOATS. 2. CONFIRM CORRECT POSITIONING AND THE FUNCTIONALITY OF THE HOSES ON THE CAPS OF THE RECOVERY TANK. 3. CHECK THE WEAR OF THE SQUEEGEE BLADE AND THAT THE ATTACHMENT KNOBS ARE TIGHT.

  • Page 34: Troubleshooting - Brush Base

    TROUBLE SHOOTING - BRUSH BASE 1. CHECK THAT THE BRUSH BASE SUPPORT ON THE RIGHT SIDE IS FREE TO MOVE INSIDE THE HOLE OF THE FRAME ARM. • This allows the brush base to adjust itself to the floor. If movement is re- stricted, slightly loosen lock nut.

  • Page 35: Maintenance Schedule And Wear Items

    MAINTENANCE SCHEDULE RECOMMENDED SERVICE INTERVALS Genie CE HD (HOURS) DAILY 100 250 400 750 1,000 ELECTRIC Check tightness of electric contacts and fuses Check state of electric cables crossing the machine SOLUTION TANK t l i f Check water valves and hoses to the brush head Check all water connection from the tank to the brushes...

  • Page 36: Warranty

    Service Distributor. If the original part is returned within the warranty policy period from date of delivery for inspection by Betco and is found to be defective the owner will be credited for the cost of replacement parts plus shipping and handling.
