E88398-00

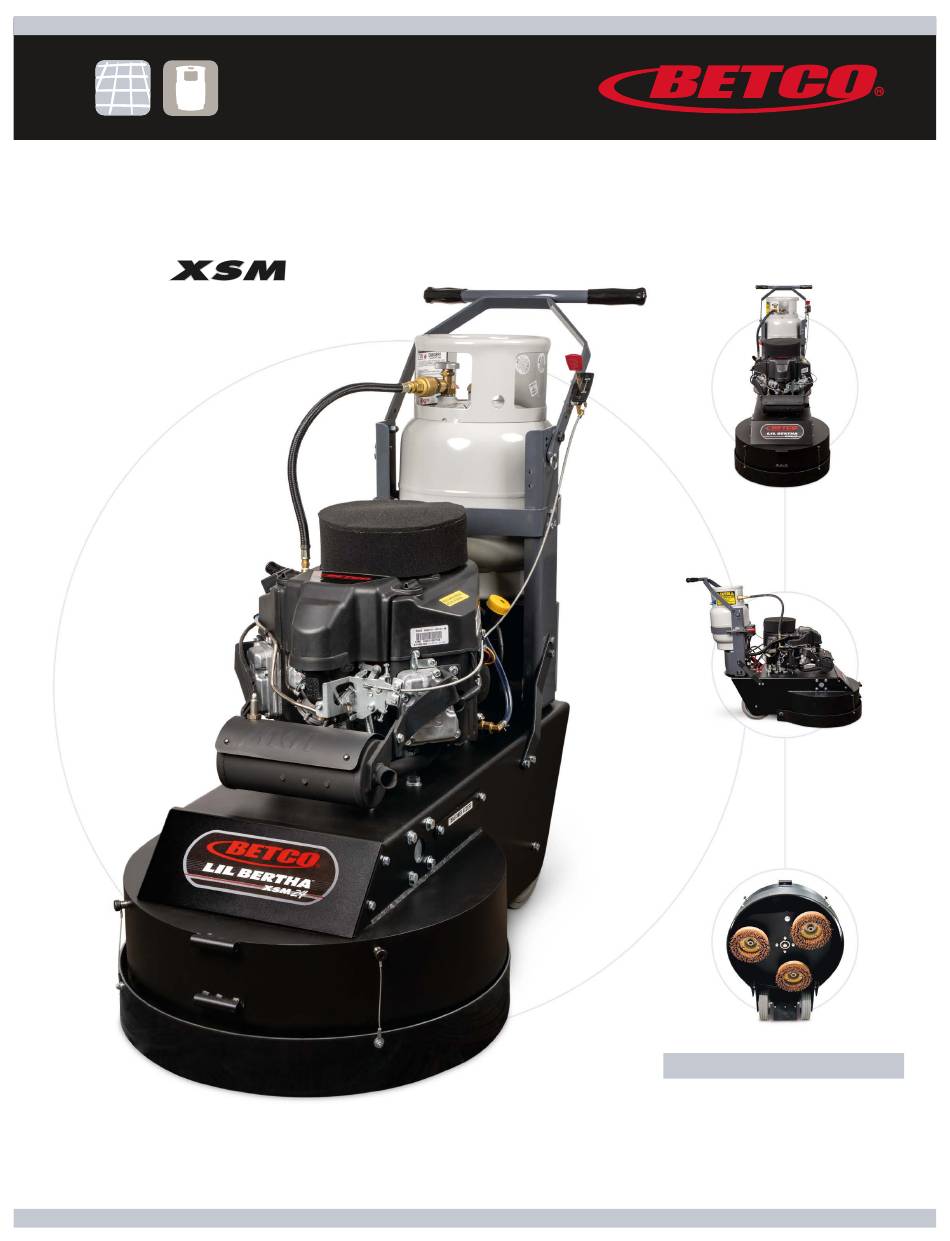

LIL BERTHA
LIL BERTHA
24" Extreme Strip
and Scrub Machine
24 24 24
(SERIAL NUMBERS 8000 AND GREATER)
Operator and Parts
Manual
400 Van Camp • Bowling Green, Ohio 43402
Customer Service: 888-GO-BETCO • Fax: 800-445-5056 • Technical Service: 877-856-5954 • www.betco.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E88398-00 and is the answer not in the manual?

Questions and answers

Summary of Contents for BETCO E88398-00

  • Page 1 LIL BERTHA 24" Extreme Strip ™ and Scrub Machine 24 24 24 (SERIAL NUMBERS 8000 AND GREATER) Operator and Parts Manual 400 Van Camp • Bowling Green, Ohio 43402 Customer Service: 888-GO-BETCO • Fax: 800-445-5056 • Technical Service: 877-856-5954 • www.betco.com...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS CARBON MONOXIDE WARNING ............. 3 SAFETY ................... 4 TANK USE AND STORAGE .............. 5 STARTING AND STOPPING THE ENGINE ........5 OPERATOR PREPARATION ............. 6 MAJOR ASSEMBLIES ..............7 HANDLE BAR ................8 - 9 LOWER HANDLE SUPPORT ...........10 - 11 12V STARTER SWITCH ............12 - 13 KAWASAKI ENGINE ASSEMBLY ..........14 - 15 DECK ASSEMBLY ..............16 - 17...
  • Page 3: Carbon Monoxide Warning

    WARNING - CARBON MONOXIDE LETHAL EXHAUST GAS - MUST READ THIS! - Never Run The Engine In A Closed Building Or Confined Area Exhaust gases contain poisonous carbon monoxide. Carbon monoxide is odorless, colorless, and can cause death if inhaled. Carbon Monoxide Poisoning Symptoms Train your employees to know the warning signs of carbon monoxide poisoning.
  • Page 4: Safety

    SAFETY lmportant Safety Information All LPG (Liquid Propane Gas) powered engines, including this engine, produce Carbon Monoxide (CO). It is a Lethal Poison that is colorless, odorless, tasteless, and non-irritating gas. You must read “Danger: Lethal Exhaust Gas” information below. Keep hands, feet, and loose clothing away from all moving parts while the machine is in operation.
  • Page 5: Tank Use And Storage

    TANK USE AND STORAGE Propane Tank Use We use the Worthington gas cylinders designed for vapor withdrawal. The fuel lock offs, regulators, and engines are also designed for vapor withdrawal. • We recommend that you use the OPD (Overflow Protection Device) vapor withdrawal type cylinder. These style tanks have a triangle shaped valve handle.
  • Page 6: Operator Preparation

    OPERATOR PREPARATION Before Starting the Machine Read the Owner’s Manual and the Engine Operation Manual. Your machine is shipped ready for operation; however there is no fuel in the tank. When having the tank filled, you must make sure the tank is never over-filled. •...
  • Page 7: Major Assemblies

    MAJOR ASSEMBLIES HANDLE BAR ASM OPD PROPANE TANK LOWER HANDLE SUPPORT ENGINE ASM STRIP MACHINE DECK TRANSPORT WHEEL ASM BRUSH DRIVE PIVOT BRACKET BRUSH DECK ASM...
  • Page 8 HANDLE BAR E88808 E12696 E12476 E10120 E83145 E86228 E11420 E86125 E11146 E87986 E86114 (38")
  • Page 9 PART Description QTY. NUMBER E10120 Nut, #10-32, Nylon Lock, Grade 5, Zinc E11146 Nut, 3/8"-16, Nylon Lock, Grade 5, Zinc E11420 Washer, #10 SAE, Zinc E12476 Screw, Shoulder 1/2" x 1/2" Socket Head E12696 Hand Grip E83145 Washer, Nylon 1/2" ID X 1.25" OD E86114 Kawasaki Throttle Cable 38"...
  • Page 10 LOWER HANDLE SUPPORT E86120 E10457 (13") E89825 E86125 E11702 E89823 E81089 E10141 E89822 E86119 E10457 (4") E10120 E81072 E88807 E89826 E11353 E10734 E81062 E81062 E89824 E11146 E89827...
  • Page 11 Note: Not available for purchase assembled.
  • Page 12: 12V Starter Switch

    12V STARTER SWITCH E10550 E12290 E10449 E86125 E86121 E10204...
  • Page 13 PART Description QTY. NUMBER E10204 Wire Clamp, 3/8" Romex Connector E10449 5 Wire Keyed Ignition Switch E10550 Decal, OFF/ON/START E12290 Ignition Switch Key E86121 Key Switch Box E86125 Screw, #10-32 x 1.000 Hex Head, Zinc Note: Not available for purchase assembled.
  • Page 14: Kawasaki Engine Assembly

    KAWASAKI ENGINE ASSEMBLY E13983 E13985 E13993 E13994 E13981 E13984 E13976 E13986 E13987 E13997 E13975 E13998 E13987 E13997 E13974 E13999 E13977 E13973 E13978 E13990 E13980 E88325 E88484 E13988 E13982 E13992 E88469 E13979 E13991 E88470 E88479 E13996 E88475 E88474 E88476 E13960 E89618 E13968 E13972 E13971...
  • Page 15 PART NUMBER DESCRIPTION E13960 Catalyst Muffler ASM, 603cc E13968 Oil Drain ASM, 3/8 NPT E13969 Oil Drain Valve E13970 Spring Wire Clamp - 10mm, Zinc E13971 Oil Drain Hose E13972 Cap - Oil Drain Hose E13973 O-ring - 7.5mm ID x 1.8mm E13974 Inline Propane Filter - 10 Micron E13975...
  • Page 16: Deck Assembly

    DECK ASSEMBLY E10734 E11772 E10120 E81089 E81063 E88315 E81089 E81089 E81063 E81067 E11146 E88314 E86235 E11164 E81067 E81089 E81089 E81067 E81067 E81089 E11170 E11163 E12476 E11340 E11420 E11335 E88323 E11501 E86125 E87988 E12476 E11420 E10385 E10120 E81066 E10121 E10120 E11416 E11420 E11351 E11135...
  • Page 17 DECK PARTS PART DESCRIPTION QTY. NUMBER E10120 NYLOC HEX NUT 10-32 E10121 PAND HEAD SCREW 10-32 x 5/8 LG E10385 LANYARD 3/64 x 6.0 LG E10734 HEX HEAD BOLT 1/4-20 x 5/8 LG E11135 WASHER, 3/4" SAE, ZINC E11146 NYLOC HEX NUT 3/8-16, ZINC E11163 DECAL TENSIONER ACCESS E11164...
  • Page 18: Main Drive System

    MAIN DRIVE SYSTEM REF ENGINE ASSEMBLY E80136 E12406 E12409 E11501 REF FRAME E81066 E81087 E81064 E80133 E81078 E12400 E12434 E12459 E11289 E11350 E11417 E11345 E80134 E11501 E12447 E10117 E10598...
  • Page 19 PART NUMBER E10117 WASHER, LOCK, 0.440 ID x 0.770 OD, SPLIT, ZINC , t l E11501 WASHER, FLAT, 0.500 ID x 1.250 OD, 0.084 THK, ZINC E12409 WASHER, LOCK, 0.512 ID x 0.869 OD, SPLIT, ZINC E12434 CLUTCH, CENTRIFUGAL, 1750 RPM, 4.000 OD. E12447 WASHER, FLAT, 0.469 ID x 0.922 OD, 0.79 THK, ZINC E12459...
  • Page 20: Pivot Bracket Assembly

    PIVOT BRACKET ASSEMBLY E11418 E11347 E12447 E11418 E89818 E10117 E89816 E86234 E12447 E89817 E11418 E89782 E12447 E10117 E12447 E12447 E86234 E89828 E11347 E12447 E89819...
  • Page 21 PART DESCRIPTION QTY. NUMBER E10117 SPLIT LOCK WASHER 7/16 E11347 FLANGE BEARING AMI UCF 205 SET SCREWS 2.75 BOLT SPACING E11418 NYLOC NUT 7/16-14 E12447 FLAT WASHER, 7/16, SAE E86234 HEX HEAD SCREW 7/16-14 x 1-1/2 E89782 PIVOT BASE ASM E89816 FLANGE-MOUNTED STEEL BALL BEARING, 1"...
  • Page 22: Brush Plate Assembly

    BRUSH PLATE ASSEMBLY E81067 E81072 E12444 E11501 E12459 E12400 E11350 E12400 E12400 E12459 E12459 E11348 E11346 E12427 E12427 E11343 E11344 E10458 E10116 E86239 E86237 E11501 E12409 E10117 E12406 E10116 E87991 E11342 E86236 E81063...
  • Page 23 PART DESCRIPTION QTY. NUMBER E10116 HEX HEAD SCREW 7/16-14 x 1-1/4 LG E10117 SPLIT LOCK WASHER 7/16 E10458 TENSIONER LARGE FOR BRUSHES E11342 BRUSH MOUNTING PLATE LH E11343 STRIPPER CENTER DRIVE HUB ASSEMBLY E11344 STRIPPER BRUSH DRIVE HUB ASSEMBLY E11346 PULLEY, BK47H - 4.45 OD E11348 PULLEY, BK62H - 5.95 OD...
  • Page 24: Engine Maintenance

    ENGINE MAINTENANCE KAWASAKI FS481V PERIODIC MAINTENANCE EVERY EVERY EVERY EVERY DAILY PLEASE REFER TO ENGINE OWNERS MANUAL HOURS HOURS HOURS HOURS FOR MORE INFORMATION Check engine oil level and add if needed Check and clean engine intake foam and intake paper filter Check and clean engine cooling air intake filter General check for loose or lost nuts, screws, oil leakage, fuel hose connection, etc.
  • Page 25: Electrical Schematic

    ELECTRICAL SCHEMATIC EP50051 LP Ready 17HP Kawasaki Engine Assembly With Emission Kit (E80141) Black Wire (INCLUDED IN E80141) O2 Sensor Electrical Control Box O2 Sensor (INCLUDED IN E80141) Blue Wire E13996 Oil Pressure Switch Green Wire 14 Gauge Wire Black 14 Gauge Wire E10449 Ignition Switch E86119...
  • Page 26: Main Drive Belt

    MAIN DRIVE BELT Removal Remove main drive belt tensioner access plate. Remove front access panel bolts and panel. Loosen main drive belt tensioner bolt using a 3/4" wrench. Through the front access slip the belt up over the main drive pulley of the brush drive plate. You can finish removing the main drive belt through the rear opening of the machine under the handle.
  • Page 27: Brush Drive Plate And Belt

    BRUSH PLATE & BELT Brush Drive Plate Removal Remove front access panel bolts and panel. Loosen main drive belt tensioner bolt using a 3/4" wrench. Through the front access slip the main drive belt up over the main drive pulley of the brush drive plate. Remove pivot bracket axle bolts.
  • Page 28: Brush Change

    BRUSH CHANGE Remove propane tank. Remove front access panel to gain access to the brush drive shaft tops. Lay the machine on its side with the brush drive plate installed. The brush drive shaft and brush mount plate are LEFT HAND THREADS. Using a 3/4"...
  • Page 29: Troubleshooting

    TROUBLESHOOTING PROBLEM CAUSE POSSIBLE SOLUTION Battery is dead Recharge battery or replace if necessary Loose wire or bad connection Check wires and connections Engine will not turn over Bad electrical component Replace bad component Refer to engine owner’s manual and read Fuel system problem IMPORTANT below Propane tank shut off valve in off...
  • Page 30: Emissions Warranty

    Betco Corporation cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance. As the SORE owner you should however be aware that Betco Corporation may deny your warranty if your SORE or its part has failed due to abuse, neglect, improper maintenance or unapproved modification.
  • Page 31: Warranty

    If the part fails before the first scheduled replacement, the part will be repaired or replaced by Betco Corporation according to subsection (4) below. Any such part repaired or replaced under warranty will be warranted for the remainder of the period prior to the first scheduled replacement point for the part.
  • Page 32 Service Distributor. If the original part is returned within the warranty policy period from date of delivery for inspection by Betco and is found to be defective the owner will be credited for the cost of replacement parts plus shipping and handling.
