INSTALLATION

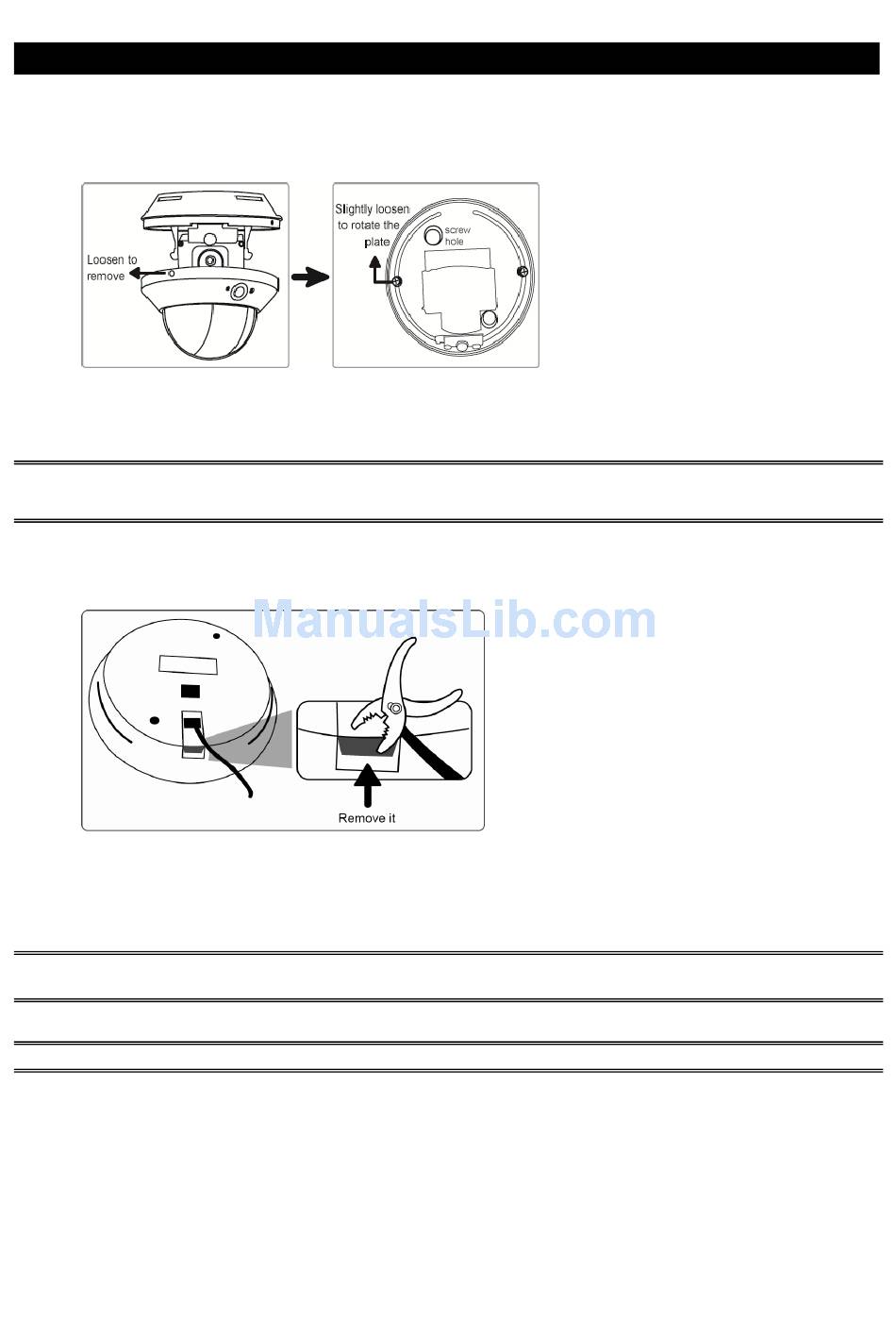

Step 1: Separate the dome cover from the camera.
Step 2: Make sure the screw holes on the plate are aligned with the holes on the camera base.
If not, slightly loosen the two screws on the plate and rotate it.
Step 3: Mark the locations of the two screw holes on the ceiling or wall, and drill a hole for each on the ceiling
or wall.
The distance between your camera and the location you want to monitor should be 3 ~ 4 meters.
NOTE: An installation sticker could be downloaded from
www.surveillance-download.com/user/503_installation_sticker.pdf.
-- For cabling behind the ceiling or wall, mark the location for one more hole for the camera cable to
go through;
-- For cabling along the ceiling or wall, do as indicated below for the cable to go through.
Step 4: Fix the camera to the ceiling or wall with the supplied screws.
Step 5: Connect your camera to power.
Step 6: Tilt and rotate the lens itself to adjust the position and viewing angle of the camera, and fasten the two
screws on the plate to fix.
NOTE: You don't need to manually pan this camera. For details, please refer to the section
"MOTORIZED PAN AND SEQUENCE SETUP".
Step 7: Replace the dome cover back to the camera.
NOTE: Please wipe the inner part of the dome cover against the lens for clear images.
