INSTALLATION

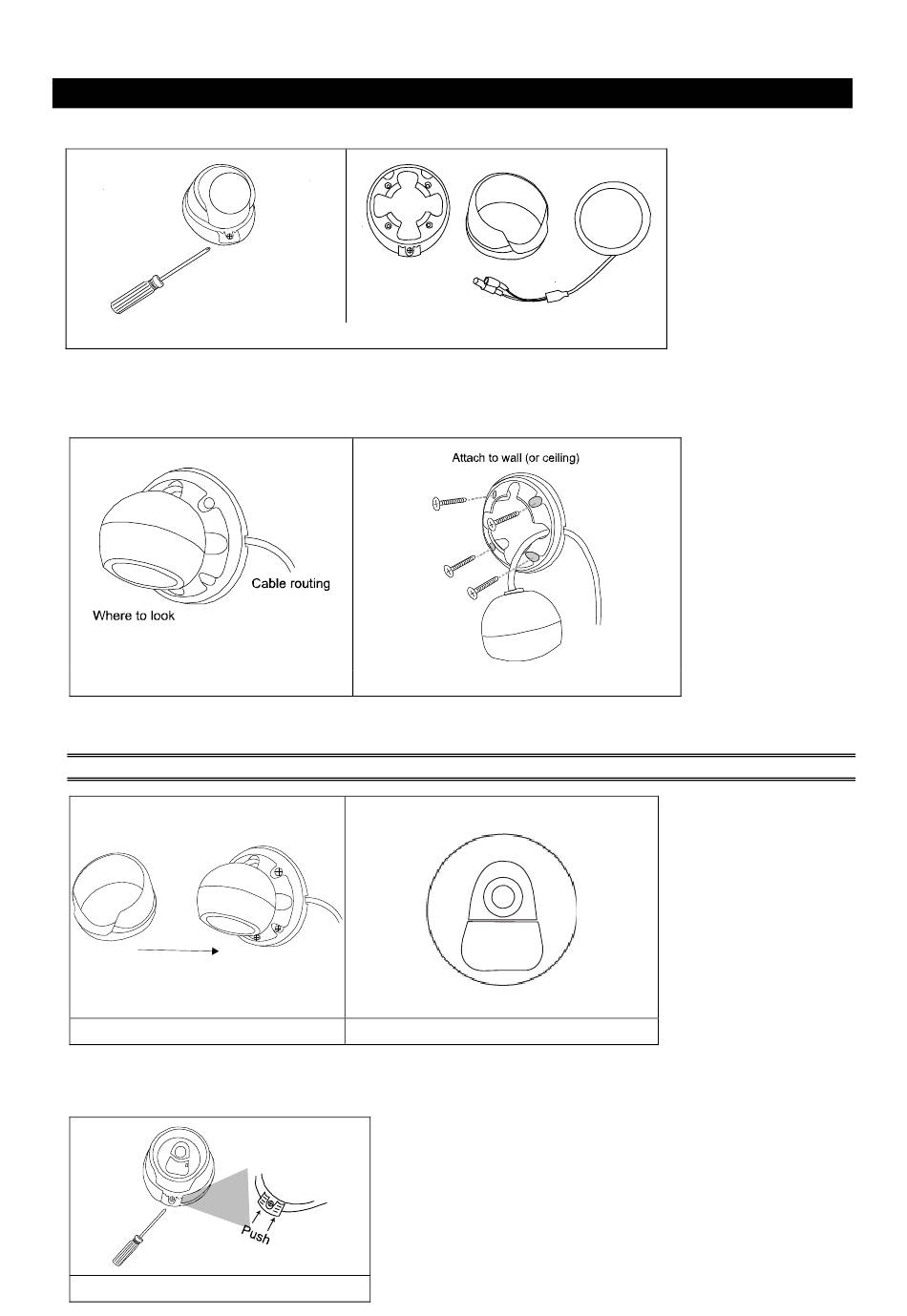

Step1: Disassemble the camera case into three parts as illustrated in Figure 1.
Step2: Locate the base on the place you would like to install the camera; make sure the cable can be arranged
properly in the base. (Refer to Figure 2)
Step3: Drill 4 holes and screw the base to the wall (or ceiling).
Figure 2
Step4: Put together the bracket and the lens, and slightly adjust the camera lens. Make sure it faces your target
surveillance area.
NOTE: Do not install the lens opposite down. (Refer to Figure5)
Put together
Figure 4
Step 5: Screw the base tight. (Refer to Figure 6)
Step 6: Power on the camera and check the viewing angle.
Figure 6
Figure 1
Figure 3
Upside
Downside
Figure 5
