Owner's Manual
F1
Fiber Optic HDMI and USB Extension Modules
TM
PureLink
535 East Crescent Avenue
Ramsey, NJ 07446
USA
Tel: +1.201.488.3232
Fax: +1.201.621.6118
E-mail:
sales@purelinkav.com
www.purelinkav.com
For order support, please contact your local dealer.
For technical support, please contact us at
support@purelinkav.com
Advertisement
Table of Contents
Related Manuals for PureLink F1
Summary of Contents for PureLink F1

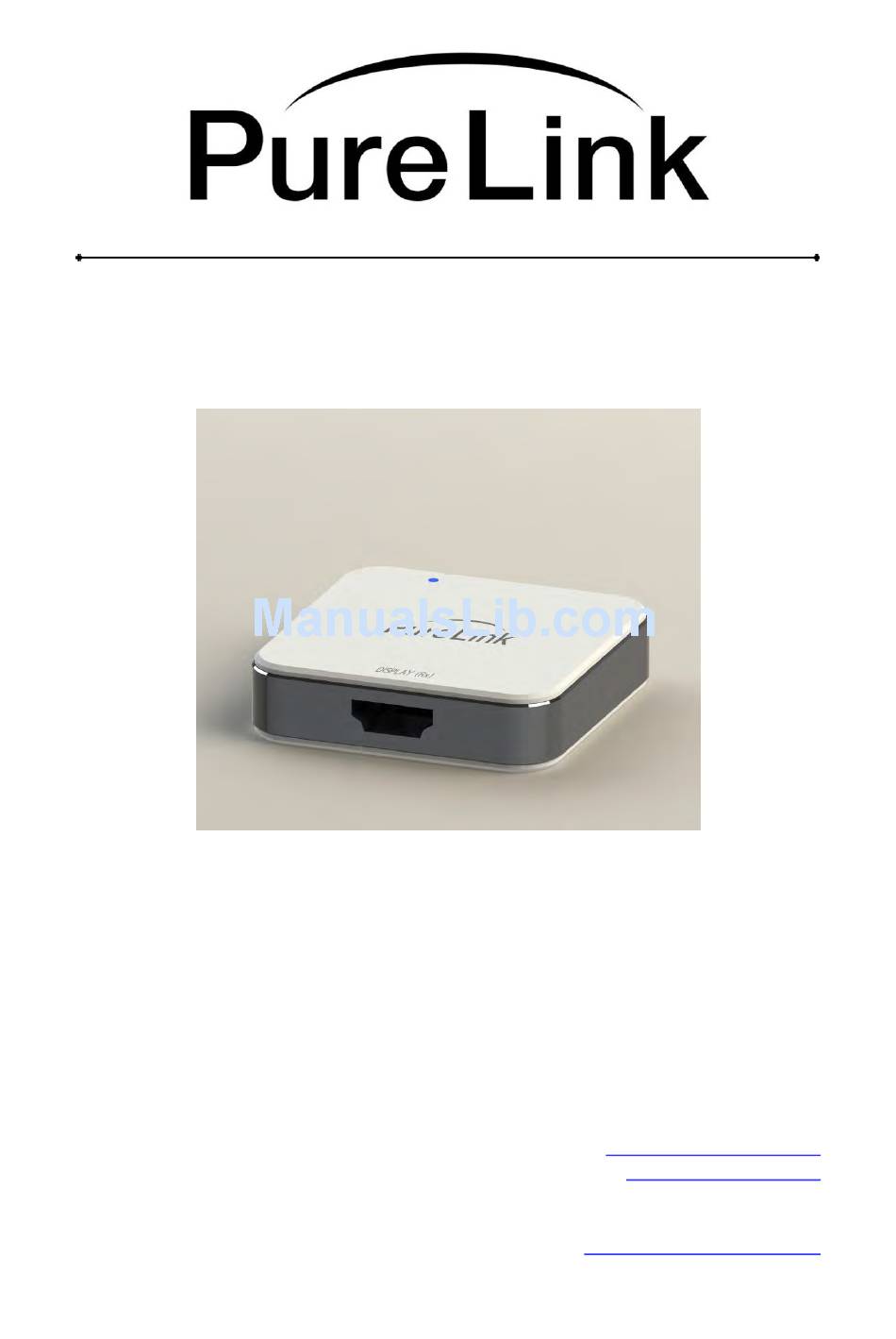

- Page 1 Owner’s Manual Fiber Optic HDMI and USB Extension Modules PureLink 535 East Crescent Avenue Ramsey, NJ 07446 Tel: +1.201.488.3232 Fax: +1.201.621.6118 E-mail: sales@purelinkav.com www.purelinkav.com For order support, please contact your local dealer. For technical support, please contact us at support@purelinkav.com...
-
Page 2: Table Of Contents
PureLink by Dtrovision ABLE OF ONTENTS Chapter 1. Product Overview 1.1 Safety Precautions --------------------------------------------------------------- 1.2 Product Description --------------------------------------------------------------- 1.3 Product Features --------------------------------------------------------------- 1.4 Common Application --------------------------------------------------------------- 1.5 What’s in the Box --------------------------------------------------------------- 1.6 Installation Guidelines --------------------------------------------------------------- Chapter 2. Product Specifications 2.1 Electrical Specification... -
Page 3: Chapter 1. Product Overview
PureLink by Dtrovision Chapter 1. Product Overview 1.1 Safety Precautions All safety instructions should be read and understood before the unit is operated. The owner’s manual and safety instructions should be retained for future reference. Unplug this unit from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth only. -
Page 4: Product Description

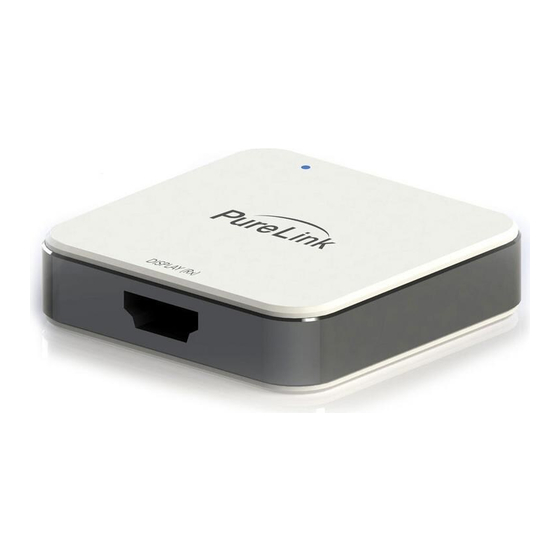

The F1 fiber optical HDMI and USB extension module transmits Ultra-HD/4K HDMI v1.4b up to 300 meters (1,000 ft), as well as USB up to 200 meters (650 ft), all over a single LC multi-mode fiber optic cable. The F1’s compact size makes installation a snap, making it the most complete and reliable solution for long-distance Ultra-HD/4K signal transmission. -
Page 5: What's In The Box
0.5 meters (1.6ft) HDMI copper cable : Two (2) units User’s Manual Option Product: TWF1 (PureLink’s multi-mode 1 LC fiber optic cable with TotalWire Technology) 1.6 Product application notes Figure 1 – Schematic Connection Diagram of F1 Extension Modules... - Page 6 PureLink by Dtrovision 1.7 Installation Important : Please use the installation procedure below. Improper or no operation may result if the start up sequence is not correctly followed. Step 1 Carefully unpack the contents of the shipping group Step 2 Plug micro USB-B cable (labeled as TX) to the female micro USB receptacle of the transmitter and then connect the other end of the USB type A cable to the video source’s USB port.
-
Page 7: Chapter 2. Product Specifications
PureLink by Dtrovision Chapter 2. Product Specifications 2.1 Electrical Specification Category Detail spec Electrical Connector HDMI Receptacle Type Electrical Video band-width 2.97Gbps HDMI : 300m Maximum Reach HDMI + Full Speed USB : 40m HDMI + Low Speed USB : 200m... -
Page 8: Receiver Module
PureLink by Dtrovision 2.1-2 Receiver Module PARAMETER Unit Supply Voltage Supply Current Power consumption TMDS Single-ended output swing voltage TMDS Single-ended high level output voltage 3.3V-200mV 3.3V+10mV TMDS Min Single-ended low level output voltage 3.3V-700mV 3.3V-400mV TMDS Rise time/ fall time (20%-80%) TMDS Intra-Pair Skew at Source Connector 0.15Tbit... -
Page 9: Transmitter Module
PureLink by Dtrovision 2.2-1 Transmitter Module PARAMETER Unit Output Power 10G -2.5 Output Power 1G Output Power 10G Extinction Ratio Output Power 1G Extinction Ratio Sensitivity 2.2-2 Receiver Module PARAMETER Unit Output Power 1G Extinction Ratio Output Power 10G Sensitivity Output Power 1G Sensitivity 2.3 Mechanical Specification... -
Page 10: System Requirements For Setup
AC/DC Power Adapter Technical Advisory The transmitter (Tx) module of F1 is designed for power protection circuit from conflict of power supply between the external DC power adapter and your graphic card through the HDMI pin. It offers an option of whether to use an AC/DC power adapter depending on power supply capability of the graphic card through the +5V pin, you are using. -
Page 11: Troubleshooting
2.6 Troubleshooting The display shows only black screen. - Ensure that all plugs and jacks used by external power supplies (both PureLink product and others) are firmly connected. Ensure the blue LED is ON. - Ensure that the HDMI ports are firmly plugged in to the source and display. - Page 12 Mode of operation: continuous operation Certification of Eye Safety This laser product is inside implemented by using 1300/1550nm optical module, manufactured by PureLink, which are all certified by IEC60950, IEC/EN60825-1 referred in Accession Number 07-1334-0217 as classified in Laser Class1.
-
Page 13: Chapter 3. Additional Information
Repaired or replacement products or parts come with a 90-day warranty or the remainder of the warranty period. PureLink shall not be responsible for any software, firmware, information, or memory data loss of contained in, stored on, or integrated with any products returned to PureLink for repair under warranty.
