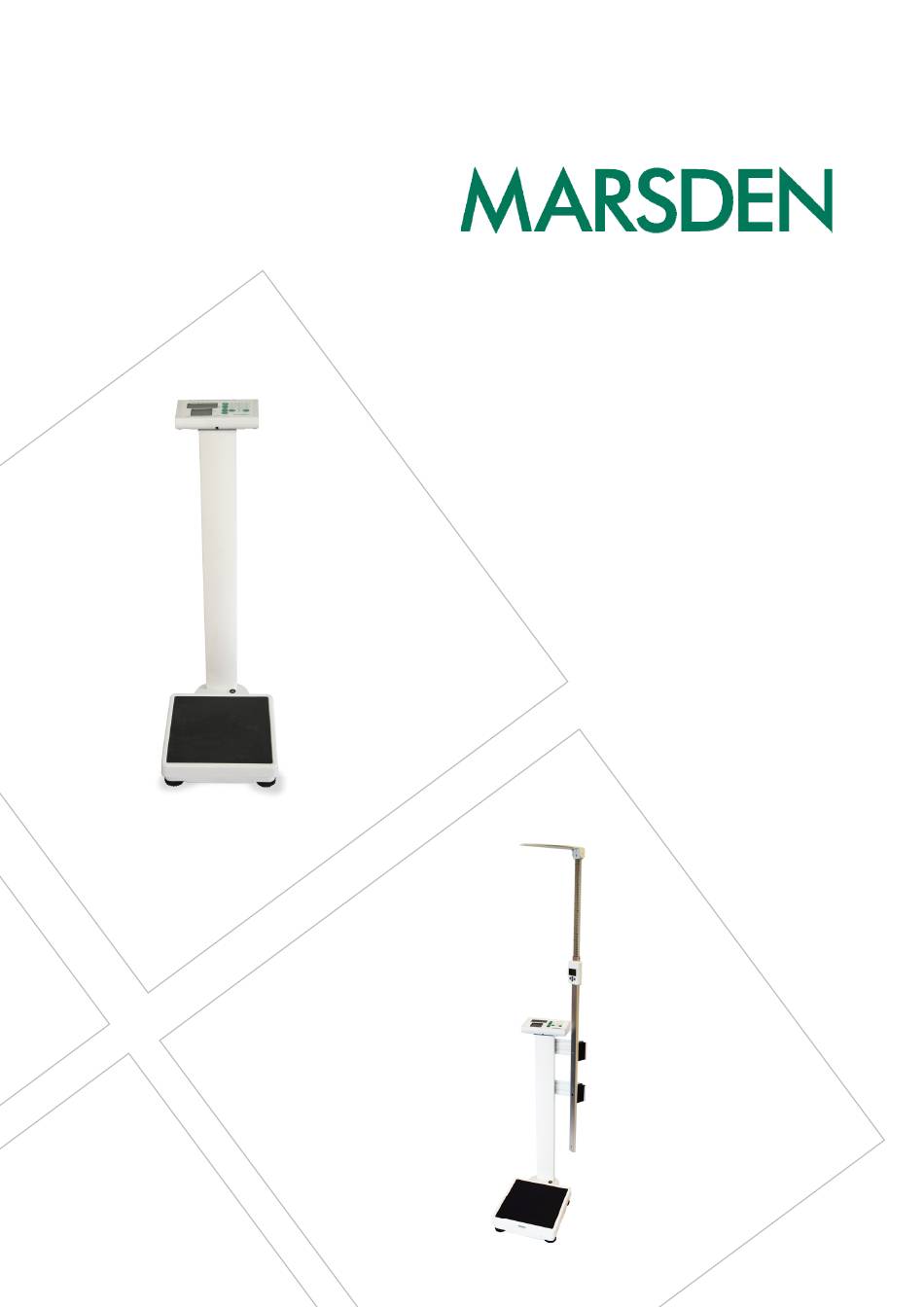

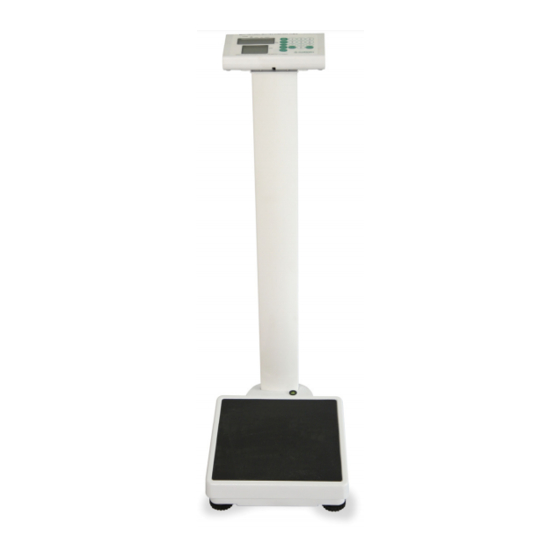

- Page 1 USER MANUAL M-110 Please take time to read these instructions before starting to use the scale Version 1.2 09/19 Please keep this instruction manual to hand for future reference...
-
Page 2: Table Of Contents
Contents Introduction Product Specification Safety Instructions Explanation of Graphic Symbols Power Supply and Low Battery Before Use Operation: Basic Functions Operation: Advanced Functions Using the Scale with a Printer Using the Scale with Bluetooth Attaching the Height Measure EMC Guidance and Manufacturer’s Declaration Recommended Separation Distance Error Messages Manufacturer’s Declaration of Conformity... -
Page 3: Introduction
Thank you for purchasing a Marsden professional medical scale. This is a precision Class III Weighing Instrument and considerate use will result in many years of accurate weighing. The scale has a maximum load capacity of 250kg which must not be exceeded. -
Page 4: Safety Instructions
Before putting the device into use, please read with care the information given in this user manual, which contains important instructions for proper installation, use and maintenance of the device. Marsden/the manufacturer shall not be liable for damages arising from failure to heed the following instructions: ... -
Page 5: Explanation Of Graphic Symbols
Dispose of old appliances separately from your household waste. This product must be disposed of at a communal collection point. Carefully read this operation manual before setup and commissioning, even if you are already familiar with Marsden scales. Page 5... -
Page 6: Power Supply And Low Battery
Power Supply & Low Battery The indicator uses a rechargeable battery pack or can be powered from the mains via the AC adaptor. Make sure the battery pack is installed in the battery box of the indicator. Alternatively, plug the AC adaptor (12V 2A) into the port on the side of the indicator. -
Page 7: Before Use
Before Use 1) Place the scale on a firm and level surface 2) Unwind the levelling feet until they make contact with the ground. 3) Ensure that all four of the levelling feet and the wheels are firmly on the ground and that the spirit level bubble is located in the center as shown below: Correct:... -
Page 8: Operation: Basic Functions
Operation: Basic Functions Switching on the Scale Press the ON/OFF button firmly. The scale will first test all of the display segments. The scale will now show its current software version number. The scale will now go into weighing mode and should show 0.0kg on the display. - Page 9 Switching off the Scale Press the ON/OFF button when the scale is turned on. The scale will now power down. Setting the Scale to Zero If for any reason the scale shows a reading other than 0.0kg it can be reset to zero.
-
Page 10: Operation: Advanced Functions
Operation: Advanced Functions Hold Function Press the HOLD button once. Allow the patient to stand on the scale. After a few seconds the scale will lock on the person’s weight. When the patient leaves the scale, the weight will remain on the display. Press HOLD again to disable the Hold function and return the scale to 0.0kg. - Page 11 Body Mass Index (BMI) Function In normal mode, press the BMI button to enter into BMI mode. The display will show the last height entered and the extreme left digit will flash. Enter the height by using the numeric keys.* Press ZERO to confirm the height.
- Page 12 Tare and Preset Tare Functions Press TARE for three seconds to enter Preset Tare setting mode. When the cursor points to Pre Tare on the display press TARE once more. The display will show the last preset tare value entered. The left digit on the display will flash.
- Page 13 Setting the Date Press HOLD for three seconds to access the time setting mode. The time period digit that is flashing can be changed by entering the appropriate number from the numeric key pad. The time period to be edited is selected by pressing HOLD. E.g.
-
Page 14: Using The Scale With A Printer
Using the Scale with a Printer An optional Marsden external thermal printer (model TP-2100) is available for all models. When the printer is fitted, the patient’s weight, height, and BMI result can be printed. Once the person has been weighed and their BMI calculated, simply press PRINT to produce... -
Page 15: Using The Scale With Bluetooth
(procedure may vary depending on device or system) The scale will appear on the Bluetooth device list as “MARSDEN BT”. Connect your device to “MARSDEN BT”, and the scale is ready to transmit data wirelessly via Bluetooth. Page 15... -
Page 16: Attaching The Height Measure
Attaching the Height Measure The M-110 can be purchased with a height measure. If you did not purchase your M-110 with a height measure, it is also available separately (model HM-201M). Using the four M5*0.8*9 screws provided, mount the two brackets onto the column of the M-110. -
Page 17: Emc Guidance And Manufacturer's Declaration
Guidance and manufacturer’s declaration-electromagnetic emissions The MEDICAL SCALE M-110 is intended for use in the electromagnetic environment specified below. The customer or the user of the MEDICAL SCALE M-110 should assure that it is used in such an environment. Emission test... - Page 18 Guidance and manufacturer’s declaration-electromagnetic immunity The MEDICAL SCALE M-110 is intended for use in the electromagnetic environment specified below. The customer or the user of the MEDICAL SCALE M-110 should assure that is used in such and environment. Compliance Electromagnetic environment-...
- Page 19 RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the MEDICAL SCALE M-110 is used exceeds the applicable RF compliance level above, the MEDICAL SCALE M-110 should be observed to verify normal operation.
-
Page 20: Recommended Separation Distance
The MEDICAL SCALE M-110 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the MEDICAL SCALE M-110 can help prevent electromagnetic interference by maintaining a minimum distance between... -
Page 21: Error Messages
Error Messages Low Battery The scale’s alkaline AA type batteries are flat; please replace the batteries. Overload This indicates that the scale’s load sensor(s) have been overloaded. Reduce the loading and retry. Counting Error 1. The signal from the load cells is too high. - Page 22 PRODUCT CONFORMITY Harmonised Standards to Which Conformity is Declared – EN60601-1-2 / EN60601-1 93/42/EEC – Medical Devices Directive 2014/31/EU – Non Automatic Weighing Instrument Directive Page 22...
-
Page 23: Manufacturer's Declaration Of Conformity
Manufacturer’s Declaration of Conformity This product has been manufactured in accordance with the harmonized European standards, following the provisions of the below stated directives: 93/42/EEC as amended by 2007/47/EC Medical Device Directive 2014/31/EU Non-automatic Weighing Instruments Directive Please see separate document showing on sticker of device for above CE marking. Authorized EU Representative: DISTRIBUTOR：... - Page 24 Tel: 01709 364296 / 0800 169 2775 Fax: 01709 364293 E-mail: sales@marsdengroup.co.uk Manufacturing and Distribution: Unit 7, Centurion Business Park, Coggin Mill Way, Rotherham, S60 1FB Head Office: Unit 1, Genesis Business Park, Sheffield Road, Rotherham, S60 1DX www.marsden-weighing.co.uk CD‐IN‐8680 [80001H]...
