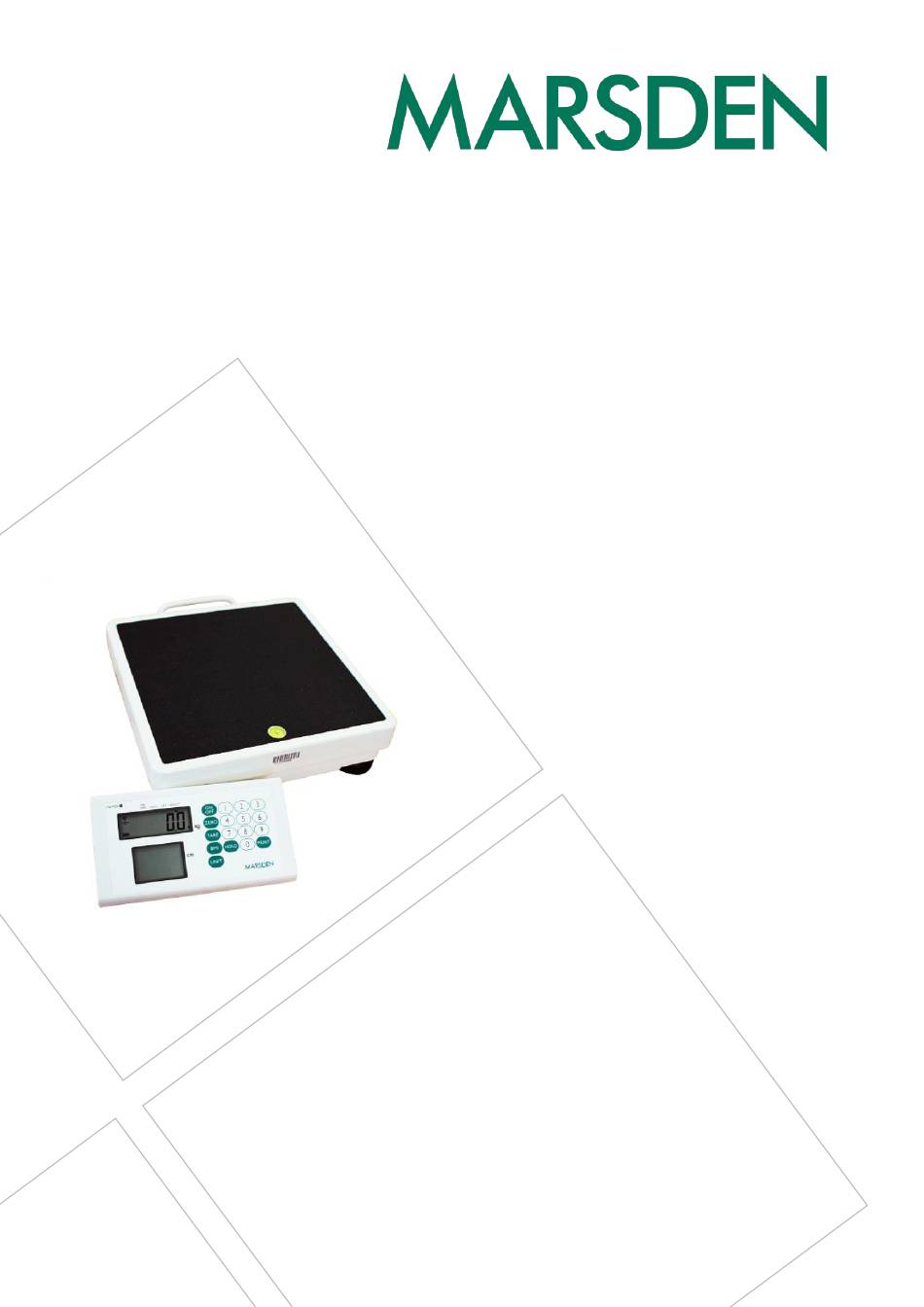

USER MANUAL
M-510
Please take time to read these
instructions before starting
to use the scale
Version 1.1 10/20
Please keep this instruction manual to hand for future reference

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M-510 and is the answer not in the manual?

Questions and answers

Summary of Contents for marsden M-510

  • Page 1 USER MANUAL M-510 Please take time to read these instructions before starting to use the scale Version 1.1 10/20 Please keep this instruction manual to hand for future reference...
  • Page 2: Table Of Contents

    Contents Introduction Product Specification INTENDED USE Safety Instructions Explanation of Graphic Symbols Power Supply and Low Battery Operation: Basic Functions Operation: Advanced Functions Using the Scale with a Printer Using the Scale with Bluetooth EMC Guidance and Manufacturer’s Declaration Recommended Separation Distance Error Messages Manufacturer’s Declaration of Conformity Page 2...
  • Page 3: Introduction

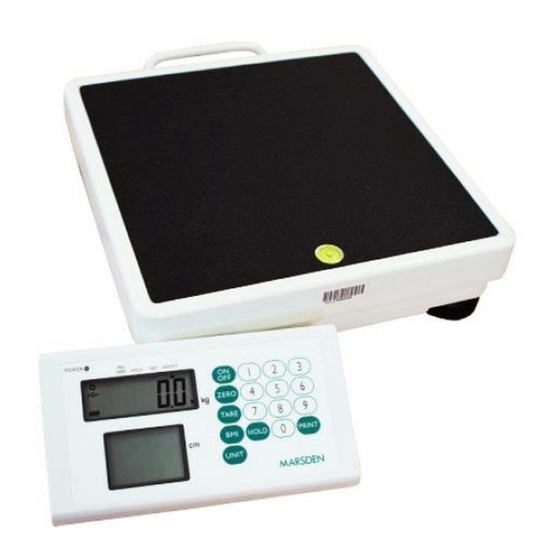

    Thank you for purchasing a Marsden professional medical scale. This is a precision Class III Weighing Instrument and considerate use will result in many years of accurate weighing. The scale has a maximum load capacity of 250kg which must not be exceeded.
  • Page 4: Intended Use

    Before putting the device into use, please read with care the information given in this user manual, which contains important instructions for proper installation, use and maintenance of the device. Marsden/the manufacturer shall not be liable for damages arising from failure to heed the following instructions: •...
  • Page 5: Explanation Of Graphic Symbols

    Dispose of old appliances separately from your household waste. This product must be disposed of at a communal collection point. Carefully read this operation manual before setup and commissioning, even if you are already familiar with Marsden scales. Page 5...
  • Page 6: Power Supply And Low Battery

    Power Supply & Low Battery The indicator uses a rechargeable battery pack, or can be powered from the mains via the AC adaptor. Make sure the battery pack is installed in the battery box of the indicator. Alternatively, plug the AC adaptor (12V 2A) into the port on the side of the indicator.
  • Page 7: Operation: Basic Functions

    Operation: Basic Functions Switching on the Scale Press the ON/OFF button firmly. The scale will first test all of the display segments. The scale will now show its current software version number. The scale will now go into weighing mode and should show 0.0 on the display.
  • Page 8 Switching off the Scale Press the ON/OFF button when the scale is turned on. The scale will now power down. Setting the Scale to Zero If for any reason the scale shows a reading other than 0.0 it can be reset to zero. Press ZERO once.
  • Page 9: Operation: Advanced Functions

    Operation: Advanced Functions Hold Function Press the HOLD button once. Allow the patient to get on the scale. After a few seconds the scale will lock on the person’s weight. When the patient leaves the scale, the weight will remain on the display.
  • Page 10 Body Mass Index (BMI) Function In normal mode, press BMI to enter BMI mode. The display will show the last height entered and the extreme left digit will flash. Enter the height by using the numeric keys. Press ZERO to confirm the height.
  • Page 11 Tare and Pre-Set Tare Functions Press TARE for three seconds to enter Pre- set Tare setting mode. The display will show the last pre-set tare entered and the extreme left digit will flash. Enter the pre-set tare value by using the numeric keys, then press TARE again to confirm the value.
  • Page 12 Setting the Date Press HOLD for three seconds to access the time setting mode. The time period digit that is flashing can be changed by entering the appropriate number using the numeric keys. The time period to be edited is selected by pressing HOLD. E.g.
  • Page 13: Using The Scale With A Printer

    Using the Scale with a Printer An optional Marsden external printer (model TP-2100) is available for all models. With the printer fitted, the patient’s weight, height, and BMI result can be printed. Once the person has been weighed and their BMI calculated, simply press PRINT to produce...
  • Page 14: Using The Scale With Bluetooth

    (procedure may vary depending on device or system) The scale will appear on the Bluetooth device list as “MARSDEN BT”. Connect your device to “MARSDEN BT”, and the scale is ready to transmit data wirelessly via Bluetooth. Page 14...
  • Page 15: Emc Guidance And Manufacturer's Declaration

    Guidance and manufacturer’s declaration-electromagnetic emissions The MEDICAL SCALE M-510 is intended for use in the electromagnetic environment specified below. The customer or the user of the MEDICAL SCALE M-510 should assure that it is used in such an environment. Electromagnetic environment-...
  • Page 16: Recommended Separation Distance

    Guidance and manufacturer’s declaration-electromagnetic immunity The MEDICAL SCALE M-510 is intended for use in the electromagnetic environment specified below. The customer or the user of the MEDICAL SCALE M-510 should assure that is used in such and environment. Compliance Electromagnetic environment-...
  • Page 17 RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the MEDICAL SCALE M-510 is used exceeds the applicable RF compliance level above, the MEDICAL SCALE M-510 should be observed to verify normal operation.
  • Page 18 The MEDICAL SCALE M-510 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the MEDICAL SCALE M-510 can help prevent electromagnetic interference by maintaining a minimum distance between...
  • Page 19: Error Messages

    Error Messages Low Battery The scale’s alkaline AA type batteries are flat; please replace the batteries. Overload This indicates that the scale’s load sensor(s) have been overloaded. Reduce the loading and retry. Counting Error 1. The signal from the load cells is too high.
  • Page 20: Manufacturer's Declaration Of Conformity

    Manufacturer’s Declaration of Conformity This product has been manufactured in accordance with the harmonized European standards, following the provisions of the below stated directives: 93/42/EEC as amended by 2007/47/EC Medical Device Directive 2014/31/EU Non-automatic Weighing Instruments Directive Please see separate document showing on sticker of device for above CE marking. Authorized EU Representative: DISTRIBUTOR:...
  • Page 23 Tel: 01709 364296 / 0800 169 2775 Fax: 01709 364293 E-mail: sales@marsdengroup.co.uk Manufacturing and Distribution: Unit 7, Centurion Business Park, Coggin Mill Way, Rotherham, S60 1FB Head Office: Unit 1, Genesis Business Park, Sheffield Road, Rotherham S60 1DX www.marsden-weighing.co.uk CD-IN-1254 (8498) [80001L]...
