  • Page 1: User Manual

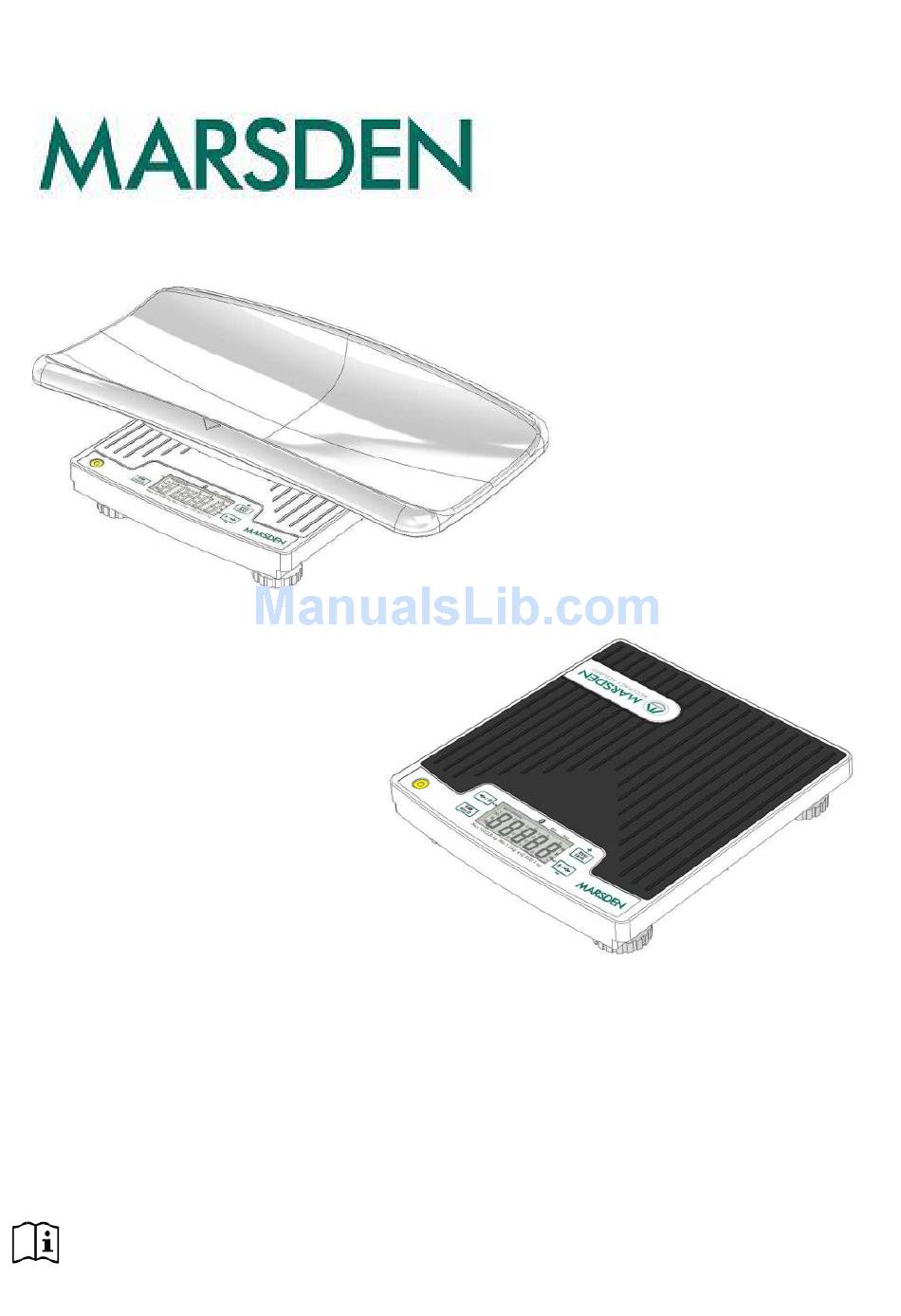

    USER MANUAL For all M-4xx models Please keep the instruction manual at hand all the time for future reference.
  • Page 2 TABLE OF CONENTS INTRODUCTION ................... 2 POWER SUPPLY & LOW BATTERY ..........4 SPECIFICATIONS ................. 5 POWER SUPPLY ................... 6 TIME SETTING-M-4xxBT series only ..........11 SETTING BLUETOOTH FUNCTION – only for the case of the scales with the Bluetooth module plugged in..........13...

  • Page 3: Introduction

    INTRODUCTION Thank you for purchasing a Marsden Professional Medical Scale. This is a precision Class III Weighing Instrument and it will reward considerate use with many years of accurate weighing results SAFETY INSTRUCTION Before putting the device into use, please read with care the information given in the Operating Instructions.

  • Page 4: Disposing Of The Scale

    B Device protection category II Dispose of old appliances separately from your household waste!l! Instead, take them to communal collection points. Carefully read this operation manual before setup and commissioning, even if you are already familiar with Marsden scales.

  • Page 5: Power Supply & Low Battery

    MARSDEN for more details, if interested. POWER SUPPLY & LOW BATTERY 1. The M-400, M-410, M-420 and M-430 scales can be run from six ‘AA’ alkaline batteries or can be connected directly to the mains power supply using the included mains power adaptor.

  • Page 6: Specifications

    SPECIFICATIONS All are Class III approved weighing devices MODEL M-400 M-410 M-420 M-430 (BT) (BT) (BT) (BT) 0~100kg x 50g Capacity/ 0~10 kg x 5g 0~20kg x 10g 100~200kgx100g 220kg x 200g Division 10~20kg x 10g 20~50kg x 20g Baby Tray...

  • Page 7: Power Supply

    INSTALLING THE BATTERY Remove the batteries if no use for a longer time. CONNECTING THE MAINS POWER SUPPLY Only use the AC Adapter supplied by Marsden for this unit.
  • Page 8 FUNCTION KEYS- note some are multi function dependent on the mode of the scale M-410, M-420 and M-430 Only ON/ZERO/OFF/- 1. Press this key to power up the scale, the display will go to 0.00kg (The M-420 & M-430 also supports the TAP ON function, please refer to page 9) 2.
  • Page 9 HOLD/BMI 1. When weighing a patient, press the Hold key once and the scale will ‘lock’ onto the patients weight once a stable reading as been taken. 2. Press the Hold key again to release the display. 3. This is also the key to use for BMI readings - See section on BMI readings.
  • Page 10 Remote Display M-420 Only All of the M-420 has a socket on the base of the scale that allows a remote display unit to be fitted. (See picture) The remote display has its own on/off button. It takes its power from the scale so no additional batteries or power supplies are required.
  • Page 11 TAP-ON FUNCTION M-420 & M-430 only The M-420 & M-430 also could be started by <TAP ON>. Slightly short press the platform till the scale display “0.00kg”. The direction of display could be reversed by pressing the ON/ZERO/OFF button when the scale is under the “0.00kg” status.
  • Page 12 TIME SETTING- M-4xxBT series only Re-setting the time is highly recommended if the time zone is different from the originally supplied and this information to be used at your application. Related Keys SETTING DIAGRAM HOLD key means “select” ( Press TARE 3sec TARE key means “enter”...
  • Page 13 EXAMPLE: Input Jan. 2, 2013, 10:00am. Workflow Display Long press TARE key for 3 seconds to enter the SETTING mode and then displaying the A_OFF menu. A_OFF Press HOLD key twice. And then press TARE key once to enter the date setting menu. Enter year mode by pressing TARE key.

  • Page 14: Scales With The Bluetooth Module Plugged In

    SETTING BLUETOOTH FUNCTION – only for the case of the scales with the Bluetooth module plugged in. Workflow Display Long press TARE key for 3 seconds to enter the SETTING mode and then displaying the A_OFF menu. A_OFF Press HOLD key. And then press TARE key once to enter the Bluetooth setting mode.
  • Page 15 INSTALL THE TRAY 1. Install the tray to the proper location. Note: make sure that the weighing tray is installed properly and at the right position. 2. Install the tray at the proper location and tighten the screws on both sides.
  • Page 16 3. Assembly finished.

  • Page 17: Error Messages

    ERROR MESSAGES 1. Low Battery The scales alkaline AA type batteries are flat. Replace the batteries with new ones 2. Over Load This indicates that the scales load sensor/s have been overloaded, re- calibration may fix this problem but it usually indicates a faulty load sensor 3.

  • Page 18: Rohs Compliance

    ROHS COMPLIANCE EU Directive 2002/95/EC restrict the use of the 6 substances below in the manufacture of specified types of electrical equipment.  The product does not contain any of the restricted substances in concentrations and applications banned by the directive; ...
  • Page 20 FREEPHONE NUMBER: 0800 169 2775 HEAD OFFICE: UNIT 1 SALES, SERVICE, GENESIS BUSINESS PARK MARKETING SHEFFIELD ROAD AND ACCOUNTS ROTHERHAM S60 1DX TELEPHONE: 0845 130 7330 FAX: 0845 1307440 DESPATCH AND Unit 7 PRODUCTION CENTURION BUSINESS PARK COGGIN MILL WAY ROTHERHAM S60 1FB TELPHONE: 0845 130 7330...
