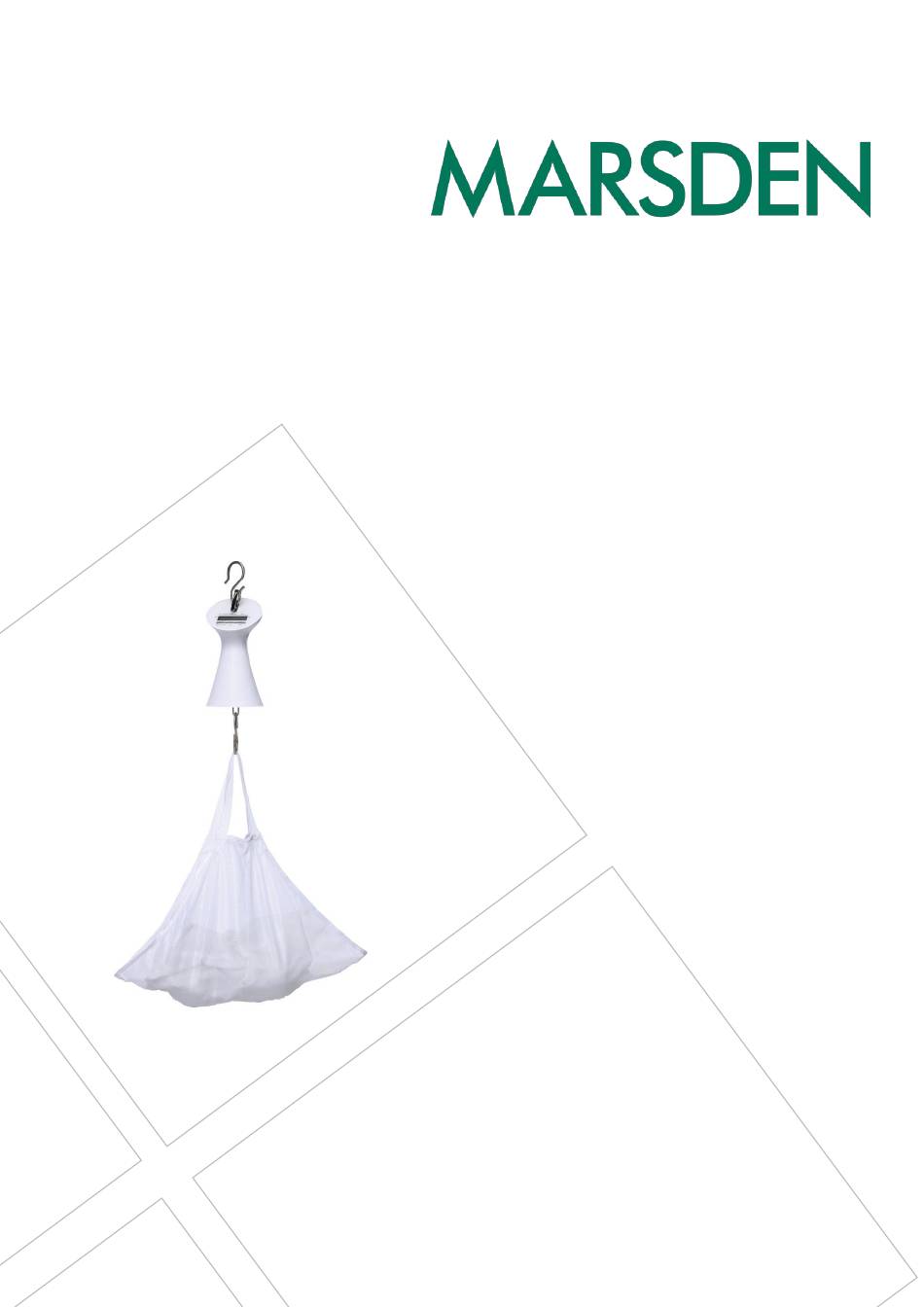

- Page 1 USER MANUAL M-310 (MS-4400I) Please take time to read these instructions before starting to use the scale Version 1.2 10/17...
-
Page 2: Table Of Contents
Contents Introduction Product Specification Safety Instructions Explanation of Graphic Symbols Installing & Replacing the Battery Pack How to Weigh Your Baby Correctly EMC Guidance and Manufacturer’s Declaration Recommended Separation Distance Error Messages Manufacturer’s Declaration of Conformity Manufacturer’s Declaration of Conformity (MDD Directive) Page 2... -
Page 3: Introduction
Thank you for purchasing a Marsden professional medical scale. This is a precision Class III Weighing Instrument and considerate use will result in many years of accurate weighing. The scale has a maximum load capacity of 10kg which must not be exceeded. -
Page 4: Safety Instructions
Marsden/the manufacturer shall not be liable for damages arising from failure to heed the following instructions: • When using electrical components under increased safety requirements, always comply with appropriate regulations. -
Page 5: Explanation Of Graphic Symbols
This product must be disposed of at a communal collection point. Carefully read this operation manual before setup and commissioning, even if you are already familiar with Marsden scales. Transport and storage temperature limit indicating the upper and lower limit (transport and storage temperature on packaging). -
Page 6: Installing & Replacing The Battery Pack
Installing & Replacing the Battery Pack Locate the battery cover at the bottom of the scale and open it. Remove the battery case. Insert 6x AAA batteries..making sure each battery is aligned properly in the case, with front edge of each battery corresponding with the + marking on the case. -
Page 7: How To Weigh Your Baby Correctly

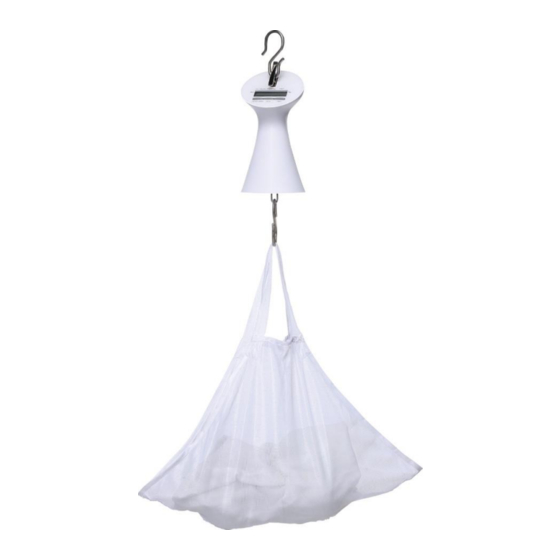

Operation Instructions The M-310 (MS-4400I) is designed to be held whilst a baby is being weighed, as shown in the picture on the left. To begin, switch the scale on by pressing the ON/OFF/ZERO button. 0.00kg should show on the display. -
Page 8: Emc Guidance And Manufacturer's Declaration
EMC Guidance and Manufacturer’s Declaration Guidance and manufacturer’s declaration – electromagnet emissions. The M-310 (MS-4400I) is intended for use in the electromagnetic environment specified below. The customer or user of this scale should ensure that it is used in such environment. - Page 9 recommended that this scale is powered from an uninterruptable power supply or a battery. Power frequency (50/60 3 A/m 3 A/m The scale’s power frequency Hz) magnetic field IEC magnetic fields should be at 61000-4-8 levels characteristic of a typical location in a typical commercial or hospital environment.
-
Page 10: Recommended Separation Distance
B) Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m. Recommended separation distance between portable and mobile RF communications equipment and the M-310 (MS-4400I). This scale is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. -
Page 11: Error Messages
Error Messages Low Battery The scale’s alkaline AA type batteries are flat; please replace the batteries. Overload This indicates that the scale’s load sensor(s) have been overloaded. Reduce the loading and retry. Counting Error 1. The signal from the load cells is too high. -
Page 12: Manufacturer's Declaration Of Conformity
Manufacturer’s Declaration of Conformity This product has been manufactured in accordance with the harmonized European standards, following the provisions of the below stated directives. 93/42/EEC as amended by 2007/47/EC Medical Device Directive 2014/31/EU Non-automatic Weighing Instruments Directive Please see separate document showing on sticker of device for above CE marking. Authorized EU Representative: Manufactured by: Charder Electronic Co., Ltd. - Page 13 Notes Page 13...
- Page 14 Notes Page 14...
-
Page 15: Manufacturer's Declaration Of Conformity (Mdd Directive)
Page 15... - Page 16 Fax: 01709 364293 E-mail: sales@marsdengroup.co.uk Manufacturing and Distribution: Unit 7, Centurion Business Park, Coggin Mill Way, Rotherham, S60 1FB Head Office: Unit 1, Genesis Business Park, Sheffield Road, Rotherham S60 1DX www.marsden-weighing.co.uk IN-8417 80001H REV 10/2017 IN-1454 80001H REV 10/2017...
