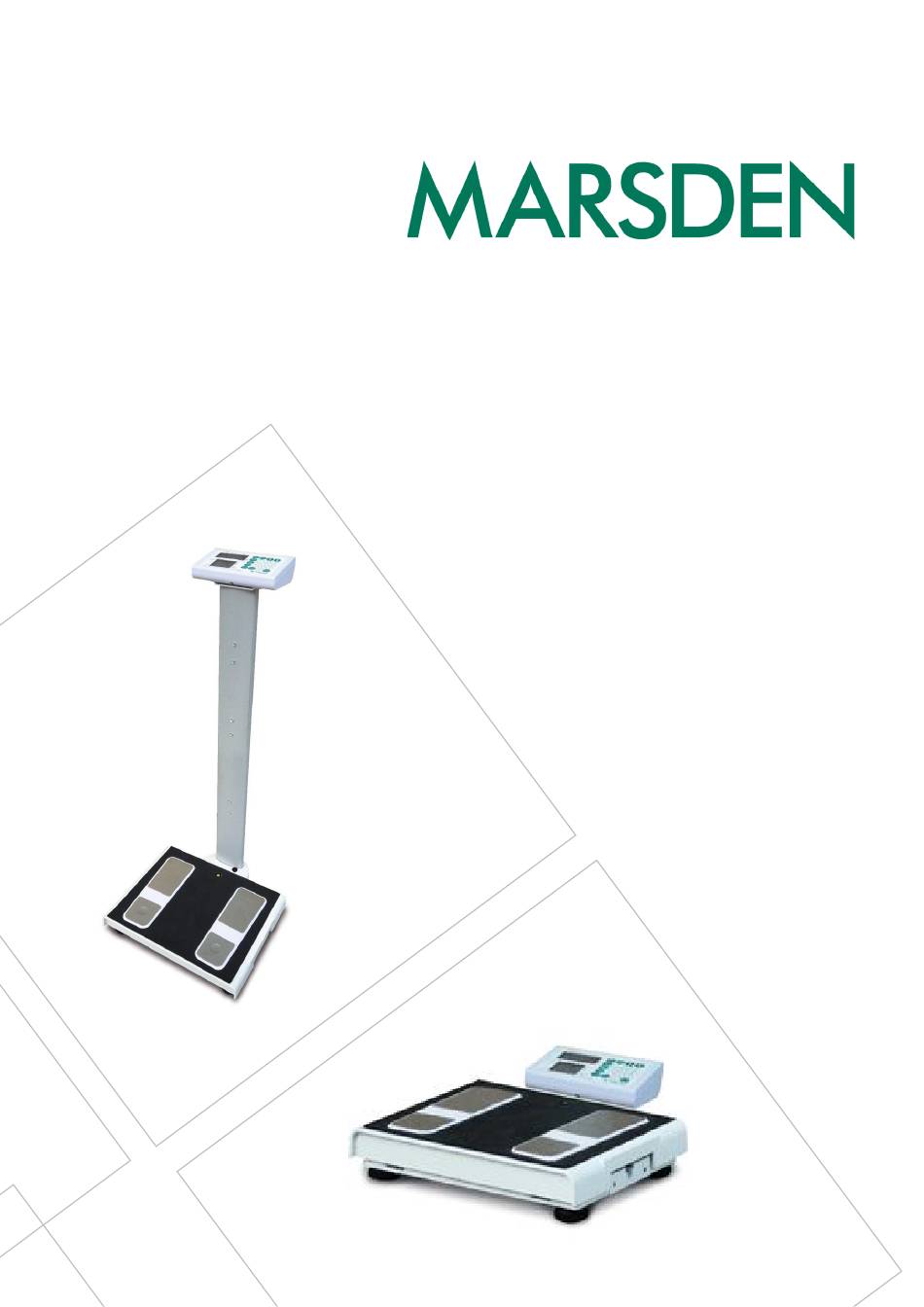

- Page 1 USER MANUAL MBF-6000 MBF-6010 Please take time to read these instructions before starting to use the scale Version 1.3 10/20 Please keep this instruction manual to hand for future reference...
-
Page 2: Table Of Contents
Contents Product Specification Safety Instructions Maintenance &Cleaning Graphic Symbols Model Structure: MBF-6000 Model Structure: MBF-6010 Product Assembly (MBF-6010 only) Before Operation Setting Date & Time Operation Instructions Assembly Instructions: HM-201D Replacing the Battery Print-out Readings Explained Body Impedance Measurement Methods... - Page 3 Thank you for purchasing a Marsden professional medical scale. This is a precision Class III Weighing Instrument and considerate use will result in many years of accurate weighing. The scale has a maximum load capacity of 300kg which must not be exceeded.
-
Page 4: Safety Instructions
The device is designed to detect when a stable weight is achieved. The indicator will beep twice to indicate a stable weight value, at which point your reading can be taken. Marsden/the manufacturer shall not be liable for damages arising from failure to heed the following instructions: •... - Page 5 Page 4 Maintenance The scale does not require any routine maintenance. However, we recommend checking the scale’s accuracy at regular intervals. If any inaccuracies occur, please contact Marsden, your local dealer or service partner. Cleaning • We recommend using alcohol-based wipes or similar when cleaning the scale.Do not wipe the platform with strong chemicals.
-
Page 6: Graphic Symbols
“Type BF applied part” Dispose of old appliances separately from your household waste. This product must be disposed of at a communal collection point. Carefully read this operation manual before setup and commissioning, even if you are already familiar with Marsden products. - Page 7 Page 6 Product Structure: MBF-6000 A: Remote Display B: Digital LCD C: Control Panel D: Pads for feet E: Platform F: Adjustable feet G: Battery in holder...
- Page 8 Page 7 Product Structure: MBF-6010 A: Remote Display B: Digital LCD C: Control Panel D: Pads for feet E: Platform F: Adjustable feet G: Battery in holder...
-
Page 9: Product Assembly (Mbf-6010 Only)
Page 8 Product Assembly (MBF-6010 only) Please note: For safety and ease, recommend this scale is assembled by two people. 1. Position the column of the MBF- 6010 on top of the base, as shown in the graphic on the left, ensuring wires are neatly fed from the base through the inside of the column. -
Page 10: Before Operation
Page 9 Before Operation • Install rechargeable battery pack in the battery compartment of the indicator. Alternatively, plug the connector of the AC adaptor into the port on the indicator (shown below). • Attach the printer to the scale using its 9D connector. •... -
Page 11: Setting Date & Time
• The MBF-6010 will require some assembly. The column will need to be screwed to the base: location for screws is on the underside of the base. For assistance, call 01709 364296. Page 10 Setting the Date& Time... -
Page 12: Operation Instructions
1. Press ON/OFF to switch on the scale. 2. Press TIME, entering the Date/Time setting menu. Year of last date record will be displayed; the 1 digit will flash. 3. Change the flashing digit by using the numerical key on the control panel. - Page 13 1. Press ON/OFF. “0.0” will appear in the top LCD display. 2. Ensure the printer is connected to the back of the indicator. The printer can be switched on by pressing the I/O switch. 3. Press PRE-TARE. Input the weight of your clothes. A minus weight will be displayed in the top LCD display.
-
Page 14: Assembly Instructions: Hm-201D
Page 13 Assembly Instructions: HM-201D... -
Page 15: Replacing The Battery
The connection point between the scale’s indicator and HM-201D is illustrated below. Insert the HM-201D data cable into the socket of the indicator before use. Page 14 Replacing the Battery... - Page 16 1. Open the battery housing cover, and take out the battery housing. Reset the rechargeable battery. Make sure the rechargeable battery is properly placed. 2. Place the battery housing back making sure that the housing pin is connecting to the right point.
-
Page 17: Print-Out Readings Explained
It will thereby estimate your age in years. Health score: Health score is calculated out of 100 using height, age, weight and gender information - as well as impedance of limbs and trunk. For more information visit www.marsden-weighing.co.uk/blog. Page 16... -
Page 18: Body Impedance Measurement Methods
Body Impedance Measurement Methods In the conventional 4-electode method, current is supplied from the electrodes at the tips of the toes on both feet, with the voltage measured on the heel. This current flows from one lower limb through the lower abdomen and then into the other lower limb, and the bio electrical impedance (hereinafter, impedance,) thus measured is the impedance between the two feet. -
Page 19: Error Messages
Indicates that the signal such as a faulty loadcell or from the loadcell is too wiring. Please contact high. Marsden or your local service representative. Counting error (too low): This error is normally caused by a serious fault Indicates that the signal... -
Page 20: Rohs Compliance
ROHS Compliance EU Directive 2012/19/EU restricts the use of the six substances below in the manufacture of specified types of electrical equipment. The product does not contain any of the restricted substances in concentrations and ⚫ applications banned by the directive; and for components, the product is capable of being worked on at higher temperatures ⚫... - Page 21 Guidance and manufacturer’s declaration-electromagnetic emissions The MEDICAL SCALE MBF-6000/6010 is intended for use in the electromagnetic environment specified below. The customer or the user of the MEDICAL SCALE MBF-6000/6010 should assure that it is used in such an environment. Electromagnetic environment-...
- Page 22 Guidance and manufacturer’s declaration-electromagnetic immunity The MEDICAL SCALE MBF-6000/6010 is intended for use in the electromagnetic environment specified below. The customer or the user of the MEDICAL SCALE MBF-6000/6010 should assure that is used in such and environment. Compliance Electromagnetic environment-...
- Page 23 If the measured field strength in the location in which the MEDICAL SCALE MBF- 6000/6010 is used exceeds the applicable RF compliance level above, the MEDICAL SCALE MBF-6000/6010 should be observed to verify normal operation. If abnormal performance is observed, additional measures my be necessary, such as re-orienting or relocating the MEDICAL SCALE MBF-6000/6010.
- Page 24 Recommended separation distance between portable and mobile RF communications equipment and the MEDICAL SCALE The MEDICAL SCALE MBF-6000/6010 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the MEDICAL SCALE...
-
Page 25: Manufacturer's Declaration Of Conformity
Manufacturer’s Declaration of Conformity This product has been manufactured in accordance with the harmonized European standards, following the provisions of the below stated directives: 93/42/EEC as amended by 2007/47/EC Medical Device Directive 2014/31/EU Non-automatic Weighing Instruments Directive Please see separate document showing on sticker of device for above CE marking. Authorized EU Representative: DISTRIBUTOR：... - Page 29 Tel: 01709 364296 / 0800 169 2775 Fax: 01709 364293 E-mail: sales@marsdengroup.co.uk Manufacturing and Distribution: Unit 7, Centurion Business Park, Coggin Mill Way, Rotherham, S60 1FB Head Office: Unit 1, Genesis Business Park, Sheffield Road, Rotherham S60 1DX www.marsden-weighing.co.uk CD-IN-1193 [11069I] [CD-IN-1193]...
