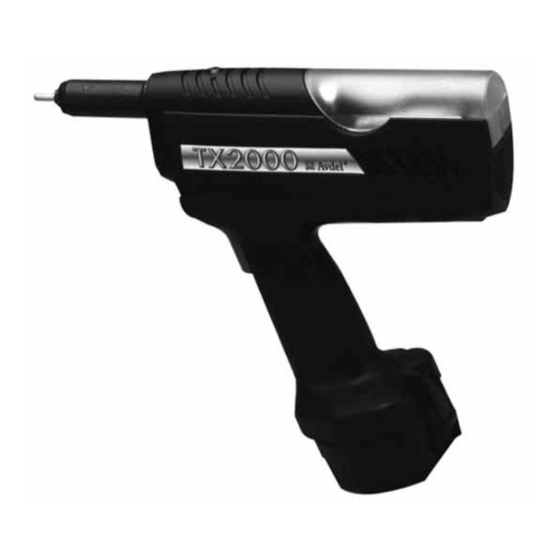

Avdel TX2000 Instruction Manual

Battery powered tool
Hide thumbs Also See for TX2000:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual, Instruction Manual

Instruction Manual

Battery Powered Tool

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TX2000 and is the answer not in the manual?

Questions and answers

Related Manuals for Avdel TX2000

Summary of Contents for Avdel TX2000

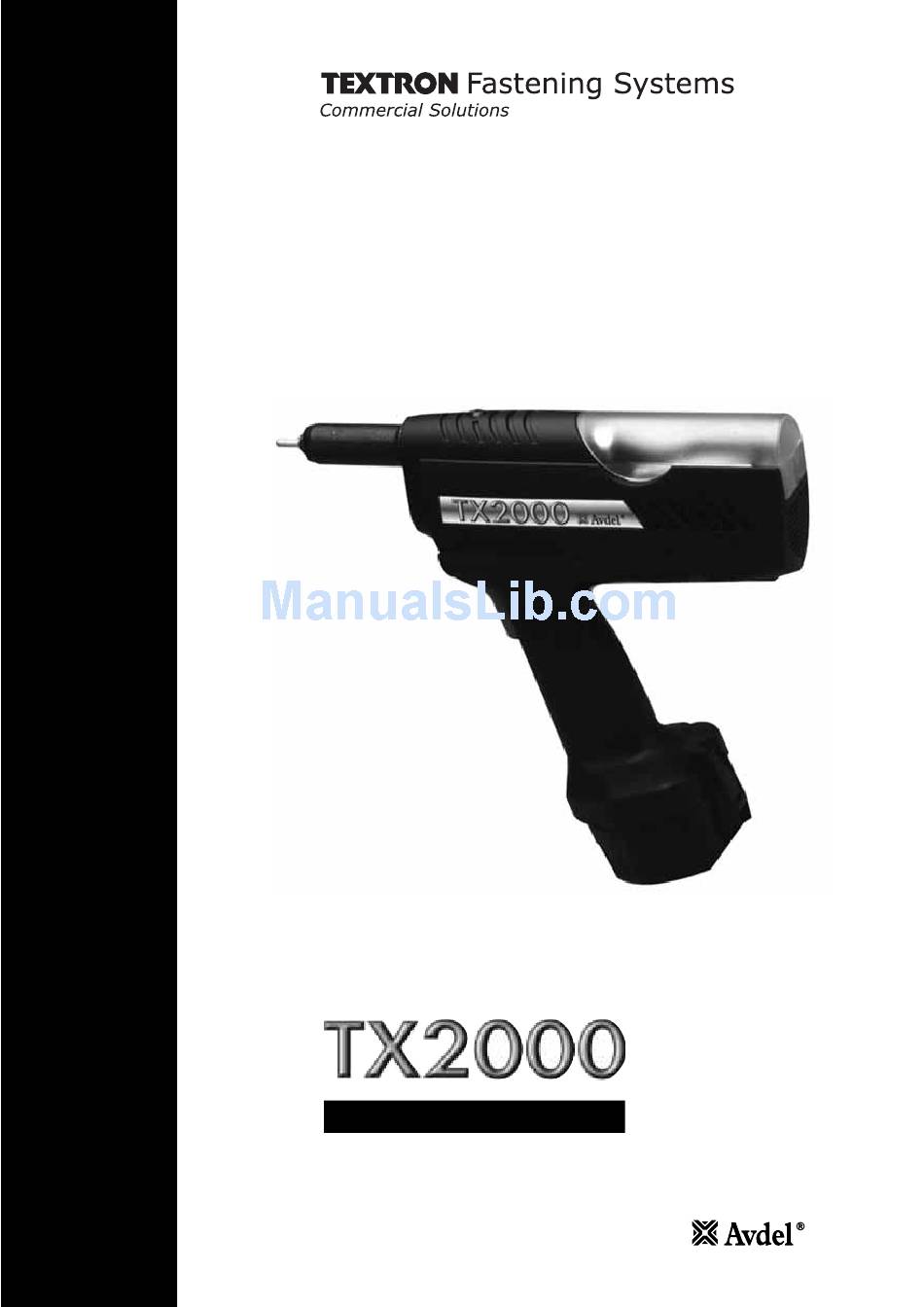

  • Page 1: Instruction Manual

    Instruction Manual Battery Powered Tool...

  • Page 2: Table Of Contents

    Contents C O N T E N T S Safety Rules Specifications Intent of Use Tool Capability & Nose Tips Fastener Placing Matrix & Nose Tips Before Starting Charging Procedure Battery Handling Nose Equipment Operating Procedure Changing Nose Equipment Servicing the Tool Daily/Weekly/Annually Parts List Priming Procedure...

  • Page 3: Safety Rules

    Safety Rules This instruction manual must be read with particular attention to the following safety rules, by any person installing, operating, or servicing this tool. Do not use outside the design intent. Do not use equipment with this tool other than that recommended and supplied by Textron Fastening Systems.

  • Page 4: Specifications

    Specifications T O O L S P E C I F I C A T I O N Stroke Minimum - Maximum 22.0 mm (0.866 in) Pull Force Minimum 11.0 kN (2444 lbf) Operating Voltage 12V DC Cycle time Approx. @ Full Stroke 2.0 seconds Noise Level 70 dB(A)

  • Page 5: Intent Of Use

    Steel / Stainless Steel 4.8mm ( ") Aluminium Please refer to the matrix on page 7 for a full list of the fastener materials and sizes the TX2000 will place along with the nose tip part numbers required to place them.

  • Page 6: Fastener Placing Matrix & Nose Tips

    Intent of Use ® The matrix below shows the range of Avdel breakstem fasteners the TX2000 will place along with the nose tip part numbers required. P L A C I N G M A T R I X Fastener Size...

  • Page 7: Before Starting

    C H A R G I N G P R O C E D U R E A P - H B W / t u 1 2 0 3 • The charger must only be used with Avdel ® batteries.

  • Page 8: Battery Handling

    To achieve the maximum number of cycles from a battery use directly after charging. B A T T E R Y H A N D L I N G & D I S P O S A L • Batteries must only be charged using the Avdel ® charger supplied.

  • Page 9: Nose Equipment

    Before Starting N O S E E Q U I P M E N T • A complete tool includes the nose assembly kit 71210-15100 with the following three nose tips as standard: 71210-05002, 71210-16070 and 07381-04701 (Please refer to page 7 for details of the range of fasteners they will place).

  • Page 10: Operating Procedure

    Operating Procedure O P E R A T I N G P R O C E D U R E • Connect the charged battery to the tool. • Insert the fastener stem into the nose of the tool. If using a standard nose tip the fastener must be held manually until placed into the application.

  • Page 11: Changing Nose Equipment

    Changing Nose Equipment C H A N G I N G N O S E E Q U I P M E N T IMPORTANT: The battery must be disconnected when fitting or removing the nose assemblies. Item numbers in bold refer to nose assembly components illustrated below. •...

  • Page 12: Servicing The Tool

    Servicing the Tool IMPORTANT: The employer is responsible for ensuring that tool maintenance instructions are given to the appropriate personnel. The operator should not be involved in maintenance or repair of the tool unless properly trained. The tool must be examined regularly for damage and malfunction. The following service checks should be performed: D A I LY •...

  • Page 13: Priming Procedure

    Priming Procedure P R I M I N G P R O C E D U R E Priming may be necessary after considerable use. Oil Details The recommended oil for priming is Hyspin AWS 15 available in 0.5 litre (part number 07992-00076) or one gallon containers (part number 07992-00077).
  • Page 14 Priming Diagram Priming Pump Position 1 Cylinder Bleed Point Position 2 Reservoir Inlet Point...

  • Page 15: Troubleshooting

    Troubleshooting S Y M P T O M P O S S I B L E C A U S E R E M E D Y PA G E R E F. More than one Low battery charge Charge or if necessary replace battery operation of the Worn or broken jaws Fit new jaws...

  • Page 16: Safety Data Grease And Oil

    Safety Data (Grease and Oil) M O LY - L I T H I U M G R E A S E E P 3 7 5 3 H Y S P I N A W S 1 5 O I L S A F E T Y D A T A S A F E T Y D A T A First Aid First Aid...
  • Page 17 Notes...
  • Page 18 D e c l a r a t i o n o f C o n f o r m i t y We, Textron Fastening Systems Limited, Mundells, Welwyn Garden City, Herts, AL7 1EZ declare under our sole responsibility that the product: Model TX2000 Serial No..........
  • Page 19 Fax: +39 02 242 4956 Hertfordshire AL7 1EZ CANADA JAPAN Tel: +44 1707 668668 Avdel Division of Textron Canada Ltd Avdel Kabushiki Kaisha Fax: +44 1707 338828 87 Disco Road 7F, New Erimo Building, Rexdale 2-2-1, Senba Nishi, Ontario M9W 1M3 Mino, Osaka 562-0036 Avdel Cherry Textron Inc.
