Summary of Contents for Atlona AT-SDI81

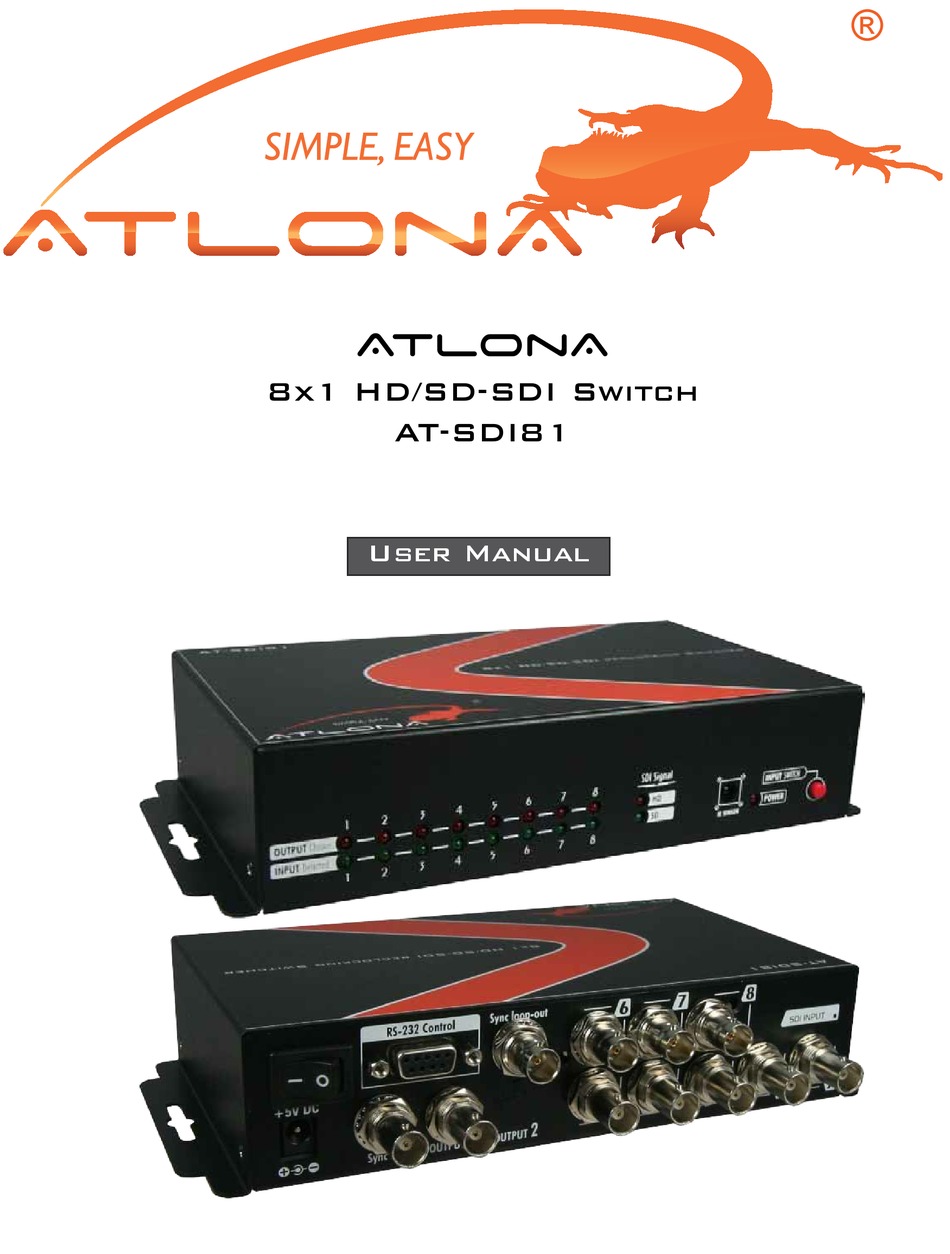

- Page 1 AtlonA 8x1 HD/SD-SDI Switch AT-SDI81 User Manual...
-
Page 2: Table Of Contents
3. Specifications & Package Contents ..........4. Panel Descriptions ..........4.1. Front Panel ..........4.2. Rear Panel ..........5. RS232 Commands ..........6. IR Remote Control ..........7. Hardware Installation ..........8. Safety Information ..........9. Warranty ..........10. Atlona Product Registration .......... -
Page 3: Introduction
Through RS-232, IR remote, or front panel push button, the control of the SDI switch becomes versatile and easier. AT-SDI81 offers the most convenient and cost effective means for swift switch and duplication of high quality SDI in the market. -
Page 4: Specifications & Package Contents
Power consumption 10 Watts [max] Operation temperature 0~40°C [32~104°F] Storage temperature -20~60°C [-4~140°F] Relative humidity 20~90% RH [no condensation] Package Contents 1x AT-SDI81 / AT-SDI81 / AT-SDI81 / AT-SDI82M 1x IR remote controller 1x 5V power adapter 1x User Manual... -
Page 5: Panel Descriptions

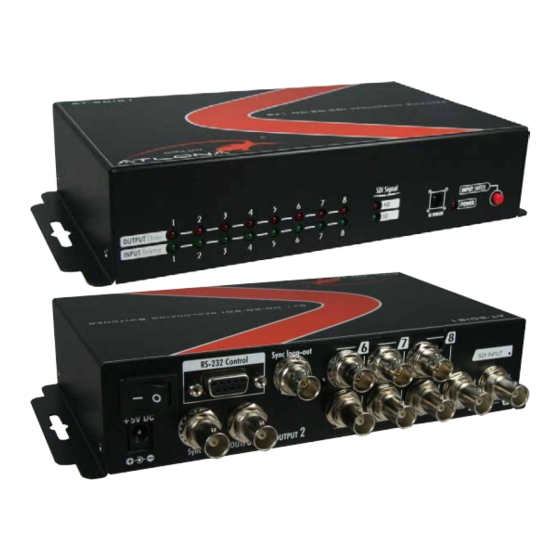

Panel Descriptions Front Panel 1. Chosen input channel LED 2. Input channel auto detection LED 3. Output HD/SD detection LED 4. IR remote receiver 5. Power indicator LED 6. Push button for input channel switch Rear Panel 10 11 7. Power switch 8. -
Page 6: Rs232 Commands
RS232 Commands READ OUTPUT CHANNEL Read and tell which output video signal is at input. Format: 0x08 Transmission data amount 0x4d Check code 0x41 Check code 0x90 Check code 0x55 Check code 0xff *Drive ID 0x01 Command ID 0x7b *Check sum Receive: 0xaa *Received data amount... - Page 7 READ DEVICE ID Read the device ID of the Switch. Format: 0x08 Transmission data amount 0x4d Check code 0x41 Check code 0x90 Check code 0x55 Check code 0xff *Drive ID 0x04 Command ID 0x7e *Check sum Receive: 0xaa 0x03 *Received data amount 0xXX *Drive ID : ID 1: 0x01 ID 2: 0x02 ID 3: 0x03 ID 4: 0x04 ID 5: 0x05 ID 6: 0x06 ~ ID 254: 0xfe...
- Page 8 READ CHECK CODE Read the device check code of the Switch. Format: 0x05 Transmission data amount 0x4d Check code 0x4f Check code 0x44 Check code 0xe4 *Check sum Receive: 0xaa 0x06 Transmission data amount 0x4d Check code 0x41 Check code 0x90 Check code 0x55...
-
Page 9: Ir Remote Control
Hardware Installation 1. Connect SDI enable equipments to the output of AT-SDI81. 2. Connect the SDI input sources to the inputs of AT-SDI81. 3. Plug power adapter cable into 5V DC power jack. 4. Use IR remote, RS-232, or front panel push button to switch between input channels. -
Page 10: Safety Information
Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features. -
Page 11: Warranty
Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication. -
Page 12: Atlona Product Registration
At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited warranty rights. To register go to www.atlona.com/registration...
