Note: The secondary hard disk drive is only available in some models.
Installing the secondary hard disk drive
Attention: Do not open your computer or attempt any repair before reading and understanding the Chapter
1 "Safety information" on page 1.
To install the secondary hard disk drive, do the following:
1. Remove all media from the drives and turn off all attached devices and the computer. Then, disconnect
all power cords from electrical outlets and disconnect all cables that are connected to the computer.
2. Remove the computer cover. See "Removing the computer cover" on page 159.
3. Remove the front bezel. See "Removing and reinstalling the front bezel" on page 160
4. Press the retaining clip
same time.

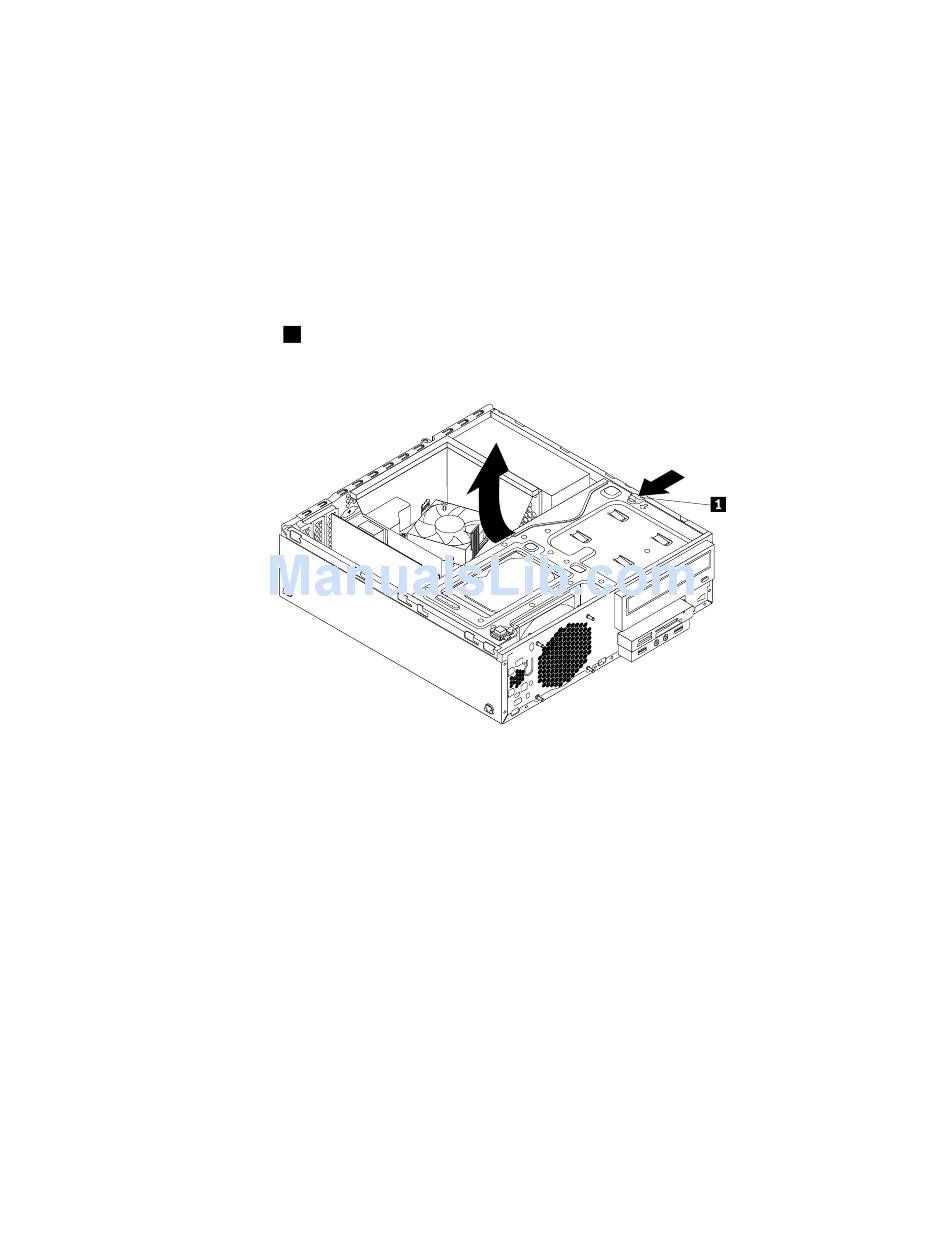

Figure 171. Pivoting the drive bay assembly upward
Chapter 9
1
in the direction as shown and pivot the drive bay assembly upward at the
.
Replacing FRUs (machine types: 10A2, 10A3, 10A8, 10A9, 10AH, 10AJ, 10AM, and 10AN)
205
