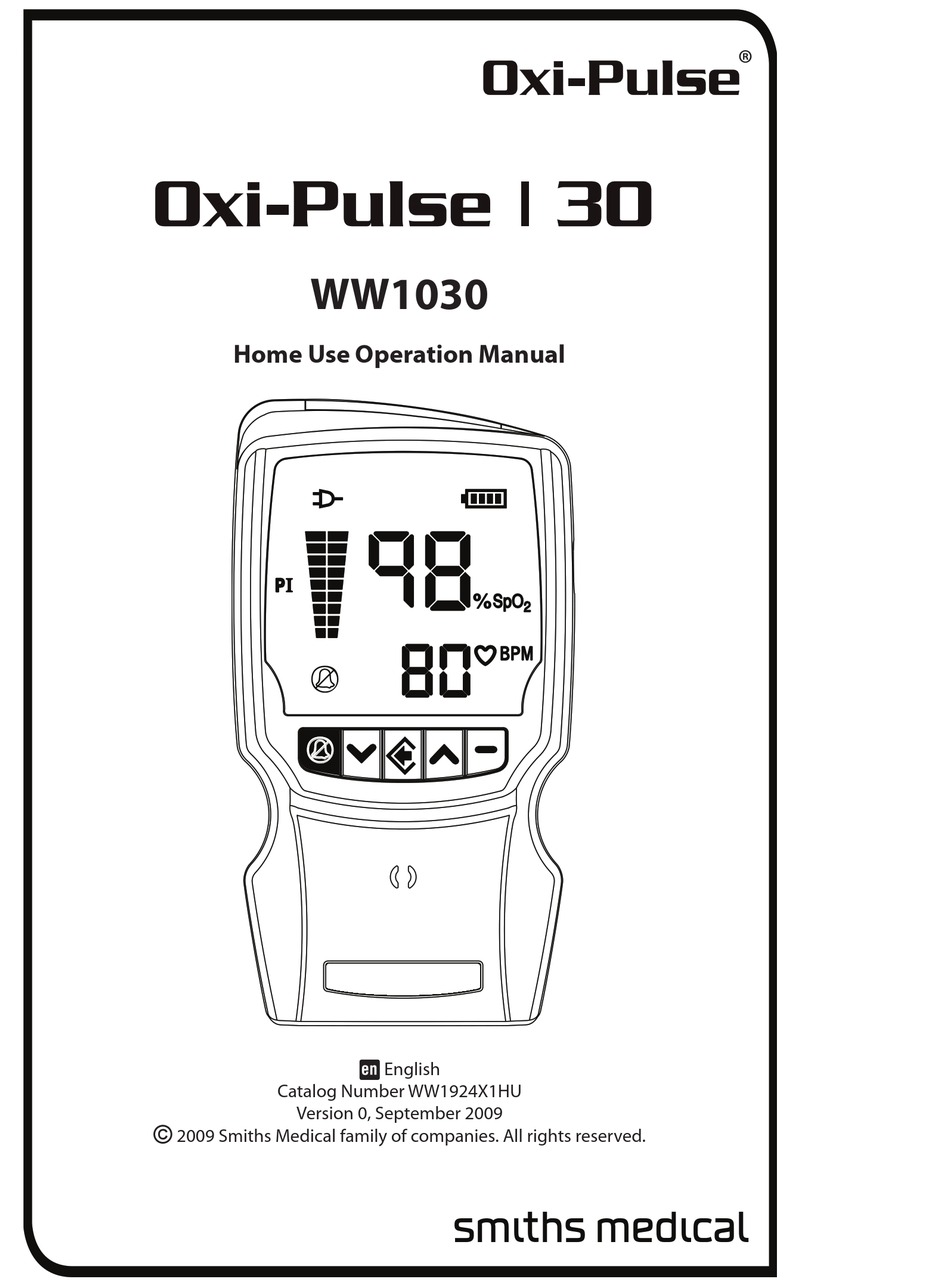

- Page 1 ® WW1030 Home Use Operation Manual - English Catalog Number WW1924X1HU Version 0, September 2009 © 2009 Smiths Medical family of companies. All rights reserved.
-
Page 3: Table Of Contents
Table of Contents Table of Contents Chapter 1: Introduction ................... 1-1 About the Manual ..............................1-1 Definitions of Words, Phrases and Symbols ....................1-1 Warnings ..................................1-3 Cautions ..................................1-8 Notes ................................... 1-9 Chapter 2: Intended Use and Monitor Features ..........2-1 Intended Use ................................ - Page 4 Table of Contents Chapter 6: Alarms ..................... 6-1 Alarm Priorities ................................ 6-1 Silencing Alarm Tones ............................6-2 High Priority Alarms............................... 6-3 Medium Priority Alarm ............................6-4 Low Battery ..............................6-4 Low Priority Alarms ..............................6-5 Alarm Summary ..............................6-5 Chapter 7: Optional Docking Station and Printer .......... 7-1 Description ................................
- Page 5 Table of Contents The serial autocorrelation technology (SAC) in the monitor is covered by U.S. Patent No. 5,558,096. BCI, Comfort Clip, Oxi-Pulse, and the Smiths design mark are trademarks of the Smiths Medical ® family of companies. The symbol indicates the trademark is registered in the U.S. Patent and Trademark Office and certain other countries.
- Page 6 Table of Contents This page is intentionally left blank. Home Use Operation Manual...
-
Page 7: Chapter 1: Introduction
Chapter 1: Introduction Chapter 1: Introduction About the Manual The Home-Use Instruction Book provides operation and maintenance instructions for the in home caregiver. The caregiver is assumed to be trained in oximeter use by a doctor or other health- care professional. The Home-Use Instruction Book supplements, and does not replace, training provided by a health-care professional in oximeter use. - Page 8 Chapter 1: Introduction SyMbOl DeFInITIOn Battery Charge Indicator External Power Indicator Alarm SILENCE (Key and Indicator) On/Off Key Menu/Enter Key Exit Key Up and Down Arrow Keys Printer LED - Real Time Printout Printer LED - Numeric Trend Tables Printer LED - Graphic Trend Printer LED - Error Printer Key - Select Print Printer Key - Start / Stop Print...
-
Page 9: Warnings
If purchased before that date, they may also be sent for recycling if being Collect Separately replaced on a one-for-one, like-for-like basis (this varies depending on the country). Recycling instructions to customers using Smiths Medical products are published on the internet at: http://www.smiths-medical.com/recycle... - Page 10 Chapter 1: Introduction WARnInG! Do not use this device in the presence of magnetic resonance imaging (MR or MRI) equipment. WARnInG! Operation of this device may be adversely affected in the presence of conducted transients or strong electromagnetic (eM) or radiofrequency (RF) sources, such as portable and mobile RF communication equipment, electrosurgery and electrocautery equipment, x-rays, and high intensity infrared radiation.
- Page 11 Chapter 1: Introduction WARnInG! Measurements made at sites with low perfusion are potentially inaccurate. Always use measurements in conjunction with other clinical signs and symptoms. WARnInG! SpO measurements may be adversely affected in the presence of high ambient light. Shield the sensor area (with a surgical towel, for example) if necessary. WARnInG! Dyes introduced into the bloodstream, such as methylene blue, indocyanine green, indigo carmine, fluorescein, and patent blue V (PbV) may adversely affect the accuracy of the SpO...
- Page 12 Chapter 1: Introduction WARnInG! IeC 60950 approved equipment must be placed outside the “patient environment.” The patient environment is defined as an area 1.5 m (4.92 feet) from the patient. Figure 1-1: Patient Environment WARnInG! The oximeter will not operate without batteries installed. Properly charged batteries provide a reserve source of power in case of external power failure.
- Page 13 The monitor’s AC rating is shown on the external power supply. If the rating is not correct, do not use the monitor. Contact the Smiths Medical PM, Inc. service department, or your authorized service representative, for help.
-
Page 14: Cautions
Chapter 1: Introduction Cautions CAUTIOn! Federal (U.S.A.) law restricts this device to sale by or on the order of a physician. CAUTIOn! Do not disassemble unit, not user serviceable. Refer to qualified service personnel. CAUTIOn! Failure to charge the monitor while the monitor is in long term storage may shorten the battery life. -
Page 15: Notes
Chapter 1: Introduction notes nOTe! The WW1090 rechargeable battery pack utilizes circuitry that optimizes the charging of the batteries. new packs will require multiple charge / discharge learning cycles before optimum performance is obtained. nOTe! “SpO averaging” means the number of pulse beats over which the SpO value is averaged;... - Page 16 Chapter 1: Introduction This page is intentionally left blank. 1-10 Home Use Operation Manual...
-
Page 17: Chapter 2: Intended Use And Monitor Features
Chapter 2: Intended Use and Monitor Features Chapter 2: Intended Use and Monitor Features Intended Use The WW1030 pulse oximeter is intended to be used for continuous monitoring of a patient’s functional oxygen saturation (%SpO ), pulse rate ( ), pulse signal strength, and Pulse amplitude Index (PI) readings. - Page 18 Chapter 2: Intended Use and Monitor Features This page is intentionally left blank. Home Use Operation Manual...
-
Page 19: Chapter 3: Getting Started
Chapter 3: Getting Started Chapter 3: Getting Started Unpacking the Monitor The following items are shipped with the WW1030 oximeter: • Three (3) sensor cradles (WW1080) • Sensor extension cable (3311) • Oximetry Sensor • Four (4) “AA” (LR6) alkaline batteries •... -
Page 20: Home Use Caregiver - What You Should Know
Chapter 3: Getting Started Home Use Caregiver - What you Should know You (the home use caregiver) must be trained in CPR. Make sure the monitor’s alarm limits and other settings are properly adjusted. Confirm that the monitor is in the Home Mode. Follow the guide below and be sure you know how to do all of the following. -
Page 21: Home Use Mode
Chapter 3: Getting Started Home Use Mode WARnInG! This device is intended for use by persons trained in professional health care or those who have access to the oversight of a professional health care provider. The operator must be thoroughly familiar with the information in this manual before using the device. - Page 22 Chapter 3: Getting Started This page is intentionally left blank. Home Use Operation Manual...
-
Page 23: Chapter 4: Controls And Features

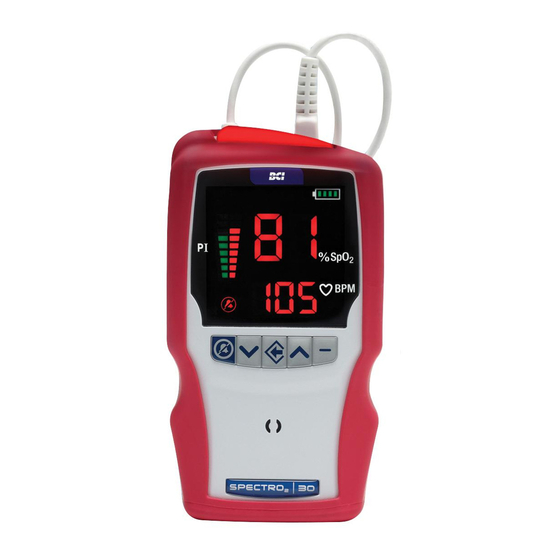

Chapter 4: Controls and Features Chapter 4: Controls and Features Monitor Front View Figure 4-1: Monitor Front View Display The display shows the measurements for SpO and Pulse Rate. It also shows a pulse signal strength indicator, a Pulse amplitude Index indicator and indicators for alarm silence, AC power and battery charge level. -
Page 24: Front Display
Chapter 4: Controls and Features Front Display Figure 4-2: Front Display Alarm Silence Indicator ( ) - amber This indicator lights during alarm silence. Pulse Amplitude Index bar Graph - green/yellow The Pulse amplitude Index bar graph is used to assist the operator in locating the oximetry sensor site with the best pulse signal strength. -
Page 25: Monitor Operating Keys
Chapter 4: Controls and Features Monitor Operating keys Figure 4-3: Monitor Operating Keys Alarm Silence Use this key to silence the alarms and to cancel the alarm silence. Menu / enter key Press this key to enter the menu system, and to advance to the next menu selection. Cancel / exit key Press this key to exit the menu system. -
Page 26: Monitor Back And Bottom Panels
Chapter 4: Controls and Features Monitor back and bottom Panels Figure 4-4: Monitor Back and Bottom Panels Sensor / RS232 Connector The sensor or an extension cable attaches here. With the sensor removed, trend data can be downloaded from this connector using an RS232 serial interface cable. Sensor Storage Slot ®... -
Page 27: Chapter 5: Operating Instructions
Chapter 5: Operating Instructions Chapter 5: Operating Instructions Powering the Oximeter The WW1030 oximeter will operate from battery power or from external power with battery back up. The optional WW1095 (30 Watt) AC power supply may be used to provide power to the oximeter. - Page 28 Chapter 5: Operating Instructions After connecting to power, verify that the External Power Indicator is lit. External Power Battery Charge Indicator Indicator Figure 5-1: External Power/Charge Indicators If an AC source is present, the oximeter will draw power from it first. While the oximeter is operating from an AC source, the External Power Indicator ( ) will illuminate.
-
Page 29: Installing The Batteries
Chapter 5: Operating Instructions Installing the batteries The oximeter uses four (4) standard “AA” alkaline, IEC Type LR6, cells (Figure 5-2A) or a custom rechargeable Lithium-Ion (Li+) battery pack (WW1090 - Figure 5-2B). WARnInG! Inspect battery terminals for corrosion or contamination. The monitor may not operate properly or could fail to alarm if battery terminals are corroded or contaminated. -
Page 30: External Power
WARnInG! Patient safety can be compromised by the use of a power supply not supplied by Smiths Medical PM, Inc. Use only the power supply included with your monitor, or one approved by Smiths Medical PM, Inc. WARnInG! ensure the device’s AC rating is correct for the AC voltage at your installation site before using this monitor. -
Page 31: Ac Power
Chapter 5: Operating Instructions AC Power The AC power supply can plug into the oximeter (Figure 5-3) or into the WW1089 USB interface cable (Figure 5-4). Power Input Connector AC Power Supply Figure 5-3: AC Power Supply Connect AC Power Here Power Input Connector AC Power Supply... -
Page 32: Usb Power (Universal Serial Bus)
Chapter 5: Operating Instructions USb Power (Universal Serial bus) AC Power Supply (Optional) Connect AC Power Power Input Here (Optional) Connector USB Interface Cable to PC Connect USB USB Interface Cable to Monitor Cable Figure 5-5: USB Power to Oximeter The WW1030 oximeter may be powered from an external USB source such as a laptop computer or powered USB hub. -
Page 33: Turning On The Monitor
Chapter 5: Operating Instructions Turning On the Monitor Press this key to turn the monitor on and off. Figure 5-6: Turning On the Monitor To turn on the monitor, press the key. Before using the monitor, check the following at power •... -
Page 34: Checking The Monitor's Performance
Pulse oximeters do not require user calibration. If checking the function of the device is desired, an Oximetry Patient Simulator (Smiths Medical PM, Inc. catalog number 1606) is available as an accessory. The simulator attaches to the oximeter in place of the sensor. It provides a known SpO and pulse rate signal to the oximeter. -
Page 35: Attaching The Sensor To The Patient
Chapter 5: Operating Instructions Attaching the Sensor to the Patient To attach the sensor to the patient: Choose the appropriate sensor. See sensor table for additional information. If using a reusable sensor, clean or disinfect the sensor per Cleaning or Disinfecting the Sensors section in this chapter. -
Page 36: Choosing The Sensor
Chapter 5: Operating Instructions Choosing the Sensor WARnInG! Use only SpO sensors and cables supplied with, or specifically intended for use with, this oximeter. Use of sensors not intended for use with this device may cause inaccurate readings. WARnInG! Incorrectly applied sensors may give inaccurate readings. Refer to the sensor insert for proper application instructions. -
Page 37: Cleaning Or Disinfecting The Sensors
Chapter 5: Operating Instructions Cleaning or Disinfecting the Sensors Clean or disinfect reusable sensors before attaching to a new patient. WARnInG! Unplug the sensor from the monitor before cleaning or disinfecting. WARnInG! Do not autoclave, ethylene oxide sterilize, or immerse the sensors in liquid. Clean the sensor with a soft cloth moistened in water or a mild soap solution. -
Page 38: Pulse Amplitude Index
Chapter 5: Operating Instructions Hold the connector rather than the cable when connecting or disconnecting the finger sensor to the device. Figure 5-7: Disconnecting or Connecting the Finger Sensor to the Device Do not use excessive force or unnecessary twisting when connecting, disconnecting, storing, or when using the sensor. -
Page 39: Storing The Sensor
Chapter 5: Operating Instructions When placing the sensor on the patient, allow the cable to lay across the top of the hand and parallel to the arm of the patient as shown in Figure 5-8. Figure 5-8: Positioning the Cable of the Finger Sensor Sensor (finger sensor shown for illustration only) Cable Storing the Sensor... -
Page 40: Changing The Pulse Beep Volume
Chapter 5: Operating Instructions Changing the Pulse beep Volume A “beep” tone sounds with each pulse beat. The volume of the “beep” can be adjusted to fifteen (15) settings and off. This setting is retained at power down/power up. To adjust the volume to the “off” setting, press and hold the down arrow ( ). -
Page 41: Chapter 6: Alarms
Chapter 6: Alarms Chapter 6: Alarms The WW1030 is intended for continuous patient monitoring and is equipped with audible and visual alarm indicators. WARnInG! It is the operator’s responsibility to set alarm limits appropriately for each individual patient. WARnInG! Always verify that the alarm volume is appropriate for the environment in which the monitor is being used. -
Page 42: Silencing Alarm Tones
Chapter 6: Alarms Silencing Alarm Tones Alarm Silence Indicator Alarm Silence Key Figure 6-1: Silencing Alarm Tones The audible tones can be paused (silenced) for two minutes. To silence the alarm tones, momentarily press the Alarm Silence button ( ). The Alarm Silence indicator ( ) lights during the two-minute pause: solid for the first minute and 45 seconds, flashing for the final 15 seconds. -
Page 43: High Priority Alarms
Chapter 6: Alarms High Priority Alarms A high priority alarm warns of an abnormal patient condition. A high priority alarm is activated when: • The patient’s SpO reading matches or exceeds the SpO alarm range. • The patient’s pulse rate reading matches or exceeds the pulse rate alarm range. •... -
Page 44: Medium Priority Alarm
Chapter 6: Alarms Medium Priority Alarm A medium priority alarm warns of a low battery signal or Internal Communication Error. A medium priority alarm is activated when: • There is less than about 30 minutes of battery life remaining in the monitor’s battery. •... -
Page 45: Low Priority Alarms
Chapter 6: Alarms low Priority Alarms A low priority alarm warns of an abnormal monitor condition. WARnInG! During a low priority alarm the monitor cannot measure the patient’s SpO or pulse rate. you must immediately check the patient’s condition. After the patient’s condition has been checked, you must correct the low priority alarm. - Page 46 Chapter 6: Alarms This page is intentionally left blank. Home Use Operation Manual...
-
Page 47: Chapter 7: Optional Docking Station And Printer
Chapter 7: Optional Docking Station and Printer Chapter 7: Optional Docking Station and Printer Description Figure 7-1: Docking Station with Printer Attached The WW1025 Docking Station serves many purposes depending on individual needs and selection of optional equipment. The Docking Station is powered by the WW1095 AC Power Supply, which can power the oximeter and operate the printer while charging the internal and spare battery packs. -
Page 48: Docking Station
Chapter 7: Optional Docking Station and Printer Docking Station Figure 7-2: Indicators on Docking Station Front Panel AC Power Indicator This indicator will light when AC power is connected to the Docking Station. USb Power Indicator This indicator will light when a USB cable is connected to the Docking Station, but AC power is not. -
Page 49: Ww1090 Lithium-Ion (Li+) Rechargeable Battery Pack
Chapter 7: Optional Docking Station and Printer nOTe: To slow charge the WW1090 lithium-Ion (li+) Rechargeable battery Pack, install the battery Pack in the oximeter and connect to USb power. Slow charging may take 20 hours or more. USb power cannot charge the spare li+ Rechargeable battery Pack in the Docking Station. -
Page 50: Printer
Chapter 7: Optional Docking Station and Printer Printer Figure 7-4: Printer Keys and Indicators Print Mode Indicators These indicators light according to what print mode is selected. See Choosing the Print Mode section later in this Chapter. The Print Mode Indicator will blink green when printing is pending or in progress. Start/Stop Print key Press this key to start or stop printing. -
Page 51: Attaching The Printer
Chapter 7: Optional Docking Station and Printer Attaching the Printer The optional WW1026 thermal printer attaches to the Docking Station with a single screw as shown in Figure 7-5C. Follow the steps below. WARnInG! The Docking Station must have a Printer or Printer Port Cover installed. Failure to do so may cause a risk of electrical shock to the patient or operator or risk damage to the equipment. -
Page 52: Loading Paper
Chapter 7: Optional Docking Station and Printer loading Paper The printer uses 58mm wide thermal paper. See Chapter 10: Optional Supplies & Accessories for part number and ordering information. To load the paper, follow the steps illustrated below. Release printer door by lifting clear cover. -
Page 53: Choosing The Print Mode
Chapter 7: Optional Docking Station and Printer Choosing the Print Mode Data can be printed in real time, numeric trend or graphic trend mode. In either trend mode, up to 45 days of previously stored data (depending on trend interval) collected from 1 to 99 patients can be printed. -
Page 54: Trend Data Condition Flags
Chapter 7: Optional Docking Station and Printer Mode - Graphic Trend Mode prints in a chart format. See figure 7-9. TREND DATA ID: 009______________________ Trend Time Scale=20 Sec/Point ...... Pulse Rate(bpm) ► ► ► ► ► ► ► ► ► ► SpO2(%) ▪... -
Page 55: Chapter 8: Maintenance
Chapter 8: Maintenance Chapter 8: Maintenance Smiths Medical PM, Inc. products have been designed to operate continuously. However, in order to ensure a continued high level of performance and safety of operation, routine maintenance must be performed daily. < The WW1030 Oximeter Service Manual ( WW1925) also contains the circuit diagrams, parts lists, and descriptions required for carrying out repairs. -
Page 56: Cleaning And Disinfecting
Chapter 8: Maintenance Cleaning and Disinfecting WARnInG! Do not autoclave, ethylene oxide sterilize, or immerse the monitor in liquid. Clean the surfaces of the monitor with a soft cloth moistened in water or a mild soap solution. If disinfecting is necessary, wipe the surfaces of the monitor with a 70% isopropyl alcohol solution. If there is contamination with blood borne pathogens or other potentially infectious materials, then the use of an approved disinfectant of appropriate spectrum for the suspected organisms is appropriate. -
Page 57: Chapter 9: Troubleshooting
If the alert is still on, contact the equipment provider or authorized service representative for help. Smiths Medical PM, Inc. Phone: (262) 542-3100 N7W22025 Johnson Drive Toll-Free: (800) 558-2345 (USA only) -
Page 58: Power
Chapter 9: Troubleshooting Power PRObleM POSSIble CAUSe CORReCTIVe ACTIOn The oximeter doesn’t Batteries weak and/ or no AC Replace or recharge the batteries. turn on. power. Connect to source of AC power. Batteries not installed or batteries Ensure the batteries are installed incorrectly installed. -
Page 59: Sensor
Chapter 9: Troubleshooting PRObleM POSSIble CAUSe CORReCTIVe ACTIOn The monitor displays The battery is defective. Disconnect the AC power cord and then reconnect it. If the error when powered message persists, the battery is defective. Contact your authorized service representative. Battery run time is The Li-Ion rechargeable battery Contact your authorized service... -
Page 60: Printer And Data Communication
Chapter 9: Troubleshooting PRObleM POSSIble CAUSe CORReCTIVe ACTIOn Poor patient perfusion. Confirm signal level with PI and signal value is erratic, bar graphs. intermittent, or incorrect. Patient motion. Reposition the sensor on the patient. Patient must remain still to obtain an accurate measurement. -
Page 61: Other
Chapter 9: Troubleshooting Other PRObleM POSSIble CAUSe CORReCTIVe ACTIOn Cannot change alarm limits This is proper operation. Monitor is in Home “ ” mode. after pushing the menu key. No sounds from monitor. Audio paused (silenced). Push silence key. Defective Speaker. Do not use to monitor patients. - Page 62 Chapter 9: Troubleshooting This page is intentionally left blank. Home Use Operation Manual...
-
Page 63: Chapter 10: Optional Supplies And Accessories
Chapter 10: Optional Supplies and Accessories Chapter 10: Optional Supplies and Accessories CAT. nO. DeSCRIPTIOn QTy. WW1018R each Protective glove - red WW1018Y each Protective glove - yellow WW1018G each Protective glove - green WW1018B each Protective glove - blue WW1025X1 each Docking Station... -
Page 64: Ordering Information
Chapter 10: Optional Supplies and Accessories Ordering Information For ordering information, contact your local distributor. 10-2 Home Use Operation Manual... - Page 66 Colonial Way, Watford, Hertfordshire, Fax: (44) 1923 240273 WD24 4LG, UK Australian Representative: Smiths Medical Australasia Pty. Ltd. Tel: +61 (0) 7 3340 1300 61 Brandl Street, Eight Mile Plains, QLD 4113, Australia MEDICAL EQUIPMENT WITH RESPECT TO ELECTRIC SHOCK, FIRE AND MECHANICAL HAZARDS ONLY Smiths Medical PM, Inc.
