Natural Gas
FPB-16RBSMT-N
FPB-19RBSMT-N
FPB-25RBSMT-N
FPB-29RBSMT-N
FPB-33RBSMT-N
FPB-20SBSMT-N
FPB-26SBSMT-N
FPB-32SBSMT-N
FPB-38SBSMT-N
Outdoor Match Throw (MT) Fire Pits
Installation and Operating Instructions
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE
This fire pit requires a minimum 18-square inches (per side) of cross ventilation.
Failure to provide proper ventilation can void the warranty.
Warning: For Outdoor Use Only
PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE
MH# 60069
MODELS
Description
16" Round Stainless pan & Spur Kit
19" Round Stainless Pan & Spur Kit
25" Round Stainless Pan & Spur Kit
29" Round Stainless Pan & Spur Kit
33" Round Stainless Pan & Spur Kit
20" Square Stainless Pan & Spur Kit
26" Square Stainless Pan & Spur Kit
32" Square Stainless Pan & Spur Kit
38" Square Stainless Pan & Spur Kit
INSTALLATION PRECAUTION:
Propane
FPB-16RBSMT-P
FPB-19RBSMT-P
FPB-25RBSMT-P
FPB-29RBSMT-P
FPB-33RBSMT-P
FPB-20SBSMT-P
FPB-26SBSMT-P
FPB-32SBSMT-P
FPB-38SBSMT-P
Advertisement
Table of Contents
Related Manuals for Firegear FPB-16RBSMT-N
Summary of Contents for Firegear FPB-16RBSMT-N

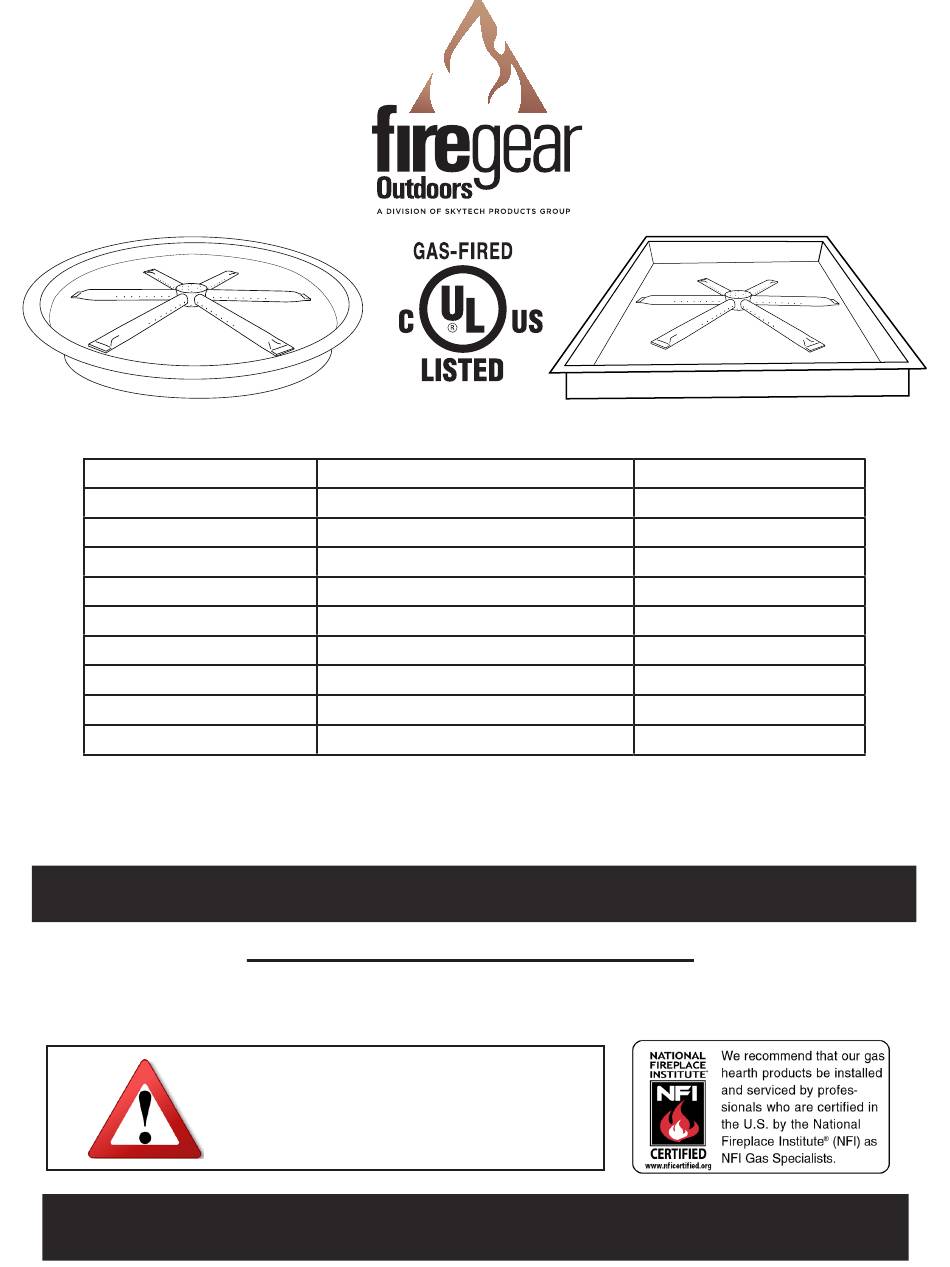

- Page 1 MH# 60069 MODELS Natural Gas Description Propane FPB-16RBSMT-N FPB-16RBSMT-P 16” Round Stainless pan & Spur Kit FPB-19RBSMT-N FPB-19RBSMT-P 19” Round Stainless Pan & Spur Kit FPB-25RBSMT-N FPB-25RBSMT-P 25” Round Stainless Pan & Spur Kit FPB-29RBSMT-N FPB-29RBSMT-P 29” Round Stainless Pan & Spur Kit...
- Page 2 CARBON MONOXIDE HAZARD DANGER This appliance can produce carbon monoxide which has no odor. Using it in an enclosed area can kill you. Never use this appliance in an enclosed space such as a camper, tent, car or home. WARNING DANGER If you smell gas: Do not store or use gasoline or other...
-
Page 3: Table Of Contents
CALIFORNIA PROPOSITION 65 WARNING This product is designed to operate with one of the following fuel sources: Liquid Propane or Natural Gas. The fuel used to operate this product, and the products of combustion of such fuel, can expose you to chemicals including Benzene which is known to the State of California to cause cancer, birth defects and other reproductive harm and Carbon Monoxide which is known to the State of California to cause birth defects or other reproductive harm. -
Page 4: Specifications
SPECIFICATIONS Model: Model: Natural Gas (NG) Propane Gas (LP) Min./Max. Inside Ground Side Combustible Combustible Depth Install Opening Level Wall Ceiling Floor FPB-16RBSMT-N FPB-16RBSMT-P ½” ¼ ½ ⅞ 8” 14” 57” ½ ”- 17 ” ” ” FPB-19RBSMT-N FPB-19RBSMT-P ¾... -
Page 5: Gas Pipe Sizing Chart
REFERENCE GAS PIPE SIZING CHART GAS PIPE SIZING NATURAL GAS : PIPE SIZING CHART Length of Pipe in Feet 1/2” 3/4” 1” 1 - 1/4” 1 - 1/2” 2” 2 - 2 1/2” 3” 4” • Natural Gas (NG) flow is given in 1237 2259 3640... -
Page 6: Preparation For Non-Combustible Structure
2- 1” x 9” Slots Per Side or snow, wind, heat or cold. A minimum of 18 square inches of 2- Firegear 6 x12 vents cross ventilation (2 sides) is required to keep the components in good working order. Use Fig 3 as guide to assist to incorporate proper ventilation. -
Page 7: Installation Into An Approved Enclosure
INSTALLATION OF FIRE PIT INTO AN APPROVED ENCLOSURE REQUIREMENTS 1. Only non-combustible materials should come in direct contact with any part of the fire pit. Underneath should be non-combustible or a flat level combustible surface according to the clearances specified in this manual. 2. -
Page 8: Typical Installation Drawings
Non-Combustible Spur Burner Fire Pit Enclousure Fire Pit Pan Key Valve E-Stop Gas Supply PUSH TO STOP TURN TO START HOURS Key valve and flexible gas line are supplied; E-Stop shut-off is not provided, but available in accessories page. Flex lines with flared fittings do not require Teflon tape or pipe compound. -
Page 9: Operation
OPERATION CAUTION: Children and adults should be alerted to the hazards on high surface temperatures and should stay away to avoid burns or clothing ignition. Young children should be carefully supervised when they are in the area of the appliance. WARNING: Do not use this appliance if any part has been under water. - Page 10 Expanded View of Match Throw (MT) Fire Pits Fire Pit Pan Spur Burner ” Washer Brass Nut OASNG# U3-8D-S (Fitting) Note: Use joint compound or T200-9898-46 gasses on all male NPT (Flex Connector) Ensure all connections are tight and check for gas leaks before and after assembly is complete.
-
Page 11: Replacement Parts
FPB ROUND & SQUARE MT REPLACEMENT PARTS Drawings are not proportioned. MT Burning Spur Fire Pits REV. 1-9-19 Page 11... - Page 12 FPB ROUND & SQUARE MT REPLACEMENT PARTS Qty. Item Description Part Number 16-inch Round Stainless Pan PAN-GV16RP2 19-inch Round Stainless Pan PAN-SS19R 25-inch Round Stainless Pan PAN-SS25R 29-inch Round Stainless Pan PAN-GV29RP2 33-inch Round Stainless Pan PAN-GV33RP2 20-inch Square Stainless Pan PAN-SS20S 26-inch Square Stainless Pan PAN-SS26S...
-
Page 13: Fire Pit Maintenance/ Trouble Shooting
FIRE PIT MAINTENANCE 1. The fire pit should be inspected and cleaned before initial use at least annually by a qualified field service person. 2. Any component that is found faulty must be replaced with an approved component. 3. Any tampering or modifying with the fire pit is dangerous and voids all warranties. 4. -
Page 14: Optional Accessories
Universal brackets to support fire pit when using paver blocks or other non- combustible enclosures. Model: FLEXFRAME-SS NOTE: See the Firegear Outdoors catalogue for a variety of fittings and flex connectors also available. (855) 498-8324 FOR TECHNICAL SERVICE, CALL: Firegear Outdoors... - Page 15 Lava Rock and Lava Stones are not covered by warranty For Commercial applications, the liability of Firegear Outdoors End User must provide a bill of sale, canceled check, or payment is limited to the express terms of this warranty. We expressly...
- Page 16 Having problems getting the fire pit to operate? Don’t leave the job site! We want to help! Call 855.498.8324 for Technical Support between the hours of 8:00AM to 5:00PM EST. Text photos to 260.255.5750 or e-mail photos to support@skytechpg.com. BEFORE YOU CALL WE WILL NEED THIS INFORMATION Model Number: ___________________________ Serial Number: ___________________________ How long is the gas line run? Nat Gas ____ LP Gas ____...
