AccuLine 40-6500 Instruction Manual

Manual-leveling rotary laser level
Hide thumbs Also See for 40-6500:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual
™

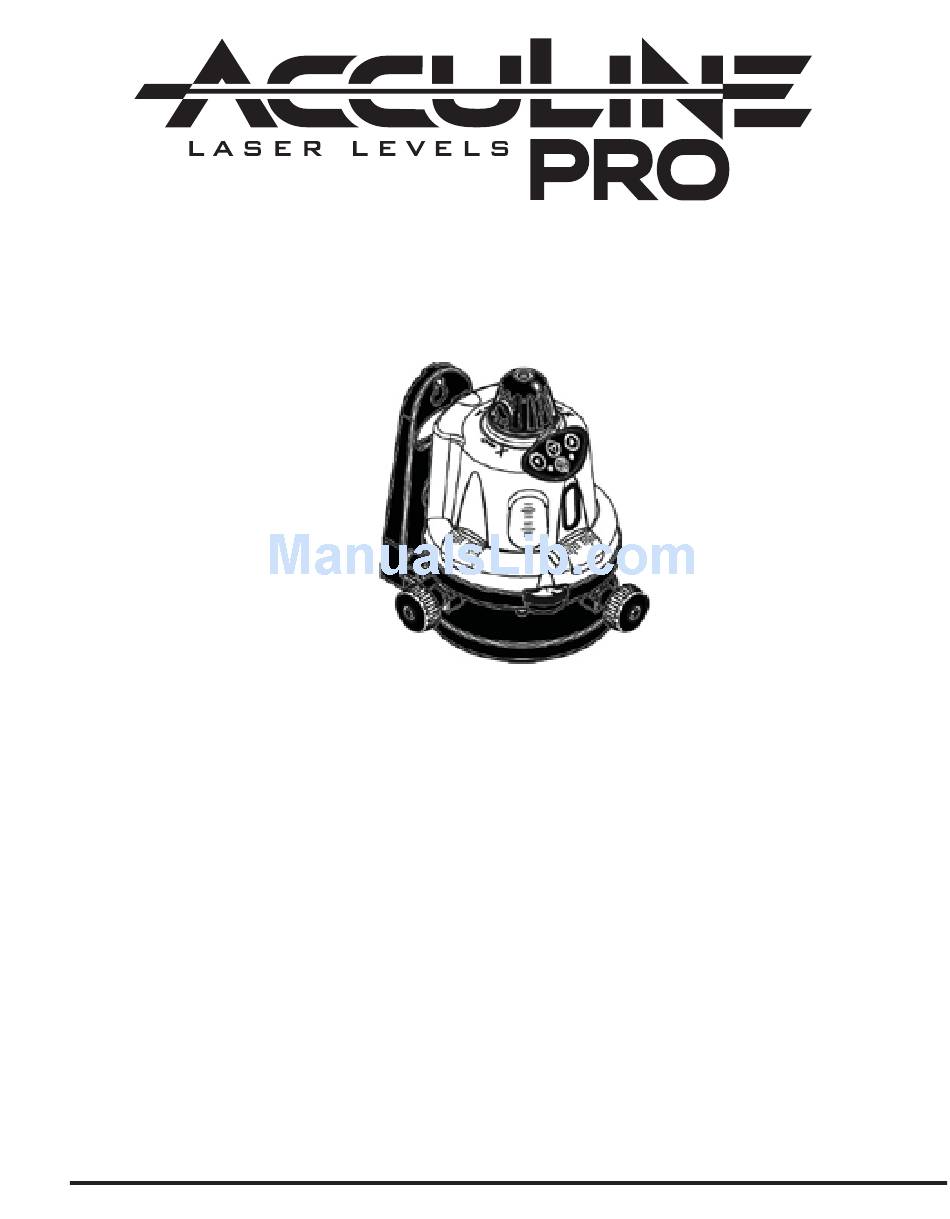

Manual-Leveling Rotary Laser Level
Model Nos. 40-6500, 40-6505 and 40-6510
Instruction Manual
Congratulations on your choice of this Manual-Leveling Rotary Laser
Level. We suggest you read this instruction manual thoroughly before
using the instrument. Save this instruction manual for future use.
This is a Class IIIa laser tool and is manufactured to comply
with CFR 21, parts 1040.10 and 1040.11 as well as international
safety rule IEC 285.
©2007 Johnson Level & Tool
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 40-6500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AccuLine 40-6500

Summary of Contents for AccuLine 40-6500

  • Page 1 ™ Manual-Leveling Rotary Laser Level Model Nos. 40-6500, 40-6505 and 40-6510 Instruction Manual Congratulations on your choice of this Manual-Leveling Rotary Laser Level. We suggest you read this instruction manual thoroughly before using the instrument. Save this instruction manual for future use.

  • Page 2: Table Of Contents

    12. Product Warranty 5. Location of Parts/Components 13. Product Registration 6. Operating Instructions 14. Accessories 7. Using the Product 1. Kit Contents For Model No. 40-6500 Description Qty. Manual-Leveling Rotary Laser Level “AA” Alkaline Batteries 6V Battery Adapter Tinted Glasses...

  • Page 3: Features And Functions

    For Model No. 40-6510 Description Qty. Manual-Leveling Rotary Laser Level “AA” Alkaline Batteries 6V Battery Adapter Multi-Functional Mount with Carrying Case Remote Control with 9 volt Battery Detector with 9 volt Battery and Clamp Tinted Glasses Magnetic Target Portable Elevating Tripod with Carrying Case Instruction Manual with Warranty Card Soft Sided Carrying Case 2.
  • Page 4 • Use only original AccuLine Pro ™ parts and accessories purchased from your AccuLine Pro authorized dealer. Use of non-AccuLine Pro parts and accessories will void warranty. WARNING! The tinted goggles are designed to enhance the visibility of the laser beam. They DO NOT offer protection to the eyes from direct exposure of the laser beam.

  • Page 5: Location/Content

    4. Location/Content of Warning Labels ©2007 Johnson Level & Tool...

  • Page 6: Location Of Parts/Components

    5. Location of Part/Components 90º Split Beam Output Aperture Rotating Laser Output Aperture Operating Panel Z-Level Vial (Vertical) X-Level Vial Vertical Laser Output Window X/Z-Leveling Y-Level Vial Knob Y-Leveling Slope Adjusting Knob Knob Battery Door Mounting Bracket 5/8" – 11 DC 6V Power Jack Thread ©2007 Johnson Level &...

  • Page 7: Operating Instructions

    6. Operating Instructions IMPORTANT: It is the responsibility of the user to verify the calibration of the instrument before each use. Battery Installation Note: Always check to be sure that the on/off switch is in the off position before removing and replacing batteries. 1.
  • Page 8 Level Vial Adjusting Method Y-Level X/Z-Leveling Knob Knob 5. Turn the instrument on and then start operation. 6. Turn off the unit after Rotating operations. Laser Line Note: Make sure that the Grade Adjusted by grade adjusting knob Grade Adjusting Screw points to 0 ©2007 Johnson Level &...
  • Page 9 Vertical Instruction 1. Put four “AA” alkaline batteries Z-Direction Rotating into the instrument or power Leveling Knob Laser Line the instrument by connecting DC 6V through power jack. 2. Put the instrument on platform or a 5/8" –11 tripod. 3. Adjust the leveling-knob to center the bubble of vial in Z axis.
  • Page 10 3. Turn the grade adjusting knob to tilt the level vial in the Y-direction to desired grade (0%~4%) (fig. 1). 4. Level the vial with the leveling knob (fig. 2). Figure 2 Figure 1 Slope 5. Start operation (fig. 3). Gradient (0-4%) Figure 3 Horizontal...

  • Page 11: Using The Product

    Turn the instrument to move the vertical laser to a different position Horizontal Laser Line Vertical Laser Line Figure 5 7. Using the Product Operating Panel 1. Power/Vertical Line Button 2. Scan Mode Button 3. Rotation Speed Down Key/Clockwise 4. Rotation Speed Up Key/Counter- clockwise 5.
  • Page 12 1st Press 2nd Press 3rd Press Power/Vertical Power Power Line On Press Again • Vertical Line On: With a second press of the power button, the vertical laser is also turned on. • Power Off: A third press of the power button, turns all of the lasers and power indicator lamps off.
  • Page 13 Up/Down Key • In high-speed rotation mode, pressing the key will increase the rotation speed. Pressing the key will decrease the rotation speed. Note: The instrument rotates in highest speed when it is initially powered on. • In scan mode, pressing the key shifts the scan counterclock- wise.
  • Page 14 Scan Button • Pushing the scan button once will change the laser from full rotation to a small scan. The scan mode indicator light will flash on the laser. • Pushing the scan mode button again will change the laser into its large range scan.
  • Page 15 (b) Display 1. Power symbol 2. Low battery symbol 3. Coarse/Fine detection symbol 4. Horn symbol 5. Detecting position symbol 3. Operation Guide (a) Installation of battery • Open the battery-box cap and connect the cords inside with the two polarities of the 9V battery. Note: Take the battery out if the instrument if not used for a long time.
  • Page 16 (c) Using the clamp holder 1. grade rod clamp bolt 2. detector connection screw • Attach the detector on the clamp holder by the detector connection screw. • Attach the grade rod clamp to the grade rod or other types of surveying rods by tightening the clamp bolt on the grade rod clamp holder.
  • Page 17 2. Fine detection 1. power symbol 2. fine detection symbol • Press coarse/fine detection button. The detector is now in fine detection. • Move the instrument up and down like the Figure 6 coarse detection procedure. (e) Horn • Press the horn button. The sound symbol is displayed and the horn is ready for the sound function.

  • Page 18: Self-Check

    • Avoid knocking the unit over or allowing it to fall on the ground. • Although the instrument is rain resistant, you should avoid submerging the unit in water or other liquids. If unit comes into contact with water or other liquids, wipe it dry immediately. •...
  • Page 19 2. Put the instrument in the vertical position on the tripod. 3. Face the instrument towards wall A, and adjust the leveling knob to center the bubble of Z-direction vial. Project laser beam and mark e2 for the laser point shown on wall A. 4.

  • Page 20: Technical Specifications

    3. Measure the distance between a1 and a2, and between b1 and b2. If the distance between a1 and a2 + b1 and b2 is greater than 1/8” at 50 ft.,the accuracy is beyond tolerance, reference section 12 of this document. 9.

  • Page 21: Application Demonstrations

    10. Application Demonstrations Ceiling installation Anti-static flooring installation Window installation Baseboard installation Hanging pictures Dormer installation ©2007 Johnson Level & Tool...

  • Page 22: Care And Handling

    Do not return this product to the store/retailer or place of purchase. Required repair/calibration must be done by an authorized AccuLine Pro™ service center or Johnson Level & Tool's limited warranty, if applicable, will be void and there will be NO WARRANTY. Contact our Customer Service Department to obtain a Return Material Authorization (RMA) number for return to an authorized service center.

  • Page 23: Product Registration

    NOTE: The user is responsible for the proper use and care of the product. It is the responsibility of the user to verify the calibration of the instrument before each use. For further assistance, or if you experience problems with this product that are not addressed in this instruction manual, please contact our Customer Service Department.

  • Page 24: Accessories

    14. Accessories AccuLine Pro™ accessories are available for purchase through authorized AccuLine Pro dealers. Use of non-AccuLine Pro accessories will void any applicable limited warranty and there will be NO WARRANTY. If you need any assistance in locating any accessories, please contact our Customer Service Department.
