Speaker Connection - Audio System X 100.2 Owner's Manual

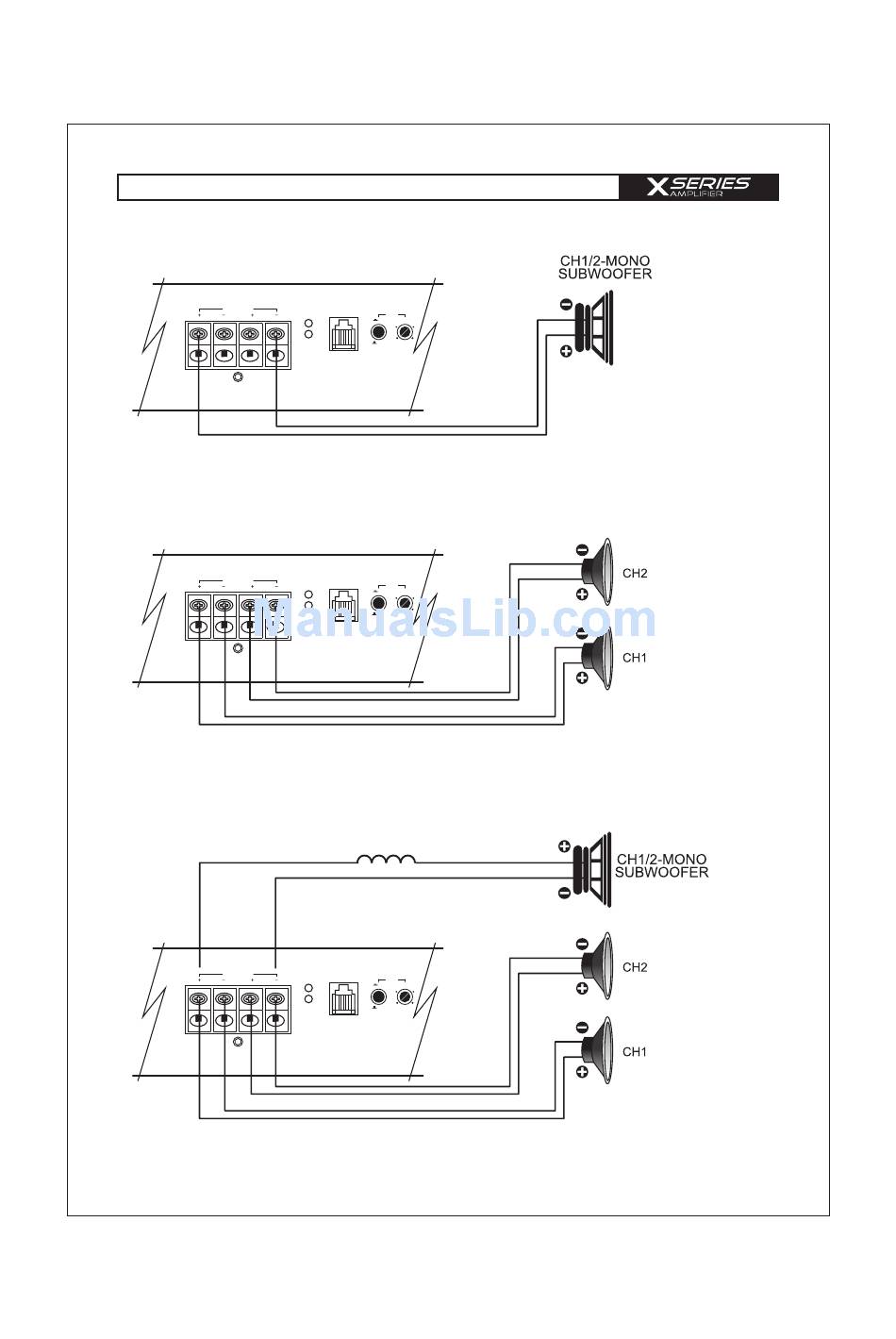

speaker connection

X X
100.2 / 75.6
1-Channel Bridged
+ BRIDGE -
CH1/L CH2/R
Protection
2-Channel Stereo
+ BRIDGE -
CH1/L CH2/R
Protection
Tri-Mode
+ BRIDGE -
CH1/L CH2/R
Protection
(channel 5 + 6)
REMOTE
Power LPF
ON HERTZ
90 225
OFF 50 300
REMOTE
Power LPF
ON HERTZ
90 225
OFF 50 300
coil
REMOTE
Power LPF
HERTZ
ON
90 225
OFF 50 300
-5-
Speaker
Impedance
4 ~ 8 ohm
Speaker
Impedance
2 ~ 8 ohm
Speaker
Impedance
4 ~ 8 ohm
