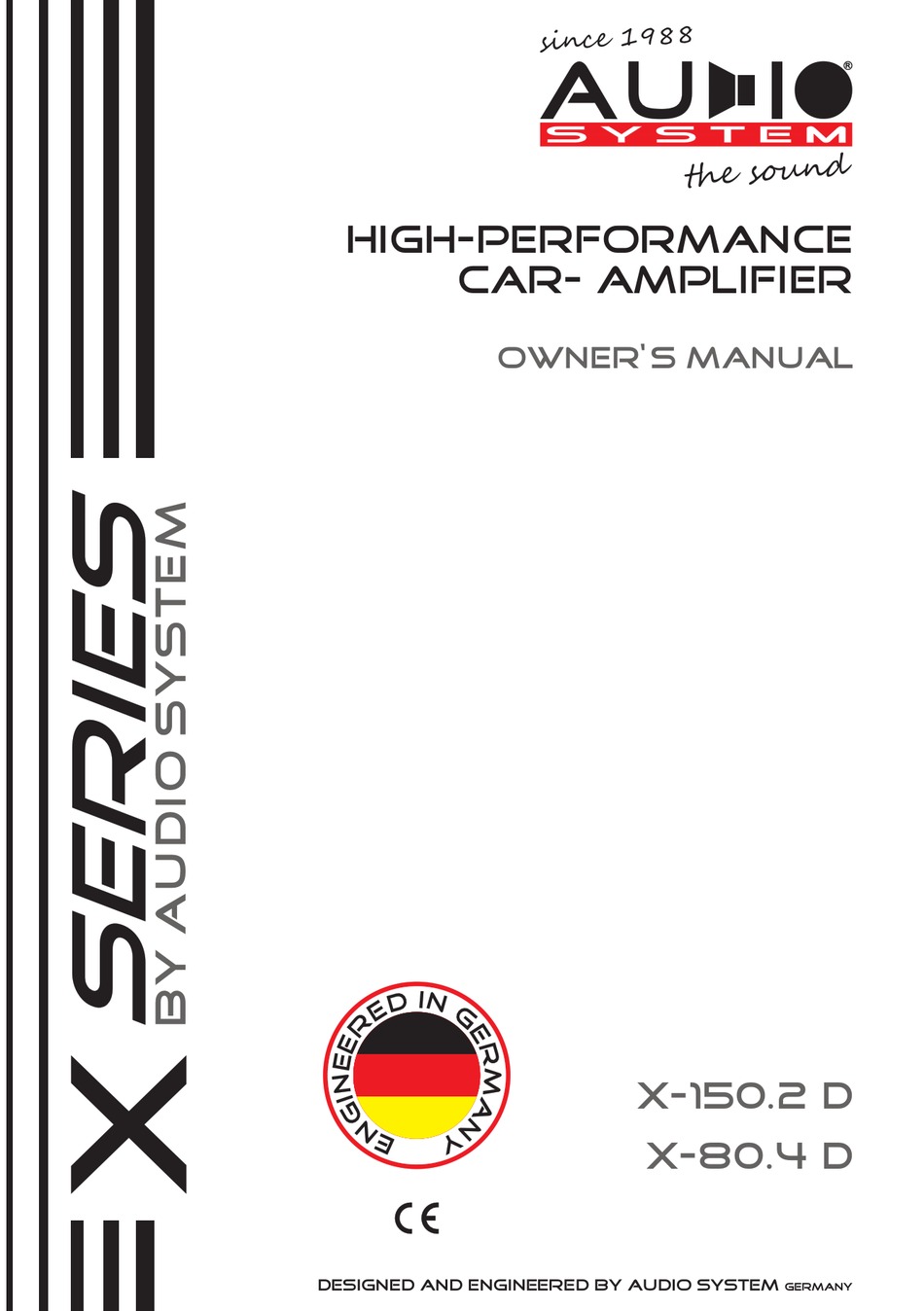

- Page 1 1 9 8 8 t h e s o u n d High-Performance Car- amplifier owner‘s manual X-150.2 D X-80. 4 D designed and engineered by audio system Germany...
- Page 2 Audio system Congratulation on your purchase of your new x Series amplifier. IMPORTANT: Before installation your power amplifier, we recommend to read the owner´s manual carefully and to follow the instructions regarding connection and fitting exactly. ATTENTION: Pay attention to advices and instructions of the car manufacturer.
-
Page 3: Power Connection
Power connection by Audio system X-150.2 D / X-80.4 D 1. Battery disconnection: First, disconnect the power supply of the +12V vehicle by removing the ground cable of the battery. 2. Ground connection: Connect the GND (ground) connection of the amplifier with the car chassis. -
Page 4: Rca Connection
With the aid of the shiftable high- and low pass filter, the gain-controller and the bassboost you are able to adjust the amplifier on to your prefered taste of hearing, the circumstances of the vehicle and to the speakers. In this regard, AUDIO SYSTEM germany recommends to adjust your amplifier through a specialized service center, dealer or a specialist. -
Page 5: Speaker Connection
X 150.2 D 1-Channel Bridged Speaker Impedance 4 ~ 8 Ohm X-150.2 D 2-Channel Stereo Speaker Impedance 2 ~ 8 Ohm X-150.2 D CH 1 CH 2 Tri-Mode Speaker Impedance 4 ~ 8 Ohm X-150.2 D Spule CH 1... - Page 6 Audio system X-80.4 D 2-Channel Mono Speaker Impedance 4 ~ 8 Ohm by Audio system CH 1/2 CH 3/4 4-Channel Stereo Speaker Impedance 2 ~ 8 Ohm by Audio system CH 1 CH 3 CH 2 CH 4...
-
Page 7: Troubleshooting
Audio system This power amplifier is featured with an efficient protection system to prevent any damages like over-heating, overvoltage, short-circuit and DC at the loudspeaker output. Occuring an error the protection-LED will light in red. In order to check the problem, first turn down all levels of the head unit, afterwards turn it off. -
Page 8: Specifications
Dimensions 180(W) x 45(H) x 150(L) mm si n c e 1 9 8 8 t h e s o u n d Audio System Germany F all torstraße 6 - 76707 Hambrücken designed and engineered by audio system Germany...
