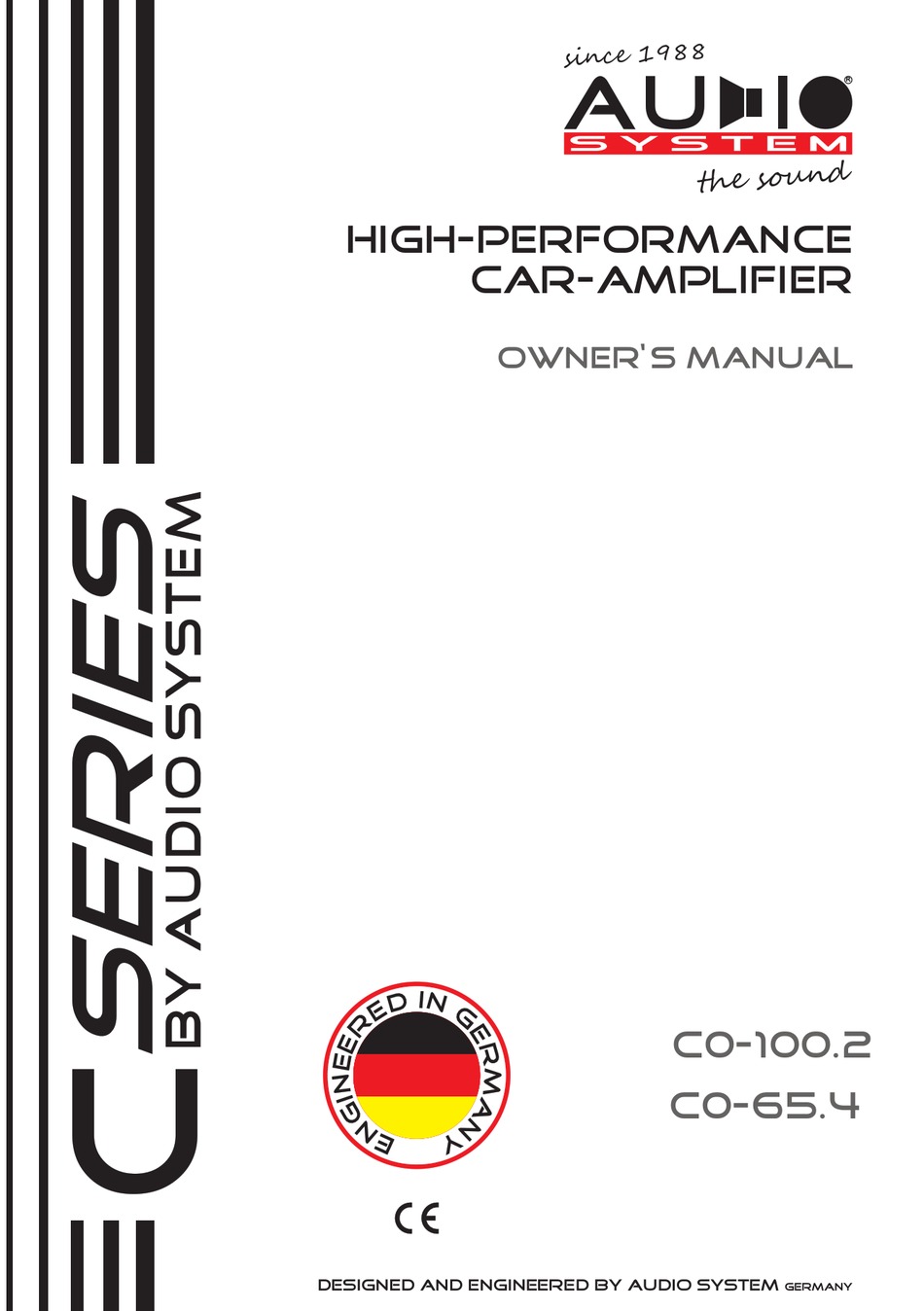

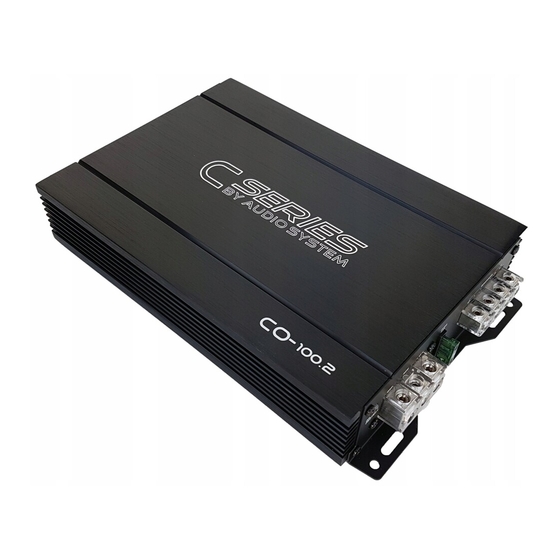

- Page 1 1 9 8 8 t h e s o u n d High-Performance Car-amplifier owner‘s manual C0-100.2 C0-65. 4 designed and engineered by audio system Germany...
- Page 2 features Congratulation on your purchase of your new c-Series amplifier. IMPORTANT: Before installation your power amplifier, we recommend to read the owner´s manual carefully and to follow the instructions regarding connection and fitting exactly. ATTENTION: Pay attention to advices and instructions of the car manufacturer. IMPORTANT: Your proof of purchase is evidence of warranty claim for repair or replacement.
-
Page 3: Power Connection
power connection CO-100.2 / co-65.4 1. Battery disconnection First disconnect the power supply of the vehicle. +12V FUSE This works out the best by removing the ground cable of the battery. 2. Ground connection Connect the GND (ground) connection of the amplifier with the car chassis. -
Page 4: Rca Connection
3 + 4 HEAD UNIT The c Series amplifier offers RCA-Inputs, which are connected through cinch cables with the preamplifier- outputs of the head unit. If the head unit (OEM-RADIO) has no RCA-Output, than it is possible to connect the speaker output direct to RCA/Cinch-Input of the amplifier. -
Page 5: Speaker Connection
speaker connection co-100.2 1-Channel Bridged speaker impedance 4 ~ 8 Ohm 2-Channel Stereo speaker impedance 2 ~ 8 Ohm Tri-Mode speaker impedance 4 ~ 8 Ohm... - Page 6 speaker connection co-65.4 2-Channel Mono CH 1 CH 2 speaker impedance 4 ~ 8 Ohm CH 3 CH 4 CH 3/4 CH 1/2 mono mono 4-Channel Stereo CH 1 CH 2 speaker impedance 2 ~ 8 Ohm CH 3 CH 4 CH 1 CH 3 CH 4...
-
Page 7: Troubleshooting
Trouble Shooting This power amplifier is featured with an efficient protection system to prevent any damages like over-heating, overvoltage, short-circuit and DC at the loudspeaker output. Occuring an error the protection-LED will light in red. In order to check the problem, first turn down all levels of the head unit, afterwards turn it off. -
Page 8: Specifications
10 Hz ~ 45 KHz (+/-1 dB) THD@RMS Watts < 0,051% Channel Separation 75 dB Fuse Rating 25 A x 2 Input Sensitivity 200 mV ~ 8 V (+/- 5%) Dimensions 280(L) x 47(H) x 171(W) mm designed and engineered by audio system Germany...
