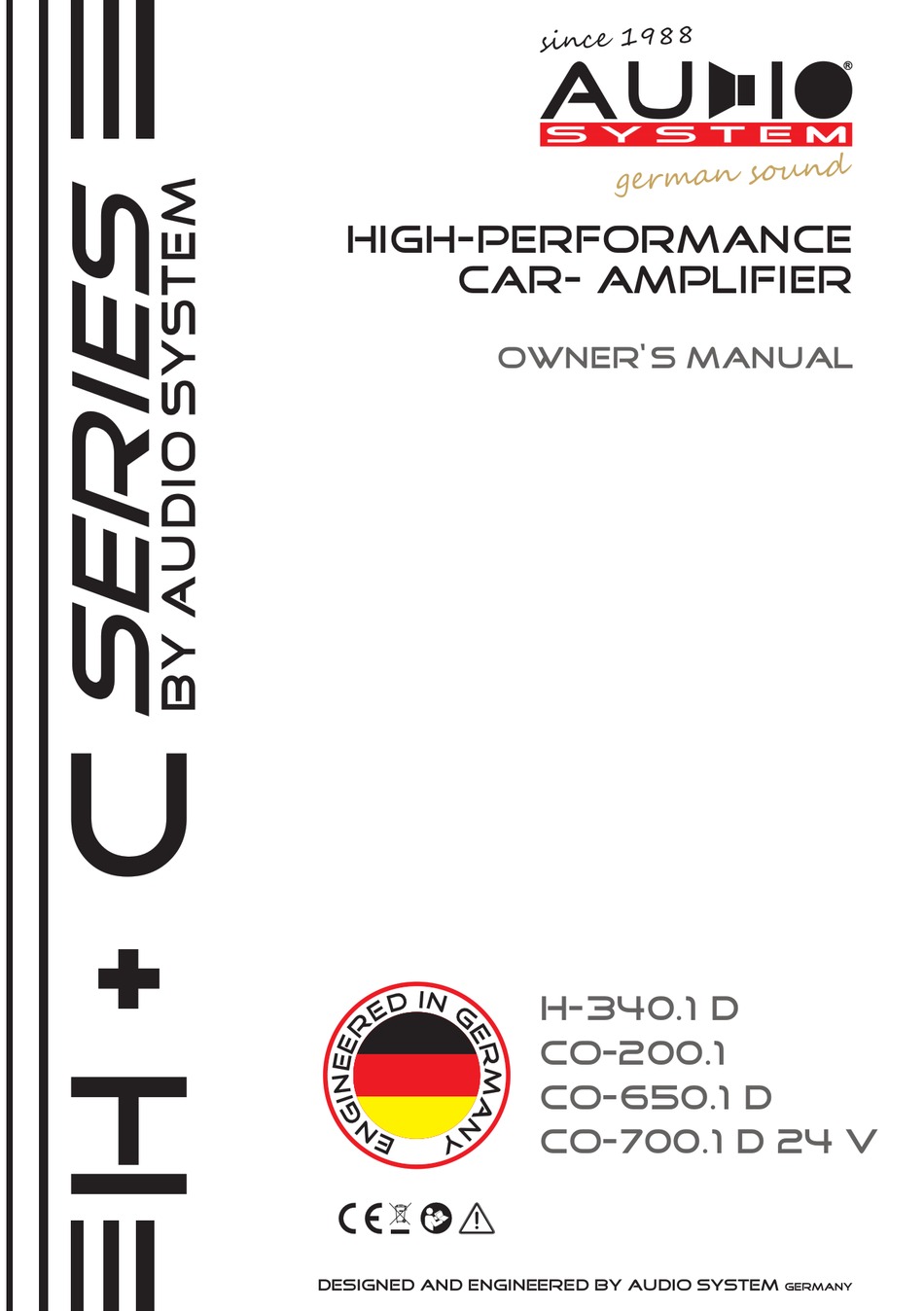

  • Page 1 1 9 8 8 g e r m a n s o u n d High-Performance Car- amplifier owner‘s manual H-340.1 D co-200.1 Co-650.1 d Co- 700.1 d 24 v designed and engineered by audio system Germany...
  • Page 2 features Congratulation on your purchase of your new h + c-Series amplifier. IMPORTANT: Before installation your power amplifier, we recommend to read the owner´s manual carefully and to follow the instructions regarding connection and fitting exactly. ATTENTION: Pay attention to advices and instructions of the car manufacturer. IMPORTANT: Your proof of purchase is evidence of warranty claim for repair or replacement.

  • Page 3: Power Connection

    power connection co-200.1 H-340.1 d CO-650.1 d co- 700.1 d 24v 1. Battery disconnection: +12V / +24V orange First, disconnect the power supply of the vehicle by removing the ground cable of the battery. 2. Ground connection: Remote connection Connect the GND (ground) connection fuse of the amplifier with the car chassis.

  • Page 4: Rca Connection

    Optional a wire remote controller RTC can be installed to adjust the output level. In this regard, AUDIO SYSTEM recommends to adjust your amplifier through a specialized germany service center, dealer or a specialist.

  • Page 5: Speaker Connection

    speaker connection H-340.1 d + co-200.1 Mono Speaker Impedance 2 ~ 8 Ohm CO-650.1 d / co- 700.1 d 24 V Mono FUSE + 12 V 30A x 2 Speaker PROTECT Impedance 2 ~ 8 Ohm SPEAKER POWER Please note that this units are mono block units and have only one channel. Connecting to either the positive or negative of either of the two connections will end in the same result as both positive connections (or both negative connections) are tied together inside the unit.

  • Page 6: Troubleshooting

    trouble shooting This power amplifier is featured with an efficient protection system to prevent any damages like over-heating, overvoltage, short-circuit and DC at the loudspeaker output. Occuring an error the protection-LED will light in red. In order to check the problem, first turn down all levels of the head unit, afterwards turn it off.

  • Page 7: Specifications

    230(L) x 47(H) x 171(W) mm si n c e 1 9 8 8 g e r m a n s o u n d Audio System Germany F all torstraße 6 - 76707 Hambrücken designed and engineered by audio system Germany...
