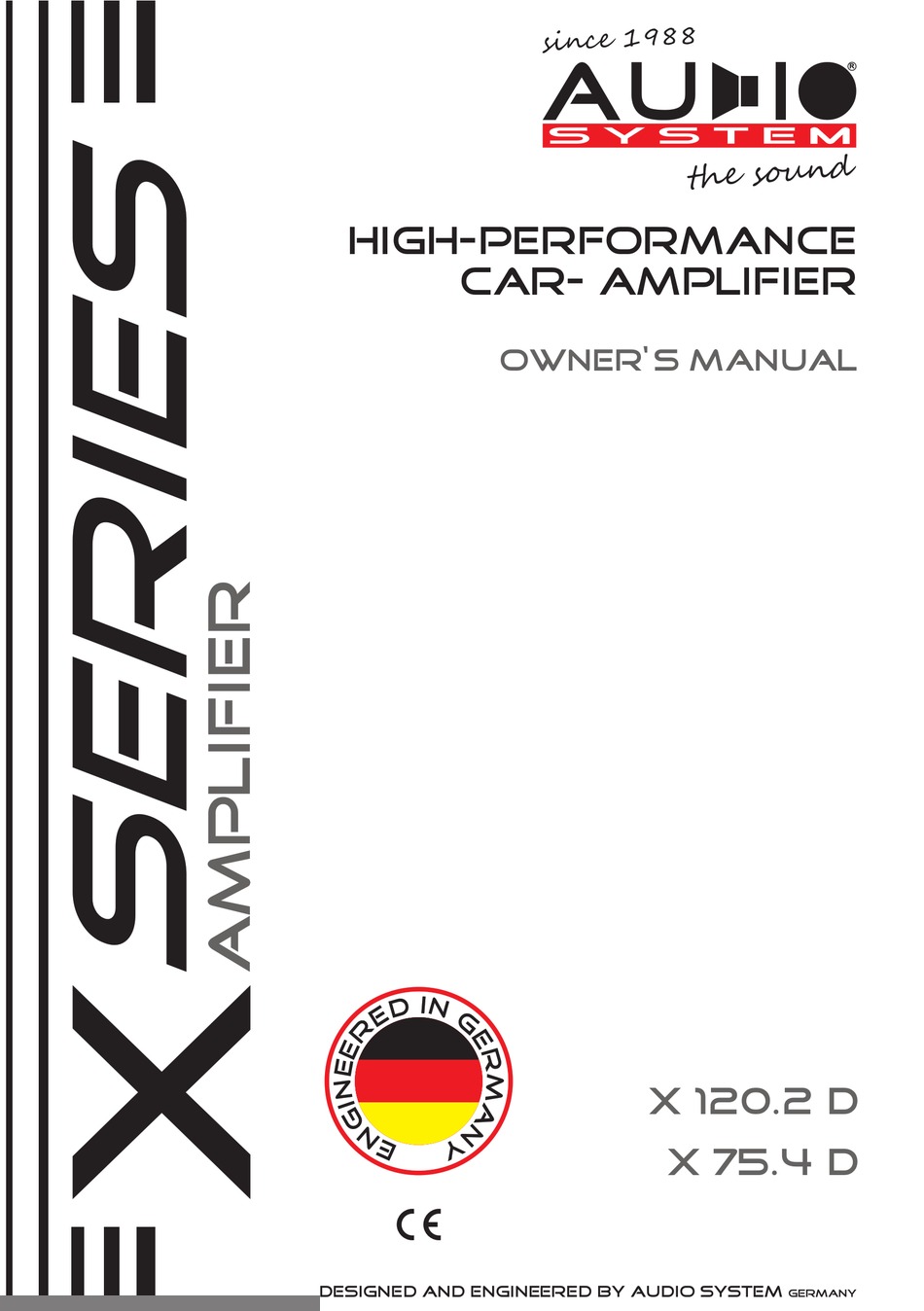

- Page 1 1 9 8 8 t h e s o u n d High-Performance Car- amplifier owner‘s manual X 120.2 D X 75. 4 D designed and engineered by audio system Germany...
- Page 2 We recommend installing the equipment by an authorized service center or dealer. A professional fitting and connection is the requirement for further warranty and perfect sound. X 120.2 D - 2-Channel High-Power Full-Range Digital amplifier - Stable into 2 ohm stereo per channel and 4 ohm bridged mode...
-
Page 3: Power Connection
POWER CONNECTIOn X 120.2 D / X 75.4 D ATTENTION: 1. Battery disconnection First disconnect the power supply of the +12V vehicle. This works out the best by removing the ground cable of the battery. 2. Ground connection Connect the GND (ground) connection of the amplifier with the car chassis. -
Page 4: Rca Connection
In this regard, AUDIO SYSTEM germany recommends to adjust your amplifier through a specialized service center, dealer or a specialist. -
Page 5: Speaker Connection
X 120.2 D 1-Channel Bridged speaker sin ce 198 8 impedance th e so un d 4 ~ 8 Ohm 2-Channel Stereo speaker sin ce 198 8 impedance th e so un d 2 ~ 8 Ohm CH 1... - Page 6 speaker connection X 75.4 D 2-Channel Mono speaker impedance 4 ~ 8 Ohm CH 1/2 CH 3/4 4-Channel Stereo speaker impedance 2 ~ 8 Ohm CH 1 CH 2 CH 3 CH 4 2-Channel Stereo + 1-Channel Mono Bridged speaker impedance 4 ~ 8 Ohm CH 1...
-
Page 7: Troubleshooting
TROUBLE SHOOTING This power amplifier is featured with a efficient protection system to prevent any damages like over-heating, overvoltage, short-circuit and DC at the loudspeaker output. Occuring an error the protection-LED will light in red. In order to check the problem, first turn down all levels of the head unit, afterwards turn it off. -
Page 8: Specifications
SPECIFICATIONS X 120.2 D Power Supply Voltage 10 - 16 V -------------------------------------------------------------- Rated Power Output at 14,4 V -RMS power @ 4 ohm stereo 2x 120 W ---------------------------------------- -RMS power @ 2 ohm stereo 2x 200 W ---------------------------------------- -RMS power @ 4 ohm bridged...
