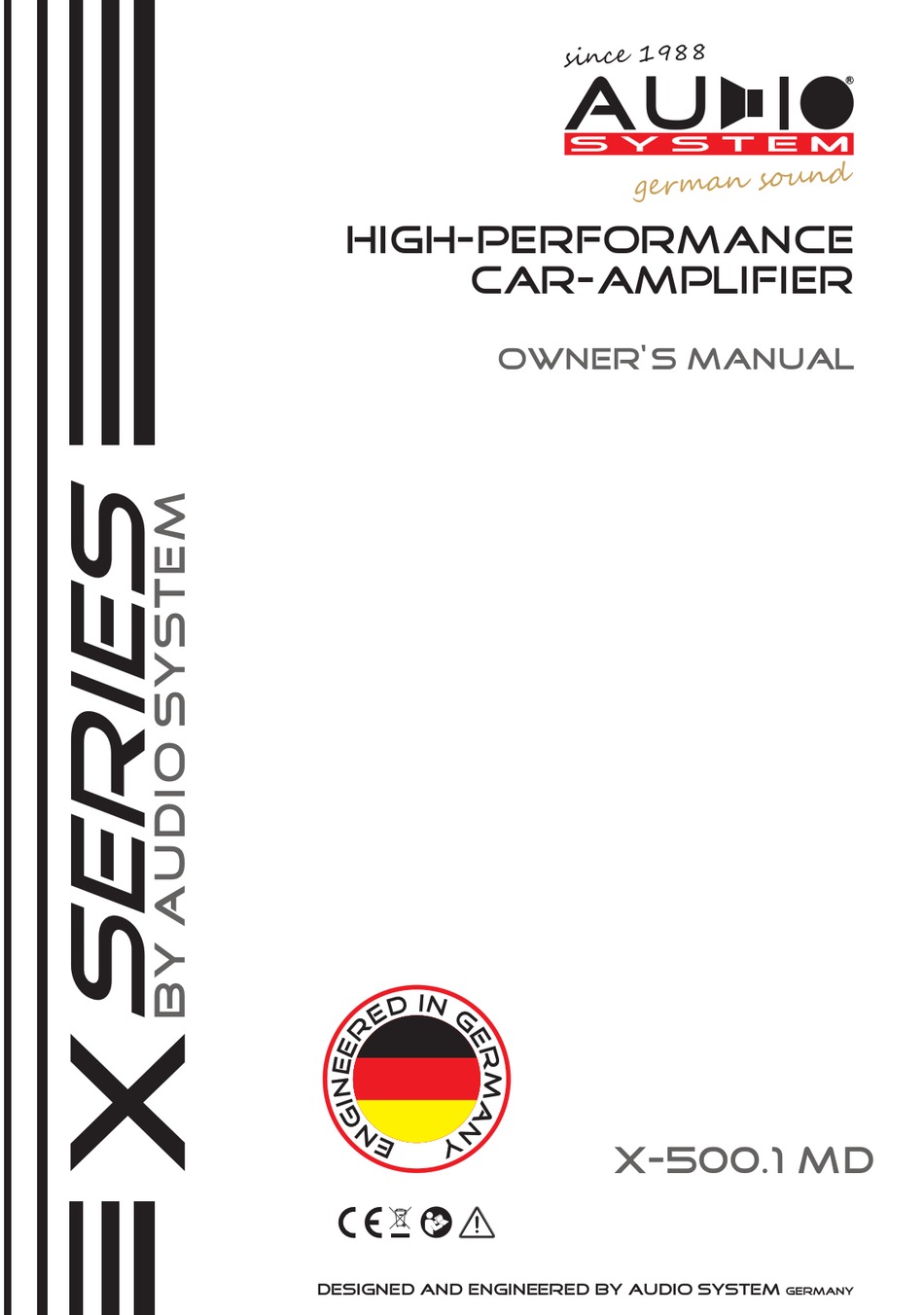

- Page 1 1 9 8 8 g e r m a n s o u n d High-Performance Car-amplifier owner‘s manual X-500.1 MD designed and engineered by audio system Germany...
- Page 2 Audio system Congratulation on your purchase of your new X-Series amplifier. IMPORTANT: Before installation your power amplifier, we recommend to read the owner´s manual carefully and to follow the instructions regarding connection and fitting exactly. ATTENTION: Pay attention to advices and instructions of the car manufacturer.
- Page 3 Power connection by Audio system X-500.1 MD 1. Battery disconnection: First, disconnect the power supply of the vehicle by removing the ground cable of the battery. 2. Ground connection: Connect the GND (ground) connection of the amplifier with the car chassis.
- Page 4 HEAD UNIT The X Series amplifiers have RCA inputs, which are connected by RCA cables to the preamp outputs of the head unit. If this is not possible (usually in an original radio, OEM) the speaker outputs of the car radio can be connected directly to the RCA / Cinch inputs of the amplifier. In this case, the Input Mode must be switched to "HI".
- Page 5 Audio system The X Series power amplifier has a signal auto-detection. This is required if the OEM output has no overlying 6-volt DC signal. To turn on the signal detection, the switch position from BTL to SE...
- Page 6 Audio system This power amplifier is featured with an efficient protection system to prevent any damages like over-heating, overvoltage, short-circuit and DC at the loudspeaker output. Occuring an error the protection-LED will light in red. In order to check the problem, first turn down all levels of the head unit, afterwards turn it off.
- Page 7 200 mV ~ 6V (+/- 5%) Dimensons 113(L)x 38(H)x 110(W)mm si n ce 1 9 8 8 g e r m a n s o u n d Audio System Germany F all torstraße 6 - 76707 Hambrücken designed and engineered by audio system Germany...
- Page 8 -500.1 MD AUDIO SYSTEM GERMANY...
