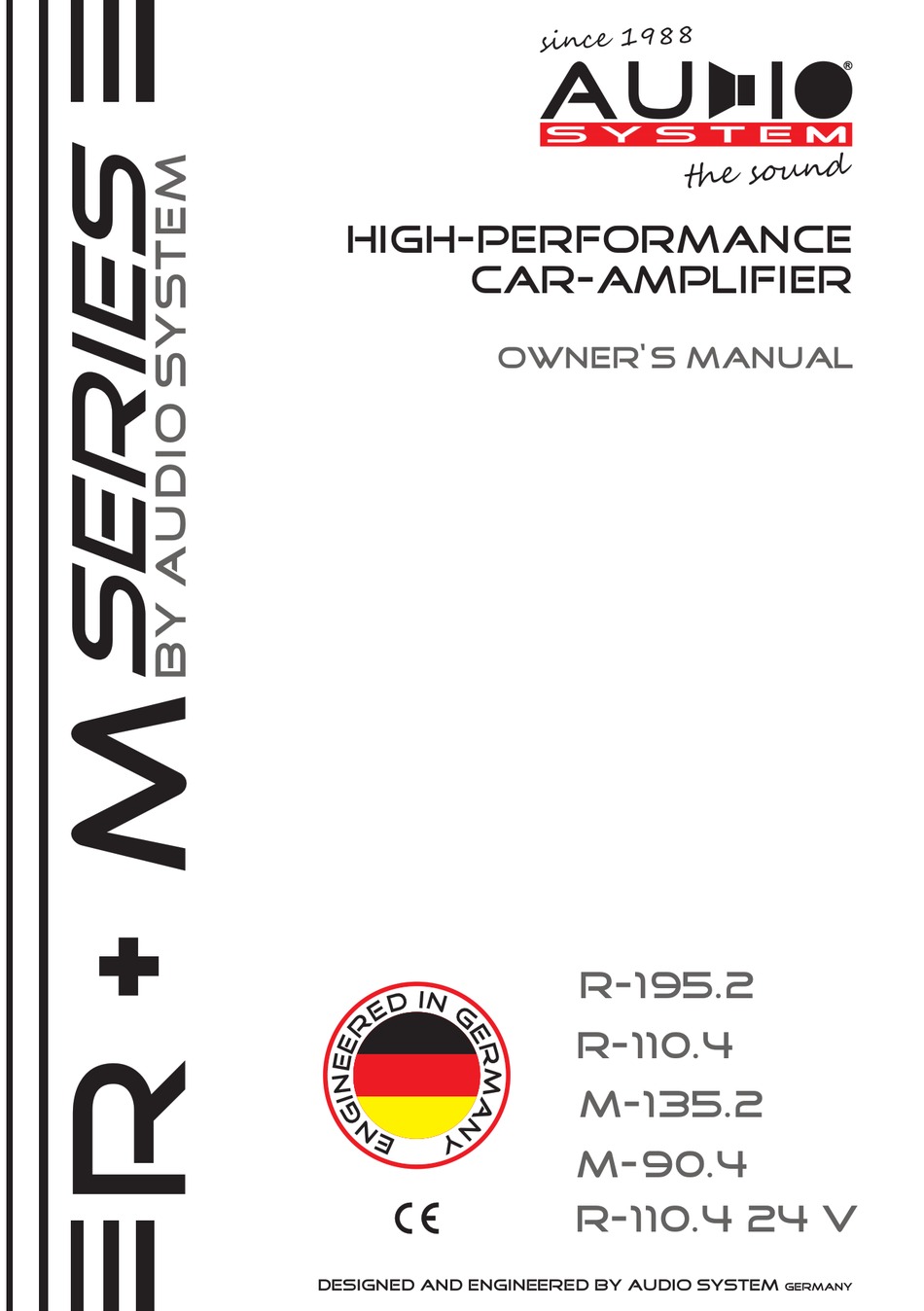

- Page 1 1 9 8 8 t h e s o u n d High-Performance Car-amplifier owner‘s manual R-195.2 R-110. 4 M-135.2 M-90. 4 R-110. 4 24 v designed and engineered by audio system Germany...
- Page 2 Audio system Congratulation on your purchase of your new r+m-Series amplifier. IMPORTANT: Before installation your power amplifier, we recommend to read the owner´s manual carefully and to follow the instructions regarding connection and fitting exactly. ATTENTION: Pay attention to advices and instructions of the car manufacturer.
-
Page 3: Power Connection
Power connection by Audio system R-110. 4 + R-110. 4 24v/R-195.2/m-90. 4/M-135.2 1. Battery disconnection: +24V in R-110.4 24 V First, disconnect the power supply of the vehicle +12V by removing the ground cable of the battery. 2. Ground connection: Connect the GND (ground) connection of the amplifier with the car chassis. -
Page 4: Rca Connection
RTC to control the output level of channels 3 + 4 (LP must be switched on). AUDIO SYSTEM germany, recommends that you leave your amplifier set by a specialist company, specialist dealer or a specialist to meet your needs. -
Page 5: Signal Detection
Audio system The R/m Series power amplifier has a signal auto-detection. This is required if the OEM output has no overlying 6-volt DC signal. To turn on the signal detection, the jumper position from BTL to SE has to be plugged (see fig.) To this end, the housing must be opened. - Page 6 Audio system R-110. 4 + R-110. 4 24 v/M-90. 4 2-Channel Bridged CH3/4-MONO SUBWOOFER + BRIDGE - + BRIDGE - Channel 1 / 2 CH1/L CH2/R CH3/L CH4/R HERTZ HERTZ Power 1000 Speaker- Protection Impedance HERTZ HERTZ...
-
Page 7: Troubleshooting
Audio system This power amplifier is featured with an efficient protection system to prevent any damages like over-heating, overvoltage, short-circuit and DC at the loudspeaker output. Occuring an error the protection-LED will light in red. In order to check the problem, first turn down all levels of the head unit, afterwards turn it off. -
Page 8: Specifications
Dimensons 325(L)x 50(H)x 185(W)mm 295(L)x 50(H)x 185(W)mm si n c e 1 9 8 8 t h e s o u n d Audio System Germany F all torstraße 6 - 76707 Hambrücken designed and engineered by audio system Germany...
