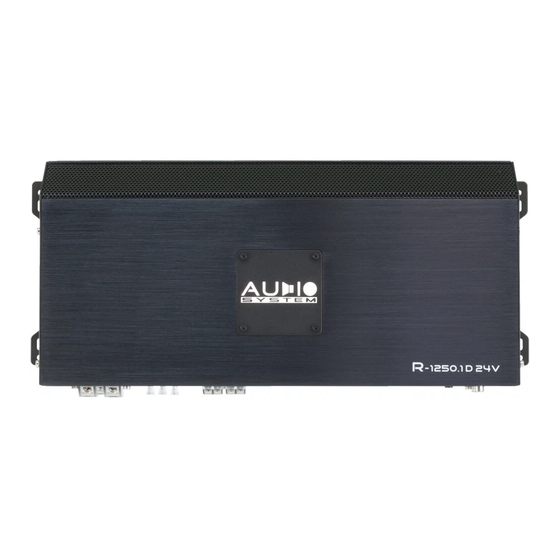

Summary of Contents for Audio System R-1250.1 D-24V
Page 1
1 9 8 8 g e r m a n s o u n d High-Performance Car-amplifier owner‘s manual R-1250.1 D R-1250.1 d-24v M-850.1 D X-2000.1 D designed and engineered by audio system Germany...
Page 2
TEST WINNER - 1-Channel digital Mono-High-Power amplifier - High efficiency of max. 84 % - Stable into 1 Ohm mono (R-1250.1 D / R-1250.1 D-24v / x-2000.1 D) TOP CLASS Stable into 2 Ohm mono (m-850.1 D) PRICE/QUALITY: EXCELLENT - Variable Low Pass Filter from 30 to 150 Hz - Variable Subsonicfilter from 10 to 50 Hz - Variable Phase Shift from 0°...
Page 3
+ r + m power connection +12V / +24V R-1250.1 D / M-850.1 D R-1250.1 D-24v / x-2000.1 d 1. Battery disconnection: First, disconnect the power supply of the vehicle by removing the ground cable of the battery. 2. Ground connection:...
Page 4
Optional a wire remote controller RTC (enclosed) can be installed. It allows you to rule the amplifier in front of the car. In this regard, AUDIO SYSTEM Germany recommends to adjust your amplifier through a specialized service center, dealer or a specialist.
Page 5
+ r + m speaker connection R-1250.1 D / R-1250.1 d-24v / x-2000.1 d +12V / +24V Speaker Impedance 1 ~ 4 Ohm Please note that this unit is a mono block amplifier and has only one channel. Connecting to either the positive or negative of either of the two connections will end in the same result as both positive connections (or both negative connections) are tied together inside the unit.
Page 6
x + r + m trouble shooting This power amplifier is featured with an efficient protection system to prevent any damages like over-heating, overvoltage, short-circuit and DC at the loudspeaker output. Occuring an error the protection-LED will light in red. In order to check the problem, first turn down all levels of the head unit, afterwards turn it off.
Page 7
+ r + m specifications r-1250.1 D / r-1250.1 D-24v Power Supply Voltage 10 - 16 V / 20 - 32 V TEST WINNER Rated Power Output at 14,4 V (28,8 V) / 3% THD -RMS power @ 4 ohm mono...
