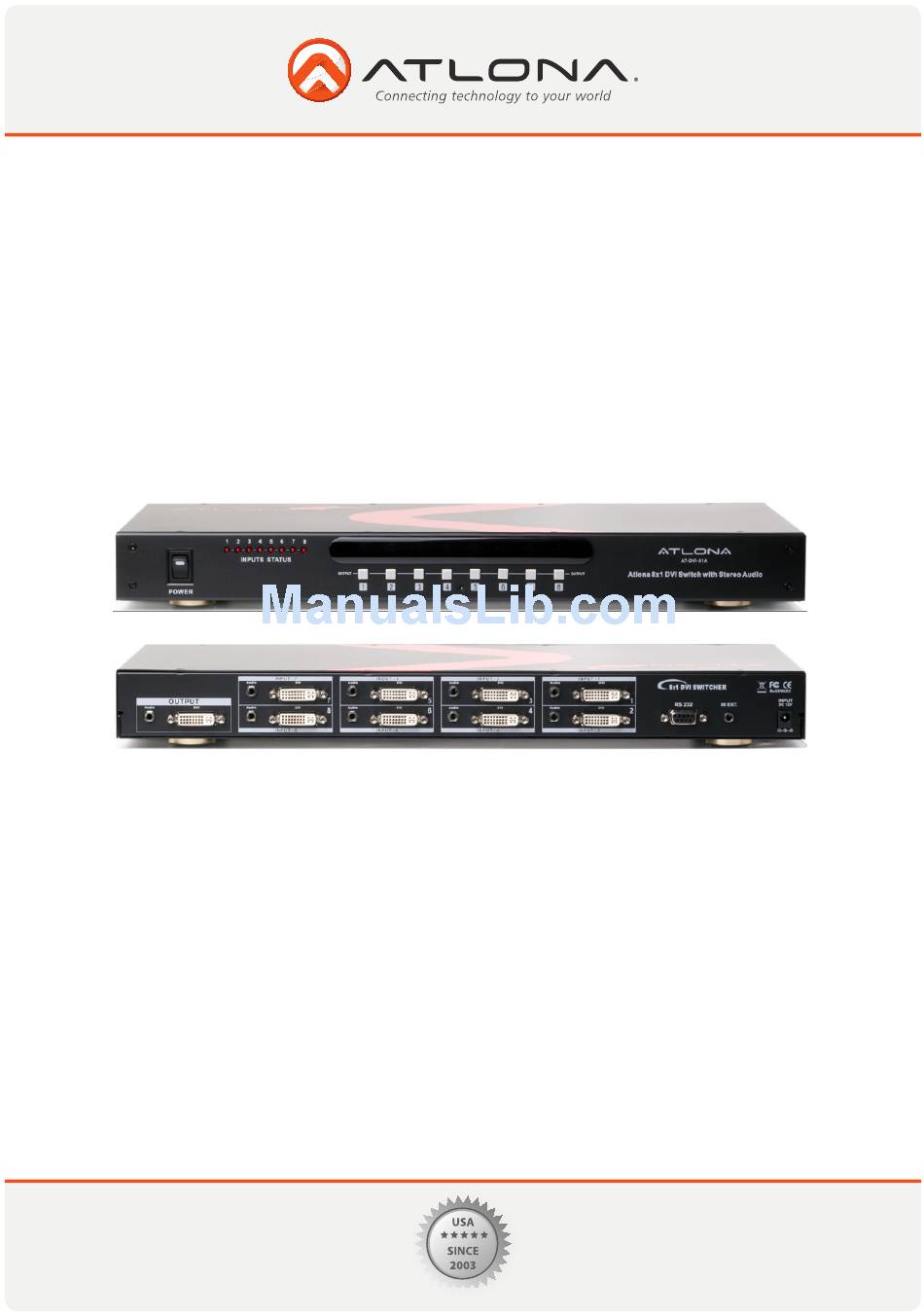

Page 1: User Manual
8 x 1 DVI Switcher with Stereo Audio AT-DVI-81A User Manual Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 2: Table Of Contents
6. Remote Control 7. IR Extender 7.1. IR Extender Connection 7.2. IR Extender Package 8. RS232 8.1. RS-232 Serial Interface 8.2. RS232 8.3. RS232 Commands 9. Safety Information 10. Warranty 11. Atlona Product Registration Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
INTRODUCTION The Atlona AT-DVI-81A is 8 inputs and 1 output DVI Switcher with Stereo Audio. The switcher is designed to route up to 8 x DVI sources with Audio to a single display. The DVI-81A is capable of passing extremely high resolutions up to 1920x1200 or 1080p. -
Page 4: Specifications
4. IR SENSOR. The IR sensor receives IR commands from the IR remote control. 5. OUTPUT STATUS WITH LED DISPLAY. Output Status via LED to reveal 1~8 input sources. 6. 19 INCH EAR MOUNT PAIR. 19 –inch Rack Ears - 1U Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 5: Rear Panel
12V/1.25A, center positive power input. Please ensure that plug is always securely connected to the switcher. Atlona only approves a use of the included power supply, if user needs to use a different power supply, Atlona has to pro- vide an official approval, and otherwise the warranty will be VOID. -
Page 6: Remote Control
INPUT-6 Select input 6 source with selection button # 7 - INPUT-7 Select input 7 source with selection button # 8 - INPUT-8 Select input 8 source with selection button IR EXTENDER 1. IR Extender Connection Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 7: Ir Extender Package
RS-232 serial interface allows connecting a control system or a computer to it for controlling the switcher RS-232 Definition Not used Transmitter Receiver Not used Ground Not used Not used Not used Not used Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 8: Rs232
2. RS232 The Atlona switcher is featured with RS232 control port which allows users to control the switch though a control system or from the computer. The serial communication parameters are 9600 baud rate, 8 bit, No Parity and 1 stop bit When the unit recognizes a complete command it will perform the requested action - there is no delimiter character required. -
Page 9: Safety Information
Never open, remove unit panels, or make any adjustments not described in this manual. Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your AT-DVI-81A Opening the product will void the warranty. -
Page 10: Warranty
To the maximum extent permitted by applicable law, in no event shall Atlona Technologies or its suppliers be liable for any damages arising out of the use of or inability to use this product, even if Atlona Technologies has been advised of the possibility of such damages. Such damages include but are not limited to: special, inciden- tal, consequential, or indirect damages for personal injury, loss of business profits, business interruption, loss of business information, or any other pecuniary loss. -
Page 11: Atlona Product Registration
ATLONA PRODUCT REGISTRATION Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
