Summary of Contents for Atlona AT-DRC444

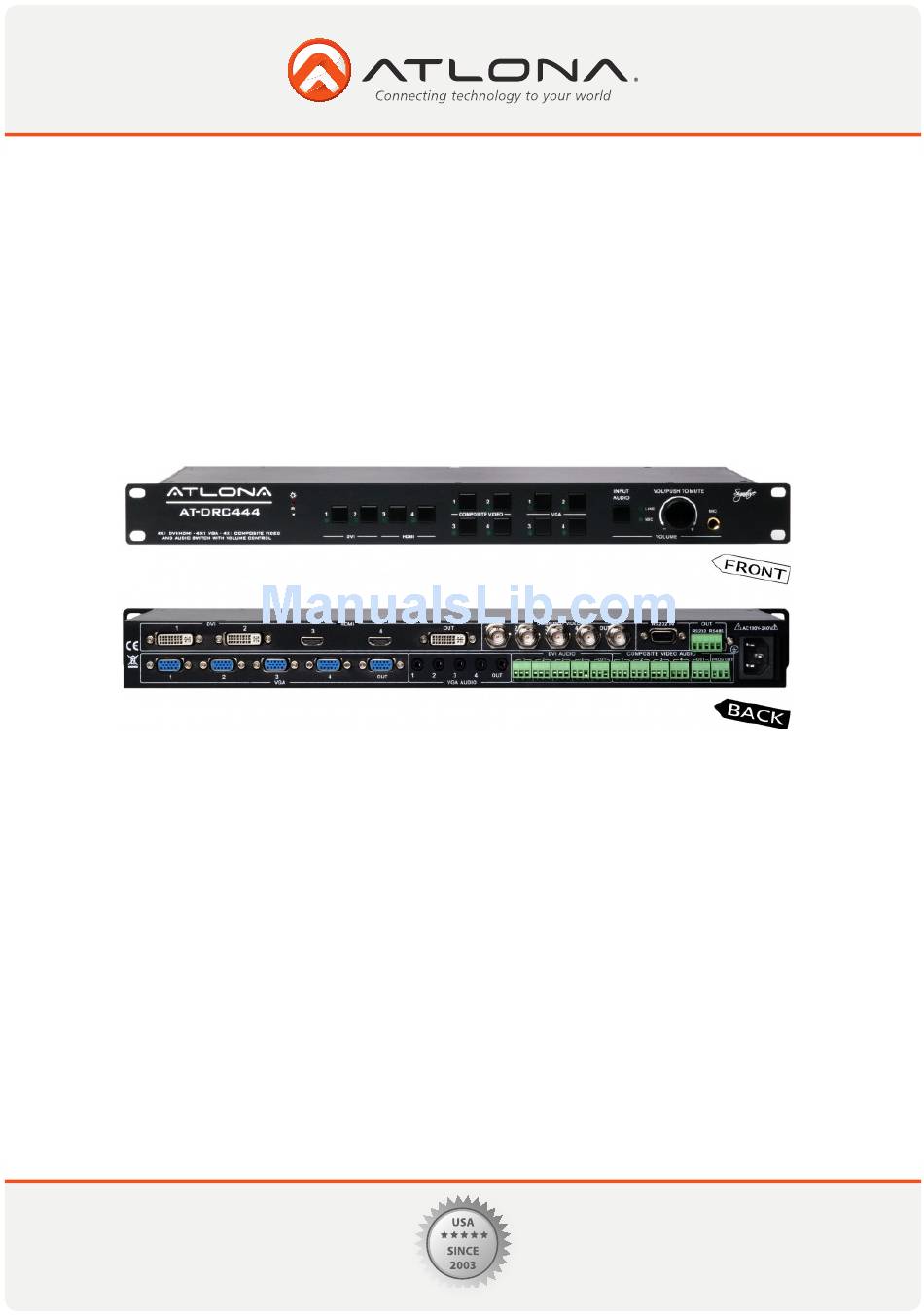

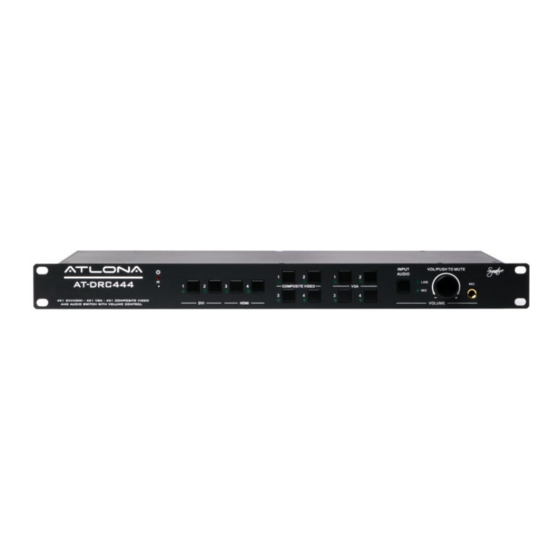

- Page 1 Multi-Input Presentation Switcher AT-DRC444 User Manual Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
3. Package Contents 4. Specifications 5. Panel Descriptions 5.1. Front Panel 5.2. Rear Panel 6. IR Remote Control 7. RS232 Control 8. Connection Diagram 9. Troubleshooting 10. Safety Information 11. Warranty 12. Atlona Product Registration Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
VGA switch; and 2 input DVI and 2 input HDMI to one DVI Output Switch. Each video input is accompanied with its own audio input. Furthermore, the switcher is featured with microphone input and allows user to mix the microphone signal with the main audio in “talk-over” mode. The Atlona DRC444 is designed to be controlled via RS232, RS485 or IR. FEATURES •... -
Page 4: Package Contents
PACKAGE CONTENT • 1 x AT-DRC444 • 1 x Power Cable • 1 x IR Remote Control • 1 x RS232 Cable • 1 x Instructions Manual SPECIFICATIONS Video inputs 2 x DVI (DVI-D Only 24+1 Pin Female), 2 x HDMI (Type A female), 4 x VGA (HD15 female),... -
Page 5: Panel Descriptions
Prog. Out: Line Audio Break-out, can be mixed with any other Line Audio Inputs or Mic Audio. 5) RS-232 input: Connect to a 3rd party control system 6) RS-232 & RS-485 outputs: connect to the display e.g., Projector, LCD, LED or Plasma Display. 7) Power Cable Input Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 6: Ir Remote Control
232/485 Current data: Baud rate: 9600 0701% Switch to DVI Input # 1 Source: DVI 1 0702% Switch to DVI Input # 2 Source: DVI 2 0703% Switch to HDMI Input # 3 Source: DVI 3 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 7: Lock Voice Out
232/485 VGA data: XXXXXXX will follow VGA platform /+0xxxx; Send Direct Command though RS232/485 Output 232/485 Direct out data: XXXXXXX 0900% Change all volume input mode Change to output vol. control/Change to input vol. control Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 8: Connection Diagram
Set VGA 3 volume to XX VGA 3 Volume : XX 0~60 54XX% Set VGA 4 volume to XX VGA 4 Volume : XX 0~60 CONNECTION DIAGRAM HDMI Blu-Ray Player Camera Projector VGA or DVI Laptop Display Speakers Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 9: Troubleshooting
Please use the supplied RS232. 3. Interference on the output signal is usually caused by long cables or if switcher is not grounded. Please rack-mount the switcher and make sure that the rack is grounded properly. Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 10: Safety Information
It may also cause damage to your AT- DRC444. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or con- tact Atlona directly. -
Page 11: Warranty
To the maximum extent permitted by applicable law, in no event shall Atlona Technologies or its suppliers be liable for any damages arising out of the use of or inability to use this product, even if Atlona Technologies has been advised of the possibility of such damages. Such damages include but are not limited to: special, inciden- tal, consequential, or indirect damages for personal injury, loss of business profits, business interruption, loss of business information, or any other pecuniary loss. -
Page 12: Atlona Product Registration
ATLONA PRODUCT REGISTRATION Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
