VADDIO WALLVIEW PRO EAGLEEYE Installation And User Manual

Camera and Electronic Products for Integrators
W VIEW™ PRO E
ALL
Vaddio™ PRO Series Cable System with
HSDS for the Polycom® EagleEye High
Definition PTZ Camera
OVERVIEW
The Vaddio WallVIEW PRO EagleEye (Figure 1) is built
for the Polycom EagleEye high definition PTZ Camera
(camera not included). The WallVIEW PRO system
uses high speed differential signaling (HSDS), an active
transmission system
definition video over Cat. 5 cabling distances up to 500'
(152.4m)
The WallVIEW PRO EagleEye system is capable of
sending video resolution up to 1080i 16:9 format (the
Polycom EagleEye camera is 720p only).
PRO will autoconfigure to either NTSC or PAL video
standards.
The WallVIEW EagleEye system also has many new features including in-camera IR forwarding that allows
the use of the Polycom IR remote, and eliminates the need for an external IR repeater. Other features
include analog component video outputs (Y,Pb, Pr), four position distance adjustment for CAT. 5 cabling, Y-
Gain adjustment, 1-RU rack mount Quick-Connect™ PRO Universal System with HSDS, and the EZ
Interface Module (EZIM) and custom break out cable to interface between the EZIM and EagleEye camera.
Like all Vaddio WallVIEW systems, the Thin Profile Wall Mount and mounting hardware is included.
INTENDED USE
Before installing the Vaddio WallVIEW PRO EagleEye Camera System, please read the entire manual
thoroughly. All Vaddio camera systems are designed for use indoors.
recommended, has not been tested, and could damage the camera and/or create a potentially unsafe
operating condition. Use only the Vaddio PowerRite power supply provided.
SAVE THESE INSTRUCTIONS
The information contained in this manual will help you install the Vaddio WallVIEW PRO systems. For
reference, Vaddio keeps copies of Specifications, Installation and User Guides and most pertinent product
drawings for the Vaddio product line on the website.
www.vaddio.com free of charge.
IMPORTANT SAFEGUARDS
Read and understand all instructions before using. Do not operate the any electrical device if it has been
dropped or damaged. In this case, a Vaddio technician must examine the product before operating. To
reduce the risk of electric shock, do not immerse in water or other liquids and avoid extremely humid
conditions.
Use only the power supply provided with the Vaddio WallVIEW PRO products.
Use of any unauthorized power supply will void any and all warranties.
INFORMATION
Vaddio has prepared a number of TechNotes, specifications and drawings designed to inform and educate
integrators on the value and the specific uses of Vaddio products.
©2008 Vaddio - All Rights Reserved. Reproduction in whole or in part without written permission is prohibited. Specifications and pricing subject to change.
Vaddio, WallVIEW, EZIM, HSDS, Quick-Connect, and PowerRite are registered trademarks of Vaddio, Inc. All other trademarks are property of their
respective owners. Document Number 341-660 Rev. B
that delivers low-loss,
WallVIEW
Installation and User Guide
E
AGLE YE
WITH
high

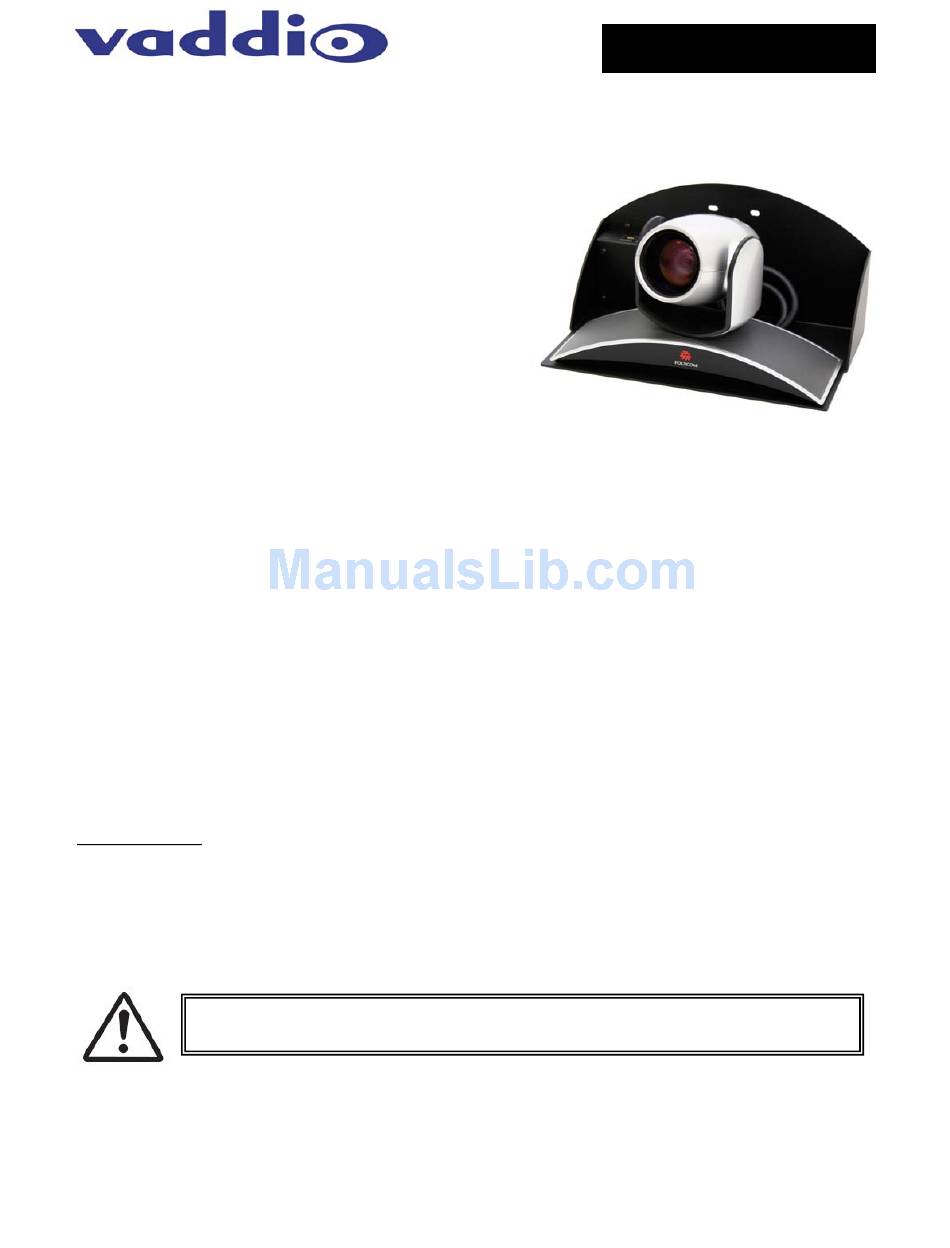

Figure 1:
WallVIEW PRO EagleEye System with EagleEye camera
(not included), Wall Mount and EZIM
These documents can be downloaded from
HSDS™
Outdoor operation is not
