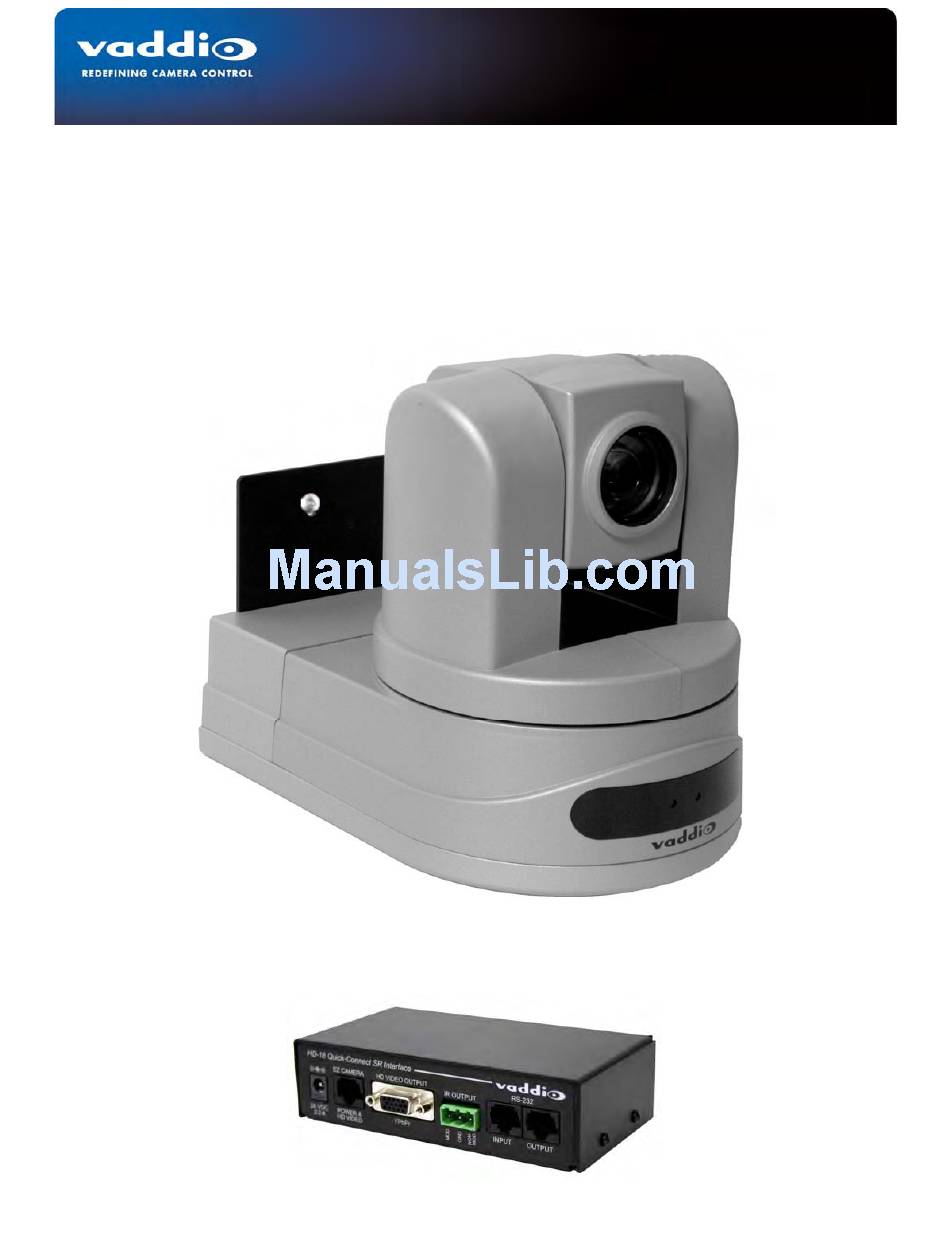

High Definition PTZ Camera Featuring the Quick-Connect™ SR Interface
and the CONCEAL™ Wall Mounting System
Model Number 999-6955-000 (North America)
Model Number 999-6955-001 (International)
Quick-Connect SR Interface
PN: 998-1105-016
©2012 Vaddio - All Rights Reserved ● WallVIEW HD-20 Document Number 324-0179 Rev. C
W
V
I
E
W
V
I
E
A
L
L
A
L
L
Installation and User Guide
W
™
H
D
-
W
™
H
D
-
2
0
S
2
0
S
Y
S
T
E
Y
S
T
E
M
M
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VADDIO WALLVIEW HD-20 system
Summary of Contents for VADDIO WALLVIEW HD-20 system
- Page 1 High Definition PTZ Camera Featuring the Quick-Connect™ SR Interface and the CONCEAL™ Wall Mounting System Model Number 999-6955-000 (North America) Model Number 999-6955-001 (International) Quick-Connect SR Interface PN: 998-1105-016 ©2012 Vaddio - All Rights Reserved ● WallVIEW HD-20 Document Number 324-0179 Rev. C...
- Page 2 Read and understand all instructions before using. Do not operate any device if it has been dropped or damaged. In this case, a Vaddio technician must examine the product before operating. To reduce the risk of electric shock, do not immerse in water or other liquids and avoid extremely humid conditions.
- Page 3 IR sensors are built into the front of the ClearVIEW HD-20 to receive IR signals from the IR remote control supplied with the camera. 4) Blue Power Light: A Vaddio blue power light is illuminated when the camera is turned on. Compatible Vaddio Switchers and Joystick Controllers: AutoPresenter...
- Page 4 WallVIEW HD-20 ClearVIEW HD-20 PTZ Camera, Rear View with Feature Call-outs: ⑤ ⑨ ⑥ ⑩ ⑦ ⑪ ⑧ ⑫ 5) RS-232 IN & IR Out: The RS-232 accepts modified VISCA protocol for camera control, as well as transmits IR signaling received by the IR receivers, which can be transmitted to third party devices.
- Page 5 For RS-232, use a standard Cat-5e cable and RJ-45 connectors (568B termination) from the RS-232 port on the back of a Vaddio camera controller or switcher. If the camera is connected to a third-party control system (such as AMX or Crestron), a DB-9 to RJ-45 control adapter cable is supplied.
- Page 6 Depending on the codec and RS-232 port used, special DB-9 to RJ-45 adapters may sometimes be required. Refer to Vaddio’s price list or website for Tech Notes on the WallVIEW HD-20 page on specific diagrams for wiring the camera to videoconference codecs. Any special adapters and configuration information will be noted.
- Page 7 WallVIEW HD-20 Basic Wiring Configuration of the WallVIEW HD-20 to a Vaddio Joystick Controller Rear Panel HD-20 YPbPr & Power on one (1) Cat-5e up to 100’ (30.5m) ← YPbPr (HSDS differential) → Power RS-232 Cat-5e Rear Panel Quick-Connect SR Interface...
- Page 8 Follow the sample wiring diagram on the previous page for connecting the Cat-5e cables to the camera and Quick-Connect SR Interface, using a compatible Vaddio ProductionVIEW Joystick Camera Controller. Additional diagrams are available on our website for installation with a variety of videoconferencing codecs, using the RS- 232 I/O connectors for IR signaling.
- Page 9 RJ-45 may cause damage to the camera system and void the warranty. Step 7: Connect the Vaddio 24 VDC power supply to an AC outlet. Power will travel down the Power/Video Cat. 5 cable to the camera. The camera will “Home” to a centered position ready for control information from the IR remote control or RS-232 camera controller of the integrators’...
-
Page 10: Compliance And Ce Declaration Of Conformity
Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void the user’s authority to operate this equipment. -
Page 11: Warranty Information
Vaddio Customer Service: Vaddio will test, repair, or replace the product or products without charge if the unit is under warranty and is found to be defective. If the product is out of warranty, Vaddio will test then repair the product or products. The cost of parts and labor charge will be estimated by a technician and confirmed by the customer prior to repair. -
Page 12: Appendix 1: Ypbpr Video Pin-Out For The Hd-20 Camera And Quick-Connect Sr Interface
WallVIEW HD-20 Appendix 1: YPbPr Video Pin-Out for the HD-20 Camera and Quick-Connect SR Interface YPbPr Pr GND Y GND Pb GND EZCamera Power & HD Video RJ-45 Connector Pin-outs The video signals are differential (HSDS) and can only be transmitted by the HD-20 and received by the Quick-Connect SR Interface Power &... -
Page 13: Appendix 3: Communication Specification
TXD (to RXD of control source) No Flow control NOTE: The Vaddio ClearVIEW HD-20 Control Protocol is similar, but not identical to the Sony® VISCA™ command set in order to be compatible with several popular control devices. Not all VISCA commands are supported and there are many HD-20 specific commands in the following Command and Inquiry Lists. - Page 14 WallVIEW HD-20 HD-20 Command List (2/2) Command Set Command Command Packet Comments CAM_Backlight 81 01 04 33 02 FF 81 01 04 33 03 FF CAM_Aperture Reset 81 01 04 02 00 FF 81 01 04 02 02 FF Down 81 01 04 02 03 FF Direct 81 01 04 42 00 00 0p 0q FF...
- Page 15 WallVIEW HD-20 HD-20 Inquiry List (1/1) Inquiry Command Command Command Packet Comments CAM_PowerInq 81 09 04 00 FF y0 50 02 FF y0 50 03 FF Off(Standby) CAM_ZoomPosInq 81 09 04 47 FF y0 50 0p 0q 0r 0s FF pqr: Zoom Position CAM_WBModeInq 81 09 04 35 FF...
- Page 16 Toll Free: 800-572-2011 ▪ Phone: 763-971-4400 ▪ FAX: 763-971-4464 www.vaddio.com ©2012 Vaddio - All Rights Reserved. Reproduction in whole or in part without written permission is prohibited. Specifications and pricing are subject to change without notice. Vaddio, ClearVIEW, ProductionVIEW, Quick-Connect, AutoPresenter, WallVIEW, EZCamera, HSDS and PowerRite are registered trademarks of Vaddio.
