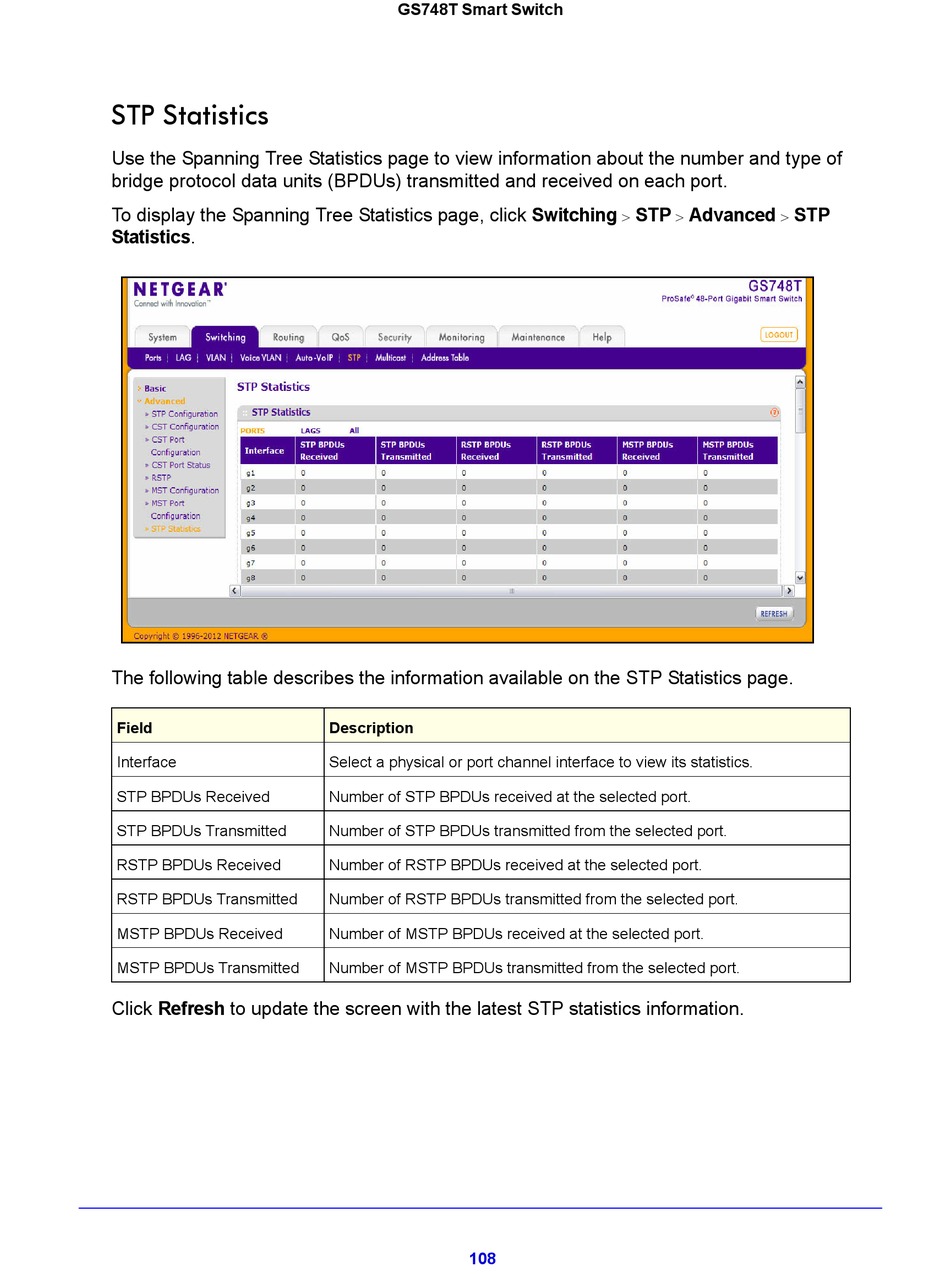

STP Statistics

Use the Spanning Tree Statistics page to view information about the number and type of
bridge protocol data units (BPDUs) transmitted and received on each port.
To display the Spanning Tree Statistics page, click Switching
Statistics.
The following table describes the information available on the STP Statistics page.
Field
Interface
STP BPDUs Received
STP BPDUs Transmitted
RSTP BPDUs Received
RSTP BPDUs Transmitted
MSTP BPDUs Received
MSTP BPDUs Transmitted
Click Refresh to update the screen with the latest STP statistics information.
GS748T Smart Switch
Description
Select a physical or port channel interface to view its statistics.
Number of STP BPDUs received at the selected port.
Number of STP BPDUs transmitted from the selected port.
Number of RSTP BPDUs received at the selected port.
Number of RSTP BPDUs transmitted from the selected port.
Number of MSTP BPDUs received at the selected port.
Number of MSTP BPDUs transmitted from the selected port.
108
